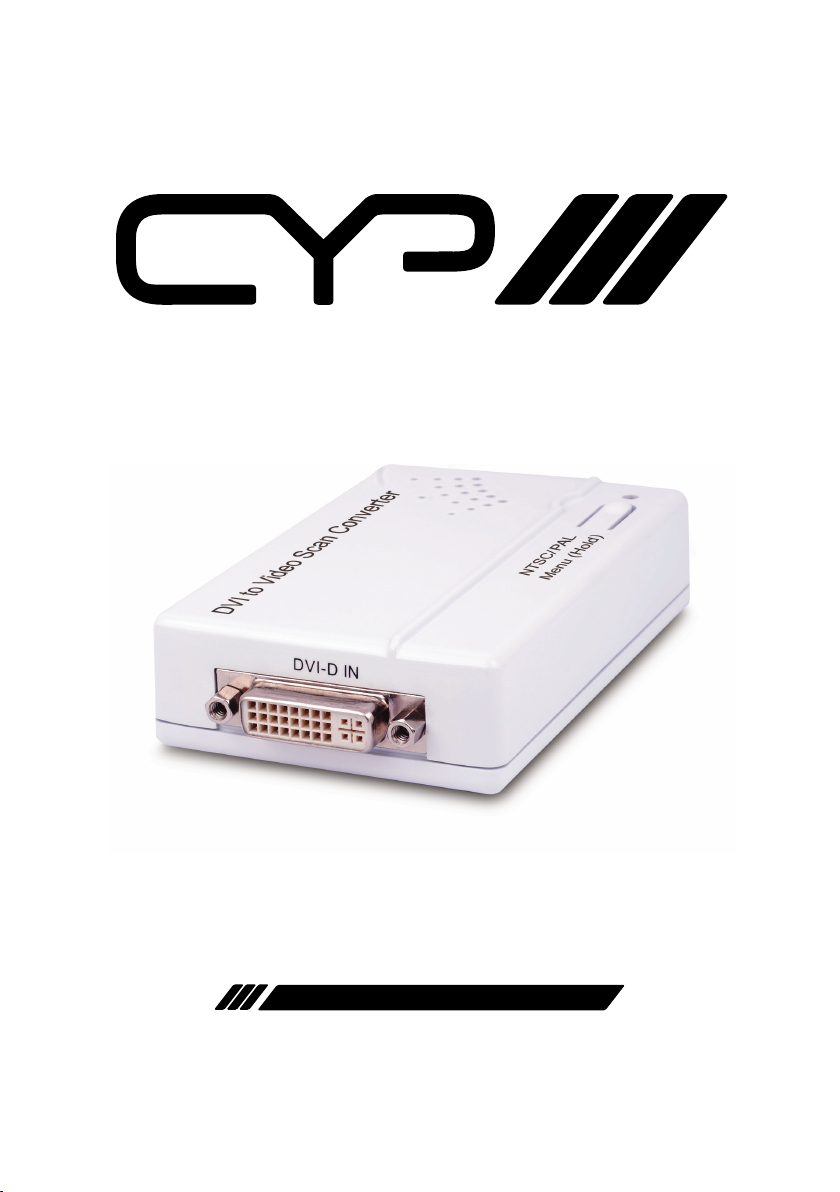

CYP CV-401D Manual de usuario
CV-401D
DVI-D to Video Scan Converter
OPERATIONS MANUAL
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
VR0 25/04/2011 Preliminary Release
VS1 25/04/2012 Updated format/diagrams
CONTENTS
1. Introduction ...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features ..................................................7
6. Operation Controls and Functions .......8
6.1 Top Panel ...................................................... 8
6.2 Left Panel ...................................................... 9
6.3 Right Panel ................................................... 9
6.3 OSD Menu ..................................................10
6.4 Support Input Timing ............................12
7. Connection Diagram .......................... 13
8. Specications ...................................... 14
9. Acronyms ............................................. 15
6
1. INTRODUCTION
The CV-401D DVI to Video Scan Converter is designed to convert digital
signals from a DVI-D source to an analogue Composite Video (CVBS)
signal for use in an NTSC or PAL system. The device is HDMI 1.2 & DVI
1.0 compliant and it features many great functions such like 3D noise
reduction, frame rate conversion, adaptive contrast enhancement. A
simple On Screen Display (OSD) function is available allowing the user to
easily adjust the settings for optimum display performance.
2. APPLICATIONS
• Display a DVI signal on a non-DVI TV or monitor
• Graphics Card signal display on CRT display
• Displaying a PC signal on a LCD display
3. PACKAGE CONTENTS
• DVI-D to Video Scan Converter
• Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
Input source equipment such as PC/Notebook with DVI cable and TV with
CVBS input jack and connection cable.
7
5. FEATURES
• DVI 1.0 compliant
• Converts video signal from DVI-D source to NTSC or PAL signal
• Accepts a wide range of DVI-D input resolution from 480p to
1080p@60Hz and PC from VGA to WUXGA@60HzRB
• 3D noise reduction in both temporal and spatial domain
• Frame rate conversion
• Adaptive contrast enhancement
• OSD Display
• Overscan and underscan adjustment
• Phase and Aspect adjustment
• No software installation required
Note: This product does not process HDCP input. When receiving content that
is HDCP encrypted there will be no video output.
8
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Top Panel
1 2
1
NTSC/PAL MENU (Hold): Press this button to bring up the On-Screen
Display (OSD) which will display the input timing and the output TV
format information.
When the OSD is displayed, press the button again to switch the
output TV system from NTSC to PAL and from PAL to NTSC.
Press this button for 3 seconds the OSD will bring up the selection
menu. Press it sequentially to select the required setting.
2
Power LED: This LED will illuminate in RED when the unit is connected
to the power supply.
9
6.2 Left Panel
1
1
DVI-D IN: Connect to the DVI equipped source equipment such as a
PC or notebook for DVI input signal with a DVI cable.
6.3 Right Panel
12
1
CV OUT: Connect to the output display TV or monitor with RCA cable
for display of the converted composite (CVBS) signal.
2
DV5V: Plug the 5 V DC power supply included in the package into the
unit and connect the adaptor to an AC wall outlet.
10
6.3 OSD Menu
IN 1280×960 @60 (Input Timing) Press the Menu button
once to bring up the OSD
and display the input (IN) &
Output (OUT) information.
OUT NTSC (Output TV System)
NTSC Press the Menu button
for 3 seconds to bring
up the OSD then press
it repeatedly to move
the OSD cursor to the
desired selection. Once
the selection is made, if
no button is pressed for a
few seconds, the display
on the OSD will disappear
and the display will output
the selected display
mode.
PAL
Underscan 1
Underscan 2
Overscan
Aspect Adj
Full Screen
Letterbox
Pan & Scan
Auto TV 4:3
Auto TV 16:9
Below is the example of the scan selection result.
4:3
Source TV Underscan1 Underscan2 Overscan
