CYP CP-1261HS Manual de usuario
CP-1261HS
PC/YUV to HDMI Format Converter with Audio
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 16/12/2011 Preliminary Release
VS1 26/07/2012 Updated format/diagrams
Reworded statements
VS2 25/02/13 Moved section 8.1 to 6.3
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 1
6. Operation Controls and Functions....... 2
6.1 Front Panel ........................................2
6.2 Rear Panel.........................................2
6.3 Resolution Support ...........................3
7. Connection Diagram ............................ 4
8. Specications ........................................ 5
9. Acronyms ............................................... 6
1
1. INTRODUCTION
The PC/YUV to HDMI Format Converter allows analog PC RGBHV or
YUV signals to be converted to digital HDMI format with embedding
of analog stereo audio at the same time. Connect your analog
RGBHV/YUV output from a PC or Component Video source to the
digital HDMI input of the latest HD ready plasma, LCD or DLP displays.
Its high bandwidth capability supports a wide range of PC and HDTV
resolutions. Further, its phase enhancement function allows users to
freely adjust phase to stabilize image quality.
2. APPLICATIONS
• Integrate analog PCs into HDMI Systems
• Integrate YUV sources into HDMI systems
• RGB signal conversion to HDMI display
• Component (YUV) signal conversion to HDMI signal
• Embedding Audio to HDMI
3. PACKAGE CONTENTS
• PC/YUV to HDMI Format Converter with Audio
• 1×3 RCA to D-sub 15-pin Adaptor Cable
• 1×5 V/1.2 A DC Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
PC source with 15-pin D-Sub/RGB cable or YUV source with 3 RCA to
D-Sub 15-pin adaptor cable and HDMI Display, AV receiver or system.
5. FEATURES
• Supports a wide range of YUV resolutions (480i~1080p)
• Supports analog audio 2CH (48kHz sampling rate)
• Supports hot plug detection
• Support YCbCr to RGB color space conversion
• Supports input format of RGBHV or YPbPr
• Supports input resolutions up to 1920×1200@60RB for PC and 1080p
for HD
• Supports phase adjustment
2
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
PC/YPbPr INPUT
RGB
YPbPr
INPUT
PHASE
DC 5V
1 2 3 4
1PHASE: Adjusts the output image when it appears to be blurry or
shaking.
2YPbPr/RGB INPUT: Switches between RGBHV and YPbPr signal input
formats.
3PC/YPbPr INPUT: Connect the 3 RCA to VGA adaptor cable
(included in the package) when the source is component (YUV) or
use a 15-pin D-Sub cable when the source is VGA.
4DC 5V: Connect to the supplied 5V DC power supply and connect
to an AC wall outlet. The red LED will light when powered.
6.2 Rear Panel
HDMI OUTPUTAUDIO INPUT
LR
1 2
1HDMI OUTPUT: Connect to an HDMI display or AV Receiver system.
2L/R AUDIO INPUT: Connect to the audio output of the source
device such as PC or Blu-ray player for stereo audio input. The
Audio will be embedded in the HDMI output.
3
6.3 Resolution Support
Input Format
Resolution RGB YPbPr
480i/p@60
576i/p@50
720p@50/60 720p@60
1080p@24/25/30
1080i@50/60
1080p@50/60 1080p@60
640×480@60/72/75/85
720×400@70
800×600@56/60/72/75/85
1024×768@60/70/75/85
1152×864@75
1280×720@60 cvt
1280×768@60/60 (RB)
1280×800@60/60 (RB)/75
1280×960@60
1280×1024@60/75/60 cvt
1366×768@60/60 (RB)
1440×900@60/60 (RB)/75
1600×1200@60
1680×1050@60/60 (RB)
1920×1080@60 cvt
1920×1200@60 (RB)
4

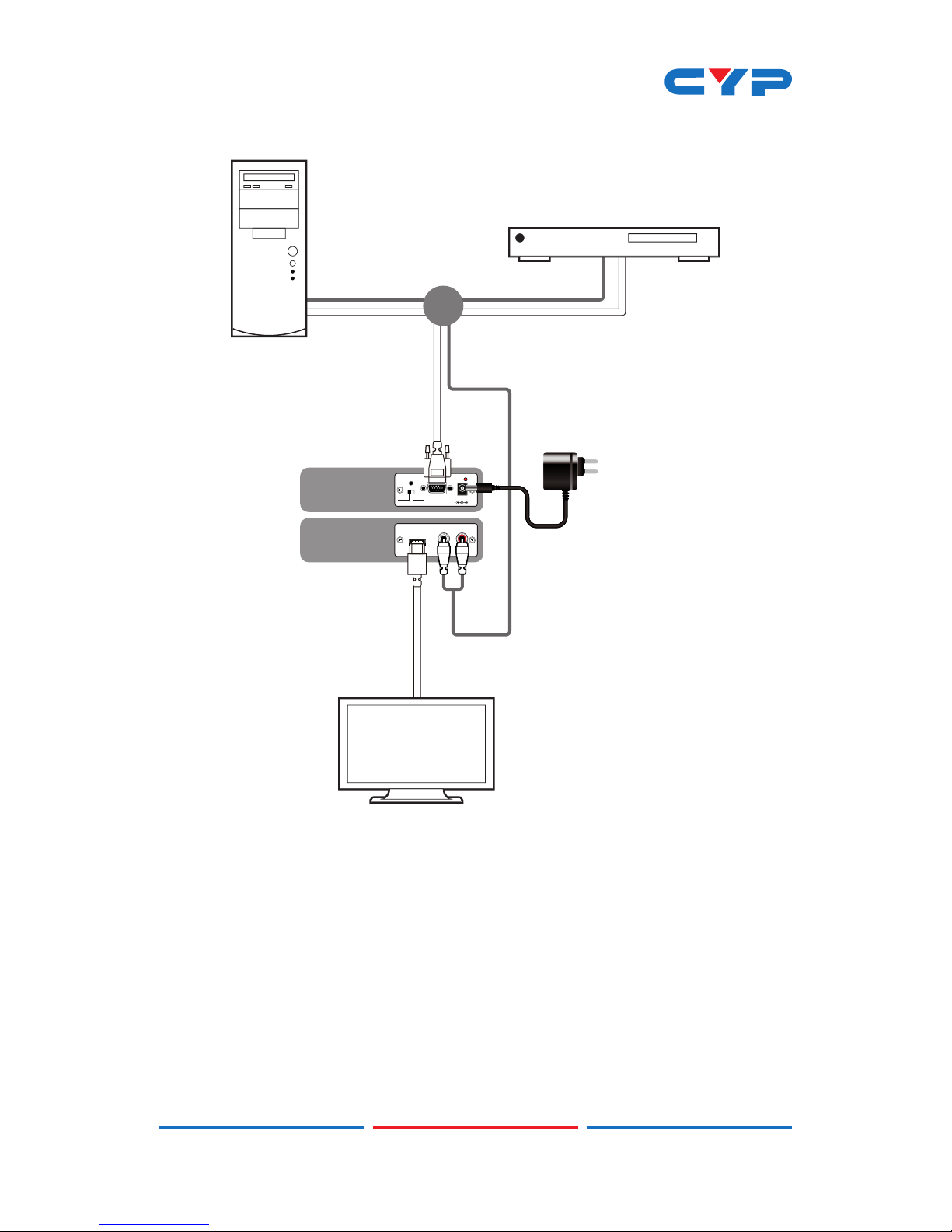

7. CONNECTION DIAGRAM
HDMI OUTPUT AUDIO INPUT
LR
PC/YPbPr INPUT
RGB
YPbPr
INPUT
PHASE
DC 5V
OR
DVD Player
(with YPbPr to D-Sub
15-pin Cable)
PC or Notebook
(with VGA D-Sub
15-pin Cable)
Power
Supply
TV or Monitor
HDMI
Output
Analog
Stereo
Input
VGA/Component
Input
Front
Rear
5
8. SPECIFICATIONS
Video Frequency 165 MHz
Input Port 1×D-Sub 15-pin, 1×L/R RCA jack
Output Port 1×HDMI
Input Signal RGB: 0.7, Vp-p 75 ohm, H+V:3~5Vp-p or
Y: 1Vp-p 75 ohm, Pv/Pr: 0.7 Vp-p, 75 ohm
Audio Input Analog audio L/R
ESD Protection Human body model:
±8kV (air-gap discharge)
±4 kV (contact discharge)
Power Supply 5 V/ 1.2 A DC (US/EU standards, CE/FCC/UL
certied)
Dimensions 76 mm (W)×105 mm (D)×30 mm (H)
Weight 190 g
Chassis Material Aluminum
Silkscreen Color Silver
Power Consumption 3.6 W
Operating Temperature 0 ˚C~40 ˚C / 32 ˚F~104 ˚F
Storage Temperature −20 ˚C~60 ˚C / −4 ˚F~140 ˚F
Relative Humidity 20~90 % RH (non-condensing)
