OPERATION MANUAL
OR-IR44
Infrared 4 x 4 Matrix
Table of Contents
1. Introduction 1
2. Features 1
3. Package Contents 1
4. Operation Controls and Functions 2
4.1 Front Panel Diagram 2
4.2 Rear Panel Diagram 3
4.3 Remote Control 4
4.4 IR Function Chart 5
4.5 IR Cable Pin Denitions 5
5. Connection Diagram 6
6. Specications 7
Page 1
1. Introduction
The OR-IR44 infrared matrix is designed for controlling up to four sources from four
display locations, using the original source remote controls or universal remote
controls. A true matrix design allows any of the four inputs to be routed to any (or
all) of the IR outputs giving full independent source to screen control.
This solution also has an additional master input and output. In addition to the
user-dened settings of the matrix, all incoming signals are routed to the master
output, and all master input signals are routed to all of the outputs. A 5-eye emitter
can be connected to the master output, giving the ability to control all four sources,
plus an AV matrix.
2. Features
• Infrared 4 x 4 Matrix with additional master input & output.
• Supports independent and total IR receiver and IR blaster selection and
control.
• Only infrared signals are supported. This product does not send any AV signals..
• Supports 30KHz ~ 50KHz IR frequency.
• Use your existing remote controls.
3. Package Contents
• 4 by 4 Infrared Matrix
• Remote Control CR33 with battery
• 5V DC power adaptor
• Operation Manual
• 5 * IR Receiver cables
• 5* IR Blaster cables
Page 2
4. Operation Controls and Functions

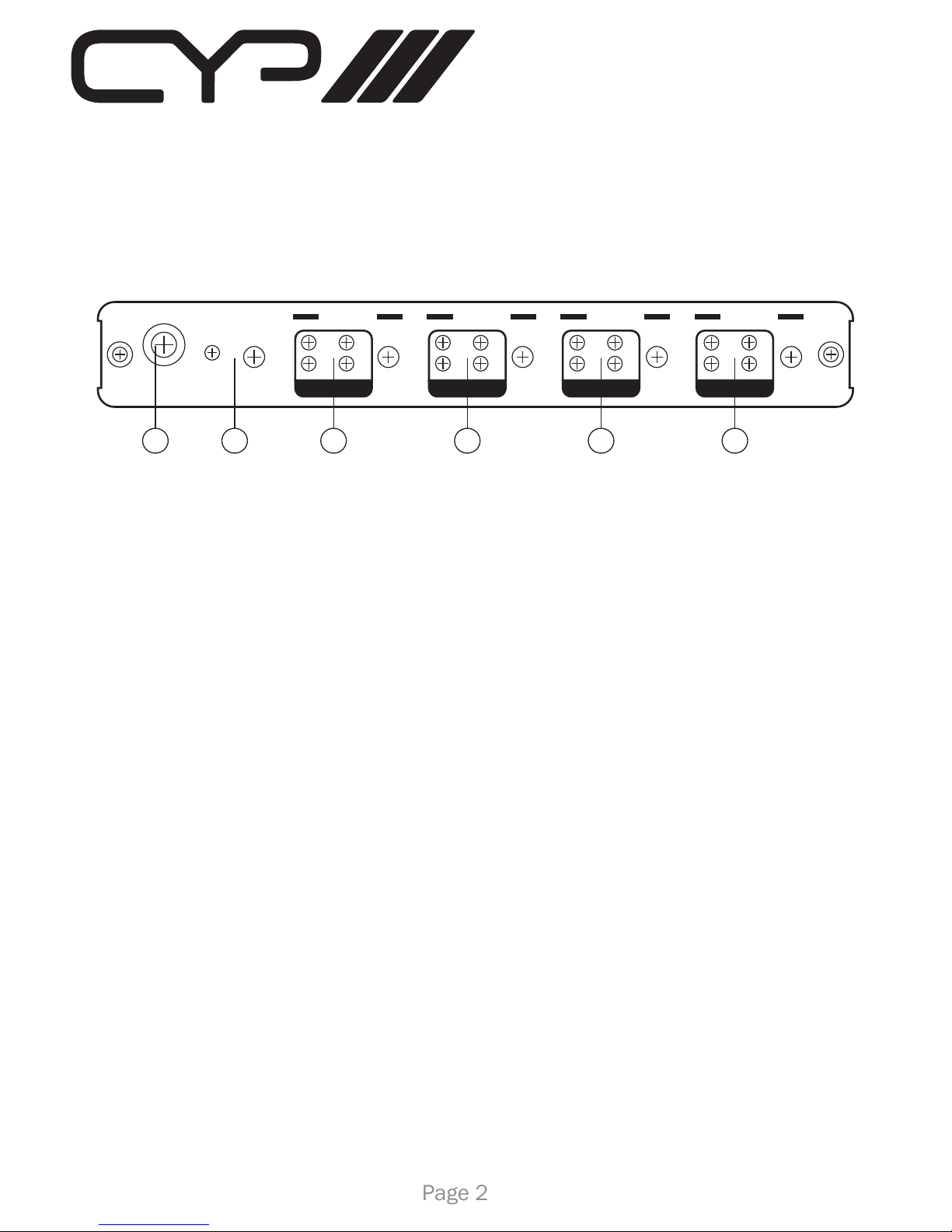

4.1 Front Panel
1. IR sensor: To control the system itself.
2. POWER Button & LED: Press to turn the unit on or again to put it into standby.
When the system is on the LED will be green, press again to enter STANDBY
mode, the LED will then be red.
3. IR IN 1 & output LED: Press the button to select which output IR signal will be
sent, the LED will then change according to the selection.
4. IR IN 2 & output LED: Press the button to select which output IR signal will be
sent, the LED will then change according to the selection.
5. IR IN 3 & output LED: Press the button to select which output IR signal will be
sent, the LED will then change according to the selection.
6. IR IN 4 & output LED: Press the button to select which output IR signal will be
sent, the LED will then change according to the selection. 3
1 2 3 4 5 6
POWER
OR-IR44
A C
B D
A C
B D
A C
B D
A C
B D
IR IN2 IR IN3 IR IN4
IR OUT IR OUT IR OUT IR OUT
IR IN1
Page 3
4.2 Rear Panel
1. IR OUT ALL: This slot is where you connect the IR blaster cable included in the
package. Place it in a way so that all sources and devices are able to receive
the infrared signal.
2. IR OUT A~D: These slots are where you connect the included IR blaster cables.
Place them in direct line of sight of the designated equipment that will receive
the infrared signal.
3. IR IN ALL: This is where you connect the IR receiver cable included in this
package. Place it anywhere you wish to control the source devices, using their
existing remotes.
4. IR IN 1~4: These slots are where you connect the IR receiver cables included
in the package. Place it near each display for receiving an IR signal through the
existing remote control.
5. DC 5V: Plug the 5V DC power supply into the unit and connect the adaptor to an
AC outlet.
E D C B A 5 4 3 2 1
DC 5V
IR OUT IR IN
1 2 3 4 5
Page 4
4.3 Remote Control
1. Power: Press the button to turn on/ standby the unit.
2. IR IN 1 Select for IR OUT A~D: Press A, B, C or D to select the desired IR out
for signal transmission.
3. IR IN 2 Select for IR OUT A~D: Press A, B, C or D to select the desired IR out
for signal transmission.
4. IR IN 3 Select for IR OUT A~D: Press A, B, C or D to select the desired IR out
for signal transmission.
5. IR IN 4 Select for IR OUT A~D: Press A, B, C or D to select the desired IR out
for signal transmission.
4
3
2
1
Page 5
IR OUT A IR OUT B IR OUT C IR OUT D IR OUT E
IR IN 1 ◎◎◎◎ ▲
IR IN 2 ◎◎◎◎ ▲
IR IN 3 ◎◎◎◎ ▲
IR IN 4 ◎◎◎◎ ▲
IR IN 5 △ △ △ △ △ ▲
IR Sensor X
4.4 IR Function Chart
4.5 IR Cable Pin Denitions
◎: IR in can select IR out
✕: Only accepts an IR signal from the unit’s remote control (included in the
package).
△: You do not have to select IR input as this device can receive IR signals
from all IR remote controls with a frequency between 30KHz~50 KHz
▲: You do not have to select input IR as this device can send IR signals to
all sources with a frequency between 30KHz~50 KHz
IR Receiver
① IR signal
② Power 5V
③ Grounding
① ② ③
IR Blaster
① ②
① Power 5V
② IR Blaster Signal
③ NC
③
Note: Both the IR Receiver & Blaster can support a frequency of
30~50KHz.
Page 6
5. Connection Diagram
Page 7
IR Frequency 30kHz to 50kHz
Input ports 4 x independent IR Blasters; 1 x total IR blaster control
Output ports 4 x independent IR Receiver; 1 x total IR receiver
control
IR Yes
Deep Colour 1080p 12bit
HDMI Resolution 480I~1080p 50/60, 1080p 24, VGA~UXGA
Power Supply 5VDC/1A (US/EU standards, CE/FCC/UL certied)
ESD Protection Human body model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
Dimensions (mm) 180(W) x 125(D) x 25(H)
Weight (g) 900g
Chassis Material Aluminum
Silk Screen Color Black
Operating Temperature Operating from 0°C ~ 40°C
Storage Temperature -20˚C~60˚C / -4˚F ~ 140˚F
Power Consumption 0.86W
6. Specications
Notes:
