CYP CMSI-8D8DS Manual de usuario

CMSI-8D8DS

8×8 DVI Matrix

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

RDV1 21/09/11 Preliminary Release

RDV2 16/02/12 LAN Function

VS0 26/04/12 Updated format, diagrams and

statements

RDV3 10/07/12 Control's Function

VS0 23/07/12 Telnet and Web GUI sections

updated

RDV4 04/10/12 Add Web GUI page

RDV5 04/06/13 RS-232 & Telnet's etIP Command

CONTENTS

1. Introduction............................................ 1

2. Applications........................................... 1

3. Package Contents ................................ 1

4. System Requirements............................ 1

5. Features.................................................. 2

6. Operation Controls and Functions....... 3

6.1 Front Panel ........................................3

6.2 Rear Panel.........................................4

6.3 Side Panel .........................................5

6.4 Remote Control................................5

6.5 RS-232 Pin Assignment .....................6

6.6 RS-232 and Telnet Commands .......7

6.7 Telnet Control ...................................8

6.8 Web GUI Control ............................10

7. Connection and Installation............... 12

8. Specications ...................................... 13

9. Acronyms ............................................. 14

1. INTRODUCTION

The 8×8 DVI Matrix is the perfect choice for the switching and

distribution of DVI sources. Connect up to eight DVI sources to eight

DVI displays allowing any source to be independently displayed on

any monitor. The Matrix can be controlled via its front panel, IR, RS-232

or Telnet and Web GUI over IP. The matrix supports a full range of PC

and HDTV timings up to WUXGA and 1080p, 2.25Gbps bandwidth, 12-

bit Deep Color, and 3D.

2. APPLICATIONS

• Commercial computer display matrixing

• Commercial advertising display

• University lecture hall display

• Retail sales demonstration

3. PACKAGE CONTENTS

• 8×8 DVI Matrix

• 1×24 V/6.25 A DC Adaptor

• 1×Remote Control

• 1×IR Extender

• Operation Manual

4. SYSTEM REQUIREMENTS

DVI source with DVI connection cables and output DVI displays with

DVI connection cables.

5. FEATURES

• HDMI, HDCP 1.1 and DVI compliant

• Supports HDMI 3D feature (with HDMI to DVI adaptor cable)

• Supports resolutions to VGA ~ WUXGA and 480i~1080p dependent

upon the output display's EDID settings

• Supports 3D signal dependent upon the output display's EDID

settings

• Supports IR extension

• Supports RS-232, remote control, on-panel control and IP Control

(Telnet & Web GUI)

• 2U size design

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

POWER LOCK

MENU OUTA 1B2C3D4

E5F6G7H8

8X8 DVI MATRIX CMSI-8D8DS

2 3 4 5 61

LCM: Displays the setting information of each input and output

setting.

POWER: Press this button to power the device on/off. The LED will

illuminate green when the power is on, red when it is in 'Standby'

mode.

LOCK: Press this button to lock all the buttons on the panel; press

again to unlock. The LED will illuminate green when locked.

IR: IR Receiver window (accepts the remote control signal of this

device only).

MENU: Press this button once to select EDID setting from STD

(internal) 1 or TV (external) 2; press it again to conrm the selection.

Note: For the 'TV' EDID setting, the unit will read and store the

EDID information of the display connected to HDMI output A. For

the 'STD' EDID setting the unit's built-in EDID setting will be used

(1080p@60/12-bit for video and LPCM 2CH for audio).

1~8/A~H and IN/OUT: Press the OUT or IN button to select the

output or input mode and then press the required number button

to make the selection accordingly.

For example, if outputs A~D need to be set to input 1 and outputs

E~H need to be set to input 2, then the following sequence of

button presses need to be performed:

Press: OUTABCDIN1MENU,

and then press: OUTEFGHIN2MENU.

Note: If the MENU button is not pressed the selection will not be

changed.

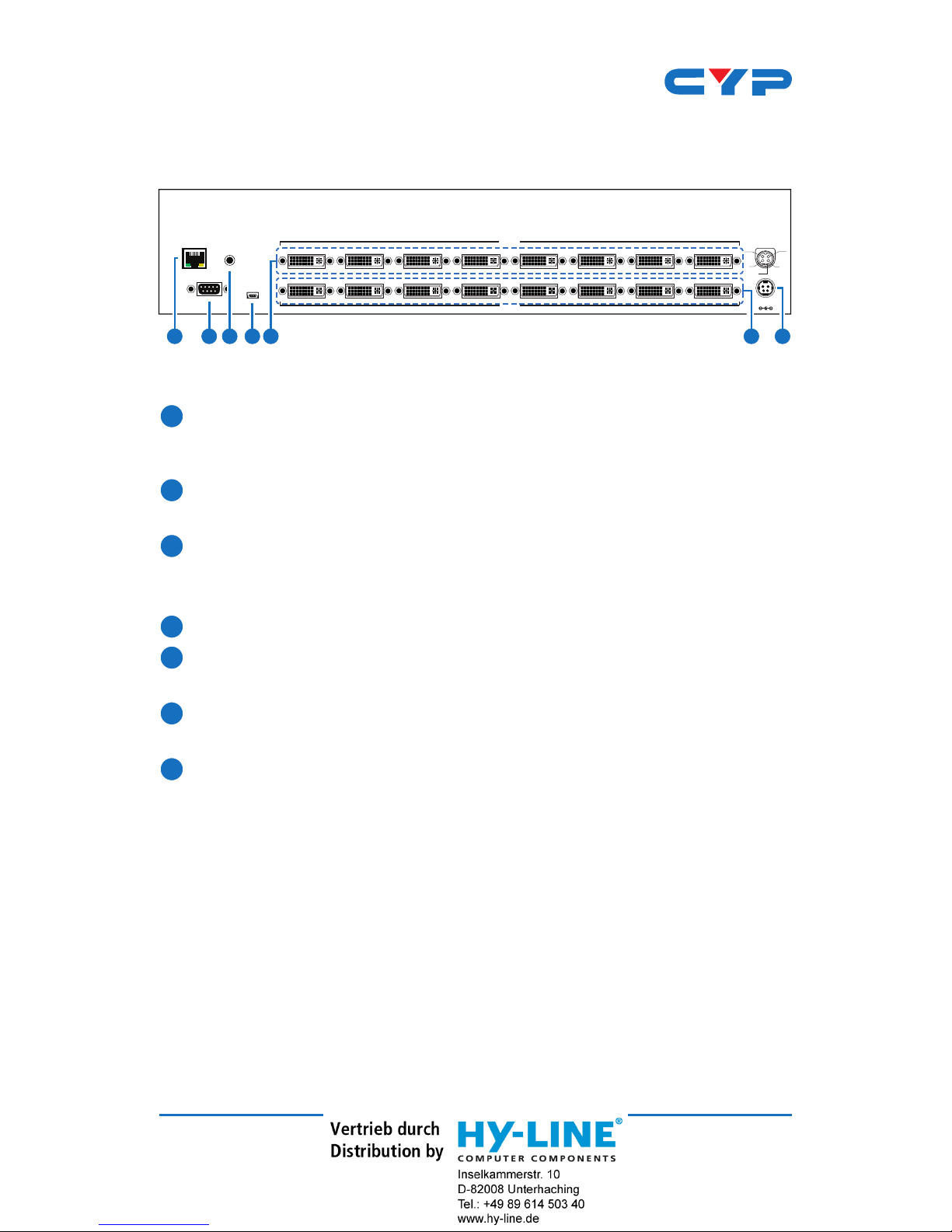

6.2 Rear Panel

IR-IN

RS-232 SERVICE

1234567

BCD

DVI IN

DVI OUT

EFG

DC 24V

V+

GND

GND GND

V+

CONTROL

2 3 54 6 71

CONTROL: This port is the link for Telnet and Web GUI controls,

connect to an active Ethernet link with an RJ45 terminated cable (for

further details, please refer to section 6.7 & 6.8).

RS-232: Connect to a PC or control system with D-Sub 9-pin cable

for the transmission of RS-232 commands.

IR-IN: Connect to the supplied IR extenders for IR signal reception

from the remote control of the Matrix. Ensure that the remote is

within the direct line-of-sight of the IR extender when used.

SERVICE: Manufacturer use only.

DVI OUT A~H: Connect to a DVI equipped TV/monitor for display of

the DVI input source signal.

DVI IN 1~8: Connect to DVI sources such as PC/Laptop or DVD/

Blu-ray player with HDMI to DVI adaptor cables.

DC 24V: Plug the supplied 24 V DC power supply into the unit and

connect the adaptor to an AC outlet.

6.3 Side Panel

Fan Ventilator: These are air ventilation areas, DO NOT block these

areas or cover it with any object. Please allow adequate space

around the unit for air circulation.

6.4 Remote Control

POWER: Press this button to switch on the

device or set it to standby mode.

IN: Input port selection 1~8.

OUT: Output port selection A~H.

CR-110

IN OUT

2 3
