1. INTRODUCTION

This 4K2K 4

4 Matrix with fast switch and control system allows 4HDMI

signal sources

to be

displayed in 4 connected

HDMI displays. Fast

switching

technology

can

greatly

eliminate

the

time

required

swapping

turning

ON/OFF

the

connected

displays.

Control

system

features

support

traditional direct

control

systems like

IR,

Relay and DC

trigger

and

besides

indirect

control

systems

Learning,

RS-232,

Telnet

and

WebGUI

controls.

Allowing

user

with

APP

controls

great flexibilities

over controlling devices. The

operation

the system

can

be easily managed

through

WebGUI

PC/Laptop or

APP

mobile

devices

and

moreover,

through

on-panel

buttons,

remote,

RS-232, Telnet

and Ethernet

protocols.

APPLICATIONS

•

Entertainment

Room

/ Home

Theater

Display and System Controls

•

Show

Room

/ Demo

Room

Display and System Controls

•

Lecture

Room/Hall Presentation

Display and System Control

•

Public Commercial

Display and System

Control

•

Information

Board

Display and System Control

PACKAGE

CONTENTS

•

1×4 by 4 HDMI 4K UHD Matrix with Fast Switch

•

1×Remote

Control

with

Battery

•

1×Left

Right

Rack

Ears

•

1×IR Extender Cable

•

1×5

V/3.6

Power

Adaptor

•

1× Power

Cord

•

4×Terminal

Blocks

•

1×IR

3.5 mm

Learner

Cable

(red dot)

•

3.5 mm IR

standard

Cable

•

1×IR

3.5 mm

Blaster

•

1×Operation

Manual

4. SYSTEM REQUIREMENTS

•

Input

source

equipment

such

Blu-ray/DVD/PS3

player

Set-

Top-Box and output HDMI TV/Display and or audio amplifier

with

connection

cables.

•

Control

system

input

devices

such

security

door/windows,

lights,

curtain,

devices

players,

sound

systems,

any

other

controllable

device with

IR/RS-232 or

net

service link design with

PC/

smart

phone

send commands

control

the

whole

system.

FEATURES

•

HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant

•

Support

4 HDMI inputs and 4 HDMI outputs

•

Supports HDTV resolutions up to 4Kx2K (3840x2160@24/25/30,

3840x2160@50/60_YUV420 & 4096x2160 @24, 4096x2160 @50/60_

YUV420)

•

Supports

individual EDID or

common

EDID

•

Supports

pass through

audio formats:

LPCM

2/5.1/7.1CH, Dolby

Digital

2~5.1CH,

DTS

2~5.1CH,

Dolby

Digital

Plus,

Dolby

TrueHD,

Dolby Atmos

and DTS-HD Master

Audio

•

HDCP 1.4 for

4 HDMI inputs and 4 HDMI outputs.

•

Input

port

HDCP support

Standard

and Apple mode.

The

Apple

mode

selection

guarantees

the

use

Apple devices

•

Compliant with

DVI source

(Not

support

Deep color

and Color

space YCbCr 422/444)

•

Supports

IR Learning

function:

Allows IR signals to

be stored

in the

system and used for

control

external devices

•

Supports

eight

Terminal

Block inputs with

voltage

5~15V

•

Supports

1 IR Learning

port,

8 IR outputs,

8 control

inputs, 8 Relay

outputs,

2 COM ports,

and 4 Ethernet

ports

•

Supports

Baud rates

up to

115,200bps

•

Supports

10/100Mbps Ethernet

network

connection

6. OPERATION CONTROLS AND FUNCTIONS

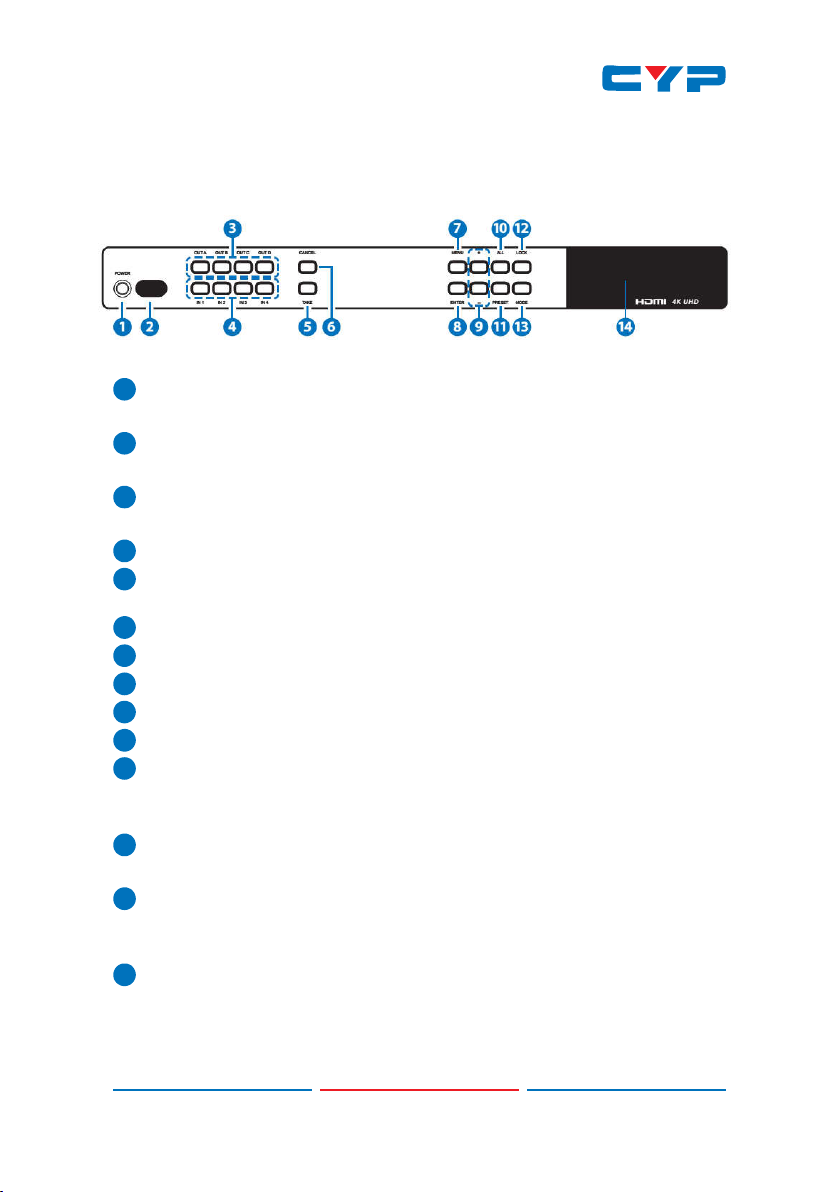

6.1 Front Panel

POWER: Press this button to turn ON the device and the LED will

be illuminated.

IR WINDOW: This IR Receiver receives the IR signal from the IR

Control provided with the CDPS-UC4H4HFS.

OUT A~D: Press OUT button, then IN button to select an input

source to an output display. i.e. OUT A→ IN1→TAKE

IN 1~4: Press IN button to select input from 4 sources.

TAKE: Press this button to confirm the selection of an IN and an OUT

button. If not pressed, the selection will not be executed.

CANCEL: Press this button to canceld the selection.

MENU: Press to enter into the menu.

ENTER: Press to confirm selection.

+/- : Press to select page up and down under menu select.

ALL: Press to select an input into all output.

PRESET: Pressing this button, the OLED shows the preset selection.

Select from IN 1~4 and press “TAKE” to confirm the selection or

press “CANCEL” to cancel the selection.

LOCK: Press to lock on all button functions on the front panel. Press

for 3 seconds to remove the lock function.

MODE: Press this button to switch in between the TAKE mode/Real

Time mode. OLED will show current selection on the top right side,

press TAKE to confirm the switch.

OLED: Display input and output selection and menu selection.

6.2 Rear Panel

IRL:

Connect

with

IR Receiver, provided with the unit,

for

signal learning.

Send

the

IR signal to

be learnt

direct

towards

the

Receiver

and use WebGUI

store

the

code.

For details please refers

section

6.10.4

Note:

Although

both

IR Extender

and IR Learner

may look

the

same,

they

are

however

different.

IR Extender

designed with

more reddish color

whereas

IR Learner

has

a brownish

color

and

“

red dot”

the

back.

Please pay

extra attention

in connecting

and using

it.

INFRARED OUT 1~8: Connect with IR Blaster for IR signal transmitting.

HDMI IN 1~4: Connect the four source equipments.

TRIGGER IN 1~8: Connect with external event device signals such

window security alarm, door switch, etc…

The trigger IN 1÷8 ports are isolated current loop with no reference to

ground. The upper leads are positive and lower leads are negative

In the example below drawn, the external sensor permits the current flow

from positive to negative terminal. The user must limit the current with an

external resistor (typically 1Kohm). The external sensor can be a “dry

contact” or an “open collector” device. The threshold is about 6 mA

Warning:

The trigger event causes the execution of the Macro

with the same number

For example, the event on trigger N°1, if enabled,

causes the execution of the Macro N°1

It’s possible to set by GUI the mode of the event

(rise, falling, change).

When the input trigger is disabled

the event on the input trigger has no effect.

RELAY OUT 1~8: N° 8 dry contacts are provided to

perform the necessary external functions .

HDMI OUT A~D: Connect the four destination devices

COM 1~2: Connect to peripherals that present RS-232 for

control purpose. Use also TELNET client to send command

directly to the peripherals. Set the connected port to 7501 for

COM 1 and 7502 for COM2.

LAN1~4: Connect with devices that present RJ-45 input for control

and data transmitting within the connected LAN system.

SERVICE: This slot is reserved for firmware update only

CONTROL: Connect to PC/Laptop with active internet service

or Ethernet switch/Hub for WebGUI control and data transmitting.

RS-232: Connect to PC/Laptop to control the CDPS-UC4H4HFS by

the whole RS-232 command set

IR IN: Connect the IR Receiver included in the package for IR

signal receive from the provided IR remote control.

DC 5V: Connect the adaptor with power cord included in

the package and connect to AC wall outlet for power

supply.

6.3 Remote Control

1 POWER: Press this button to switch the

matrix ON/Stand-by

2 OUT A÷D:

Press one button to select OUT;

then press IN 1÷4 to select the input to be

routed

3 IN 1÷4:

Press one button to select the input

to be routed to the output previously

selected

4 ALL:

Press this button to select all outputs

5 TAKE:

Press this button to confirm the

previous selection OUT / IN. If not pressed, the

selection is not executed

6 CANCEL:

Press this button to cancel the

selection

7 PRESET: Press this button, the OLED shows the preset selection. Select IN

1÷4 and press TAKE to confirm or CANCEL to clear.

8 LOCK: Press to lock the keypad integrated to

CDPS-UC4H4HFS. Press

again to remove the lock function

9 MENU: Press to enter in the Menu

10 ENTER: Press to enter in the menu selections

11 +/- : Press to select the page of the Menu up and down

12 MODE: Press to switch between TAKE mode and Real Time mode

(OUT IN or IN OUT)

Otros manuales para Elpro Video Labs CDPS-UC4H4HFS

Tabla de contenidos

Otros manuales de Conmutador de matriz de CYP

CYP

CYP PU-16HBT Manual de usuario

CYP

CYP CMIR-882 Manual de usuario

CYP

CYP CPLUS-1082CVEA Manual de usuario

CYP

CYP CPLUS-662CVAL Manual de usuario

CYP

CYP PU-424HBTL-KIT Manual de usuario

CYP

CYP OR-HD44E Manual de usuario

CYP

CYP OR-DVI88SA Manual de usuario

CYP

CYP CMSI-46PL Manual de usuario

CYP

CYP CMPRO-4H4H Manual de usuario

CYP

CYP CPLUS-V4H4H Manual de usuario

CYP

CYP OR-42UHD Manual de usuario

CYP

CYP PU-16H8HBT Manual de usuario

CYP

CYP CMSI-8H8CVL Manual de usuario

CYP

CYP EL-42M-PIP Manual de usuario

CYP

CYP CMSI-4H4CVL Manual de usuario

CYP

CYP CMSDI-1616S Manual de usuario

CYP

CYP HDBT PU-4H4HBTE-4K Manual de usuario

CYP

CYP CMSDI-164 Manual de usuario

CYP

CYP nT14AX16 Manual de usuario

CYP

CYP Elpro Video Labs CDPS-UC4H4HFS Manual de instalación

CYP

CYP PU-44XL-KIT Manual de usuario

CYP

CYP CMPRO-UA8H8CVE Manual de usuario

CYP

CYP CMPRO-U4H4CVPL Manual de usuario

CYP

CYP CDPS-UA6H2HFS Manual de usuario

Manuales populares de Conmutador de matriz de otras marcas

Broadcast Tools

Broadcast Tools SS 8.2 Manual de usuario

Altimium

Altimium MATF32 Manual de usuario

ALFAtron

ALFAtron ALF-MUK44N Manual de usuario

Monoprice

Monoprice Blackbird 15377 Manual de usuario

Kramer

Kramer XL 3216VS Manual de usuario

PTN

PTN FMX12 Manual de usuario

Kramer

Kramer VP-2x2 Manual de usuario

Kramer

Kramer Sierra Video 6432V5xl Manual de usuario

TESmart

TESmart HMA0402A40 Manual de usuario

Octava

Octava HD4XSTPMX Manual de usuario

Intelix

Intelix FLX-88 Instrucciones de funcionamiento

Kramer

Kramer LASSEN XL 3232S Manual de usuario

Roland

Roland XS-1HD Manual de usuario

Kramer

Kramer VS-66HDCPxl Manual de usuario

Atlona

Atlona AT-HDMI-22M Manual de usuario

Link

Link HD8X8 Manual de usuario

AMX

AMX AVS-OP-2020-117 Instrucciones y recetas

Lindy

Lindy 38042 Manual de usuario
