AU-D820S
8 x 20 Digital Audio Switch and Distribution Amplier
OPERATION MANUAL
3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 03/06/14 First release
5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features..................................................7
6. Operation Controls and Functions.......8
6.1 Front Panel................................................... 8
6.2 Rear Panel..................................................... 9
6.3 RS-232 Protocols......................................10
6.4 RS-232 & Telnet Commands.................10
7. Connection Diagram .......................... 11
8. Specications...................................... 12
8.1 Technical Specications ........................12
8.2 Input/Output Compatibility ................13
6
1. INTRODUCTION
The AU-D820 allows the user to switch and distribute 4 Digital Coaxial
inputs and 4 Digital Optical audio inputs to 10 Digital Coaxial and 10
Digital Optical outputs. Select any audio input for distribution of the audio
signal to all outputs simultaneously. Incoming audio signals are converted
to allow all optical and coaxial outputs to operate simultaneously.
Supporting sampling rates up to 192kHz and audio signal up to 5.1CH,
this device maximises audio distribution to multiple outputs. A typical
application for this switching and distribution device is for use in retail
environments such as a hi- store. It allows multiple audio source signals
to be easily managed for demonstration of sources and ampliers to a
consumer, for example.
Control is via selection buttons on the device or via IR or RS-232..
2. APPLICATIONS
Home sound system
Conference and meeting room audio system sharing
Show Room sound system
Public audio system
3. PACKAGE CONTENTS
Coaxial and Optical Switcher/Distributor
Remote Control CR-137
5V/2.6A DC Power Adaptor
Operation Manual
4. SYSTEM REQUIREMENTS
Input source equipment such as Blu-ray/DVD/PS3 player or Set-Top-Box
and output with active speakers or sound systems.
7
5. FEATURES
Supports 4x Coaxial + 4x Optical Inputs, and 10x Coaxial + 10x Optical
outputs
Supports LPCM 2-Channel Audio signals
Supports up to 192kHz Sampling Rate
Supports Dolby & DTS audio bypass
8
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
COAXIAL & OPTICAL
SWITCHER / DISTRIBUTOR
POWERPOWER INPUT11234
COAXIAL
1234
OPTICAL
4 5321
1IR Window
Receive IR signal from the included Remote Control.
2POWER Button
Press this button to turn ON or set the device to standby mode.
3POWER LED
This LED will illuminate in Green when the device is turned ON and in
Red when in standby mode.
4COAXIAL & OPTICAL LED 1~4
These LEDs will illuminate according to the input selection.
5INPUT Button
Press this button to select input Coaxial and Optional from 1~4.
9

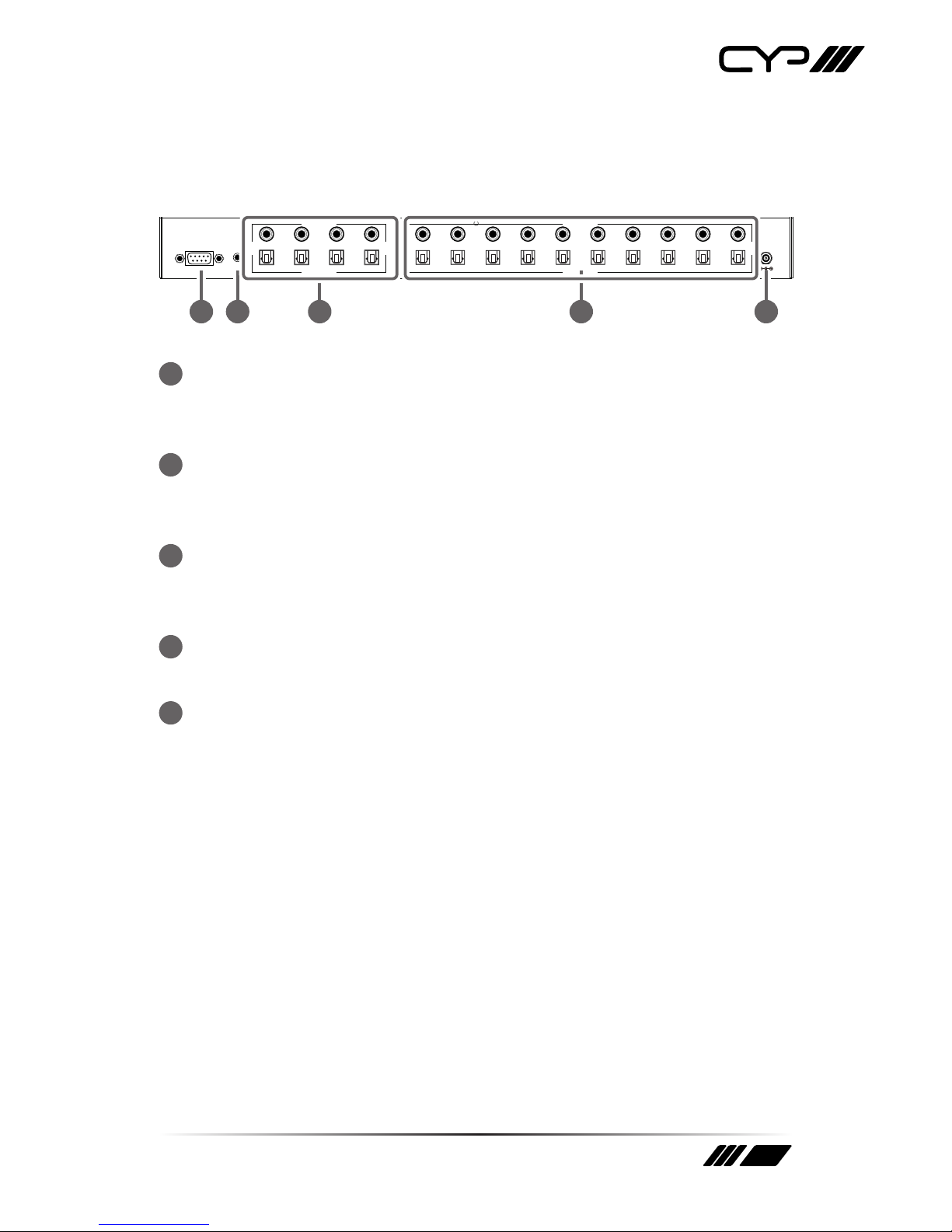

6.2 Rear Panel
OPTICAL IN
COAXIAL IN
112345678910234
OPTICAL OUT
COAXIAL OUT
DC 5V
RS-232 IR IN
1 2 3 4 5
1RS-232
Connect from a PC/Laptop device with RS-232 tool to send RS-232
command to control the device.
2IR IN
Connect with IR Receiver included in the package for IR signal
receiving from the remote control.
3COAXIAL & OPTICAL IN
Connect from source equipment such DVD, Blu-ray, PS3 or etc. with
audio signal.
4COAXIAL & OPTICAL OUT
Connect to active speakers or audio equipment for audio distribution.
55V DC
Connect with power supply from the AC wall outlet.
10
6.3 RS-232 Protocols
AU-D820S
►
◄
Remote Control
PIN Assignment PIN Assignment
1 NC 1 NC
2Tx 2 Rx
3 Rx 3 Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 115,200 bps
Data bit: 8 bits
Parity: None
Flow Control: None
Stop Bit: 1
6.4 RS-232 & Telnet Commands
Command Status
POWER OFF/ON Set Power Status
INPUT COAX 1~4 Choose a Coaxial input
INPUT OPTICAL 1~4 Choose an Optical input
STATUS Show Current Information
?/H/HELP Show all commands
All RS-232 commands will be not executed unless followed with a carriage
return. All commands are case-sensitive.
11
7. CONNECTION DIAGRAM
