CYP CHDMI-18C Manual de usuario
1x8 HDMI
Distribution
Amplifier
Operation Manual
CHDMI-18C
Introduction
The CHDMI-18C is a high performance HDMI distribution amplifier, Full HD
1080P supported with 25m output range.
It allows one HDMI source to connect up to 8 HDMI displays simutaneously.
Features
1. Built-in EDID simulator and HDCP keyset allows each output to work
independently in connecting to a HDMI display.
2. Splits a HDMI source up to 8 outputs without signal loss.
3. Compliant with HDMI 1.2, HDCP 1.1 and DVI 1.0 specifications.
4 Supports a wide range of PC and HDTV resolutions from VGA to UXGA
and 480p to 1080p. Maximum resolution bandwidth is165MHz.
5. Provides multi-channel I2S digital audio output, with sampling rate up
to 192KHz.
6. Supports both compressed and uncompressed multi-channel audio.
Operation Controls and Functions
Front Panel
1. Power LED indicator:
The LED will illuminate when the power is connected.
Rear Panel
1. HDMI outputs 5/6/7/8:
Connect each of the output ports to the HDMI input of a HDMI display.
2. HDMI input:
Connect to the HDMI or DVI output of your source equipment such as
DVD player or set-top-box.
3. HDMI outputs 1/2/3/4:
Connect each of these output ports to the HDMI input of a HDMI display.
4. Power:
Plug the 5V DC power supply into the CHDMI-18C and connect the adaptor
to AC wall outlet.
1 2 3 4
DC 5V
HDMI OUTHDMI OUTHDMI OUTHDMI OUT HDMI IN
12
HDMI OUT
3
HDMI OUT
47
HDMI OUT
6
HDMI OUT
58
1
POWER
Splitter 1 to 8
Specifications
* Frequency bandwidth: 1.65Gbps(single link)
* Input/Output: 1-in/8-out HDMI female ports
* DC 5V 6A power supply
* Operating temperature range: 0o~ 40oC
* Dimensions: 300(W) x104(D) x 25(H)mm
* Weight: 906g

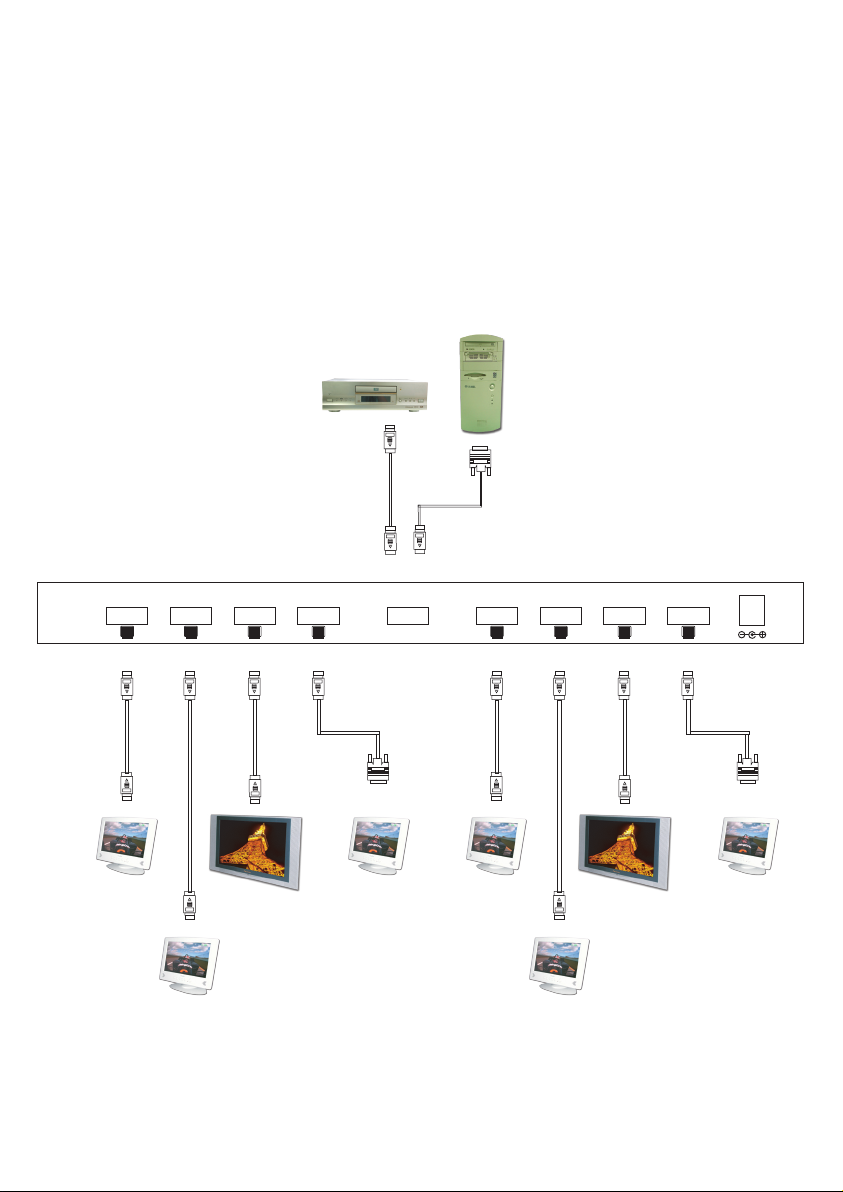

Connection and Installation
DVD or Set-Top-Box
PC
DVI to
HDMI
Cable
or
HDMI display
HDMI to DVI Cable
HDMI
Cable
HDMI
Cable
LCD TV
HDMI
HDMI
Cable
HDTV PC Monitor
HDMI
HDMI
HDMI
HDMI
HDMI
Cable
HDMI
HDMI
HDMI
HDMI
HDMI
HDMI display
HDMI to DVI Cable
HDMI
Cable
HDMI
Cable
LCD TV
HDTV PC Monitor
HDMI
HDMI
HDMI
Cable
HDMI
HDMI
HDMI
HDMI
HDMI
DC 5V
HDMI OUTHDMI OUTHDMI OUTHDMI OUT HDMI IN
12
HDMI OUT
3
HDMI OUT
47
HDMI OUT
6
HDMI OUT
58
