OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0618- rev 8

ELECTRIC FAN HEATERS

MODEL NO: DEVIL 6003,6005,6009 & 6015

PART NO: ,6925220, 6925225, 6925230 & 6925235

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE product.

This heater is only suitable for well insulated spaces or occasional use.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

THE FOLLOWING TABLE ADDRESSES THE INFORMATION

REQUIREMENTS OF REG.2015/1188

Item Symbol Value Unit

Heat output

Measured seasonal space heating energy efficiency 36%

6003 6005 6009 6015

Nominal heat output Pnom 35915kW

Minimum heat output (indicative) P min 1.5 5 kW

Maximum continuous heat output P max 35915kW

Auxiliary electricity consumption

At nominal heat output elmax n/a kW

At minimum heat output el min n/a kW

In standby mode elSB n/a kW

Type of heat input for electric storage local heaters only

Manual heat charge control with integrated thermostat n/a

Manual heat charge control with room and/or outdoor temperature feedback n/a

Electronic heat charge control with room and/or outdoor temperature

feedback

n/a

Fan assisted output n/a

Type of heat output/room temperature control (select one)

Single stage heat output, no temperature control No

Two or more manual stages, no temperature control No

With mechanical thermostat temp control Yes

With electronic temperature control No

Electronic temperature control with day timer No

Electronic temperature control with week timer No

Other control options (multiple selections possible)

Room temperature control with presence detection No

Room temperature control with open window detection No

Room temperature control with distance control option No

Room temperature control with adaptive start control No

Room temperature control with working time limitation No

Room temperature control with black bulb sensor No

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SAFETY SYMBOLS

The following symbols appear on the unit.

SAFETY RULES

Make sure that you read, understand and comply with the following.

POSITIONING

• Heater is designed for indoor use only.

• DO NOT place the heater close to a bath, wash basin, shower, swimming

pool or any other water-filled area or wet surface. DO NOT place the

heater up against any surface such as a wall, door or furniture etc.

• DO NOT place the heater immediately below any electrical outlet.

• NEVER place the heater near combustible materials such as curtains,

furniture etc. Allow at least 2 metre clearance.

• DO NOT place the heater on a raised surface or anywhere where it

could topple over

• Take care to ensure that the grille cannot be blocked by curtains or

other fabrics.

• Do not operate fan heaters in explosive atmospheres such as in the

presence of flammable liquids, gases or dust such as in a paint spray

booth or any explosive environment. Electric motors create sparks which

may ignite dust or fumes.

COMMON SENSE

• DO NOT operate the heater when you are tired or under the influence of

alcohol, drugs or intoxicating medication.

Hot

Surface,

Do Not

Touch

Do Not

Cover

High

Voltage

WARNING: DO NOT USE THE HEATER NEAR FLAMMABLE MATERIAL,

LIQUIDS, SOLIDS, GASES OR COMPRESSED GAS CYLINDERS ETC.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

• DO NOT stand on the heater.

• DO NOT use the heater with wet hands or when there is water on the

power cable.

• Turn the heater off when not in use and keep it in a safe, dry, childproof

location.

• The heater is designed to heat enclosed areas larger than 4m3, such as

workshops and other industrial areas. Do not use the heater for any other

function. It is not suitable for drying clothes or laundry.

• Young children must be kept away unless continuously supervised.

OPERATION

• The heater must only be used by people who have read these

instructions and have been trained in its use.

• DO NOT obstruct the heater.

• DO NOT cover the heater.

• DO NOT touch the heater casing or grille when first switched off, as these

will be very hot and will take time to cool.

• DO NOT get the heater wet or use in areas of high condensation.

• DO NOT allow the power lead to touch hot surfaces.

• DO NOT connect other appliances to the same mains socket as the

heater.

• Only use the heater in an level position.

• Do not use this heater with a programmable timer used to switch it on

automatically.

ELECTRICAL SAFETY

• Regularly inspect the power cable / plugs and all electrical connections

for signs of damage/looseness. Do not use the heater it the power cable

is damaged.

• Minimise the risk of electric shock by installing a RCCB (Residual Current

Circuit Breaker) and a suitable 3-phase isolator into the main distribution

board.

WARNING: THIS HEATER MUST BE FITTED WITH A SUITABLE SUPPLY CABLE

AND PLUG. CLARKE PART NUMBER 6925237

WARNING: THIS HEATER MUST BE EARTHED

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

• Make sure that the voltage on the rating plate is the same as the

voltage of the power supply. If in doubt, consult a qualified electrician.

• Do not abuse the electrical cable. Never use the cable for pulling or

unplugging the heater.

• Keep the cable away from sources of heat, oil, sharp edges or moving

parts. Damaged or tangled cables increase the risk of electric shock.

• Do not use extension cables with this heater.

MAINTENANCE.

• Check that the heater is in good working order. Take immediate action

to repair or replace damaged parts.

• Do not allow the heating elements to become covered with dust which

could become a fire hazard. If used in a dusty workplace it should be

cleaned as described under Cleaning and Maintenance.

• Use recommended parts only. Unapproved parts may be dangerous

and will invalidate the warranty.

• DO NOT attempt to repair a damaged heater, contact the Clarke

service department.

SERVICE & REPAIRS

• Have your appliance repaired by a qualified person using identical

replacement parts. This will ensure that the safety of the appliance is

maintained.

WARNING: DISCONNECT THE HEATER FROM THE POWER SUPPLY, BEFORE

SERVICING OR PERFORMING ANY MAINTENANCE. SERVICING OR

MAINTENANCE MUST ONLY BE CARRIED OUT BY THE CLARKE SERVICE

DEPARTMENT.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ELECTRICAL CONNECTIONS

DEVIL 6003 (3KW) HEATER UNITS

Connect the mains lead to a standard 230Volt 50Hz electrical supply through

an approved 13 amp BS1363 plug or a suitably fused isolator switch.

If the plug has to be changed because it is not suitable for your socket, or due

to damage, it should be cut off and a replacement fitted, following the wiring

instructions shown below. The old plug must be disposed of safely, as insertion

into a mains socket could cause an electrical hazard.

If the colours of the wires in the power cable of this product do not correspond with the

markings on the terminals of your plug, proceed as follows.

•The BLUE wire must be

connected to the terminal

which is marked Nor

coloured Black.

•The BROWN wire must be

connected to the terminal

which is marked Lor

coloured Red.

•The YELLOW & GREEN

wire must be connected

to the terminal which is

marked E or or

coloured Green.

We strongly recommend that this machine is connected to the mains supply

via a Residual Current Device (RCD).

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs

yourself.

DEVIL 6005 (5KW), DEVIL 6009(9KW) AND DEVIL 6015(15KW) UNITS

These heaters MUST be connected to a 400 Volt, 3 PHASE 50Hz supply through

a suitably fused isolator switch. They cannot be operated from a single phase

supply.

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS

THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS

SUPPLY.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE

COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH

Plug must beB1363/A approved.

Always fit

Ensure the outer sheath of the

Neutral

(Blue)

Live

(Brown)

Earth

(Green and

a 13 Amp

fuse.

cable is firmly held by the clamp

Yellow)

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

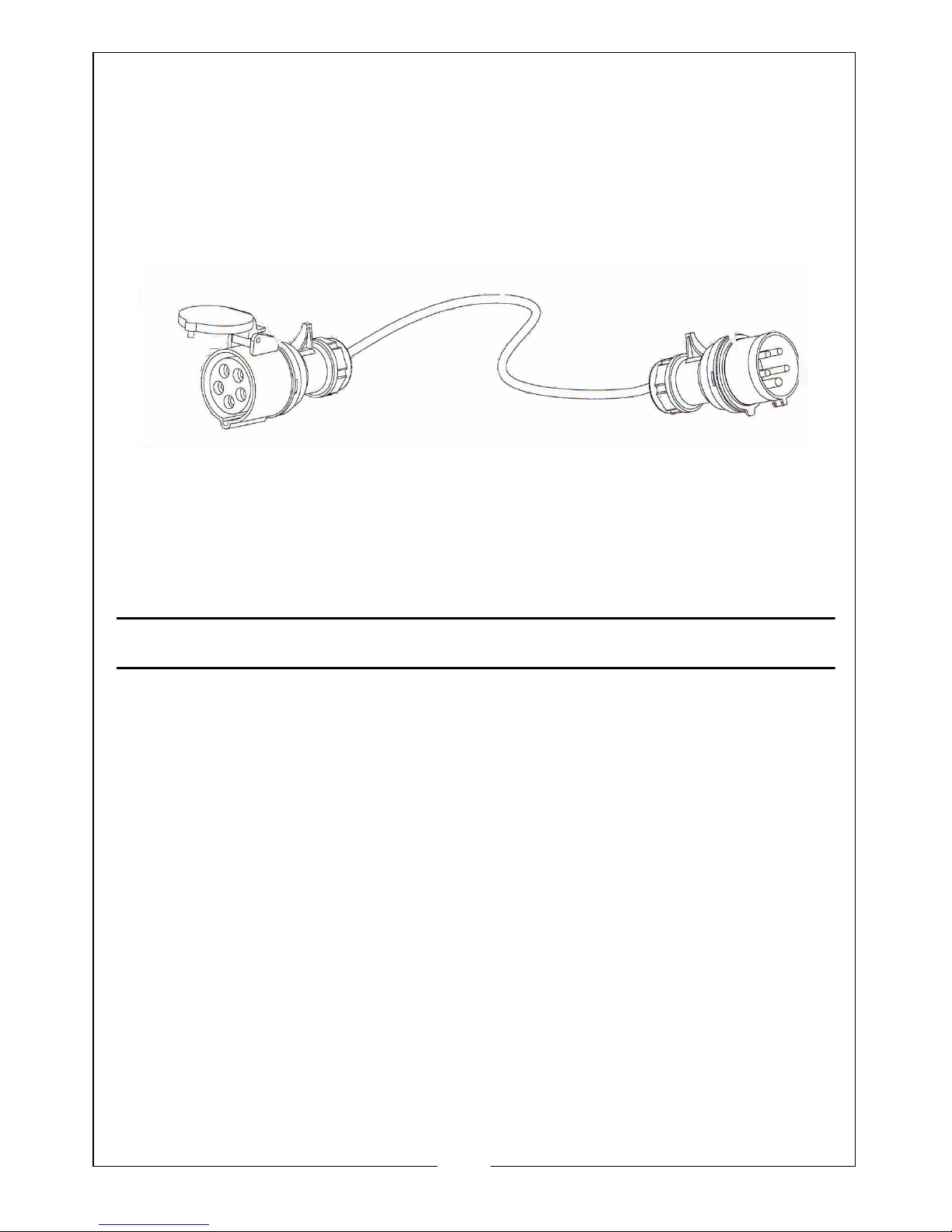

The user should purchase a suitable connecting lead as shown in the diagram,

which is compatible with the appliance socket. The unit requires 5 pins

including a master earth pin, and is suitable for AC 380/415v, 50/60Hz with a

capacity of 16A/6h (Devil 6005 and 6009) or 32A/6h (Devil 6015) and rated at

IP44 class (or better) insulation. A length of 2-3 metres is recommended

asgiving mobility to the appliance but without becoming a trip hazard.

The plug incorporates a hood which will secure the cable in position when

engaged with the appliance.

If in any doubt, consult a qualified electrician. DO NOT attempt any electrical

repairs yourself.

OPERATION

The Devil range of fan assisted electric heaters are suitable for household

(Devil 6003 only) or workshop/factory use. They incorporate a thermostat

which detects the temperature of the room air and controls the heater to

maintain a pre-selected temperature between 0 & 40°C. A manually reset

thermal cutout is provided for safety in the event of overheating on the 6005,

6009 & 6015 models. The 2kw and 3kw units are fitted with a self-resetting

thermal cutout. The fan motor runs independently of the thermostat and

continues running after the heating element has been switched off.

With the heater sited on a firm level surface and at a safe distance from

flammable objects (in compliance with all safety precautions), plug the

heater into the mains and set the thermostatic control to the maximum

temperature setting. Switch the heater on to one of the following power

settings. Once the room reaches the required temperature, you should turn

the thermostatic control slowly anti-clockwise until the heater switches off. The

heater will now start and stop automatically to maintain the room

temperature.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

3 KW HEATERS

The 3kw heater has three settings for 1) fan only, 2) fan plus single heating

element, 3) fan plus both heating elements. The other control is a progressive

thermostat which is rotated through 270 degrees. A cutout is used to

maintaina constant pre-set temperature.

The thermostat will then switch the heater on and off automatically to control

the room temperature according to the pre-set value, maintaining a constant

room temperature.

When using the heater to warm a cold room, first turn the thermostat to MAX

and run the heater on full power until the room temperature reaches the

required value, then turn the thermostat anti-clockwise until it switches off.

When using the heater for the first time a slight emission of smoke may be

noticed. This is quite normal and soon stops. It is caused by residual traces of oil

remaining on the element from production.

After use, turn the thermostat to the OFF position and the selector switch to the

Fan Only position, and leave the unit to cool down for a couple of minutes.

5KW, 9KW &15KW HEATERS

The 5 & 9kw units have a three-position twist control for FAN only, and FAN plus

either half or full heat output. The 15kw unit has a four position control;- FAN

only, FAN + 1/3, FAN + 2/3 & FAN + full heat output. A thermostatic

temperature control is also provided for fine control of heat output at a

constant pre-set temperature.

Should the heater overheat, a thermal cutout will operate, shutting down the

unit. If this happens, allow time for the unit to cool (approx. 10 minutes) before

pressing the RESET using a suitable tool, and restarting the heater.

When switching the unit OFF, it is recommended that the unit is run in the FAN

ONLY mode for approx. 10 minutes, to cool the heating elements, before

switching off completely and finally disconnecting from the mains supply

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

The thermal cutout may also operate if the heater is shut down without

allowing to cool sufficiently. If subsequently, the heater fails to start, press the

RESET using a suitable tool and try again.

MAINTENANCE

If the heater has been used, ALWAYS allow it to cool down for at least 10

minutes (by switching the heater off, but leave the fan running). Always

disconnect from the mains supply before performing any maintenance tasks.

PERIODICALLY

1. Use compressed air to clean out the unit. Always wear a dust mask to

perform this operation.

2. If there is any serious build up of dirt, wipe thoroughly with a damp cloth.

Take care that no moisture enters the heater.

3. Inspect the mains cable for damage. Heat damage will cause the cable

to stiffen and crack. If this is found, have the cable replaced. Check the

cable routing and ensure it is well away from the heat source.

4. Ensure the heating elements are clear of dust (use compressed air to clean

the heater if possible).

5. Avoid using solvents when cleaning plastic parts, most plastics are

susceptible to damage from various types of commercial solvents.

6. Refer to your Clarke dealer if internal maintenance is required. The unit is

fitted with tamper-proof screws to discourage users from dismantling the

heater.

7. When storing the heater, allow it to cool down, and return it to its own

packaging for storage in a dry, well ventilated place.

Otros manuales para Devil 6003

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Calentador de Clarke

Clarke

Clarke CONTRACTOR GSH15 Manual de instrucciones

Clarke

Clarke DEVIL 2800PTC Manual de instrucciones

Clarke

Clarke DEVIL 370PC Manual de instalación y operación

Clarke

Clarke DEVIL 340 Manual de instrucciones

Clarke

Clarke DEVIL 2000PTC Manual de instrucciones

Clarke

Clarke DEVIL 370SPC Manual de instalación y operación

Clarke

Clarke 6933985 Manual de instrucciones

Clarke

Clarke OFR 5/50 Manual de instrucciones

Clarke

Clarke IQ2000 Manual de usuario

Clarke

Clarke DEVIL 7030 Manual de instrucciones

Clarke

Clarke Devil 370P Manual de instalación y operación

Clarke

Clarke GRH15 Manual de instrucciones

Clarke

Clarke DEVIL 4003 Manual de instrucciones

Clarke

Clarke DEVIL 7005 Manual de instrucciones

Clarke

Clarke IRD20 Manual de instrucciones

Clarke

Clarke DEVIL 5000PTC Manual de instrucciones

Clarke

Clarke DEVIL 350B 230V Manual de instalación y operación

Clarke

Clarke DEVIL 370PD Manual de instalación y operación

Clarke

Clarke CONTRACTOR DEVIL371PD Manual de instalación y operación

Clarke

Clarke OFR 9 Manual de instrucciones

Clarke

Clarke OFR 9 Manual de instrucciones

Clarke

Clarke XR75 Manual de instalación y operación

Clarke

Clarke Devil 6003 Manual

Clarke

Clarke Devil 370B Series Manual de instalación y operación

Manuales populares de Calentador de otras marcas

oventrop

oventrop Regucor Series Manual de usuario

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manual de usuario

ELMEKO

ELMEKO ML 150 Manual de usuario

BN Thermic

BN Thermic 830T Manual de usuario

KING

KING K Series Guía

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guía de inicio rápido

Well Straler

Well Straler RC-16B Manual de usuario

EUROM

EUROM 333299 Manual de usuario

Heylo

Heylo K 170 Manual de usuario

Eterna

Eterna TR70W Manual de usuario

IRSAP

IRSAP The Radiator Company Ovali Manual de usuario

Empire Heating Systems

Empire Heating Systems WCC65 Manual de usuario

Wetekom

Wetekom 92 86 43 Manual de usuario

Desa

Desa SPC170-F Manual de usuario

Watlow

Watlow Watrod Electric Tubular Heaters Manual de usuario

Haverland

Haverland ECO-DRY GPS Series Manual de lista de piezas

Stelpro

Stelpro ASILVC2060 Series Manual de usuario

iLO

iLO IHP2424 Manual de funcionamiento
