Clarke DEVIL 5000PTC Manual de instrucciones

Only suitable for well insulated areas and not designed

to be the primary heat source

OPERATION & MAINTENANCE

INSTRUCTIONS

GC0621 rev 1

ORIGINAL INSTRUCTIONS

400V ELECTRIC FAN HEATER

MODEL NO: DEVIL 5000PTC

PART NO: 6925340

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE product.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

SPECIFICATIONS

Operating Voltage and Frequency: 400 V / 50Hz / 3 Phase

Operating Temperature: (Min/Max) -15 to +25°C

Max Heat Output: 5 kW - 17060 BTU/HR

Air Output: 588m3/h

Safety Device: Thermal cut-out

Duty Cycle Classification: Continuous duty

Electrical Insulation Class I

Ingress protection IPX0

Product: Depth x Width x Height 300 x 235 x 345 mm

Product Weight 4.32 kg

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

THE FOLLOWING TABLE ADDRESSES THE

INFORMATION REQUIREMENTS OF REG.2015/1188

Item Symbol Value Unit

Heat output

Measured seasonal space heating energy efficiency 36%

Nominal heat output Pnom 5kW

Minimum heat output (indicative) P min 3.3 kW

Maximum continuous heat output P max 5kW

Auxiliary electricity consumption

At nominal heat output elmax n/a kW

At minimum heat output el min n/a kW

In standby mode elSB 0kW

Type of heat input for electric storage local heaters only

Manual heat charge control with integrated thermostat No

Manual heat charge control with room and/or outdoor temperature

feedback

Electronic heat charge control with room and/or outdoor temperature

feedback

Fan assisted output No

Type of heat output/room temperature control (select one)

Single stage heat output, no temperature control No

Two or more manual stages, no temperature control No

With mechanical thermostat temp control Yes

With electronic temperature control No

Electronic temperature control with day timer No

Electronic temperature control with week timer No

Other control options (multiple selections possible)

Room temperature control with presence detection No

Room temperature control with open window detection No

Room temperature control with distance control option No

Room temperature control with adaptive start control No

Room temperature control with working time limitation No

Room temperature control with black bulb sensor No

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SAFETY ADVICE

Make sure that you read, understand and comply with the following.

ELECTRICAL SAFETY

• Regularly inspect the power cable / plugs to be used with this heater

and do not use the heater it the power cable is damaged.

• Minimise the risk of electric shock by installing a RCCB (Residual Current

Circuit Breaker) and a suitable 3-phase isolator into the main distribution

board.

• Make sure that the voltage on the rating plate is the same as the

voltage of the power supply. If in doubt, consult a qualified electrician.

• DO NOT abuse any electrical cable used with this heater. NEVER use the

cable for pulling or unplugging the heater.

• Keep the cable away from sources of heat, oil, sharp edges or moving

parts. Damaged or tangled cables increase the risk of electric shock.

OPERATION

• The heater must only be used by persons who have read these

instructions and have been trained in its use.

• DO NOT obstruct the air inlet and outlet sections of the heater.

• DO NOT cover the heater.

• DO NOT touch the heater casing or grille when first switched off, as these

will be very hot and will take time to cool.

• DO NOT get the heater wet or use in areas of high condensation.

• DO NOT allow the power cable to touch hot surfaces.

• DO NOT connect other appliances to the same mains socket as the

heater.

• Only use the heater in an level position.

• DO NOT use this heater with a programmable timer used to switch it on

automatically.

WARNING: THIS HEATER MUST BE EARTHED

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

POSITIONING

• This heater is designed for indoor use only.

• DO NOT place the heater close to a bath, wash basin, shower, swimming

pool or any other water-filled area or wet surface. DO NOT place the

heater up against any surface such as a wall, door or furniture etc.

• DO NOT place the heater immediately below any electrical outlet.

• NEVER place the heater near combustible materials such as curtains,

furniture etc. Allow at least 2 metre clearance.

• DO NOT place the heater on a raised surface or anywhere where it

could topple over.

• ALWAYS ensure that the grille cannot be blocked by curtains or other

fabrics.

• DO NOT operate in explosive atmospheres such as in the presence of

flammable liquids, gases or dust such as in a paint spray booth or any

explosive environment. Electric motors create sparks which may ignite

dust or fumes.

• DO NOT leave the heater un-attended, for example, left on at night.

COMMON SENSE

• DO NOT operate when you are tired or under the influence of alcohol,

drugs or intoxicating medication.

• DO NOT stand on the heater.

• DO NOT use the heater with wet hands or when there is water on the

power cable.

• Turn the heater off when not in use and keep it in a safe, dry, childproof

location.

• The heater is designed to heat enclosed areas larger than 4m3, such as

workshops and other industrial areas. Do not use the heater for any other

function. It is not suitable for drying clothes or laundry.

• Young children must be kept away unless continuously supervised.

• DO NOT touch the heater casing or grille during use.

WARNING: DO NOT USE THE HEATER NEAR FLAMMABLE MATERIAL,

LIQUIDS, SOLIDS, GASES OR COMPRESSED GAS CYLINDERS ETC.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

MAINTENANCE.

• Check that the heater is in good working order. Take immediate action

to repair or replace damaged parts.

• DO NOT allow the heating elements to become covered with dust

which could become a fire hazard. If used in a dusty workplace it should

be cleaned as described under Cleaning and Maintenance.

• ONLY recommended parts should be used. Unapproved parts may be

dangerous and will invalidate the warranty.

• DO NOT attempt to repair a damaged heater, contact the CLARKE

service department.

SERVICE & REPAIRS

• Have your heater repaired by a qualified person using identical

replacement parts. This will ensure that the safety of the heater is

maintained.

SAFETY SYMBOLS

The following symbols appear on the unit.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility.

WARNING: SERVICING OR INTERNAL MAINTENANCE MUST ONLY BE

CARRIED OUT BY THE CLARKE SERVICE DEPARTMENT.

Hot

surface,-

do not

touch

Do not

cover

Read the

manual

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ELECTRICAL CONNECTIONS

This heater MUST be connected to a 400 Volt, 3 phase 50Hz supply through a

suitably rated isolator switch. It cannot be operated from a single phase

supply.

In addition to the cable fitted to the

heater, a DCL16B extension lead can

be used. This is fitted with a red 5 pin

16 amp industrial plug to EN 60309

with 16A socket. (CLARKE part No

6925233).

If in any doubt, consult a qualified electrician. DO NOT attempt any electrical

repairs yourself.

OPERATION

1. Put the heater in a level position

on a flat surface and at a safe

distance from flammable

materials. Keep a minimum of 2m

clearance all round.

2. Connect the heater to a suitable

power supply.

3. Set the thermostat control to the

maximum setting (fully clockwise).

WARNING: THE INSTALLATION OF THIS APPLIANCE SHOULD BE CARRIED

OUT BY A COMPETENT ELECTRICIAN AND BE IN ACCORDANCE WITH THE

CURRENT IEE WIRING REGULATIONS (BS7671-2:2008).

WARNING: DO NOT USE THIS HEATER IN SMALL ROOMS WHEN THEY ARE

OCCUPIED BY PERSONS NOT CAPABLE OF LEAVING THE ROOM ON THEIR

OWN, UNLESS CONSTANT SUPERVISION IS PROVIDED.

CAUTION: SOME PARTS OF THIS PRODUCT CAN BECOME VERY HOT AND

CAN CAUSE BURNS. PARTICULAR ATTENTION HAS TO BE GIVEN WHERE

CHILDREN AND VULNERABLE PEOPLE ARE PRESENT.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

4. Set the mode selector to one of

the 3 settings:

• The heater will take up to three minutes to reach optimum temperature.

5. Once the room reaches the required temperature, turn the thermostat

control slowly counter-clockwise until the thermostat clicks, leave the

control in this position.

• The room temperature will be maintained at this setting. The heater will

continue to operate until the power switch is turned to the OFF position.

6. For fan only operation, turn the

power switch to the fan only

setting and set the thermostat to

its minimum setting.

7. Adjust the angle by loosening

both adjusting knobs and setting

the required angle.

8. Retighten the adjusting knobs.

9. When not in use, disconnect the

heater from the mains supply.

Store it in a safe, dry, childproof

location.

Off

Fan Only

Heat Setting 1

Heat Setting 2

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

TROUBLE SHOOTING

MAINTENANCE

Clean the heater with a soft damp cloth. Do not use solvents or abrasives.

Make sure that the heater grill is not blocked.

No other maintenance is required, should you discover any problem with the

heater, return it to the CLARKE service department for repair.

Problem Possible Cause Remedy

Heater does not

operate,

although

plugged in with

the switch and

thermostat

switched on.

Plug is loose/bad

connection.

Pull the plug out & check all

connections (cable/plug and socket).

Fuse blown or

circuit breaker

trips.

Replace if necessary and investigate

cause. If fuse blows repeatedly, consult

your CLARKE dealer.

No power at

socket outlet

Insert the plug in a suitable socket.

Heating element

glowing hot.

Input voltage too

high.

Use a power supply in accordance

with the rating on the label.

Air inlet grille is

blocked.

Ensure the heater is kept away from

any objects which could cover the air

inlet or be drawn into it.

The unit has failed

to heat up so only

the air fan has

operated.

Control switch not

set at a "HEATING"

level.

Turn switch to a heating level.

Thermostat has

tripped.

Turn the thermostat and listen. If there is

no CLICK and the thermostat is not

damaged, the heater will

automatically switch ON when it has

cooled down.

Abnormal noise. Heater is not level. Stand heater on a level surface.

WARNING: ALWAYS DISCONNECT FROM THE POWER SUPPLY AND ALLOW

THE HEATER IT TO COOL DOWN BEFORE PERFORMING ANY

MAINTENANCE TASKS.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

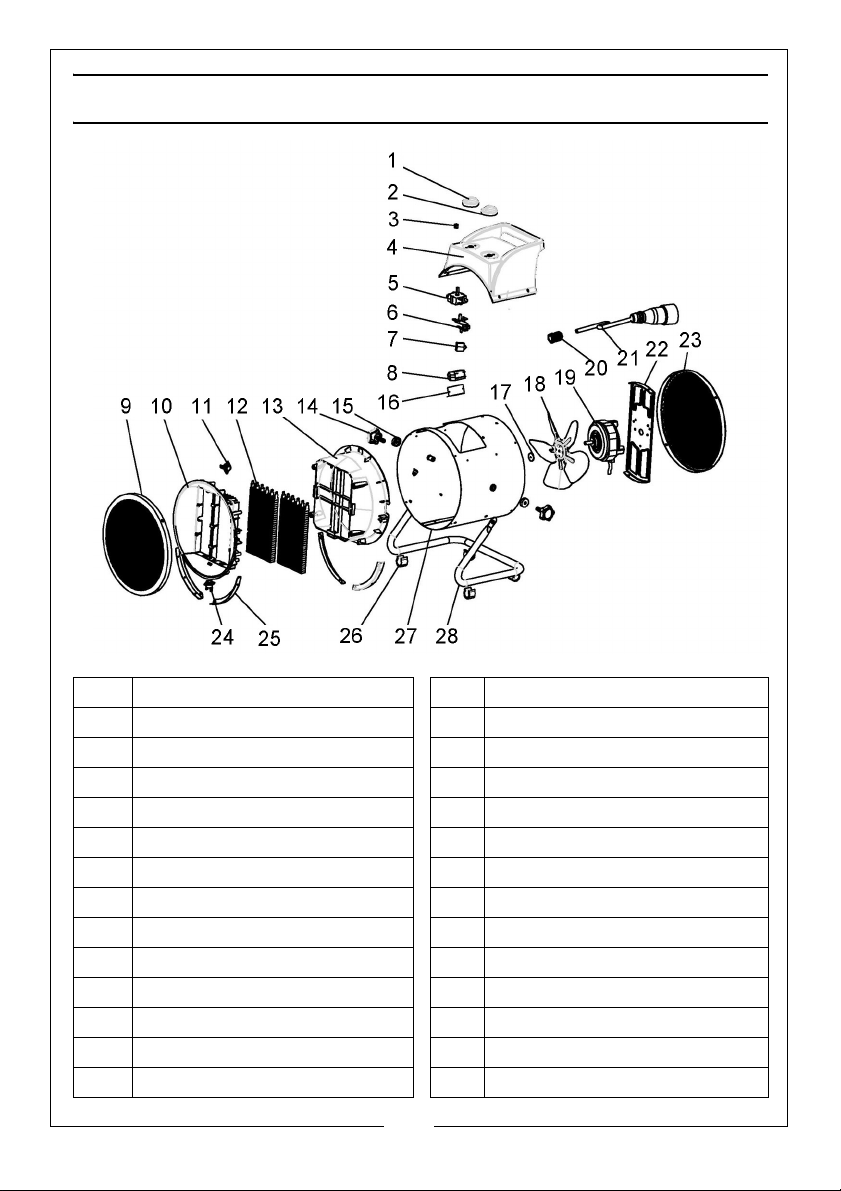

COMPONENT PARTS

1 Setting knob 15 Friction pad

2 Thermostat control knob 16 Relay support

3 Lamp cover 17 Blade fastening

4 Control box cover 18 Fan

5 Switch 19 Motor

6 Thermostat 20 Cable clamp

7 Capacitor 21 Power cable/plug

8 Relay 22 Motor bracket

9 Front grille 23 Rear grille

10 Air outlet 24 Temperature sensor

11 Temperature controller 25 Surround

12 Heating element 26 Foot pad

13 Air duct 27 Housing

14 Adjusting knob 28 Frame

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Calentador de Clarke

Clarke

Clarke DEVIL 350B 230V Manual de instalación y operación

Clarke

Clarke DEVIL 9000PTC Manual de instrucciones

Clarke

Clarke Devil IRD20B Manual de instrucciones

Clarke

Clarke DEVIL 6025 Manual de instrucciones

Clarke

Clarke DEVIL 350C Manual de instalación y operación

Clarke

Clarke BR13/250 Manual de instrucciones

Clarke

Clarke DEVIL 7005 Manual de instrucciones

Clarke

Clarke DEVIL 370PC Manual de instalación y operación

Clarke

Clarke XR60B Manual de instrucciones

Clarke

Clarke DEVIL 370PD Manual de instalación y operación

Clarke

Clarke OFR 9/90 Manual de instrucciones

Clarke

Clarke OFR 5/50 Manual de instrucciones

Clarke

Clarke XRV100 Guía de solución de problemas

Clarke

Clarke OFR 9 Manual de instrucciones

Clarke

Clarke XR60 Manual de instalación y operación

Clarke

Clarke DEVIL 4035 Manual de instalación y operación

Clarke

Clarke IQ2000S Manual de lista de piezas

Clarke

Clarke DEVIL 371SPC Manual de instalación y operación

Clarke

Clarke DEVIL 370SPC Manual de instalación y operación

Clarke

Clarke DEVIL 4035 Manual de instalación y operación

Clarke

Clarke DEVIL 7030 Manual de instrucciones

Clarke

Clarke DEVIL 371SPD Manual de instalación y operación

Clarke

Clarke Devil 370B Series Manual de instalación y operación

Clarke

Clarke Devil 370P Manual de instalación y operación

Manuales populares de Calentador de otras marcas

oventrop

oventrop Regucor Series Manual de usuario

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manual de usuario

ELMEKO

ELMEKO ML 150 Manual de usuario

BN Thermic

BN Thermic 830T Manual de usuario

KING

KING K Series Guía

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guía de inicio rápido

Well Straler

Well Straler RC-16B Manual de usuario

EUROM

EUROM 333299 Manual de usuario

Heylo

Heylo K 170 Manual de usuario

Eterna

Eterna TR70W Manual de usuario

IRSAP

IRSAP The Radiator Company Ovali Manual de usuario

Empire Heating Systems

Empire Heating Systems WCC65 Manual de usuario

Wetekom

Wetekom 92 86 43 Manual de usuario

Desa

Desa SPC170-F Manual de usuario

Watlow

Watlow Watrod Electric Tubular Heaters Manual de usuario

Haverland

Haverland ECO-DRY GPS Series Manual de lista de piezas

Stelpro

Stelpro ASILVC2060 Series Manual de usuario

iLO

iLO IHP2424 Manual de funcionamiento
