Clarke DEVIL 7003 Manual de instrucciones

OPERATION & MAINTENANCE

INSTRUCTIONS

DL0623 - ISS 9

ORIGINAL INSTRUCTIONS

Only suitable for well insulated areas and not designed

to be the primary heat source

3KW ELECTRIC FAN HEATER

MODEL NO: DEVIL 7003

PART NO: 6935450

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE product.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

THE FOLLOWING TABLE ADDRESSES THE INFORMATION

REQUIREMENTS OF REG.2015/1188

Item Symbol Value Unit

Heat output

Measured seasonal space heating energy efficiency 36%

Nominal heat output Pnom 3kW

Minimum heat output (indicative) P min 1.5 kW

Maximum continuous heat output P max 3kW

Auxiliary electricity consumption

At nominal heat output elmax n/a kW

At minimum heat output el min n/a kW

In standby mode elSB n/a kW

Type of heat input for electric storage local heaters only

Manual heat charge control with integrated thermostat No

Manual heat charge control with room and/or outdoor temperature

feedback

Electronic heat charge control with room and/or outdoor temperature

feedback

Fan assisted output No

Type of heat output/room temperature control (select one)

Single stage heat output, no temperature control No

Two or more manual stages, no temperature control No

With mechanical thermostat temp control Yes

With electronic temperature control No

Electronic temperature control with day timer No

Electronic temperature control with week timer No

Other control options (multiple selections possible)

Room temperature control with presence detection No

Room temperature control with open window detection No

Room temperature control with distance control option No

Room temperature control with adaptive start control No

Room temperature control with working time limitation No

Room temperature control with black bulb sensor No

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SAFETY SYMBOLS

The following symbols appear on the unitt.

SAFETY RULES

Make sure that you read, understand and comply with the following.

ELECTRICAL SAFETY

• Regularly inspect the power cable / plugs and all electrical connections

for signs of damage/looseness. Do not use the heater it the power cable

is damaged.

• Minimise the risk of electric shock by installing a RCCB (Residual Current

Circuit Breaker) and a suitable isolator into the main distribution board.

• Make sure that the voltage on the rating plate is the same as the

voltage of the power supply. If in doubt, consult a qualified electrician.

• Do not abuse the electrical cable. Never use the cable for pulling or

unplugging the heater.

• Keep the cable away from sources of heat, oil, sharp edges or moving

parts. Damaged or tangled cables increase the risk of electric shock.

• Do not use extension cables with this heater.

Hot Surface,

Do Not Touch

Do Not Cover

WARNING: THIS HEATER MUST BE EARTHED

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

MAINTENANCE.

• Check that the heater is in good working order. Take immediate action

to repair or replace damaged parts.

• Do not allow the heating elements to become covered with dust which

could become a fire hazard. If used in a dusty workplace it should be

cleaned as described under Cleaning and Maintenance.

• Use recommended parts only. Unapproved parts may be dangerous

and will invalidate the warranty.

• DO NOT attempt to repair a damaged heater, contact the Clarke

service department.

POSITIONING

• Heater is designed for indoor use only.

• DO NOT place the heater close to a bath, wash basin, shower, swimming

pool or any other water-filled area or wet surface. DO NOT place the

heater up against any surface such as a wall, door or furniture etc.

• DO NOT place the heater immediately below any electrical outlet.

• NEVER place the heater near combustible materials such as curtains,

furniture etc. Allow at least 2 metre clearance.

• DO NOT place the heater on a raised surface or anywhere where it

could topple over

• Take care to ensure that the grille cannot be blocked by curtains or

other fabrics.

• Do not operate fan heaters in explosive atmospheres such as in the

presence of flammable liquids, gasses or dust such as in a paint spray

booth or any explosive environment. Electric motors create sparks which

may ignite dust or fumes.

WARNING: DISCONNECT THE HEATER FROM THE POWER SUPPLY, BEFORE

SERVICING OR PERFORMING ANY MAINTENANCE. SERVICING OR

MAINTENANCE MUST ONLY BE CARRIED OUT BY THE CLARKE SERVICE

DEPARTMENT.

WARNING: DO NOT USE THE HEATER NEAR FLAMMABLE MATERIAL,

LIQUIDS, SOLIDS, GASSES OR COMPRESSED GAS CYLINDERS ETC.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

COMMON SENSE

• DO NOT operate the heater when you are tired or under the influence of

alcohol, drugs or intoxicating medication.

• DO NOT stand on the heater.

• DO NOT use the heater with wet hands or when there is water on the

power cable.

• Turn the heater off when not in use and keep it in a safe, dry, childproof

location.

• The heater is designed to heat enclosed areas larger than 4m3, such as

workshops and other industrial areas. Do not use the heater for any other

function. It is not suitable for drying clothes or laundry.

• Young children must be kept away unless continuously supervised.

OPERATION

• The heater must only be used by people who have read these

instructions and have been trained in its use.

• DO NOT obstruct the air inlet and outlet sections of the heater.

•DONOTcovertheheater.

• DO NOT touch the heater casing or grille when first switched off, as these

will be very hot and will take time to cool.

• DO NOT get the heater wet or use in areas of high condensation.

• DO NOT allow the power lead to touch hot surfaces.

• DO NOT connect other appliances to the same mains socket as the

heater.

• Only use the heater in an level position.

• Do not use this heater with a programmable timer used to switch it on

automatically.

SERVICE & REPAIRS

• Have your appliance repaired by a qualified person using identical

replacement parts. This will ensure that the safety of the appliance is

maintained.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

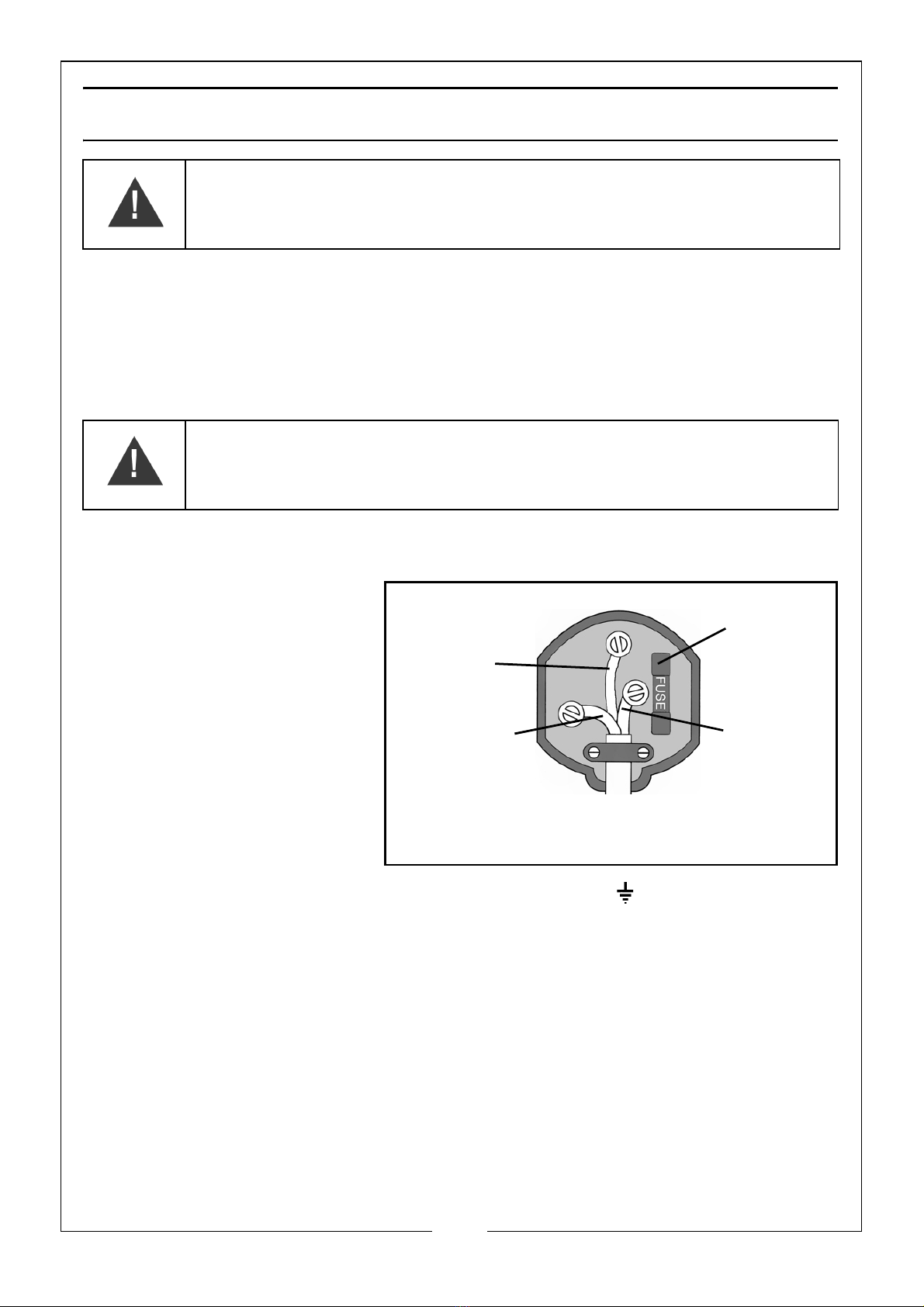

ELECTRICAL CONNECTIONS

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply

through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch.

If the plug has to be changed because it is not suitable for your socket, or

because of damage, it must be removed and a replacement fitted, following

the wiring instructions shown below. The old plug must be discarded safely, as

insertion into a power socket could cause an electrical hazard.

If the colours of the wires in the power cable do not agree with the markings

on the plug.

• The BLUE wire must be

connected to the

terminal which is

marked N or coloured

black.

•TheBROWNwiremust

be connected to the

terminal which is

marked L or coloured

red.

• The YELLOW AND

GREEN wire must be

connected to the terminal which is marked E or or coloured green.

We strongly recommend that this machine is connected to the mains supply

through a Residual Current Device (RCD)

If you are not sure, consult a qualified electrician. DO NOT try to do any

repairs.

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS

THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS

SUPPLY.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE

COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH

Plug must be BS1363/A approved.

Always fit

Ensure that the outer sheath of

Neutral

(Blue)

Live

(Brown)

Earth

(Green and

a 13 Amp

the cable is firmly held by the clamp

fuse.

Yellow)

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

OPERATION

1. Put the heater in a level position on a flat surface and at a safe distance

from flammable materials. Keep a minimum of 2m clearance all round.

2. Connect the heater to a suitable

power supply.

3. Set the thermostat control to the

maximum setting (fully clockwise).

4. Set the mode selector to one of

the 3 settings:

• The heater will take up to three minutes to reach optimum temperature.

5. Once the room reaches the required temperature, turn the thermostat

control slowly counter-clockwise until the thermostat clicks, leave the

control in this position.

WARNING: DO NOT USE THIS HEATER IN SMALL ROOMS WHEN THEY ARE

OCCUPIED BY PERSONS NOT CAPABLE OF LEAVING THE ROOM ON THEIR

OWN, UNLESS CONSTANT SUPERVISION IS PROVIDED.

CAUTION: SOME PARTS OF THIS PRODUCT CAN BECOME VERY HOT AND

CAUSE BURNS. PARTICULAR ATTENTION HAS TO BE GIVEN WHERE

CHILDREN AND VULNERABLE PEOPLE ARE PRESENT.

Off

Fan Only

Fan + Heat Setting 1

Fan + Heat Setting 2

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

• The room temperature will be maintained at this setting. The heater will

continue to operate until the power switch is turned to the OFF position.

6. For fan only operation, turn the power switch to the fan only setting and set

the thermostat to its minimum setting.

7. When not in use, disconnect the heater from the mains supply. Store it in a

safe, dry, childproof location.

ADJUSTING THE ANGLE

1. Loosen both handwheels.

2. Adjust to the the required angle.

3. Retighten the handwheels.

SAFETY SYSTEMS

THERMOSTATIC PROTECTION

The Devil 7003 has a manual reset thermal cut out to prevent the unit from

overheating.

If the thermal cut out activates, then turn off the power and disconnect from

the power supply. Allow the heater to cool down for several minutes before

pressing the reset button. Reconnect to the power supply and turn on to

resume operation.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

MAINTENANCE

• Clean the heater with a soft damp cloth, Do not use solvents or

abrasives.

• Make sure that the heater grill is not blocked.

• No other maintenance is required, should you discover any problem

with the heater, return it to the Clarke service department for repair.

SPECIFICATIONS

WARNING: ALWAYS DISCONNECT FROM THE POWER SUPPLY AND ALLOW

THE HEATER IT TO COOL DOWN BEFORE PERFORMING ANY

MAINTENANCE TASKS.

Operating Voltage and Frequency: (V/Hz) 230 V / 50Hz

Operating Temperature: (Min/Max) (°C): 0-40°C

Heat Output: (kW): 3 kW

Air Output: (m3/h) 400m3/h

Safety Device: Thermal cut-out / Tip over

switch

Duty Cycle Classification: S1 Continuous duty

Electrical Insulation Class I

Product: Depth x Width x Height 302 x 334 x 390 mm

Product Weight 5.6 kg

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Calentador de Clarke

Clarke

Clarke CONTRACTOR GRH30 Manual de instrucciones

Clarke

Clarke DEVIL 7030 Manual de instrucciones

Clarke

Clarke DEVIL 340 Manual de instrucciones

Clarke

Clarke XR60 Manual de instalación y operación

Clarke

Clarke XRV100 Guía de solución de problemas

Clarke

Clarke IRD20 Manual de instrucciones

Clarke

Clarke Devil 370B Series Manual de instalación y operación

Clarke

Clarke IQ2000S Manual de lista de piezas

Clarke

Clarke CONTRACTOR DEVIL371PD Manual de instalación y operación

Clarke

Clarke 6933985 Manual de instrucciones

Clarke

Clarke IQ2000 Manual de usuario

Clarke

Clarke 6933990 Manual de instrucciones

Clarke

Clarke DEVIL 5000PTC Manual de instrucciones

Clarke

Clarke XR60B Manual de instrucciones

Clarke

Clarke DEVIL 370SPC Manual de instalación y operación

Clarke

Clarke XR75 Manual de instalación y operación

Clarke

Clarke DEVIL 9000PTC Manual de instrucciones

Clarke

Clarke GRH15 Manual de instrucciones

Clarke

Clarke DEVIL 4035 Manual de instalación y operación

Clarke

Clarke DEVIL 370SPD Manual de instalación y operación

Clarke

Clarke DEVIL 6025 Manual de instrucciones

Clarke

Clarke DEVIL 4003 Manual de instrucciones

Clarke

Clarke DEVIL 350B 230V Manual de instalación y operación

Clarke

Clarke DEVIL 4035 Manual de instalación y operación

Manuales populares de Calentador de otras marcas

oventrop

oventrop Regucor Series Manual de usuario

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manual de usuario

ELMEKO

ELMEKO ML 150 Manual de usuario

BN Thermic

BN Thermic 830T Manual de usuario

KING

KING K Series Guía

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guía de inicio rápido

Well Straler

Well Straler RC-16B Manual de usuario

EUROM

EUROM 333299 Manual de usuario

Heylo

Heylo K 170 Manual de usuario

Eterna

Eterna TR70W Manual de usuario

IRSAP

IRSAP The Radiator Company Ovali Manual de usuario

Empire Heating Systems

Empire Heating Systems WCC65 Manual de usuario

Wetekom

Wetekom 92 86 43 Manual de usuario

Desa

Desa SPC170-F Manual de usuario

Watlow

Watlow Watrod Electric Tubular Heaters Manual de usuario

Haverland

Haverland ECO-DRY GPS Series Manual de lista de piezas

Stelpro

Stelpro ASILVC2060 Series Manual de usuario

iLO

iLO IHP2424 Manual de funcionamiento
