Cisco CISCO1811 Manual de usuario

Americas Headquarters:

Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA

Cisco Virtual Office – End User Instructions for

Cisco 1811 Router Set Up at Home or Small Office

Introduction

This document describes the end-user instructions to deploy the Cisco Virtual Office (CVO) for home or

small office use.

Cisco Virtual Office (CVO) solution offers a seamless home/small office experience comparable to

working in your company’s central office. CVO features support secure, always-on wired and wireless

(WLAN) data connectivity, voice services, and video capabilities.

Setup Your CVO Hardware

In this section you will be able to identify the basic hardware configuration needed to install the CVO

solution in your home/office. This is a known working configuration to assist you in your initial set-up

and is not intended to cover all variations of home/office network environments. This guide is written

based on Cisco 1811 routers.

Ports on the CVO Router

It is important that you understand which ports on the back of your CVO router are used for what

purposes.

•FE1 to FE9: LAN Ports FE1 to FE9 are end-user device secure ports. Connect your

PC/Mac/Linux/IP phone equipment here.

•FE0: Use the WAN/FE0 port to connect your CVO router to your Internet Service Provider (ISP)

device.

Cisco Virtual Office – End User Instructions for Cisco 1811 Router Set Up at Home or Small Office

78-18859-01

SETUP YOUR CVO HARDWARE

How to Connect Your Equipment

This scenario shows an example of your company’s provided devices and the Internet Service Provider

(ISP) device (modem/router) properly connected to a CVO 1811W router.s

For detailed descriptions, see below Step-by-Step Instructions.

Figure 1 End-to-end View of How Your Devices Should Connect Together

Step-by-Step Instructions

Follow these steps to connect your CVO router to the ISP device and to your PC

Step 1 Make sure your ISP device (DSL modem, cable modem, etc) is plugged in and turned on. If your ISP

device is already on, power off your ISP device and wait 10 seconds. Remove the cables. Then power it

up and wait 30 seconds to complete the reset and reconnect your cables. Plug in your CVO router as

shown and power it up. Do not do any type of soft reboot on your ISP devices at this point.

Step 2 Plug the CVO router into the ISP modem/router using an Ethernet cable going from the Ethernet port on

the ISP device, to the WAN/FE4 port on the CVO router as shown in Figure 1.

Step 3 Plug your PC into the CVO router using the LAN trusted port FE0 as shown in Figure 1.

Cisco Virtual Office – End User Instructions for Cisco 1811 Router Set Up at Home or Small Office

78-18859-01

CONFIGURE YOUR ROUTER

Configure Your Router

Once you have set up your CVO hardware you will need to configure your router so that you can access

the Internet and your company’s corporate network.

After the Internet connectivity is established you need to follow the steps that invoke the Secure Device

Provisioning (SDP) tool to communicate with your company’s core infrastructure and complete your

CVO router's configuration.

Internet Connectivity

The configuration needed to connect to the Internet is determined by the IP address assignment type.

DHCP Assignment

If you have a DHCP connection, your PC should already be able to access the Internet at this point, no

additional work is needed.

Other (PPPoE or Static) Assignment

If your IP address assignment type is anything other than DHCP some additional configuration is

needed to access the Internet. You must run the Cisco Configuration Professional Express (CCP Express)

tool and follow the steps to get the router connected to the Internet before you can proceed. You must

know what type of connectivity your ISP is providing you, typically PPPoE or static IP. Your ISP should

be able to give you this information. Go to “Appendix A: CCP Configuration” in this document and

follow the instructions to get internet access. Once done, return to the “Corporate Network

Connectivity” section and complete the SDP provisioning process.

Corporate Network Connectivity

Step 1 Test your Internet connection.

To double check that your PC is now connected to the Internet, open a browser window and type any

Internet website, for example, www.cisco.com.

Step 2 Initiate the Secure Device Provisioning (SDP) Process.

You will need to complete the process for Secure Device Provisioning (SDP) so that your CVO router

can access the corporate network and securely download its configuration.

If you are using Static addressing or PPPoE and used CCP Express for the initial configuration of your

router, specifying SDP for provisioning, then CCP Express will automatically direct you to the SDP

welcome page, where you have to authenticate using the login username/password that you configured

during the CCP Express setup (Figure 2).

Cisco Virtual Office – End User Instructions for Cisco 1811 Router Set Up at Home or Small Office

78-18859-01

CONFIGURE YOUR ROUTER

Figure 2 SDP Authentication

If you’re using DHCP, to initiate the SDP process, go to the PC which is connected to the CVO router

and open a browser window. Then type in the address bar: http://10.10.10.1/ezsdd/welcome. You will be

prompted to authenticate, and you must use username/password cisco/cisco.

You will see the screen shown in Figure 3 while the router prepares for the rest of the SDP process.

Figure 3 SDP Screen

Step 3 Securely download the CVO router configuration.

When the screen refreshes you will notice a field for site URL. Enter the URL provided by your network

administrator (Figure 4).

Cisco Virtual Office – End User Instructions for Cisco 1811 Router Set Up at Home or Small Office

78-18859-01

CONFIGURE YOUR ROUTER

Figure 4 URL Field

After you click Next you will see a Security Request confirmation window; select Yes to proceed.

Step 4 Authenticate yourself.

When the system attempts to connect to the corporate CVO management server, you are prompted to

authenticate yourself. You must use the credentials provided by your network administrator (Figure 5).

Figure 5 Connect to SDP Server

When your authentication is accepted you will see the confirmation screen shown in Figure 6.

Cisco Virtual Office – End User Instructions for Cisco 1811 Router Set Up at Home or Small Office

78-18859-01

CONFIGURE YOUR ROUTER

Figure 6 Confirmation Screen

Select Next to proceed.

Step 5 CVO router auto-configuration.

You should now see the enrollment window and your CVO router will automatically download the

configuration from the CVO management server (Figure 7).

Note Do not select any of the options on this screen. This will interrupt your CVO router

configuration.

Please be patient during this process. This can take 5 or more minutes to complete. Any interruption will

cause an incomplete deployment.

Figure 7 Enrollment Window

Step 6 Verify that your CVO router has a VPN Light on in the front.

After 5 minutes, your router should have its VPN LED lit solid green.

At this point you need to have your PC register with the new router configuration to renew its IP address.

You have two options to renew your IP address:

a. restart your PC – this will automatically renew its IP address

b. (advanced users) right click on your network adaptor icon in the systray and click repair as show in

Figure 8:

Cisco Virtual Office – End User Instructions for Cisco 1811 Router Set Up at Home or Small Office

78-18859-01

CONFIGURE YOUR ROUTER

Figure 8 Renew IP Address

Once you have a valid IP Address, open your browser and attempt to connect to an external Website.

This should be something other than your company’s internal home page; e.g. www.cisco.com.

If this is successful then proceed with testing an internal Website.

Step 7 Verify connectivity to your company’s corporate network.

Once your CVO router’s configuration is complete you will be able to access your company’s internal

network via the VPN tunnels that have been created. Before you are allowed to access any internal

resources you will have to authenticate in accordance with your company’s corporate policy. Just open

a browser in the PC connected to the CVO router and type an internal Website of your company.

Congratulations! You are now ready to begin using your Cisco Virtual Office.

The CVO router will build a direct connection to the corporate network. Once the CVO router is installed

and configured, there is no need to run a VPN client or SSLVPN to be connected to your company

network.

Please refer to the CVO overview at www.cisco.com/go/cvo for further information about the solution,

its architecture, and all of its components.

For more details about the Cisco 800 Series Routers please visit

www.cisco.com/en/US/products/hw/routers/ps380/index.html.

For additional information about Cisco Configuration Professional (CCP), please visit

www.cisco.com/go/ciscocp.

Appendix A: CCP Configuration

To start configuring the CVO router with Cisco Configuration Professional Express (CCP Express) make

sure the PC is physically connected to CVO router on port FE0. Open an Internet browser and type

http://10.10.10.1. When prompted for username/password, please enter: cisco/cisco. CCP Express will

guide you to remove or configure a new username/password. The Cisco Configuration Professional

(CCP) Express wizards will guide you through the process of configuring your CVO router to connect

to the Internet, as described next.

1. Figure 9 shows the welcome screen of CCP Express. Click “Next” to start the wizard.

Cisco Virtual Office – End User Instructions for Cisco 1811 Router Set Up at Home or Small Office

78-18859-01

CONFIGURE YOUR ROUTER

Figure 9 Welcome Screen

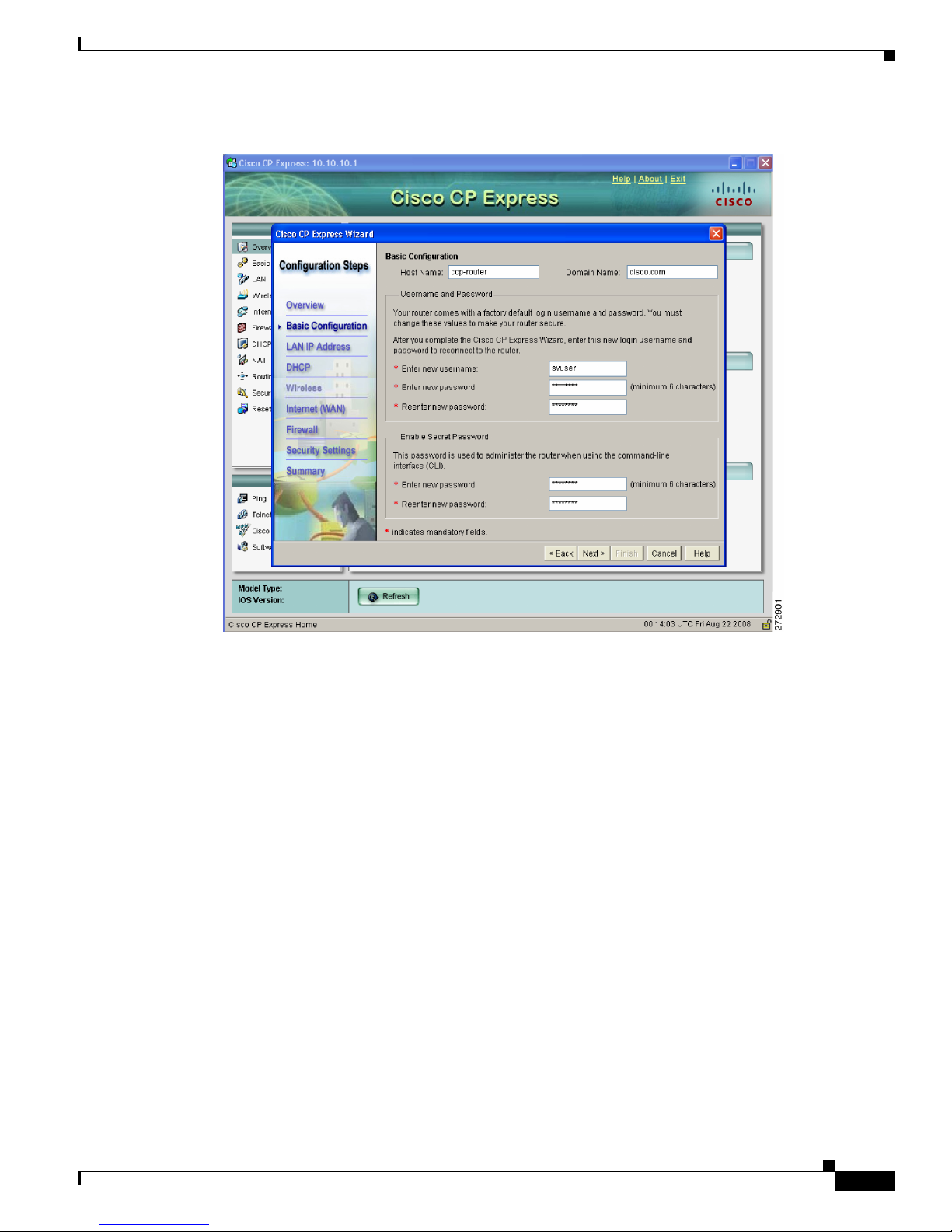

2. Enter the desired login credentials and enable password, as well as the hostname and domain name

for the router (Figure 10), then click “Next”.

Cisco Virtual Office – End User Instructions for Cisco 1811 Router Set Up at Home or Small Office

78-18859-01

CONFIGURE YOUR ROUTER

Figure 10 Basic Configuration

3. Specify “Secure Device Provisioning” as the method for provisioning the router, as SDP will be used

for the bootstrap config (Figure 11), then click “Next”

Cisco Virtual Office – End User Instructions for Cisco 1811 Router Set Up at Home or Small Office

78-18859-01

CONFIGURE YOUR ROUTER

Figure 11 SDP for Router Provisioning

4. Choose the corresponding IP address assignment method (PPPoE or Static).

For PPPoE, select the authentication method (CHAP or PAP), and provide the appropriate credentials

provided to you by your ISP (Figure 12)
