Cisco VEdge 100b Manual de usuario

Wall Mount

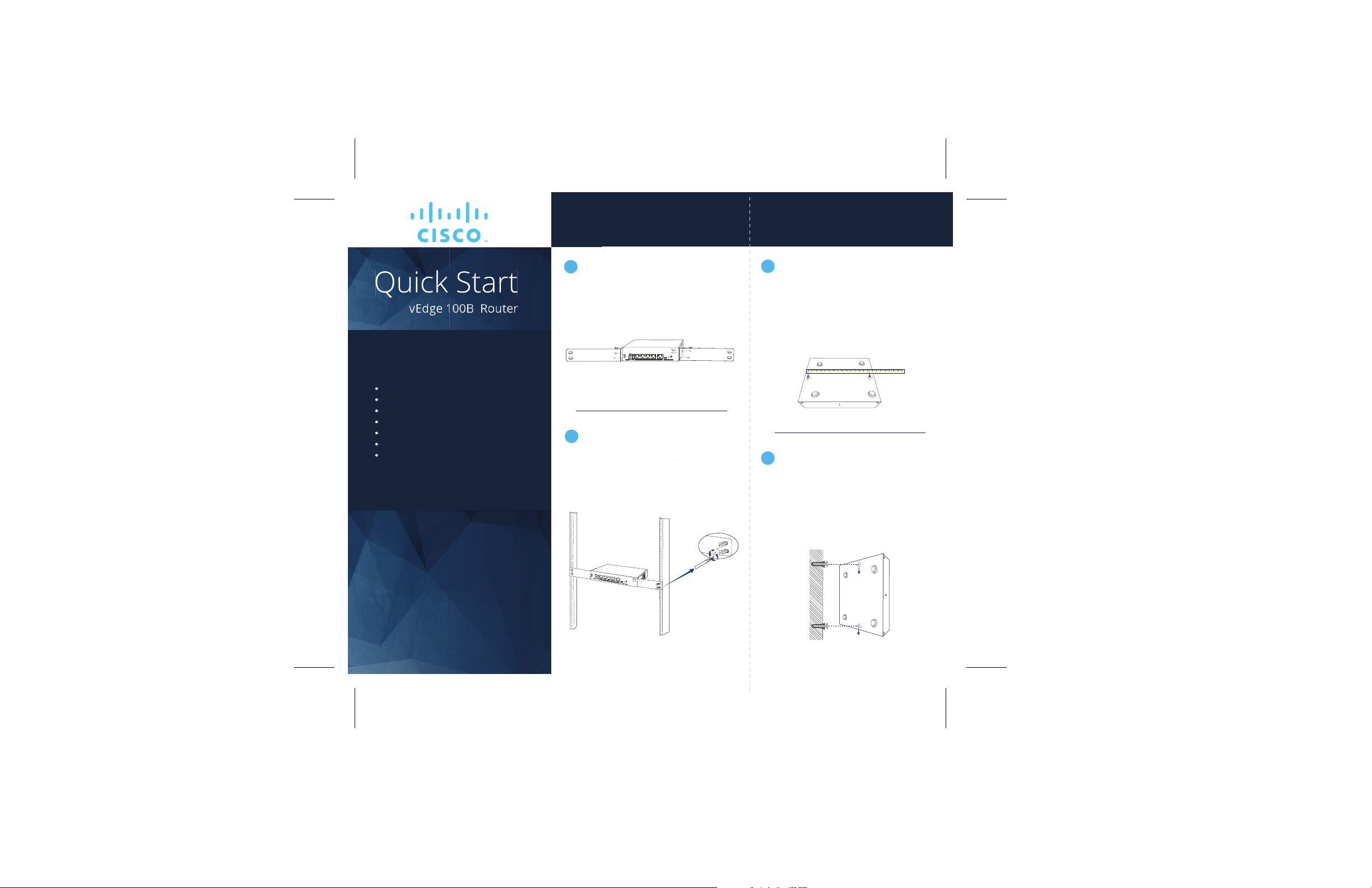

Quick Start

Rack Mount

Secure the left and right mounting ears

to either side of the router chassis using

the screws in Packet A

Lift and position the router in the rack.

Then secure the mounting ears to the

front posts of the rack using the screws

in Packet B.

Step

PWR

DC12V IN

PWR SYS

0 1 2 3 4 CONSOLE RESET GPS

Insert two wall-mount screws in the wall

where you are mounting the router

(screws not provided). The screws must

align with the wall-mount holes on the

underside of the router chassis.

Align the wall-mount holes on the router's

underside to the screws in the wall, and

gently slide the chassis, from side to side

or up and down, onto the wall-mount screws.

Step

See back for more information

Wall

Package Contents

Router chassis

USB console cable

Mounting ears, left and right

Mounting-ear screws (Packet A)

Rack-mount screws (Packet B)

AC power adapter and connectors

Quick Start document

For complete documentation, see

https://sdwan-docs.cisco.com/

Product_Documentation

Safety Standards

Before installing the routers or connecting it

to a power source, read the planning and

installation instructions for your hardware

platform at: https://sdwan-docs.cisco.com/

Product_Documentation/vEdge_Routers

Failure to observe these safety warnings can

result in personal injury or death.

Initial Conﬁguration Initial Conﬁguration

Step

Boot the vEdge router:

Plug one end of the power adapter

cord into the front of the router.

Secure the cord in place by loosening

the cable clamp screw, tucking the cord

under the clamp, and then tightening

the screw.

Insert the appropriate connector for

your geographical location into the other

end of the cord. Then plug the cord into

an AC power outlet.

Conﬁgure the vEdge router:

From vManage > Conﬁguration >

Devices > WAN Edge List, upload the

WAN Edge authorized serial number ﬁle.

From vManage > Conﬁguration >

Certiﬁcates > WAN Edge List:

a. Check that the router's chassis and

serial number are in the WAN Edge list.

b. Authorize the router by clicking

Valid in the Validate column.

c. Click Send to Controllers to send the

WAN Edge list to the controller devices.

From vManage > Conﬁguration >

Templates:

a. Create a device template for

the vEdge router.

b. Attach the router to the device

template.

Step

Verify vEdge router status:

From vManage > Dashboard or from

vManage > Monitor > Network >

Device Dashboard, verify that the vEdge

router is operational.

Step

4CONSOLE RESET GPS

WANLAN

Initial Conﬁguration

Connect LAN and WAN interfaces :

Connect to the LAN by plugging the

appropriate cable into any port, except

port 4, on the front of the router.

Connect to a WAN by plugging the

appropriate cable into port 4 on the

front of the router.

Step

DC12V IN PWR

PWR SYS

0 1 2 3 4 CONSOLE RESET GPS

Cable Clamp

AUS

0 1 2 3 4

CONSOLE RESET GPS

Caution: If you are connecting AC power to the

router, it is recommended that the building have

an external surge protective device installed.

071118
