CHAPTER

2-1

Cisco 7600 Series Router SIP, SSC, and SPA Hardware Installation Guide

OL-5052-14

Overview: Cisco 7600 Series SIPs

This chapter describes the SPA interface processors (SIPs) that are supported on the Cisco 7600 series

routers and contains the following sections:

•SIP Summary, page 2-1

•Identifying Slots and Subslots for SIPs and SPAs, page 2-2

•Cisco 7600 SIP-200 Overview, page 2-5

•Cisco 7600 SIP-400 Overview, page 2-8

•Cisco 7600 SIP-600 Overview, page 2-10

•Cisco 7600 SSC-400 Overview, page 2-12

SIP Summary

Summary descriptions of the SIPs that are supported on the Cisco 7600 series routers are shown in

Table 2-1.

Note The Description column indicates the aggregate bandwidth supported by the SIP across all subslots—not

per SPA subslot.

Table 2-1 SIP Summary

SIP Product Number Description

Maximum

Number of

SPAs

Minimum Cisco

IOS Release

Cisco 7600 SIP-200 7600-SIP-200 622-Mbps SPA interface

processor

4 12.2(18)SXE

Cisco 7600 SIP-400 7600-SIP-400 2.5-Gbps SPA interface

processor

4 12.2(18)SXE

Cisco 7600 SIP-600 7600-SIP-600 1 x 10-Gbps SPA Interface

Processor

1 12.2(18)SXF

Cisco 7600 SSC-400 7600-SSC-400 SPA services carrier 2 12.2(18)SXE2

2-2

Cisco 7600 Series Router SIP, SSC, and SPA Hardware Installation Guide

OL-5052-14

Chapter 2 Overview: Cisco 7600 Series SIPs

Identifying Slots and Subslots for SIPs and SPAs

Checking Hardware and Software Compatibility

To check the minimum software requirements of Cisco IOS software with the hardware installed on your

router, Cisco maintains the Software Advisor tool on Cisco.com. This tool does not verify whether SIPs

or SPAs within a system are compatible, but it does provide the minimum Cisco IOS requirements for

individual hardware modules or components.

Note Access to this tool is limited to users with Cisco.com login accounts.

To access Software Advisor, click Login at Cisco.com, type “Software Advisor” in the SEARCH box,

and click GO. Click the link for the Software Advisor tool.

Choose a product family or enter a specific product number to search for the minimum supported

software release needed for your hardware.

Identifying Slots and Subslots for SIPs and SPAs

This section describes how to specify the physical locations of a SIP and SPA on the Cisco 7600 series

routers within the command-line interface (CLI) to configure or monitor those devices.

Note For simplicity, any reference to “SIP” in this section also applies to the SSC.

Specifying the Slot Location for a SIP or SSC

The Cisco 7600 series router supports different chassis models, each of which supports a certain number

of chassis slots.

Note The Cisco 7600 series router SIPs are not supported with a Supervisor Engine 1, Supervisor Engine 1A,

Supervisor Engine 2, or Supervisor Engine 720-3A.

2-3

Cisco 7600 Series Router SIP, SSC, and SPA Hardware Installation Guide

OL-5052-14

Chapter 2 Overview: Cisco 7600 Series SIPs

Identifying Slots and Subslots for SIPs and SPAs

Figure 2-1 shows an example of a SIP installed in slot 6 on a Cisco 7609 router. The Cisco 7609 router

has nine vertically-oriented chassis slots, which are numbered 1 to 9 from right to left.

Figure 2-1 SIP and SPA Installed in a Cisco 7609 Router

Figure 2-2 shows an example of a SIP installed in slot 6 on a Catalyst 6509 switch. The Catalyst 6509

switch has nine horizontally-oriented chassis slots, which are numbered 1 to 9 from right to left.

Figure 2-2 SIP and SPA Installed in a Catalyst 6509 Switch

129006

INPUT

FAN

OUTPUT

FAIL

INPUT

FAN

OUTPUT

FAIL

SUPERVISOR2

WS-X6K-SUP2-2GE

STATUS

SYSTEM

CONSOLE

PWRMGMT

RESET

CONSOLE

PORT

MODE

PCMCIAEJECT

PORT1PORT2

SwitchLoad

100%

LINK

SUPERVISOR2

WS-X6K-SUP2-2GE

STATUS

SYSTEM

CONSOLE

PWRMGMT

RESET

CONSOLE

PORT

MODE

PCMCIA EJECT

PORT1 PORT2

SwitchLoad

100%

LINK

SWITCHFABRIC MDL

STATUS

SELECT

WS-C6500-SFM

ACTIVE

OC12POSMM

OSM-40C12-POS-MM

STATUS

RESET

LINK

CARRIER

ALARM

ACTIVE

PORT1

CARRIER

ALARM

ACTIVE

PORT2

CARRIER

ALARM

ACTIVE

PORT3

CARRIER

ALARM

ACTIVE

OC12POSMM

OSM-40C12-POS-MM

STATUS

RESET

LINK

CARRIER

ALARM

ACTIVE

PORT1

CARRIER

ALARM

ACTIVE

PORT2

CARRIER

ALARM

ACTIVE

PORT3

CARRIER

ALARM

ACTIVE

OC12POSMM

OSM-40C12-POS-MM

STATUS

RESET

LINK

CARRIER

ALARM

ACTIVE

PORT1

CARRIER

ALARM

ACTIVE

PORT2

CARRIER

ALARM

ACTIVE

PORT3

CARRIER

ALARM

ACTIVE

8PORT OC3 POS MM

OSM-8OC3-POSMM

STATUS

RESET

LINK

CARRIER

ALARM

LINK

8PORT OC3 POS MM

OSM-8OC3-POSMM

STATUS

RESET

LINK

CARRIER

ALARM

LINK

STATUS

SPAINTERFACE

PROCESSOR

7600-SIP-200

LINK

CARRIER

ALARM

LINK

POWER SUPPLY 1 POWER SUPPLY 2

3 1

4 2

A-4XT3/E3

A/L

C/A

A/L

C/A

A/L

C/A

A/L

STATUS

C/A

2-4

Cisco 7600 Series Router SIP, SSC, and SPA Hardware Installation Guide

OL-5052-14

Chapter 2 Overview: Cisco 7600 Series SIPs

Identifying Slots and Subslots for SIPs and SPAs

Some commands allow you to display information about the SIP itself, such as show module,show

sip-disk, show idprom module, show hw-module slot, and show diagbus. These commands require

you to specify the chassis slot location where the SIP that you want information about is installed.

For example, to display status and information about the SIP installed in slot 6 as shown in Figure 2-1,

enter the following command:

Router# show module 6

For more information about SIP commands, refer to the Cisco IOS Software Releases 12.2SR Command

References and to the Cisco IOS Software Releases 12.2SX Command References.

Specifying the SIP or SSC Subslot Location for a SPA

SIP subslots begin their numbering with “0” and have a horizontal or vertical orientation depending on

the orientation of the SIP in the router chassis slot, as shown in the “SIP, SSC, and SPA Product

Overview” chapter of the Cisco 7600 Series Router SIP, SSC, and SPA Software Configuration Guide.

1SIP subslot 0 4SIP subslot 3

2SIP subslot 1 5Chassis slots 1–9 (numbered from right to left)

(numbered from top to bottom)

3SIP subslot 2

138980

FAN

STATUS

INPUT

FAN

OUTPUT

FAI L

INPUT

FAN

OUTPUT

FAI L

STATUS

AINTERFA CE

PROCESSOR

7600-SIP-200

SPA-4XT3/E3

A/L

C/A

A/L

C/A

A/L

C/A

A/L

STATUS

C/A

8 PORT GIGABIT ETHERNET

WS-X6408

LINK

STATUS

2345678

LINK

8PORT GIGABIT ETHERNET

WS-X6408

LINK

STATUS

2345678

LINK

8 PORT GIGABIT ETHERNET

WS-X6408

LINK

STATUS

2345678

LINK

24 PORT100FX

WS-X6224

STATUS

24PORT100FX

WS-X6224

STATUS

24PORT100FX

WS-X6224

STATUS

LINK

SUPERVISOR2

WS-X6K-SUP2-2GE

STATUS

SYSTEM

CONSOLE

PWRMGMT

RESET

CONSOLE

PORT

MODE

PCMCIA EJECT

PORT1 PORT2

SwitchLoad

100%

LINK

SUPERVISOR2

WS-X6K-SUP2-2GE

STATUS

SYSTEM

CONSOLE

PWRMGMT

RESET

CONSOLE

PORT

MODE

PCMCIA EJECT

PORT1 PORT2

SwitchLoad

100%

LINK

2-5

Cisco 7600 Series Router SIP, SSC, and SPA Hardware Installation Guide

OL-5052-14

Chapter 2 Overview: Cisco 7600 Series SIPs

Cisco 7600 SIP-200 Overview

Figure 2-1 shows an example of a Cisco 7600 SIP-200 installed with a vertical orientation on a

Cisco 7609 router. The Cisco 7600 SIP-200 supports four subslots for the installation of SPAs. In this

example, the subslot locations are vertically oriented as follows:

•SIP subslot 0—Top–right subslot

•SIP subslot 1—Bottom–right subslot

•SIP subslot 2—Top–left subslot

•SIP subslot 3—Bottom–left subslot

Figure 2-3 shows the faceplate for the Cisco 7600 SIP-200 in a horizontal orientation.

Figure 2-3 Cisco 7600 SIP-200 Faceplate

In this view, the subslot locations in a horizontal orientation are as follows:

•SIP subslot 0—Top–left subslot

•SIP subslot 1—Top–right subslot

•SIP subslot 2—Bottom–left subslot

•SIP subslot 3—Bottom–right subslot

The SIP subslot numbering is indicated by a small numeric label beside the subslot on the faceplate.

Just as with the SIPs, some commands allow you to display information about the SPA itself, such as

show idprom module and show hw-module subslot. These commands require you to specify both the

physical location of the SIP and SPA in the format, slot/subslot, where:

•slot—Specifies the chassis slot number in the Cisco 7600 series router where the SIP is installed.

•subslot—Specifies the secondary slot of the SIP where the SPA is installed.

For example, to display the operational status for the SPA installed in the first subslot of the SIP in

chassis slot 6 shown in Figure 2-1, enter the following command:

Router# show hw-module subslot 6/0 oir

For more information about SIP commands, refer to the Cisco IOS Software Releases 12.2SR Command

References and to the Cisco IOS Software Releases 12.2SX Command References.

Cisco 7600 SIP-200 Overview

The following sections describe the Cisco 7600 SIP-200 (Cisco part number 7600-SIP-200):

•Cisco 7600 SIP-200 Processor, page 2-6

•Cisco 7600 SIP-200 LEDs, page 2-6

•Cisco 7600 SIP-200 Physical Specifications, page 2-6

•Cisco 7600 SIP-200 Memory Options, page 2-7

•Cisco 7600 SIP-200 Default DIP Switch Settings, page 2-8

STATUS

SPA INTERFACE

PROCESSOR

7600-SIP-200

116849

2-6

Cisco 7600 Series Router SIP, SSC, and SPA Hardware Installation Guide

OL-5052-14

Chapter 2 Overview: Cisco 7600 Series SIPs

Cisco 7600 SIP-200 Overview

Cisco 7600 SIP-200 Processor

The processor on a Cisco 7600 SIP-200 is described in Table 2-2.

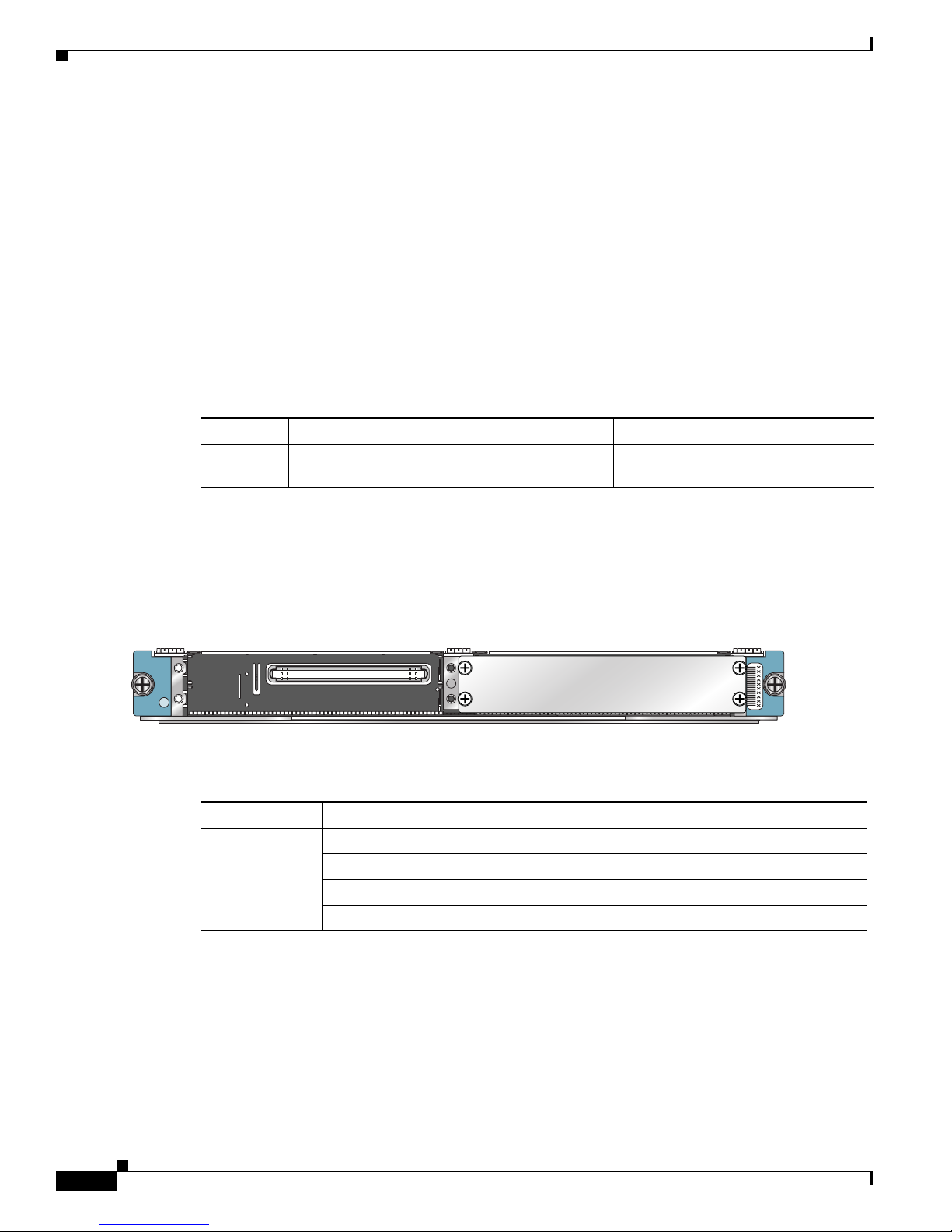

Cisco 7600 SIP-200 LEDs

The Cisco 7600 SIP-200 has one LED, as shown in Figure 2-4.

Figure 2-4 Cisco 7600 SIP-200 Faceplate

The Cisco 7600 SIP-200 LED is described in Table 2-3.

Cisco 7600 SIP-200 Physical Specifications

The Cisco 7600 SIP-200 physical specifications are shown in Table 2-4.

Table 2-2 Cisco 7600 SIP-200 Processor

Type Speed Description

CPU 800 megahertz (MHz) internal operating

frequency

Broadcom 1125 MIPS-based design

STATUS

SPA INTERFACE

PROCESSOR

7600-SIP-200

116849

Table 2-3 Cisco 7600 SIP-200 LED

LED Label Color State Meaning

STATUS Red On The SIP has encountered an error.

Green On The SIP is online.

Yellow On The SIP is loading.

Off Off The SIP is powered off.

Table 2-4 Cisco 7600 SIP-200 Physical Specifications

Description Specifications

Physical dimensions The SIP occupies one module slot and can be operated in Cisco 7600

series routers.

Shipping weight 8 lb (3.64 kg)

Operating temperature 32 to 104°F (0 to 40°C)

Relative humidity 10 to 90 percent, noncondensing

Storage temperature –4 to 149°F (–20 to 65°C)

2-7

Cisco 7600 Series Router SIP, SSC, and SPA Hardware Installation Guide

OL-5052-14

Chapter 2 Overview: Cisco 7600 Series SIPs

Cisco 7600 SIP-200 Overview

Cisco 7600 SIP-200 Memory Options

The following table lists the memory available for the Cisco 7600 SIP-200:

Note The SIP DIMMs must be a matched set. A warning message appears on the console if the DIMMs on the

SIP are different sizes. If the sizes are not the same, the following message appears at bootup/OIR:

C7600_SIP200-3-MEM_MODULE_MISMATCH: Memory modules are not identical

Cisco 7600 SIP-200 Memory Installation and Removal

Figure 2-5 shows the location of the DIMMs on a Cisco 7600 SIP-200. Perform the following procedure

to install and remove a DIMM:

To install a DIMM, slide the DIMM into the slot. The retaining clips secure the DIMM in place.

Step 1 To remove a DIMM, separate the two retaining clips.

Step 2 Pull the DIMM from the slot.

Figure 2-5 SIP DIMM Location

Table 2-5 SIP Memory Options

SIP Memory Options

Cisco 7600 SIP-200 512 MB and 1 GB (2 x 256-MB or 2 x 512-MB DIMMs)

1DIMMs

STATUS

MODULAR

SERVICES CARD

7600-MSC-200

122390

2-8

Cisco 7600 Series Router SIP, SSC, and SPA Hardware Installation Guide

OL-5052-14

Chapter 2 Overview: Cisco 7600 Series SIPs

Cisco 7600 SIP-400 Overview

Cisco 7600 SIP-200 Default DIP Switch Settings

If SW3 and SW10 switches are present on the board, make sure they are set to the default settings, as

shown in Table 2-6. See Figure 2-6 for the location of the switches.

The switches are set to their defaults during manufacture. However, the switch settings may get

inadvertently changed during handling.

Note If the switches are not set to their default settings, there may be momentary packet drops during OIR of

the board.

Table 2-6 Cisco 7600 SIP-200 Default DIP Settings

Figure 2-6 Cisco 7600 SIP-200 DIP Switch Locations

Cisco 7600 SIP-400 Overview

The following sections describe the Cisco 7600 SIP-400 (Cisco part number 7600-SIP-400):

•Cisco 7600 SIP-400 Processor, page 2-9

•Cisco 7600 SIP-400 LEDs, page 2-9

•Cisco 7600 SIP-400 Physical Specifications, page 2-9

Switch Default Position

SW3 Up

SW10 Down

1SW3 2SW10

STATUS

MODULAR

SERVICES CARD

7600-MSC-200

129724

2-9

Cisco 7600 Series Router SIP, SSC, and SPA Hardware Installation Guide

OL-5052-14

Chapter 2 Overview: Cisco 7600 Series SIPs

Cisco 7600 SIP-400 Overview

Cisco 7600 SIP-400 Processor

The processor on a Cisco 7600 SIP-400 is described in Table 2-7.

Cisco 7600 SIP-400 LEDs

The Cisco 7600 SIP-400 has one LED, as shown in Figure 2-7.

Figure 2-7 Cisco 7600 SIP-400 Faceplate

The Cisco 7600 SIP-400 LED is described in Table 2-8.

Cisco 7600 SIP-400 Physical Specifications

The Cisco 7600 SIP-400 physical specifications are shown in Table 2-9.

Table 2-7 7600-SIP-400 Processor

Type Speed Description

CPU 400 megahertz (MHz) internal operating

frequency

Broadcom 1125 MIPS-based design

STATUS

SPA INTERFACE

PROCESSOR

7600-SIP-400

101313

Table 2-8 Cisco 7600 SIP-400 LED

LED Label Color State Meaning

STATUS Red On The SIP has encountered an error.

Green On The SIP is online.

Yellow On The SIP is loading.

Off Off The SIP is powered off.

Table 2-9 Cisco 7600 SIP-400 Physical Specifications

Description Specifications

Physical dimensions The SIP occupies one module slot and can be operated in Cisco 7600

series routers.

Shipping weight 8 lb (3.64 kg)

Operating temperature 32 to 104°F (0 to 40°C)

Relative humidity 10 to 90 percent, noncondensing

Storage temperature –4 to 149°F (–20 to 65°C)

2-10

Cisco 7600 Series Router SIP, SSC, and SPA Hardware Installation Guide

OL-5052-14

Chapter 2 Overview: Cisco 7600 Series SIPs

Cisco 7600 SIP-600 Overview

The following sections describe the Cisco 7600 SIP-600 (Cisco part number 7600-SIP-600):

•Cisco 7600 SIP-600 Processor, page 2-10

•Cisco 7600 SIP-600 LEDs, page 2-10

•Cisco 7600 SIP-600 Physical Specifications, page 2-10

Cisco 7600 SIP-600 Processor

The processor on a Cisco 7600 SIP-600 is described in Table 2-10.

Cisco 7600 SIP-600 LEDs

The Cisco 7600 SIP-600 has one LED, as shown in Figure 2-8.

Figure 2-8 Cisco 7600 SIP-600 Faceplate

The Cisco 7600 SIP-600 LED is described in Table 2-11.

Cisco 7600 SIP-600 Physical Specifications

The Cisco 7600 SIP-600 physical specifications are shown in Table 2-12.

Table 2-10 Cisco 7600 SIP-600 Processor

Type Speed Description

CPU 400 megahertz (MHz) internal operating

frequency

Broadcom 1125 MIPS-based design

STATUS

SPA INTERFACE

PROCESSOR

7600-SIP-600

138127

Table 2-11 Cisco 7600 SIP-600 LED

LED Label Color State Meaning

STATUS Red On The SIP has encountered an error.

Green On The SIP is online.

Yellow On The SIP is loading.

— Off The SIP is powered off.

Otros manuales para 7600 Series

Tabla de contenidos

Otros manuales de Enrutador de red de Cisco

Cisco

Cisco Internet Router Cisco 12404 Manual de usuario

Cisco

Cisco 10000 Series Manual de usuario

Cisco

Cisco 3700 series Manual de usuario

Cisco

Cisco 500 Series Instrucciones originales

Cisco

Cisco 2821 - Integrated Services Router Unified Communications... Guía de instalación

Cisco

Cisco BEFSR41 Manual de usuario

Cisco

Cisco 1005 Guía de instalación

Cisco

Cisco Linksys E2500 Manual de usuario

Cisco

Cisco Linksys WRT54G3G Manual de usuario

Cisco

Cisco Small Business RV215W Manual de instrucciones

Cisco

Cisco MGX 8850 (PXM1E/PXM45) Manual de usuario

Cisco

Cisco ASR1002 - ASR 1002 Router Manual de usuario

Cisco

Cisco ASR 5500 Manual de usuario

Cisco

Cisco 1751 Manual de usuario

Cisco

Cisco CRS-1 - Carrier Routing System Router Manual de usuario

Cisco

Cisco CRS-1 - Carrier Routing System Router Manual

Cisco

Cisco ME-C6524GS-8S Manual de usuario

Cisco

Cisco 887V - Integrated Services Router Manual de usuario

Cisco

Cisco ASR 9000 Series Manual de instrucciones

Cisco

Cisco 1721 - VPN Security Router Bundle Manual

Cisco

Cisco ASR 5500 Manual de usuario

Cisco

Cisco 910 Manual de usuario

Cisco

Cisco Catalyst 2924M XL Guía

Cisco

Cisco LINKSYS E2500V3 Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

EnGenius

EnGenius ESR-9710 Manual de usuario

LevelOne

LevelOne FBR-1416 Manual de usuario

Dynacord

Dynacord Promatrix 6000 Manual de usuario

Lorex

Lorex F5D8230-4 Manual de usuario
