Installing the Cisco ASR 907 Router

This chapter describes how to install the Cisco ASR 907 Router and includes the following sections:

•Prerequisites, on page 1

•Installing the Router in a Rack, on page 1

•Installing the Chassis Ground Connection, on page 12

•Installing the Fan Tray, on page 15

•RSP Installation, on page 20

•Installing the Interface Module Carrier, on page 24

•Interface Module Installation, on page 24

•Installing the Power Supply, on page 28

•Connecting the Cisco ASR 907 Router to the Network, on page 39

Prerequisites

Before installing the Cisco ASR 907 Router, it is important to prepare for the installation by:

• Preparing the site (site planning) and reviewing the installation plans or method of procedures (MOP)

• Unpacking and inspecting the Cisco ASR 907 Router

• Gathering the tools and test equipment required to properly install the Cisco ASR 907 Router

For more instructions on how to prepare for the installation of the Cisco ASR 907 Router, see Preparing for

Installation.

Installing the Router in a Rack

The following sections describe how to install the Cisco ASR 907 Router in a rack:

Installing the Chassis Brackets

The chassis is shipped with mounting brackets that can be installed on the front or rear of the chassis. To

install the brackets on the front of the chassis, perform these steps:

Installing the Cisco ASR 907 Router

Procedure

Step 1 Remove the rack-mount brackets from the accessory kit and position them beside the router chassis.

The figure below shows how to attach the brackets on the Cisco ASR 907 Router for a 19-inch EIA rack and

300 mm ETSI Cabinet.

Figure 1: Attaching Mounting Brackets for a 19-inch EIA Rack and 300 mm ETSI Cabinet

Step 2 Position one of the brackets against the chassis side, and align the screw holes.

Step 3 Secure the bracket to the chassis with the screws removed when performing Step 1. The recommended

maximum torque is 28 in.-lb (3.16 N-m).

The A907-FAN-E fan tray with filter (A907-FAN-F) cannot be mounted using the mounting screws that are

supported for fan tray. This is not an issue with the FAN tray filter blank panel (A907-FAN-F-B). We

recommend that you use the short screws provided in the following rack mount kits to avoid interference of

the air filter during rack mounting and while replacing the fan tray with the fan tray filter (A907-FAN-E):

• 19" rack mount kit (A907-RCKMT-19IN)

• ETSI rack mount kit (A907-RCKMT-ETSI)

What to do next

Repeat Step 2 and Step 3 for the other bracket.

Installing the Router Chassis in the Rack

The procedures in this section apply to both horizontal and vertical mounting of the router in a rack.

Installing the Cisco ASR 907 Router

Installing the Router Chassis in the Rack

To install the router chassis in the equipment rack, perform these steps:

Procedure

Step 1 Position the chassis in the rack as follows:

• If the front of the chassis (front panel) is at the front of the rack, insert the rear of the chassis between

the mounting posts.

• If the rear of the chassis is at the front of the rack, insert the front of the chassis between the mounting

posts.

Step 2 Align the mounting holes in the bracket (and optional cable guide) with the mounting holes in the equipment

rack.

Do not use interface module and power supply ejector handles to lift the chassis; using the handles

to lift the chassis can deform or damage the handles. Installing the Chassis to support the Japanese

JIS Rack Standard.

Caution

Figure 2: Installing the Chassis in a 19-inch EIA Rack

Installing the Cisco ASR 907 Router

Installing the Router Chassis in the Rack

Figure 3: Installing the Chassis to support the Japanese JIS Rack Standard

Installing the Cisco ASR 907 Router

Installing the Router Chassis in the Rack

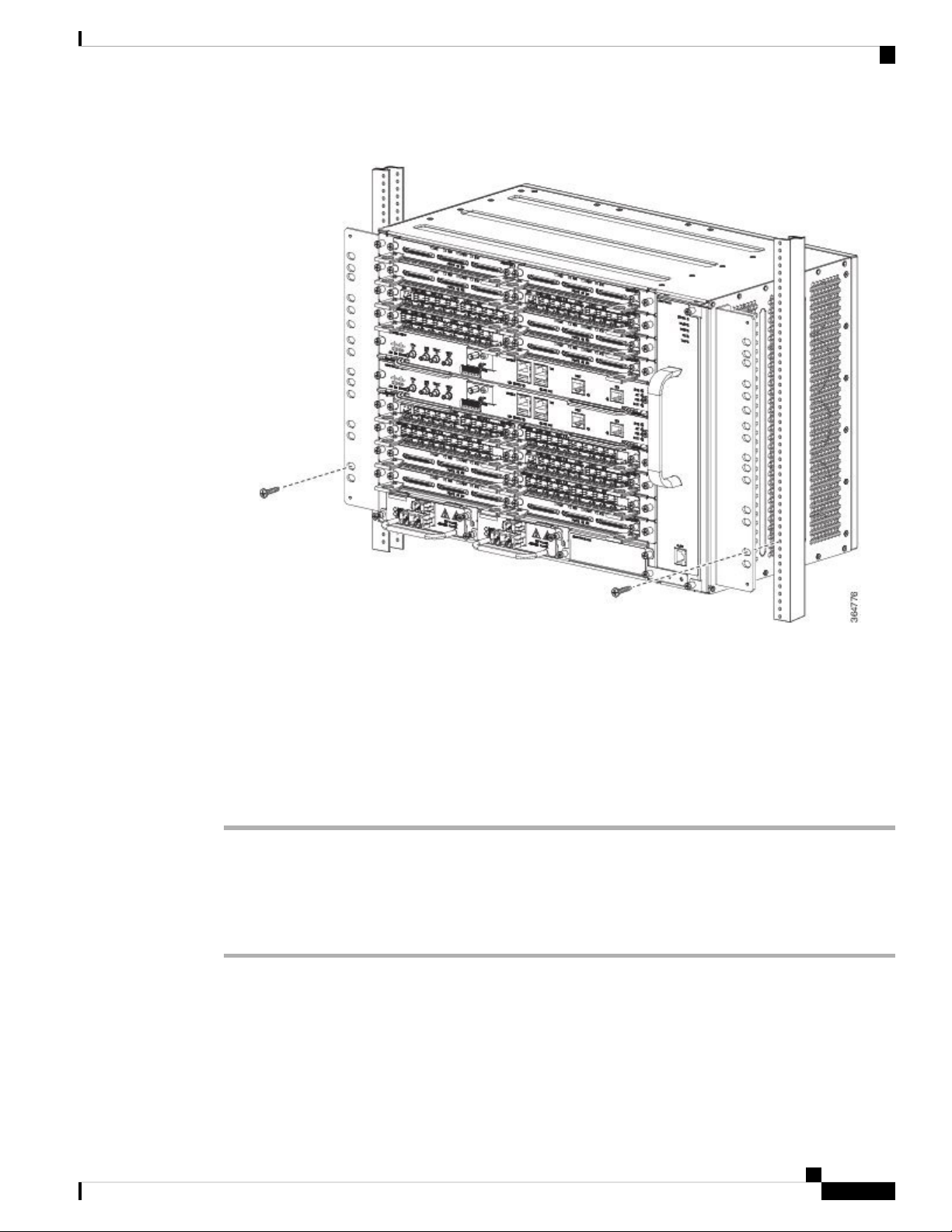

Figure 4: Installing the Chassis in a 300 mm ETSI Cabinet

The router can be mounted in an ETSI rack but the required bend radius for the cables and fibers

within the 300 mm ETSI specification cannot be maintained.

If you want to mount the router in ETSI cabinets, you need to have a custom-made cabinet front

door to meet the fiber bend radius requirement.

Note

Step 3 Install the 8 or 12 (4 or 6 per side) 12-24 x 3/4-inch or 10-32 x 3/4-inch screws through the holes in the bracket

and into the threaded holes in the equipment rack posts.

Step 4 Use a tape measure and level to verify that the chassis is installed straight and level.

Installing Plenum A907-F2B-AIR-U Assembly and Chassis in the Rack

Procedure

Step 1 Position the air baffle and the side plate to the plenum. Secure the air baffle using a maximum torque of 11.5

in.-lb (1.3 N-m). See figure below.

Installing the Cisco ASR 907 Router

Installing Plenum A907-F2B-AIR-U Assembly and Chassis in the Rack

Figure 5: Securing the Air Baffle Tray

Step 2 Position the plenum assembly to the rack and secure the cable brackets to the rack using a torque of 11.5 in.-lb

(1.3 N-m). See figure below.

For a 19-inch rack installation, the rack has to have a flat post.

Note

Installing the Cisco ASR 907 Router

Installing Plenum A907-F2B-AIR-U Assembly and Chassis in the Rack

Figure 6: Plenum Assembly to Rack

Step 3 Repeat Step-1 and Step-2 to complete the plenum assembly on the other side of the plenum base.

Installing the Cisco ASR 907 Router

Installing Plenum A907-F2B-AIR-U Assembly and Chassis in the Rack

Step 4 Position cable guides on the router chassis.

Step 5 Ensure to select the 21-inches or 23-inches adapter for your plenum based on your rack size.

The 19-inches bracket is an integral part of the plenum base.

Note

Figure 7: Different Adapters

Figure 8: Plenum Installation on Various Racks

Step 6 Position the plenum assembly to the rack and secure the cable brackets to the rack using a torque of 11.5 in.-lb

(1.3 N-m). See figure below.

For a 19-inch rack installation, the rack has to have a flat post.

Note

Installing the Cisco ASR 907 Router

Installing Plenum A907-F2B-AIR-U Assembly and Chassis in the Rack

Figure 9: Plenum Assembly to 21-inch Rack

Installing the Cisco ASR 907 Router

Installing Plenum A907-F2B-AIR-U Assembly and Chassis in the Rack

Figure 10: Plenum Assembly to 23-inch Rack

Installing the Chassis in the Air Plenum

Ensure that the router is not installed in the Air Plenum while mounting it on the rack.

Note

For instructions on mounting the air plenum on the rack.

Procedure

Step 1 Position the chassis so that the rear of the chassis is at the front of the plenum. See the figure below.

Step 2 Slide the chassis into the plenum so that the front of the chassis is in flush with the mounting rails and brackets.

Installing the Cisco ASR 907 Router

Installing the Chassis in the Air Plenum
