Cisco PIX-515E Manual de usuario

Quick Start Guide

Cisco PIX 515E Firewall

1Check Items Included

2Install the PIX 515E

3Configure the PIX 515E

4Example Configurations

5Optional Maintenance and Upgrade Procedures

About the Cisco PIX 515E Firewall

The Cisco PIX 515E delivers enterprise-class security

for small-to-medium business and enterprise networks,

in a modular, purpose-built appliance. Its versatile

one-rack unit (1RU) design supports up to 6 10/100

Fast Ethernet interfaces, making it an excellent choice

for businesses requiring a cost-effective, resilient security solution with demilitarized zone (DMZ)

support. It delivers up to 188 Mbps of firewall throughput with the ability to handle over

130,000 simultaneous sessions. Some PIX 515E models include award-winning high-availability

services as well as integrated hardware VPN acceleration, delivering up to 130 Mbps of 3DES and

256-bit AES VPN throughput.

99550

POWER

ACT NETWORK

PIX Firewall

SERIES

ware

eatures

•433-MHz Intel Celeron processor

•32-MB RAM with the restricted (R) license;

64-MB RAM with the unrestricted (UR) and

failover (FO) licenses

•16-MB Flash memory

•128-KB level 2 cache memory at 433 MHz

•32-bit, 33-MHz system bus

•Up to 6 10/100 Fast Ethernet interfaces

•Serial console port for administrative access

•Front panel LEDs for power, failover, and

network status

•Up to 188-Mbps firewall throughput

•Supports 56-bit DES, 168-bit 3DES, and

128- or 256-bit AES data encryption to

ensure data privacy

•Up to 60/130-Mbps VPN throughput

(VAC/VAC+)

tware

eatures

•Includes Cisco PIX Device Manager (PDM)

for intuitive, web-based administration of

PIX Firewalls

•Supports three licensing models with

additional host capacity and failover

capability

•Internal DHCP server supports up to

256 address leases per interface

•Supports up to 2000 remote access and

site-to-site VPN peers

•Supports up to 130,000 simultaneous

connections

•Supports up to eight 802.1Q VLAN-based

logical interfaces

•Intrusion protection from many different

types of popular network-based attacks

ranging from malformed packet attacks to

DoS attacks

•Delivers highly resilient network security

services via award-winning stateful failover

on certain PIX 515E models

1 Check Items Included

End User License and

Software Warranty

PIX 515E

Getting Started

Guide

Safety and

Compliance

Guide

PIX 515E

PC terminal adapter

(74-0495-01)

Documentation

Blue console cable

(72-1259-01)

Yellow Ethernet cable

(72-1482-01)

Cisco PIX

Security Appliance

Product CD

DO NOT INSTALL INTERFACE

CARDS WITH POWER APPLIED

LinkFDXFDX

100MbpsLink

100Mbps

FAILOVER

PIX-515E

CONSOLE

10/100 ETHERNET 1 10/100 ETHERNET 0

Failover serial cable

(74-1213-01)

Mounting brackets

(700-01170-02 AO SSI-3)

7 flathead screws

(69-0123-01)

4 cap screws

(69-0124-01)

4 spacers

(69-0125-01)

Rubber feet

97955

Power cable

2 Install the PIX 515E

Follow these steps to install the PIX 515E:

Step 1 Install the rubber feet onto the five, round, recessed areas on the bottom of the chassis.

Note The chassis is also rack-mountable. For rack-mounting and failover instructions, refer to

the Cisco PIX Firewall Hardware Installation Guide.

Step 2 Use the yellow Ethernet cable (72-1482-01) provided to connect the outside 10/100 Ethernet

interface, Ethernet 0, to a DSL modem, cable modem, or switch.

Step 3 Use the other yellow Ethernet cable (72-1482-01) provided to connect the inside 10/100

Ethernet interface, Ethernet 1, to a switch or hub.

Step 4 Connect the power cable to the rear of the PIX 515E and a power outlet.

Step 5 Power up the PIX 515E. The power switch is located at the rear of the chassis.

Note For additional hardware installation procedures, refer to the Cisco PIX Firewall Hardware

Installation Guide.

Internet

97998

DMZ server

Laptop

computer

Printer

Personal

computer

Switch

Switch Inside

Outside

Router

PIX 515E

Power

cable

DMZ

3 Configure the PIX 515E

The PIX 515E comes with a factory-default configuration that meets the needs of most small and

medium business networking environments. A default DHCP server address pool is included for hosts on

the inside interface. The factory-default configuration on the PIX 515E protects your inside network

from unsolicited traffic.

By default, the PIX 515E denies all inbound traffic through the outside interface. Based on your

network security policy, you should also consider configuring the PIX 515E to deny all ICMP traffic

to the outside interface, or any other interface you deem necessary, by entering the icmp command.

For more information about the icmp command, refer to the Cisco PIX Firewall Command Reference.

The PIX 515E contains an integrated web-based configuration

tool called the Cisco PIX Device Manager (PDM), that is

designed to help you set up the PIX Firewall. PDM is

preinstalled on the PIX 515E. To access PDM, make sure that

JavaScript and Java are enabled in your web browser. Refer to

the Cisco PIX Device Manager Installation Guide for more

information on the operating system and web browser

environments supported by PDM.

PDM includes a Startup Wizard for simplified initial

configuration of your PIX Firewall. With just a few steps, the

PDM Startup Wizard enables you to efficiently create a basic configuration that allows packets to flow

through the PIX Firewall from the inside network to the outside network securely. Follow these steps to

use the Startup Wizard:

Step 1 If you have not already done so, connect the inside Ethernet 1 interface of the PIX 515E to a

switch or hub using the Ethernet cable. To this same switch, connect a PC for configuring the

PIX 515E.

Step 2 Configure your PC to use DHCP (to receive an IP address automatically from the PIX 515E)

or assign a static IP address to your PC by selecting an address out of the 192.168.1.0

network. (Valid addresses are 192.168.1.2 through 192.168.1.254 with a mask of 255.255.255.0

and default route of 192.168.1.1.)

Note The inside interface of the PIX 515E is assigned 192.168.1.1 by default, so this

address is unavailable.

Step 3 Check the LINK LED on the PIX 515E Ethernet 1 interface. When connectivity occurs, the

LINK LED on the Ethernet 1 interface of the PIX Firewall and the corresponding LINK LED on

the switch or hub lights up solid green.

Step 4 To access the Startup Wizard, use the PC connected to the switch or hub and enter the URL

https://192.168.1.1/startup.html into your Internet browser.

Note Remember to add the “s” in “https” or the connection fails. HTTPS (HTTP over SSL)

provides a secure connection between your browser and the PIX 515E.

Step 5 Leave both the username and password boxes empty. Press Enter.

Step 6 Select Yes to accept the certificates and follow the instructions in the Startup Wizard to set up

your PIX 515E. For online Help, click the Help button at the bottom of the Startup Wizard

window.

4 Example Configurations

The following section provides configuration examples for two common PIX 515E configuration

scenarios: hosting a web server on a DMZ network and establishing a site-to-site VPN connection with

other business partners or remote offices. Use these examples to set up your network. Substitute

network addresses and apply additional policies as needed.

DMZ Configuration

A demilitarized zone (DMZ) is a neutral zone between private (inside) and public (outside) networks.

A DMZ allows you to have a presence on the public Internet, while protecting private network

resources that are accessed by users on the public Internet; for example, mail servers or web servers.

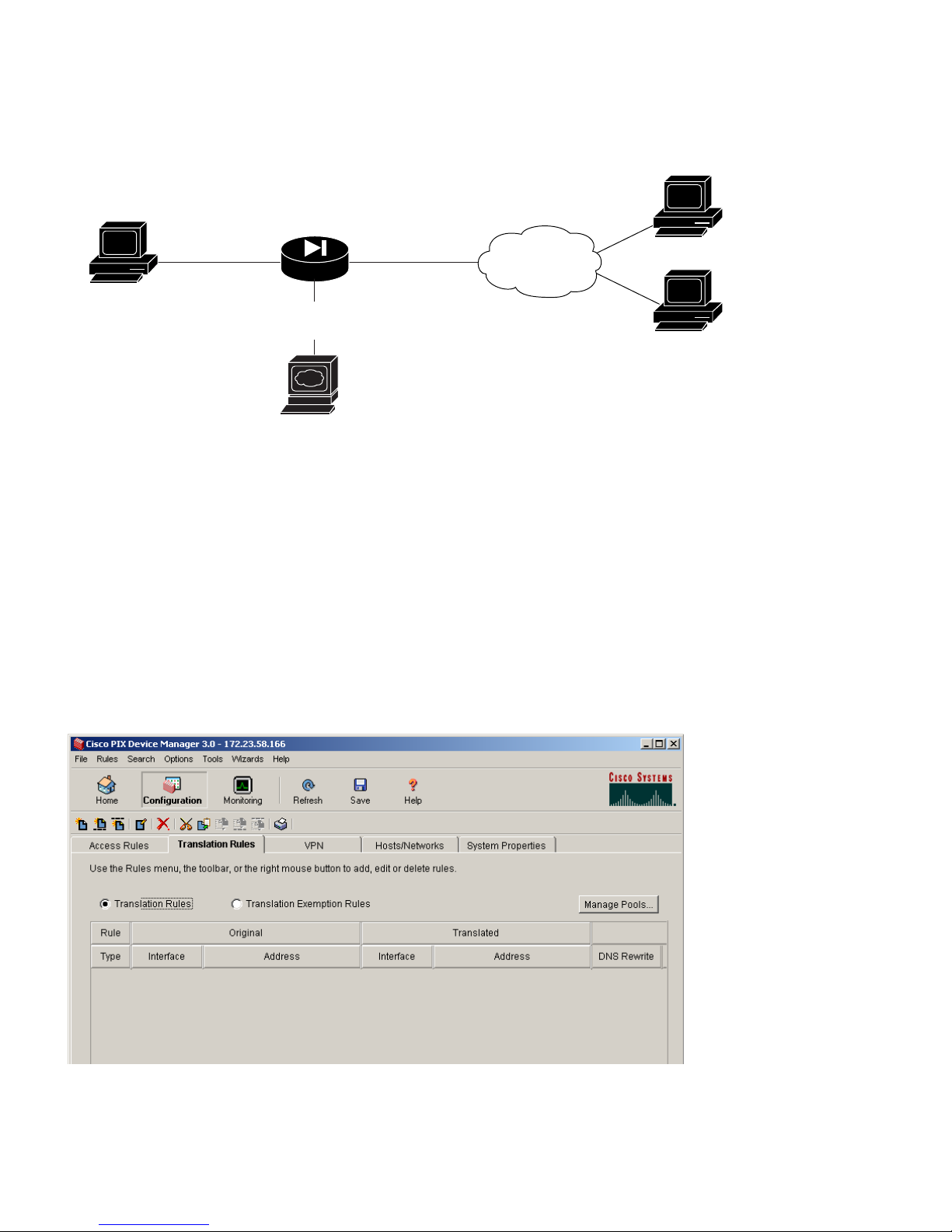

The illustration below shows a sample network topology that is common to most DMZ

implementations using the PIX 515E, in which the web server is on the DMZ interface. HTTP clients

from the inside and the outside networks are able to access the web server securely.

In the illustration below, an HTTP client (10.10.10.10) on the inside network initiates HTTP

communications with the DMZ web server (30.30.30.30). HTTP access to the DMZ web server is

provided for all clients on the Internet; all other communications are denied. The network is

configured such that the range of available IP addresses on the DMZ interface are between

30.30.30.50–30.30.30.60. There are two publicly routable IP addresses available, one for the

PIX 515E outside interface (209.165.156.10) and one for the translated DMZ server

(209.165.156.11). Because the DMZ server is located on a private DMZ network, it is necessary to

translate its private IP address to a public (routable) IP address. This public address allows external

clients HTTP access to the DMZ server as though it was located on the Internet. Use PDM to quickly

configure your PIX 515E for secure communications between HTTP clients and web servers.

Step 1 Manage IP Pools for Network Translations

For an inside HTTP client (10.10.10.10) to access the web server on the DMZ network (30.30.30.30),

it is necessary to define an IP pool (30.30.30.50–30.30.30.60) for the DMZ interface. Similarly, an IP

pool for the outside interface (209.165.156.10) is required for the inside HTTP client to communicate

with any device on the public network. Use PDM to manage IP pools efficiently and easily to facilitate

secure communications between protected network clients and devices on the Internet.

a. Launch PDM.

b. Click the Configuration button at the top of the PDM window.

97999

PIX 515E

Internet

HTTP client

10.10.10.10

Web server

30.30.30.30

DMZ

30.30.30.0

Inside

10.10.10.0

HTTP client

Outside

209.165.156.10

c. Select the Translation Rules tab.

d. Click the Manage Pools button and a new window appears, allowing you to add or edit global

address pools.

Note For most configurations, global pools are added to the less secure, or public, interfaces.

In the Manage Global Address Pools window:

a. Select the dmz interface.

b. Click the Add button.

In the Add Global Pool Item window:

a. Select dmz from the Interface drop-down menu.

b. Click the Range radio button to enter the IP address range.

c. Because the range of IP addresses for the DMZ interface is 30.30.30.50– 30.30.30.60, enter

these values in the two fields.

d. Enter a unique Pool ID (in this case, enter 200).

e. Click the OK button to go back to the Manage Global Address Pools window.

Note You can also select PAT or PAT using the IP address of the interface if there are limited IP

addresses available for the DMZ interface.

Because there are only two public IP addresses available, with one reserved for the DMZ server, all

traffic initiated by the inside HTTP client exits the PIX 515E using the outside interface IP address.

This allows traffic from the inside client to be routed to and from the Internet.

In the Manage Global Address Pools window:

a. Select the outside interface.

b. Click the Add button.

When the new window comes up:

a. Select outside from the Interface drop-down menu.

b. Click the Port Address Translation (PAT) using the IP address of the interface radio button.

c. Assign the same Pool ID for this pool as in Step d above (200).

d. Click the OK button.

Once the pools are configured, confirm their values before applying the rules to the PIX 515E.

Confirm the configurations:

a. Click the OK button.

b. Click the Apply button in the main window.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cortafuegos de Cisco

Cisco

Cisco PIX 501 - Security Appliance Manual de usuario

Cisco

Cisco ASA 5508-X Manual de usuario

Cisco

Cisco ASA 5506-X Guía de inicio rápido

Cisco

Cisco ASA 5506-X Manual de usuario

Cisco

Cisco ASA 5550 Series Manual de usuario

Cisco

Cisco ASA 5585-X Manual de usuario

Cisco

Cisco Firepower 7010, Firepower 7020, Firepower 7030, Firepower 7050, Firepower 7110, Firepower 7120, Firepower 7115, Firepower... Manual de usuario

Cisco

Cisco Spam Manual de usuario

Cisco

Cisco 515E - PIX Restricted Bundle Manual de usuario

Cisco

Cisco Firepower 4100 Series Manual de instalación y operación

Cisco

Cisco PIX 501 Manual de usuario

Cisco

Cisco Firepower 4100 Series Manual de usuario

Cisco

Cisco 881W - Integrated Services Router Wireless Manual de instrucciones

Cisco

Cisco M195 Manual

Cisco

Cisco FMC 1600 Manual

Cisco

Cisco 5505 - ASA Firewall Edition Bundle Manual de usuario

Cisco

Cisco 5505 - ASA Firewall Edition Bundle Manual de usuario

Cisco

Cisco Meraki MX64W Manual de usuario

Cisco

Cisco RV110W Manual de usuario

Cisco

Cisco ISA3000-4C-K9 Manual

Cisco

Cisco Cisco ASA Series Instrucciones de instalación

Cisco

Cisco M690 Manual de usuario

Cisco

Cisco FirePOWER 7000 Manual de usuario

Cisco

Cisco Firepower 2100 Series Guía de referencia rápida

Manuales populares de Cortafuegos de otras marcas

Fortinet

Fortinet FortiGate Voice Series Manual de usuario

ADTRAN

ADTRAN NetVanta 2300 Manual de usuario

SecureLogix

SecureLogix ETM System Manual de usuario

NETGEAR

NETGEAR ProSafe FVX538 Manual de usuario

Lanner

Lanner FW-8877 Manual de usuario

Huawei

Huawei USG6000 Series Manual de instalación y operación

H3C

H3C SecPath F5000-AI-15 Manual de usuario

Nexcom

Nexcom DNA 1150 Manual de usuario

Fortinet

Fortinet FortiGate-60 series Manual de usuario

Draytek

Draytek Vigor2860 Series Manual de usuario

Lanner electronics

Lanner electronics FW-7650 Series Manual de usuario

Swisscom

Swisscom Internet Backup Manual de usuario

SonicWALL

SonicWALL NSa 5700 Manual de usuario

DPtech

DPtech FW1000 SERIES Manual de usuario

FEITIAN

FEITIAN MultiPass FIDO Manual de usuario

EBLOCKER

EBLOCKER PRO Manual de usuario

GTA

GTA GB-200 Manual de usuario

Trend Micro

Trend Micro Deep Edge Manual de usuario
