Installation, Maintenance, and Upgrade

•Install the FIPS Opacity Shield , on page 1

Install the FIPS Opacity Shield

Because the FIPS opacity shield covers the serial number on the chassis, the CO should copy the serial number

and store it in a secure place. The serial number is needed when you call Cisco TAC. See Serial Number

Location for the location of the serial number.

Note

You can only install the FIPS opacity shield with the desktop mount or wall mount. The rack mount does not

support the FIPS shield. See Desktop-Mount the Chassis and Wall-Mount the Chassis for more information.

Note

Before you begin

This procedure should be performed only by the Crypto Officer (CO).

Caution

You need the following to install the FIPS opacity shield:

• #1 Phillips head screwdriver

• The following items from the FIPS kit (part number 69-100649-01):

• One FIPS opacity shield (part number 800-106088-01)

• Three M3 x 66 mm (part number 48-0384-01) screws used to attach the FIPS opacity shield to the

chassis

• Nine Tamper Evidence Labels (TELs) (part number 47-25553-01)

Installation, Maintenance, and Upgrade

The TELs are made of a special thin gauge vinyl with self-adhesive backing.

Once the CO attaches them on the chassis, any attempt to open the chassis damages

the TELs or the chassis cover. Because the TELs have nonrepeated serial numbers,

the CO can inspect them for damage and compare them against the applied serial

numbers to verify whether the chassis has been tampered with. TELs with curled

corners, rips, and slices indicate tampering. The word “FIPS” or “OPEN” may

appear if the label has been peeled back.

Note

Step 1 Copy the serial number and store in a secure place.

Step 2 If the chassis is mounted on a wall, uninstall it by following Steps 9-10 in Wall-Mount the Chassis.

Step 3 Install the FIPS cover by holding the chassis right-side up and sliding the chassis into the FIPS cover front panel first.

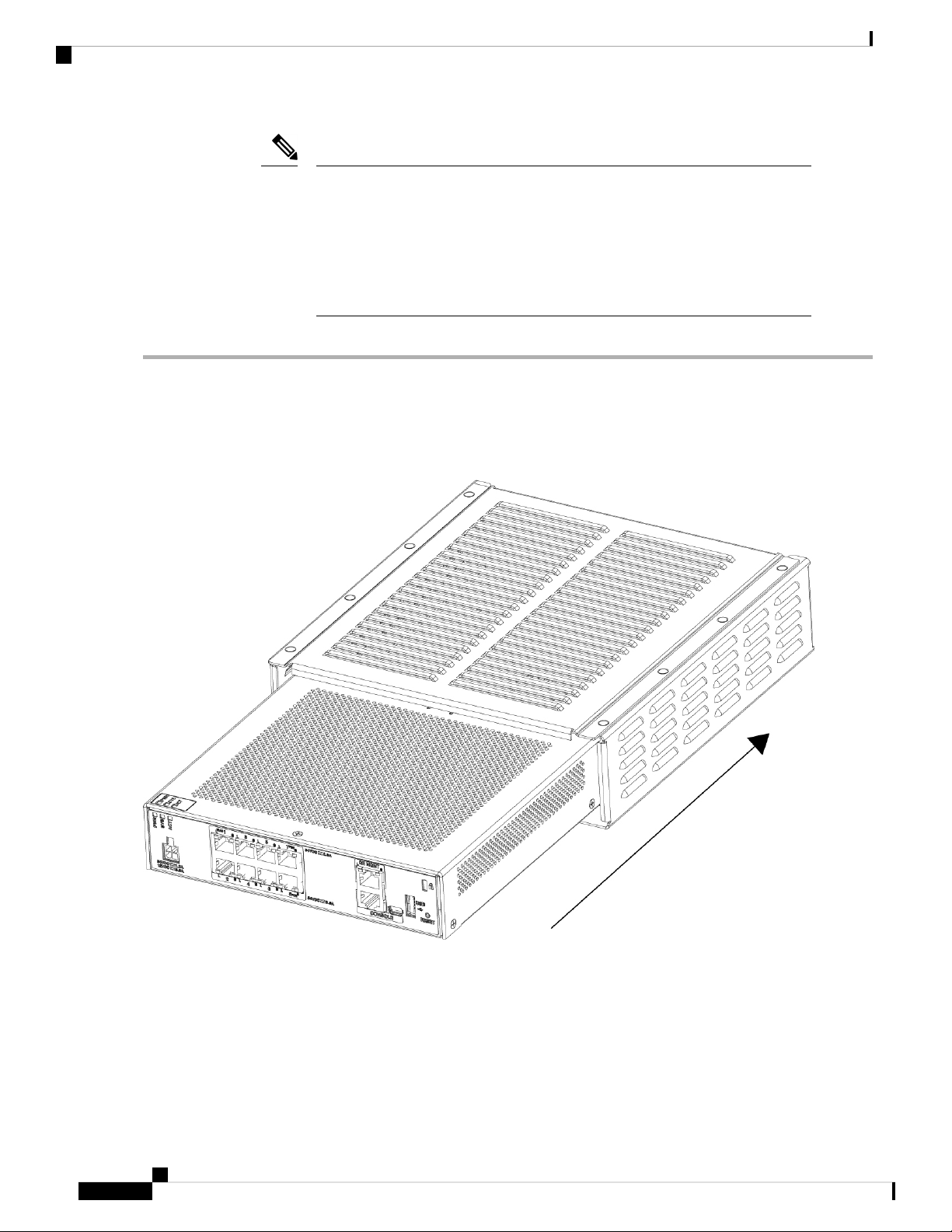

Figure 1: Install Chassis into FIPS Cover

Step 4 Turn the chassis with the FIPS cover installed over and install the three screws.

Installation, Maintenance, and Upgrade

Install the FIPS Opacity Shield

Figure 2: Install Screws on the Bottom of the FIPS Cover

Three M3 x 66 mm Phillips screws2FIPS opacity shield1

Step 5 Before you attach the TELs, clean the chassis and FIPS cover of any grease, dirt, or oil with alcohol-based cleaning

pads.

Step 6 Attach four of the TELs, three on the bottom of the chassis over the screws and one on the front of the chassis. See the

figure below for the correct placement. The figure shows the bottom of the chassis where you place three of the TELs.

Allow the TELs to cure for a minimum of 12 hours.

Any deviation in the placement of the TELs means the chassis is not in FIPS mode.

Caution

Installation, Maintenance, and Upgrade

Install the FIPS Opacity Shield

Figure 3: TELS Placement on the Rear Panel and Bottom of the FIPS Cover

TEL 2 on the bottom left of the FIPS cover over the

screw

2TEL 1 on the rear panel of the chassis1

TEL 4 on the bottom right of the FIPS cover over the

screw

4TEL 3 on the bottom center of the FIPS cover over

the screw

Step 7 Reinstall the chassis in the wall mount if you are using a mount. See Wall-Mount the Chassis for the procedure.

Step 8 Attach the power cable to the chassis and connect it to an electrical outlet.

Step 9 Press the power switch on the rear panel.

Step 10 Check the power LED on the front panel. See Status LEDs for a description of the power LED. Solid green indicates

that the chassis is powered on.

Step 11 Place the chassis in FIPS mode.

See the following procedures for how to place the chassis in FIPS mode:

• See the "Security Certifications Compliance" chapter in the Firepower Management Center Configuration Guide,

Version 6.7 for the procedure to enable FIPS mode.

Installation, Maintenance, and Upgrade

Install the FIPS Opacity Shield

• See the fips enable command in the Cisco ASA Series Command Reference, A-H Commands for the ASA

procedure to enable FIPS mode.

What to do next

See the Cisco Firepower 1010 Getting Started Guide for further configuration information.

Installation, Maintenance, and Upgrade

Install the FIPS Opacity Shield

Installation, Maintenance, and Upgrade

Install the FIPS Opacity Shield
