Cisco RV110W Manual de usuario

Quick Start Guide

Cisco RV110W Wireless-N VPN Firewall

Package Contents

•Wireless-N VPN Firewall

•Ethernet Cable

•Power Adapter

•Quick Start Guide

•Documentation and software on CD-ROM

2 Cisco RV110W Wireless-N VPN Firewall

Welcome

Thank you for choosing the Cisco RV110W Wireless-N VPN Firewall.

The RV110W provides simple, affordable, secure business-class

connectivity to the Internet for small office/home office (SoHo) and remote

professionals.

This guide describes how to physically install your Cisco RV110W and

launch the web-based Device Manager to configure and manage your

firewall.

Installing Cisco RV110W

To prevent the device from overheating or being damaged:

•Ambient Temperature—Do not operate it in an area that exceeds an

ambient temperature of 104°F (40°C).

•Air Flow—Be sure that there is adequate air flow around the device. If

wall mounting the firewall, make sure the heat dissipation holes are to

the side.

•Mechanical Loading—Be sure that the device is level and stable to

avoid any hazardous conditions and that it is secure to prevent it from

sliding or shifting out of position. Do not place anything on top of the

firewall, as excessive weight might damage it.

Place the Cisco RV110W unit horizontally on a flat surface so that it sits on

its four rubber feet.

Cisco RV110W Features

Front Panel

Cisco RV110W Wireless-N VPN Firewall 3

Back Panel

RESET Button—The RESET button has two functions:

•If the Cisco RV110W is having problems connecting to the Internet,

press the RESET button for at least 3 but no more than 10 seconds with

a paper clip or a pencil tip. This is similar to pressing the reset button on

your PC to reboot it.

Power The Power light is green to indicate the unit is

powered on. The light flashes green when the

power is coming on.

WPS The Wi-Fi Protected Setup (WPS) button is

used to configure wireless access for devices

in your network that are WPS-enabled. See the

Administration Guide

or Device Manager help

page for more information.

WAN The WAN (Internet) light is green when the

Cisco RV110W is connected to the Internet

through your cable or DSL modem. The light is

off when the Cisco RV110W is not connected

to the Internet. The light flashes green when it

is sending or receiving data

Wireless The Wireless light is green when the wireless

module is enabled. The light is off when the

wireless module is disabled. The light flashes

green when the firewall is transmitting or

receiving data on the wireless module.

LAN Ports The numbered lights correspond to the LAN

ports on the Cisco RV110W.

If the lights are continuously lit green, the Cisco

RV110W is connected to a device through the

corresponding port (1, 2, 3, or 4). The light for a

port flashes green when the firewall is actively

sending or receiving data over that port.

4 Cisco RV110W Wireless-N VPN Firewall

•If you are experiencing extreme problems with the Cisco RV110W and

have tried all other troubleshooting measures, press and hold in the

RESET button for more than 10 seconds. This reboots the unit and

restores the factory defaults. Changes you have made to the Cisco

RV110W settings are lost.

LAN Ports (1-4)—These ports provide a LAN connection to network

devices, such as PCs, print servers, or switches.

WAN (Internet) Port—The WAN port is connected to your Internet device,

such as a cable or DSL modem.

POWER Button—Press this button to turn the firewall on and off.

12VDC Port—The 12VDC port is where you connect the provided 12 volt

DC power adapter.

Connecting the Equipment

NOTE You must connect one PC with an Ethernet cable for the purpose of

the initial configuration. After you complete the initial configuration,

administrative tasks can be performed using a wireless connection.

STEP 1Power off all equipment, including the cable or DSL modem, the PC

you will use to connect to the Cisco RV110W, and the Cisco

RV110W.

STEP 2You should already have an Ethernet cable connecting your PC to

your current cable or DSL modem. Unplug one end of the cable

from your PC and plug it into the port marked “WAN” on the unit.

Cisco RV110W Wireless-N VPN Firewall 5

STEP 3Connect one end of a different Ethernet cable to one of the LAN

(Ethernet) ports on the back of the unit. (In this example, the LAN 1

port is used.) Connect the other end to an Ethernet port on the PC

that you will use to run the web-based Setup Wizard and Device

Manager.

STEP 4Power on the cable or DSL modem and wait until the connection is

active.

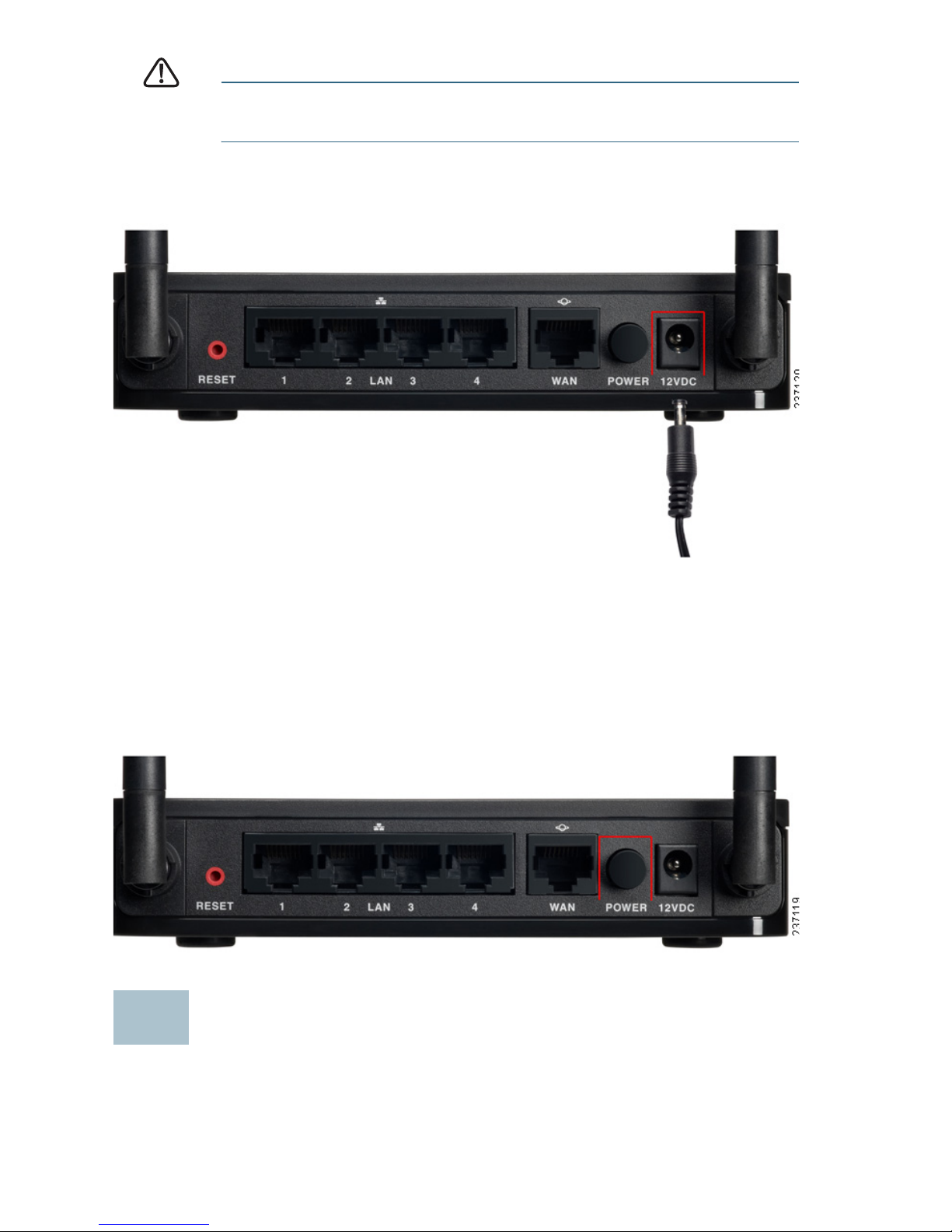

STEP 5Connect the power adapter to the Cisco RV110W POWER port.

6 Cisco RV110W Wireless-N VPN Firewall

CAUTION Use only the power adapter that is supplied with the unit.

Using a different power adapter could damage the unit.

STEP 6Plug the other end of the adapter into an electrical outlet. You may

need to use a specific plug (supplied) for your country.

STEP 7On the Cisco RV110W, push the POWER button in to turn on the

firewall. The power light on the front panel is green when the

power adapter is connected properly and the unit is turned on.

Using the Setup Wizard

NOTE The Setup Wizard and Device Manager are supported on

Microsoft Internet Explorer 6.0 or later, Mozilla Firefox 3.0 or later, and

Apple Safari 3.0 or later.

Cisco RV110W Wireless-N VPN Firewall 7

STEP 1Power on the PC that you connected to the LAN1 port in Step 2 of

the Connecting the Equipment section. Your PC becomes a DHCP

client of the firewall and receives an IP address in the 192.168.1.xxx

range.

STEP 2Start a web browser on your PC. In the Address bar, enter the

default IP address of the firewall: 192.168.1.1. A message appears

about the site’s security certificate. The Cisco RV110W uses a self-

signed security certificate and this message appears because the

firewall is not known to your PC. You can safely click Continue to

this website (or the option shown on your particular web browser)

to go to the web site.

STEP 3When the login page appears, enter the user name and password.

The default user name is cisco. The default password is cisco.

Passwords are case sensitive.

NOTE For security reasons, change the default user name and password

as soon as possible. See the Changing the Administrator User Name

and Password section.

STEP 4Click Log In.

Changing the Administrator User Name and Password

STEP 1From the Getting Started page, choose Change Default

Administrator Password.

STEP 2Select Edit Admin Settings.

STEP 3In the Administrator Settings section, enter the new administrator

username. We recommend that you do not use “cisco.”

STEP 4Enter the old password.

STEP 5Enter the new password. Passwords should not contain dictionary

words from any language or the default password, and they should

contain a mix of letters (both upper- and lowercase), numbers, and

symbols. Passwords must be at least 8 but no more than 30

characters.

STEP 6Enter the new password again to confirm.

STEP 7Click Save.

8 Cisco RV110W Wireless-N VPN Firewall

Connecting to Your Wireless Network

To connect a device (such as a PC) to your wireless network, you must

configure the wireless connection on the device with the wireless security

information you configured using the Device Manager.

The following steps are provided as an example; you may need to

configure your device differently. For instructions that are specific to your

device, consult the user documentation for your device.

STEP 1Open the wireless connection settings window or program for your

device. Your PC may have special software installed to manage

wireless connections, or you may find wireless connections under

the Control Panel in the Network Connections or Network and

Internet window. (The location depends on your operating system.)

STEP 2Enter the network name (SSID) you chose for your network when

you configured the Cisco RV110W.

STEP 3Choose the type of encryption and enter the security key that you

chose when setting up the Cisco RV110W. If you did not enable

security (not recommended), leave these fields blank.

STEP 4Verify your wireless connection and save your settings.

Cisco RV110W Wireless-N VPN Firewall 9

Where to Go From Here

For EU lot 26 related test result, please check this web page:

www.cisco.com/go/eu-lot26-results.

Support

Cisco Support

Community

www.cisco.com/go/smallbizsupport

Cisco Support and

Resources

www.cisco.com/go/smallbizhelp

Phone Support Contacts www.cisco.com/en/US/support/

tsd_cisco_small_business

_support_center_contacts.html

Cisco Firmware

Downloads

www.cisco.com/go/smallbizfirmware

Select a link to download firmware for Cisco

products. No login is required.

Cisco Open Source

Requests

www.cisco.com/go/

smallbiz_opensource_request

Cisco Partner Central

(Partner Login Required)

www.cisco.com/web/partners/sell/smb

Product Documentation

Cisco RV110W

Administration Guide

www.cisco.com/go/rv110w

10 Cisco RV110W Wireless-N VPN Firewall
