Cisco M170 Manual de usuario

303495

Cisco M170

Security

Appliance

QUICK START GUIDE

Cisco M170 Content Security

Management Appliance

1Welcome

2Before You Begin

3Document Network Settings

4Plan the Installation

5Install the Appliance in a Rack

6Plug In the Appliance

7Temporarily Change Your IP Address

8Connect to the Appliance

9Power Up the Appliance

10 Log In to the Appliance

11 Run the System Setup Wizard

12 Configure Network Settings

13 Configuration Summary

14 You’re Done!

15 Frequently Asked Questions

16 Where to Go From Here

M170_QSG.fm Page 1 Wednesday, March 13, 2013 10:01 PM

Revised: March 13, 2013

Part Number: 78-19644-04

1 Welcome

Thank you for choosing the Cisco M170 Content Security

Management Appliance (Cisco M170).

The Content Security Management appliance centralizes and

consolidates important policy and runtime data, providing

administrators and end-users with a single interface for

managing their email and web security systems. It ensures top

performance from Cisco C-Series and S-Series appliances, and

protects corporate network integrity by increasing deployment

flexibility.

The Content Security Management appliance provides the

central platform for managing all reporting and auditing

information for Cisco Email and Web Security appliances.

Optional management features allow you to coordinate all your

security operations from a single Content Security Management

appliance or to spread the load across multiple appliances.

This guide describes how to physically install the Cisco M170

appliance and use the System Setup Wizard to configure basic

settings.

M170_QSG.fm Page 2 Wednesday, March 13, 2013 10:01 PM

2 Before You Begin

Before you begin the installation, make sure that you have the

items you need.

The following items are included with the Cisco M170 Content

Security Management Appliance:

• Quick Start Guide (this guide)

• Rails and adaptor kit

• Power cable(s)

• Ethernet cable for connecting the appliance to your

network

• Regulatory Safety and Compliance Information

You will need to provide the following items yourself:

• Rack cabinet enclosure (if rack-mounting the appliance)

• Phillips-head screwdriver for assembling rails

• 10/100 Gigabit Base-T TCP/IP LAN

• Desktop or laptop computer

• Web browser (or SSH and terminal software)

• Network and administrator information for the “Document

Network Settings” section on page 4

M170_QSG.fm Page 3 Wednesday, March 13, 2013 10:01 PM

3 Document Network Settings

Before you begin, write down the following information about

your network and administrator settings.You will need this

information when running the System Setup Wizard.

System Settings

Default System Hostname:

Deliver Scheduled Reports To:

Time Zone Information:

NTP Server:

Admin Password:

AutoSupport: Enable/Disable

Network Integration

Default Gateway (Router) IP Address:

DNS (Internet or Specify Own):

Interfaces

Data Port 1

IP Address:

Network Mask:

Fully Qualified Hostname:

Data Port 2

IP Address:

Network Mask:

M170_QSG.fm Page 4 Wednesday, March 13, 2013 10:01 PM

4 Plan the Installation

The Cisco M170 Content Security Management Appliance is

designed to serve as an external or “off box” location to

monitor corporate policy settings and audit information. It

combines hardware, an operating system (AsyncOS), and

supporting services to centralize and consolidate important

policy and runtime data.

The Cisco M170 appliance is designed to sit within your inner

DMZ and receive quarantined spam from Cisco C-Series and

S-Series appliances in your outer DMZ. Internal users access the

Content Security Management appliance to view and manage

messages in their quarantines.

Plan for your network configuration to look something like this:

Internet

Firewall

Internal Users

Cisco IronPort C-Series

Outer DMZ

Inner DMZ

Cisco IronPort S-Series

Cisco IronPort M-Series

303492

CiscoIronPort C170

Management

Appliance

CiscoIronPort C170

Management

Appliance

CiscoIronPort S170

Management

Appliance

CiscoIronPort M170

Management

Appliance

CiscoIronPort M170

Management

Appliance

M170_QSG.fm Page 5 Wednesday, March 13, 2013 10:01 PM

5 Install the Appliance in a Rack

Install the Cisco M170 Content Security Management

Appliance using either the slide rails or fixed rack mount

brackets. For information about these installation options, see

the Cisco 170 Series Hardware Installation Guide.

Appliance Placement

• Ambient Temperature—To prevent the appliance from

overheating, do not operate it in an area that exceeds an

ambient temperature of 104°F (40°C).

• Air Flow—Be sure that there is adequate air flow around

the appliance.

• Mechanical Loading—Be sure that the appliance is level

and stable to avoid any hazardous conditions.

CiscoC170

Web

Security

Appliance

104

303363

Temperature Limits

M170_QSG.fm Page 6 Wednesday, March 13, 2013 10:01 PM

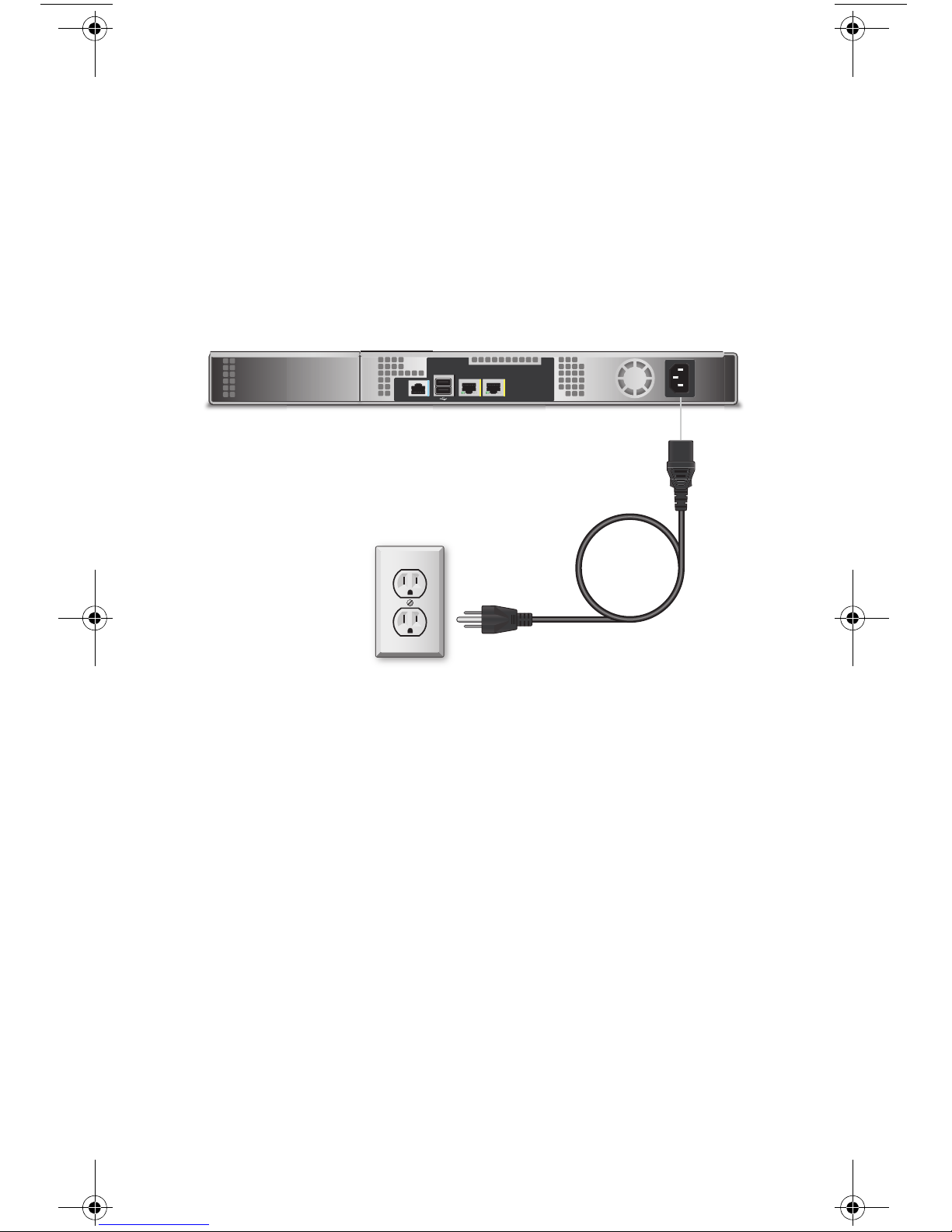

6 Plug In the Appliance

Plug the female end of the power cable into the power supply on

the back panel of the appliance. Plug the male end(s) into an

electrical outlet.

7JZ78-004E

P1 P2CONSOLE

303393

Plug the M170 power cable

into an electrical outlet.

M170_QSG.fm Page 7 Wednesday, March 13, 2013 10:01 PM

7 Temporarily Change Your IP

Address

To connect to the Cisco M170, you must temporarily change the

IP address of your computer.

Note Make a note of your current IP configuration settings

as you will need to revert to these settings after you

finish the configuration.

For Windows

Step 1 Go to the Start menu and choose Control Panel.

Step 2 Double-click Network and Sharing Center.

Step 3 Click Local Area Connection and then click Properties.

Step 4 Select Internet Protocol (TCP/IP) and then click

Properties.

Step 5 Select Use the Following IP Address.

Step 6 Enter the following changes:

• IP Address: 192.168.42.43

• Subnet Mask: 255.255.255.0

• Default Gateway: 192.168.42.1

Step 7 Click OK and Close to exit the dialog box.

For Mac

Step 1 Launch the Apple menu and choose System Preferences.

Step 2 Click Network.

Step 3 Select the network configuration with the green icon.

This is your active connection. Then click Advanced.

Step 4 Click the TCP/IP tab and from Ethernet settings,

choose Manually from the drop-down list.

Step 5 Enter the following changes:

M170_QSG.fm Page 8 Wednesday, March 13, 2013 10:01 PM

• IP Address: 192.168.42.43

• Subnet Mask: 255.255.255.0

• Router: 192.168.42.1

Step 6 Click OK.

8 Connect to the Appliance

The Cisco M170 appliance has two gigabit network ports:

P1 and P2.

For the purposes of setup, connect to P1 as your management

interface and configure incoming web traffic or email on the P2

interface. These settings can be changed after the initial

installation.

7JZ78-004E

P1 P2CONSOLE

P1 P2

P1:

Management: 192.168.42.42

Connect the P1 port

to your computer using

an Ethernet cable.

P2:

Incoming web traffic or email

Connect the P2 port

to your network using

an Ethernet cable.

303494

M170_QSG.fm Page 9 Wednesday, March 13, 2013 10:01 PM

9 Power Up the Appliance

Power up the appliance by pressing the On/Off switch on the

front panel of the Cisco M170. You must wait five minutes for

the system to initialize each time you power up the system.

After the machine powers up, a solid green light indicates that

the appliance is operational.

10 Log In to the Appliance

You can log into the Cisco M170 using one of two interfaces:

the web-based interface or the command line interface.

Web-Based Interface

Step 1 For web browser access via the Ethernet port (see the

“Connect to the Appliance” section on page 9), go to the

Cisco M170 appliance management interface by

entering the following URL in a web browser:

http://192.168.42.42

Cisco C170

Security

Appliance

303362

Wait five minutes.
