This manual describes how to use the WebView Livescope Ver. 3.6 Viewer Software.

There are two types of viewers, Viewer for Java and the Viewer for PC, and the video

sender can use one or the other as required. Both types provide the same basic

functions for viewing videos, but differ in terms of other features and functions. The

preparations for using the two viewer types and the required operating environment also

differ depending on the computer hardware and software used to run the viewer.

Read this manual carefully before you use the viewer to ensure that you make the best

possible use of this product.

Store this manual in a safe place after you finish reading it.

The latest information on the viewer is available at the following URL.

http://www.canon.com/webview

Introduction

Trademark Information

Canon and Canon logo are registered trademarks of Canon Inc.

Microsoft Windows and Microsoft Internet Explorer are registered trademarks of the Microsoft Corporation in the

United States and other countries.

Netscape is a trademark of Netscape Communications Corporation.

Java and all Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the United

States and other countries.

All other company or product names used in this document are trademarks or registered trademarks of their

respective holders.

* In this document, “Microsoft Windows” is abbreviated as simply “Windows”.

Conventions

Indicates important notes or restrictions that must be observed when using this product. Always

read these notes.

Indicates additional information or explanations for a procedure. You should read these items.

Under copyright law, video or still pictures photographed by the viewer cannot be used for any purpose other than

personal enjoyment without prior permission from the copyright holder.

Note

Tip

Usage Notice of Audio

1. Audio stream may be interrupted according to the performance of your PC and network environment.

2. If you use a proxy server, the audio may be interrupted.

3. If you use a PC on which anti-virus software is installed, the audio may be delayed or the audio stream may be

temporarily interrupted.

Introduction

WebView Livescope Overview

■WebView Livescope is the system that allows camera control and live video distribution from a

remote location.

■The system is configured for a camera server and viewer software. The camera server distributes

live video taken by the video camera to the Internet or an Intranet. The viewer software can display

the video and remotely control the camera.

■The WebView Livescope system can be used in a wide range of applications such as distributing

live video from a Web site and monitoring.

The following types of camera servers are available:

•Network Camera Server VB150

•Network Camera VB-C50i/VB-C50iR

•Network Camera VB-C50Fi

The following types of Viewer Software are available:

•Viewer for Java (This manual: provided free of charge with camera server product)

•Viewer for PC (This manual: provided free of charge with camera server product)

•Network Video Recorder VK-64 (Sold separately)

•WebView Livescope MV Ver. 2.1/LE (Sold separately)

■The names of the viewers have been changed as follows:

Old Name

Helper Viewer

Java Viewer

New Name

Viewer for PC

Viewer for Java

Live

Active

WebView Livescope is a video distribution system that enables users to

actively (by performing operations by oneself) view live (showing now) video

from Web pages by allowing users to change camera angle and zoom magnification.

Video Sender Video Recipient

(Viewer software)

Sending the current video

Viewing by switching angle and zoom magnification

Offers an easy way

to provide live information contents.

Offers the advantage of

being able to actively select desirable

parts from live video according to

the user’s purposes.

(Camera server)

VB150

VB-C50Fi

VB-C50i

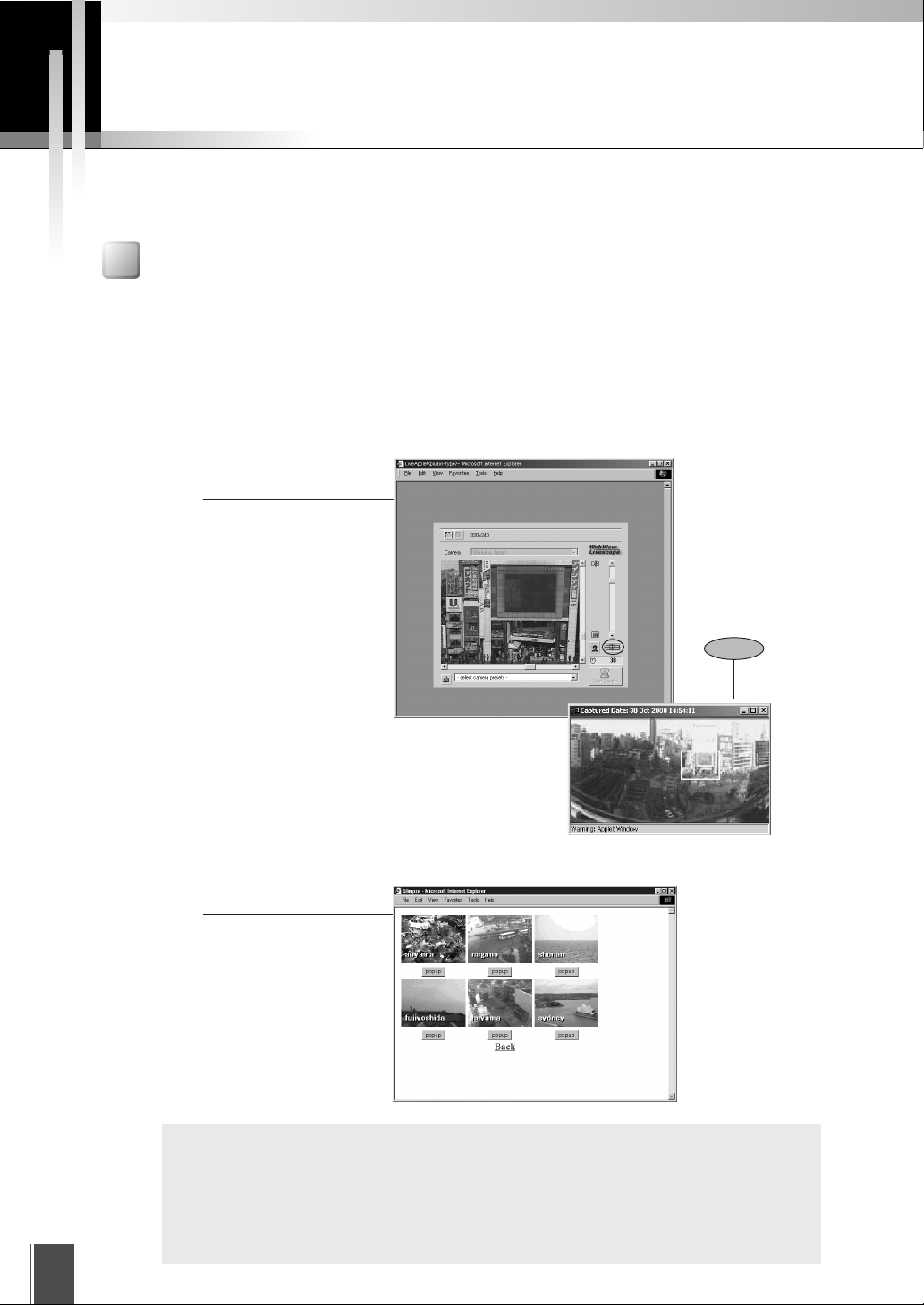

LiveApplet

Video display functions

Camera control functions

Glimpse

Video display functions

Viewer for Java

Viewer Overview

This is a viewer written using Java. This viewer allows the camera server’s videos to be

viewed on any computer with a Web browser that runs Java, regardless of the platform.

Because the Java applet is downloaded when the viewer starts up, the first video takes

some time to appear. The Viewer for Java provides two types of viewers: LiveApplet

containing video display and camera control functions, and Glimpse containing a video

display function.

Panorama picture

➤

Click

There are two types of WebView Livescope Viewer Software: the Viewer for Java and the Viewer for

PC.

Note

●To use the Viewer for Java, you need to install Java VM beforehand. See the

web site for more details.

WebView Product web site http://www.canon.com/webview

●Panorama pictures must be registered in advance at the camera server.

*Panorama pictures are not available with the VB-C50Fi.

Introduction

Viewer for PC

This is a viewer that runs as an application. This viewer provides video display and camera

control functions and appears in a separate window at startup. While the Viewer for PC has

to be pre-installed, it offers the advantage of displaying the first video quickly. At present,

only a Windows version of this viewer is available.

Note

●The Viewer for PC is provided on the CD-ROMs supplied with the Network

Camera Server VB150, the Network Camera VB-C50i/VB-C50iR and VB-

C50Fi packages. The viewer can also be downloaded free of charge from

the following web site.

URL : http://www.canon.com/webview

●The Viewer for PC needs to be pre-installed on your computer. (→p.26)

●Panorama pictures must be registered in advance at the camera server.

*Panorama pictures are not available with the VB-C50Fi.

●When playing back audio, please read carefully “Usage Notice of Audio”

(→ P.4).

*Audio input/output is not available with the VB-C50Fi.

➤

Click

Panorama picture

●Because the Viewer for Java is downloaded from the camera server every

time you access and displays video on the viewer screen, it starts up

slower than the Viewer for PC that is pre-installed on a PC.

●Use the Viewer for Java when you access the camera server and view video

for the first time. However, we recommend you to install and use the Viewer

for PC if you view video frequently.

Tip

Operating Environment

Viewer for Java Ver. 3.6

Viewer for PC Ver. 3.6

Windows 2000 (SP4)/ Windows XP (SP1a or SP2)

Netscape 7.1 or 7.2,

or Microsoft Internet Explorer 6.0 (SP1 or SP2)

Operating System

Web Browser

* Must be installed in advance from the CD-ROM supplied with the camera server. (→p.26)

Windows 2000 (SP4)/ Windows XP (SP1a or SP2)

Netscape 7.1 or 7.2,

or Microsoft Internet Explorer 6.0 (SP1 or SP2)

Operating System

Web Browser

MSVM Release 5.0.0.3810 (Java VM provided by Microsoft)

Java Plug-in 1.4.2 (Java VM provided by Sun Microsystems)

Java VM

* This viewer is installed in the camera server and automatically downloaded when it is connected to the camera

server.

* Operation is unstable when used with an OS or Web browser other than those noted above.

For the latest information, please refer to our WebView Product web page:

http://www.canon.com/webview

Chapter 1

Viewer for Java

This chapter describes the preparations required for using the Viewer for Java

and explains how to use the viewer.

Preparations for Using the Viewer for Java

The Viewer for Java is automatically downloaded from the camera server. There is no need to install

it in advance. However, depending on the type of Web browser you are using and your software

settings, you must change your Web browser settings.

Using Internet Explorer

* For Internet Explorer 6.0

Internet Explorer has a setting that specifies whether the use of Java is permitted.

From the “Tools” menu, select “Internet Options” and click the “Advanced” tab. Then set “JIT

compiler for virtual machine enabled” as the “Microsoft VM” setting.

In Windows XP, Java VM may not be installed. If this is the case, please install it. See the

web site for more details.

WebView Product web site http://www.canon.com/webview

Detailed settings below similar to the ones are displayed after settings.

* For Internet Explorer 6.0

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Software de Canon

Canon

Canon EOS 5D - Focusing Screen Ee-A Manual de usuario

Canon

Canon ZR200 Instrucciones de montaje

Canon

Canon SD30 - PowerShot Digital ELPH Camera Manual de usuario

Canon

Canon N1240U - CanoScan Flatbed Scanner Manual de usuario

Canon

Canon Powershot A3100 IS Guía de inicio rápido

Canon

Canon 1000D - EOS Rebel XS Transcend 8GB Memory... Manual de usuario

Canon

Canon Selphy CP600 Instrucciones de montaje

Canon

Canon CANOSCAN D660U Manual de usuario

Canon

Canon CANOSCAN D660U Manual de usuario

Canon

Canon OPTURA XI - Camcorder - 2.2 MP Manual de usuario

Canon

Canon PowerShot G3 Manual de usuario

Canon

Canon VK-16 Manual de usuario

Canon

Canon EOS Digital Photo Professional Manual de usuario

Canon

Canon CanoScan FB 630U Manual de usuario

Canon

Canon iR2270 Series Especificaciones técnicas

Canon

Canon EOS Rebel T3 18-55mm IS II Kit Manual de usuario

Canon

Canon 9320A010 - EOS Rebel XSi Starter Manual de usuario

Canon

Canon 3211B001 - PowerShot E1 Digital Camera Instrucciones de montaje

Canon

Canon DV Nerwork Manual de usuario

Canon

Canon 3508B001 - PowerShot D10 Digital Camera Instrucciones de montaje

Canon

Canon PowerShot A620 - 7.1MP Digital Camera Instrucciones de montaje

Canon

Canon 0286B001 - Optura S1 Camcorder Manual de usuario

Canon

Canon Powershot S2 IS - Powershot S2 IS 5MP Digital... Manual de usuario

Canon

Canon 2055B001 - DC 50 Camcorder Manual de usuario

Manuales populares de Software de otras marcas

COMPRO

COMPRO COMPROFM Manual de usuario

Muratec

Muratec OFFICEBRIDGE ONLINE Manual de usuario

Oracle

Oracle Contact Center Anywhere 8.1 Manual de usuario

Adobe

Adobe 65007312 - Photoshop Lightroom Manual

Avaya

Avaya NULL One-X for RIM Blackberry Manual de usuario

HP ProLiant BL420c Manual de usuario

PS Audio

PS Audio PowerPlay Manual del propietario

Brady

Brady LOCKOUT PRO 3.0 Manual de servicio

Avaya

Avaya Interaction Center Manual de usuario

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manual

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manual de usuario

Oracle

Oracle Application 9i Manual de usuario

Acer

Acer RDM Manual de usuario

Samsung

Samsung Auto Backup Manual de usuario

Polycom

Polycom Vortex EF2201 Instrucciones de instalación y funcionamiento

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manual de usuario

Novell

Novell SP2 - S Manual de instrucciones

Lexmark

Lexmark Apps Manual de servicio
