PARTS REFERENCE LIST

MODEL: PT-2420PC

NOTES FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:

(1) Code

(2) Q'ty

(3) Description

(4) Symbol (PCB No., Revision , and Parts location mounted on the PCB.)

Note : No orders without Parts Code or Tool No. can be accepted.

[ Example ]

(4) (1) (2) (3)

REF. NO. SYMBOL CODE Q’TY DESCRIPTION REMARKS

Revision No. : marked on the printed circuit board.

B55L115 - 201 A

Design change indication

Specification No.

Pattern alteration No.

Circuit board No.

2. Design-changed parts:

When the parts are changed, any one of the following symbols is indicated in the REMARKS column.

CHNG#A : compatible between old and new

CHNG#B : replaceable from old to new

CHNG#D : incompatible

ADD : newly established

3. The original of this list was made based on the information available in January, 2002.

4. Parts are subject to change in design without prior notice.

CONTENTS

1 . PRINT MECHANISM ................................................................................1

2 . COVERS ..................................................................................................3

3 . MAIN PCB................................................................................................5

4 . SENSORS................................................................................................7

5 . SUB PCB..................................................................................................7

6 . ATTACHMENTS.......................................................................................9

7 . PRINTED MATTER ..................................................................................9

8 . PACKING MATERIALS...........................................................................11

-1-

MODEL PT-2420PC 8V2-622-045

1 . PRINT MECHANISM

-2-

1 . PRINT MECHANISM

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1LA4683001 1CHASSIS SUB ASSY 240

2LA4695000 1DOUBLE GEAR 1

3LA3193001 1DOUBLE GEAR 2

4LA3194001 1DOUBLE GEAR 3

5LA4696000 1DOUBLE GEAR 4

6LA3195001 1IDLE GEAR

7LA4697000 1RIBBON DRIVE GEAR

8LA4698000 1RIBBON DRIVE CAM

9UN3559001 1RIBBON CLUTCH SPRING

10 LA5773001 1TAPE IDLE GEAR

11 LA3197001 1P IDEL GEAR

12 UB3733001 1WASHER 2.6

13 LA3325001 2WASHER 1.7

14 LA3963001 1DC MOTOR ASSY F

15 UN3640001 2SCREW, PAN 1.7X2.5

16 LA6426002 1CUTTER LEVER 1500JPN

17 LA4700001 1CUTTER RETURN SPRING

18 LA4701001 1CUTTER ASSY 240

19 087320515 1 TAPTITE, CUP S M3X5

20 LA4704001 1CUTTER DRIVE GEAR ASSY

21 LA4707000 1CUTTER RACK GEAR

22 048025346 2 RETAINING RING, E2.5

23 LA4709001 1HEAD ASSY, KV1801-25B

24 060300415 1 SCREW, BIND M3X4

25 LA4711001 1ROLLER HOLDER ASSY 240

26 LA4721000 1ROLLER RELEASE ROD

27 LA6608001 1ROLLER RELEASE LEVER

28 LA4723001 1RELEASE SPRING

29 048020346 2 RETAINING RING, E2

MODEL PT-2420PC 8V2-622-045

-3-

MODEL PT-2420PC 8V2-622-061

2 . COVERS

-4-

2 . COVERS PT2002034

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1LA6811001 1MIDDLE COVER 2420PC

2LA6428002 1BOTTOM COVER 1500PC JPN

3LA6429002 1CASSETTE COVER 1500PC JPN

4LA6813001 1TAPE PANEL 2420PC (DEU/GBR/FRA/IRL/SWE/FIN/ESP/ZAF) ADD

4LA6430002 1TAPE PANEL 1500PC JPN (HKG/AUS/ARE/CHN/TWN) ADD

5LA6812001 1TOP COVER 2420PC

6LA6432002 1POWER SUPPLY ACTUATOR JPN

7LA6433001 1LED COVER 1500PC JPN

8 085270817 7 TAPTITE, BIND B M2.6X8

9 085270615 3 TAPTITE, BIND B M2.6X6

10 LA6814001 1CAUTION LABEL EC

11 LA5003001 1CE LABEL (DEU/GBR/FRA/IRL/SWE/FIN/ESP/ZAF) ADD

12 LA4998001 1C-TICK MARK (AUS)

12 LA8469001 1EMI LABEL PT2420 TAIWAN (TWN) ADD

MODEL PT-2420PC 8V2-622-061

-5-

MODEL PT-2420PC 8V2-622-101

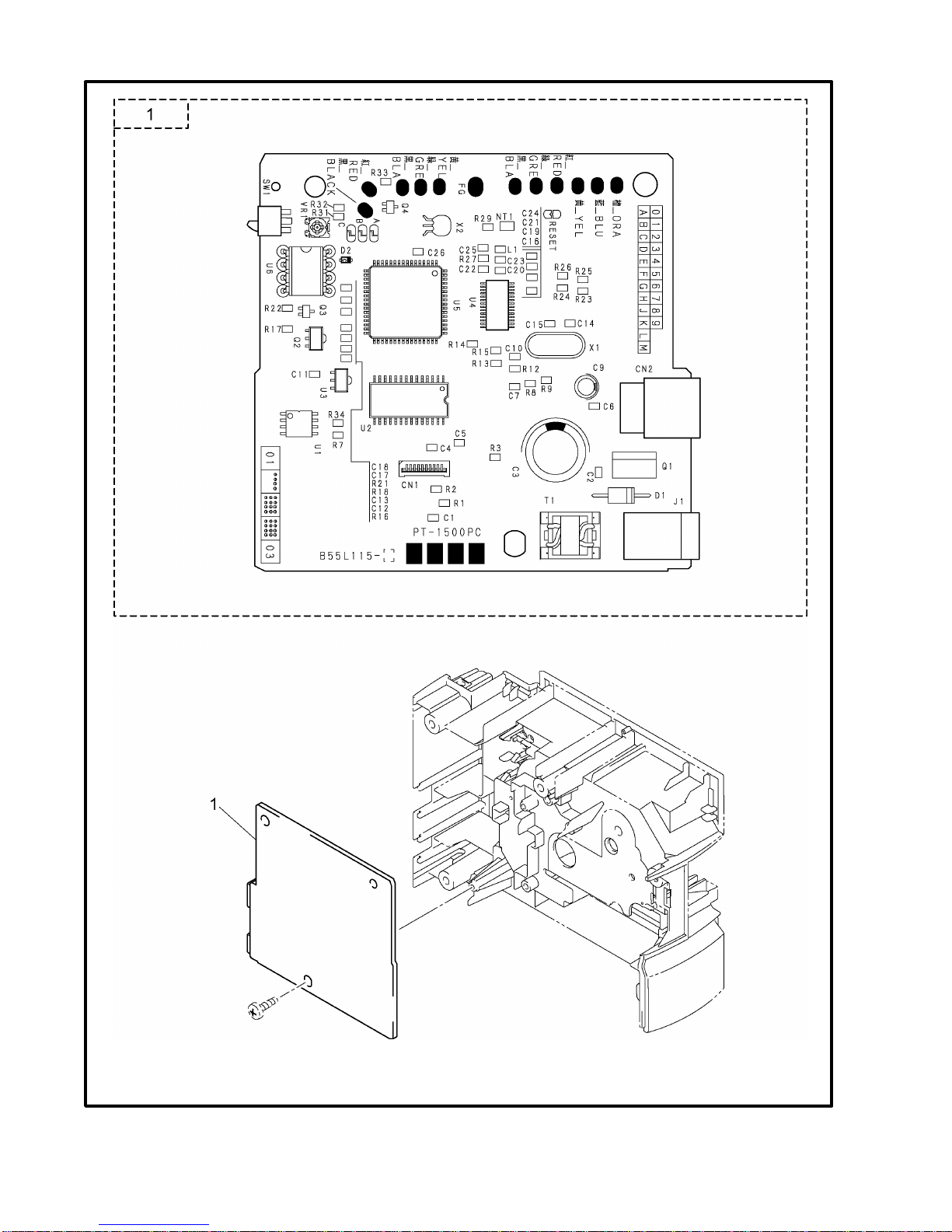

3 . MAIN PCB

If you replace the main PCB with a new one, you need to write the serial number of the machine to the

EEPROM of the new PCB. Refer to the SERVICE MANUAL, Appendix 1, “MAINTENANCE

SOFTWARE.”

-6-

3 . MAIN PCB

REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS

1B55L115-300C LA5787001 1MAIN PCB ASSY 1500PC

MODEL PT-2420PC 8V2-622-101

-7-

MODEL PT-2420PC 8V2-622-102

4 . SENSORS

MODEL PT-2420PC 8V2-622-100

5 . SUB PCB
