PARTS REFERENCE LIST

MODEL: PT-MT(P-touch mini’ tech)

NOTES FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:

(1) Code

(2) Q'ty

(3) Description

(4) Symbol (PCB No., Revision , and Parts location mounted on the PCB.)

Note : No orders without Parts Code or Tool No. can be accepted.

[ Example ]

(4) (1) (2) (3)

REF. NO. SYMBOL CODE Q’TY DESCRIPTION REMARKS

Revision No. : marked on the printed circuit board.

B55L111 - 201 A

Design change indication

Specification No.

Pattern alteration No.

Circuit board No.

2. Design-changed parts:

When the parts are changed, any one of the following symbols is indicated in the REMARKS column.

CHNG#A : compatible between old and new

CHNG#B : replaceable from old to new

CHNG#D : incompatible

ADD : newly established

3. The original of this list was made based on the information available in April, 2002.

4. Parts are subject to change in design without prior notice.

CONTENTS

1 . PRINT MECHANISM ....................................................................................1

2 . COVERS.......................................................................................................3

3 . MAIN PCB.....................................................................................................5

4 . RUBBER KEY...............................................................................................7

5 . ATTACHMENTS...........................................................................................7

6 . PRINTED MATTER ......................................................................................9

7 . PACKING MATERIALS.................................................................................9

040

02'(/####37007#####;9508650378

4#1#35,17#0(&+$1,60

-2-

1 . PRINT MECHANISM

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1LA5531001 1CHASSIS ASSY

2LA0123001 1DC MOTOR ASSY NAPLES

3UN3640001 2SCREW, PAN 1.7X2.5

4LA5580004 1CUTTER LEVER BB4, ORANGE3207

5LA3061001 1HEAD ASSY KF2400-21

6UB3941001 1CUP SCREW, M2.6X4

7LA3066001 1ROLLER HOLDER ASSY

8LA3072001 1ROLLER HOLDER SPRING

9 048020346 1 RETAINING RING, E2

MODEL PT-MT 8V2-U32-045

060

02'(/####37007#####;9508650394

5#1#&29(56

-4-

2 . COVERS

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1LA5533002 1BODY COVER BB4, GRAY1615

2LA7439001 1LCD PANEL PT-MT

3LA7449001 10 TAPTITE, BIND B M2.6X4

4LA5535004 1BOTTOM COVER BB4, ORANGE3207

5LA5536001 2BATTERY TERMINAL P1

6LA5537001 3BATTERY TERMINAL P2

7LA5538001 1LENS

8LA7440001 1SELECT DIAL PT-MT, ORANGE3207

9LA5829001 1DIAL SHEET BB4

10 LA5542002 1ENTER KEY, GRAY1615

11 LA5543001 1SELECT DIAL CLAW

12 085270617 2 TAPTITE, BIND B M2.6X6

13 LA7442001 1CASSETTE COVER PT-MT, GRAY1615

14 LA3856001 1ROLLER HOLDER CAM

MODEL PT-MT 8V2-U32-061

080

02'(/####37007#####;9508650434

6#1#0$,1#3&%

/$:783337 6SDLQ / / + + + /$:78333< %HOJLXP / + + / +

/$:783336 1HWKHUODQGV

++ROODQG,

+/ +++ /$:78333; 6ZLW]HUODQG + + + / +

(8 /$:783335 )UDQFH / + + + + (8 /$:78333: 1RUZD\ + / / + +

/$:783334 (QJODQG/#,UHODQG/

'HQPDUN/#)LQODQG

+++++ /$:783339 6ZHGHQ / + / + +

*( /$:776334 *HUPDQ\ + + + + + /$:783338 ,WDO\ + + / + +

520#VSHF13$576#&2'( 'HVWLQDWLRQ 45678 520#VSHF13$576#&2'( 'HVWLQDWLRQ 45678

6ROGHU#SRLQWV 6ROGHU#SRLQWV

+=#6ROGHU#SRLQW#RSHQHG###/=#6ROGHU#SRLQW#FORVHG

-6-

3 . MAIN PCB

REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS

1-2 B55L111-330 LA7443001 1MAIN PCB ASSY PT-MT DEU (DEU)

1-2 B55L111-321 LA7450001 1MAIN PCB ASSY PT-MT EC (GBR/IRL/DNK/FIN)

1-2 B55L111-322 LA7450002 1MAIN PCB ASSY PT-MT EC (FRA)

1-2 B55L111-323 LA7450003 1MAIN PCB ASSY PT-MT EC (NLD)

1-2 B55L111-328 LA7450008 1MAIN PCB ASSY PT-MT EC (CHE)

1-2 B55L111-326 LA7450006 1MAIN PCB ASSY PT-MT EC (SWE)

1-2 B55L111-325 LA7450005 1MAIN PCB ASSY PT-MT EC (ITA)

1-2 B55L111-329 LA7450009 1MAIN PCB ASSY PT-MT EC (BEL)

1-2 B55L111-327 LA7450007 1MAIN PCB ASSY PT-MT EC (NOR)

1-2 B55L111-324 LA7450004 1MAIN PCB ASSY PT-MT EC (ESP)

1LA5553001 1PLUS TERMINAL ASSY BB4

2LA5556001 1MINUS TERMINAL ASSY BB4

MODEL PT-MT 8V2-U32-101

0:0

02'(/####37007#####;9508650<43

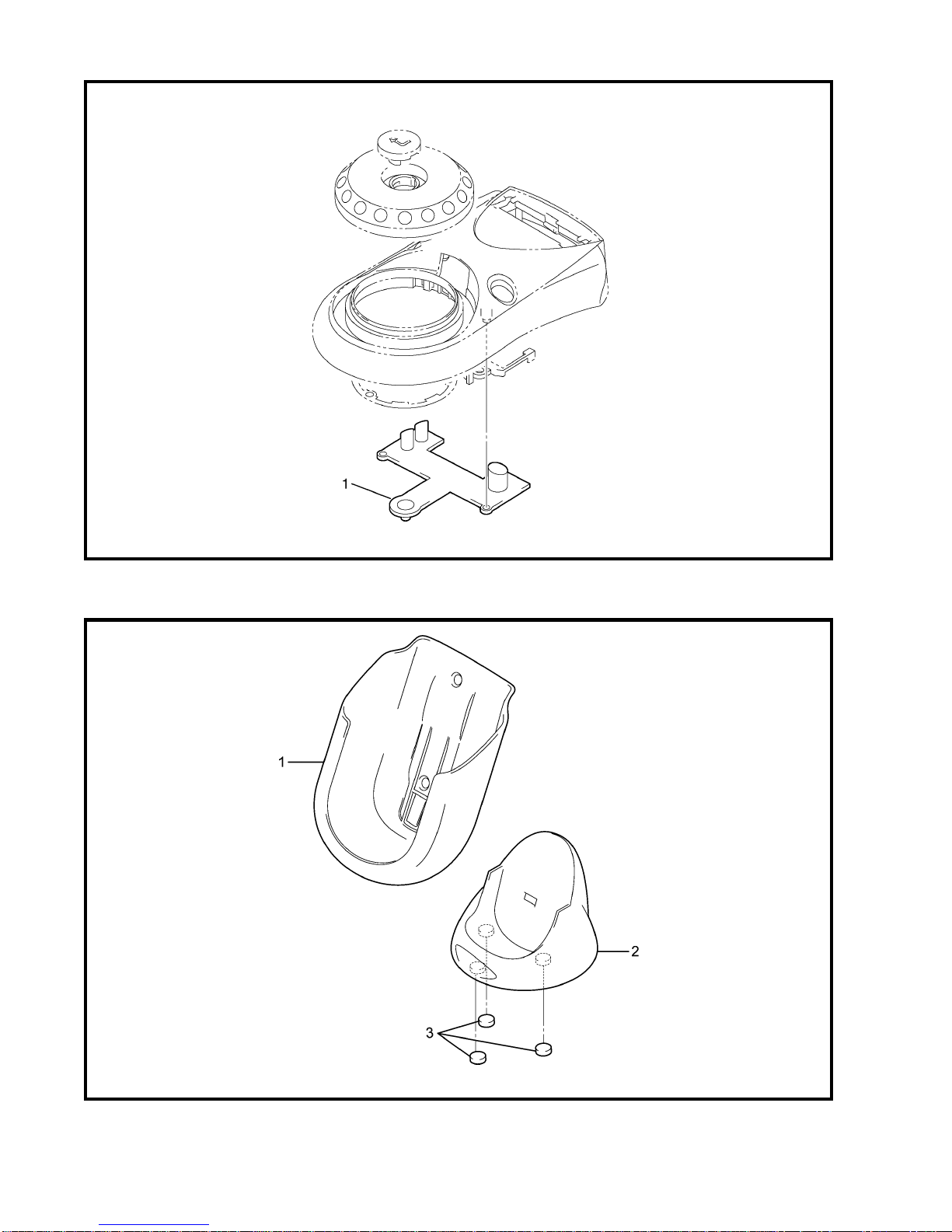

7#1#58%%(5#.(<

02'(/####37007####;9508650336

8#1#$77$&+0(176
