GETTING STARTED

Installing Power Supply and Tape Cassette

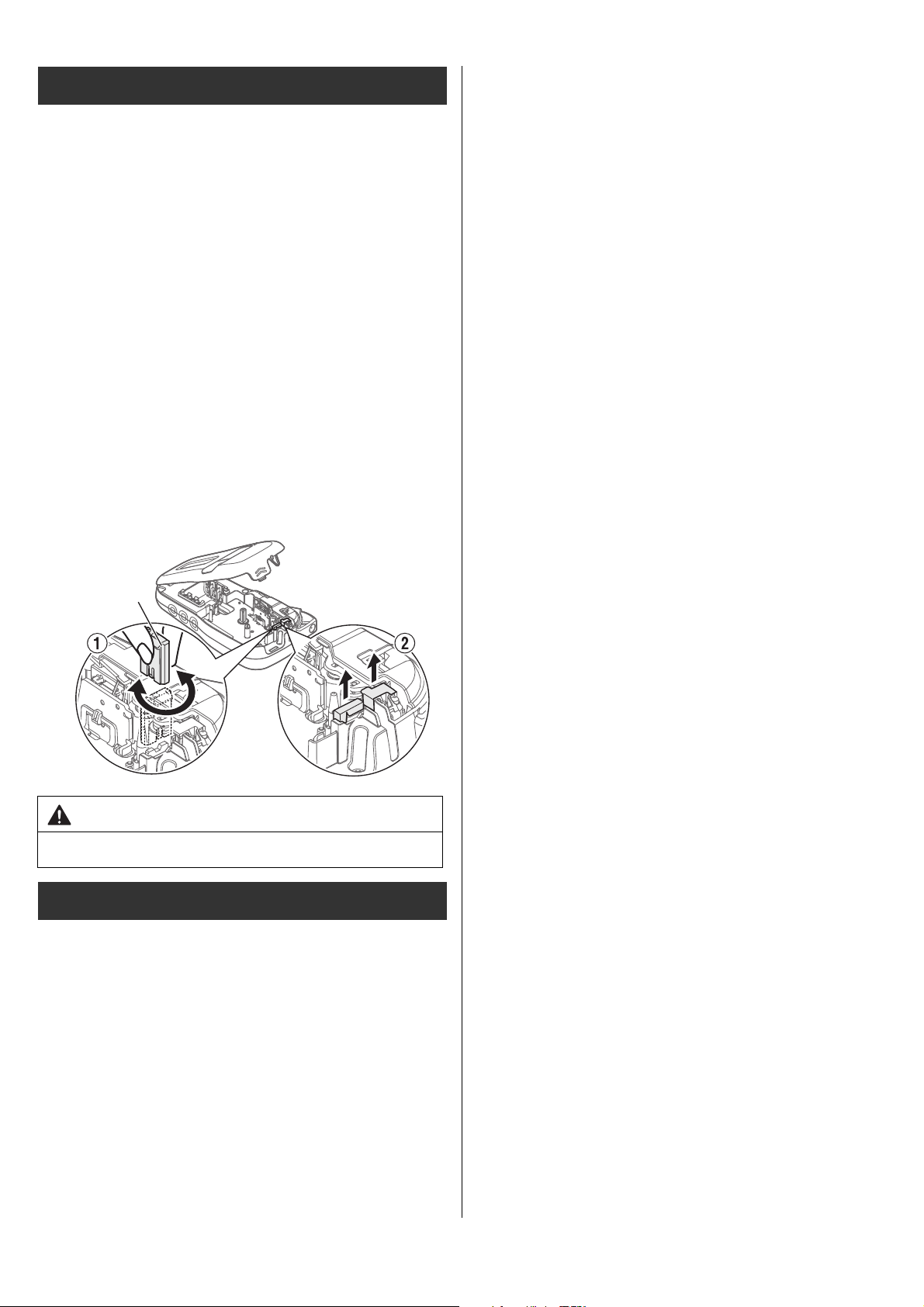

With the LCD facing down, open the Cassette

Cover by pressing the grooved tab and

pushing in the direction of the arrow, as

illustrated.

When replacing batteries or tape cassettes,

make sure the power is turned off.

This P-touch labeling system requires six (6)

AAA alkaline batteries or six (6) fully-charged

Ni-MH batteries, not included.

Print Head

Tape Cutter Lever

Cassette Cover

1 2

Thank you for purchasing a Brother P-touch labeling system!

Use your new Brother P-touch labeling system to create a wide variety of custom, self-adhesive labels.

This P-touch labeling system uses Brother TZe or HGe tapes. TZe and HGe tape cassettes are available in many color and sizes. For

a complete list of tapes compatible with your P-touch labeling system, visit us at: www.brother.com.

Please read this guide, and the included Product Safety Guide, before using this P-touch labeling system. After reading this guide, keep

it in a safe place.

D01240001

(QJOLVK

8VHU·V*XLGH

E11

Insert the Tape Cassette following the

drawing marked inside the case. Gently

press the Cassette into the P-touch labeling

system until it clicks into place.

   

 

machine.

Close the Cassette Cover and gently press

until it clicks into place.

NOTE

If you prefer to use the optional AC Adapter instead

of using batteries:

Insert the Power Adapter cord into the AC Adapter

Jack on the side of the P-touch labeling system.

Insert the Power Adapter into a grounded

AC electrical outlet.

Tape Exit Slot

Toothed Wheel

Cutter Edge

End of Tape

Tape Guides

AC Adapter Jack

NOTE

  the text you enter can be up to 80 characters in

length.

LCD

1. Size

2. Cursor

3. Shift

4. Caps

5. Cable Wrap

6. Cable Flag

7. Faceplate

8. Label Length

If a specific label length has

been selected, also appears.

 

NOTE

 e Space key to return to the default value.

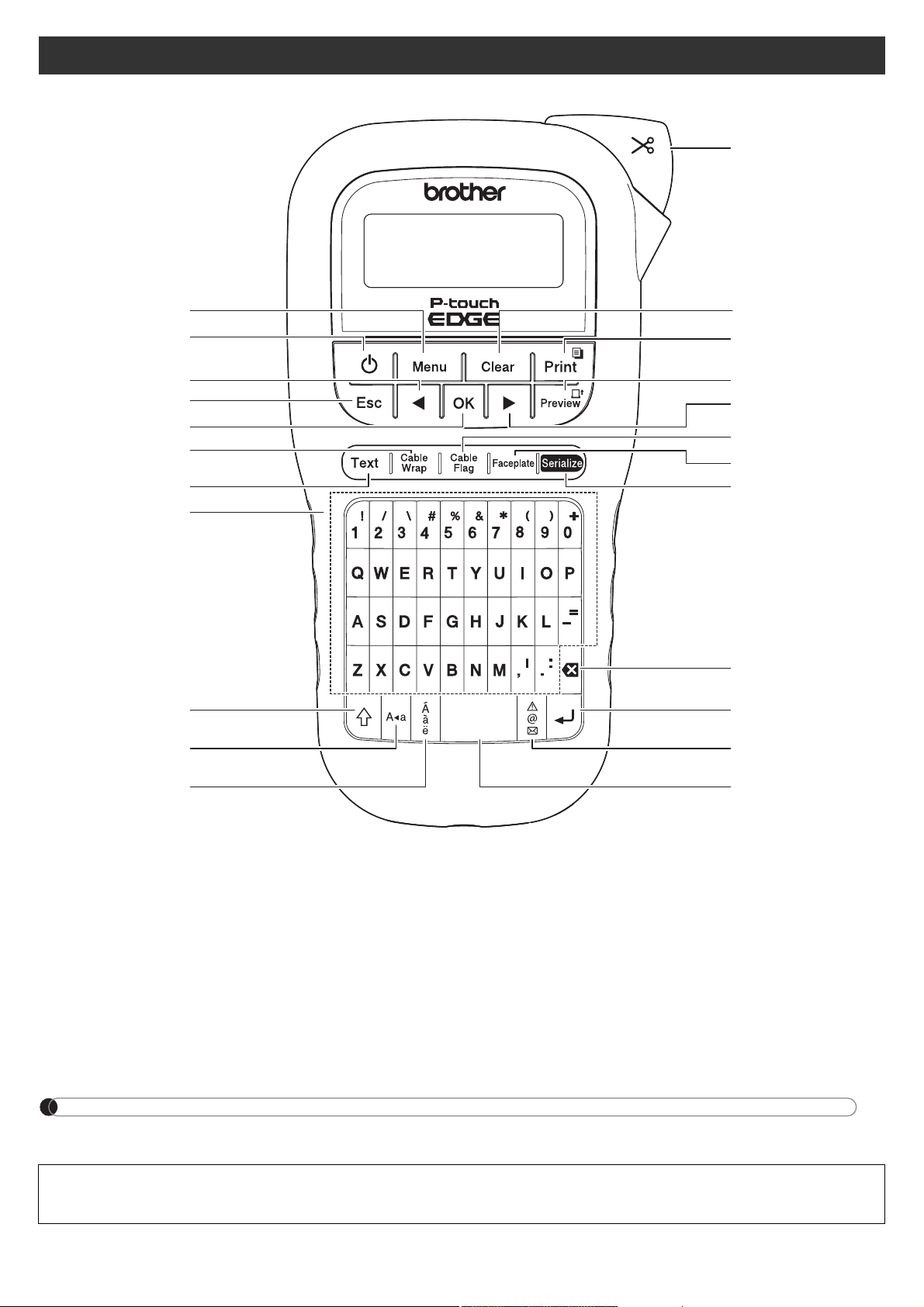

Keyboard

1. Menu key

2. Power key

Cursor key : Left (Use with Shift

key to go to top of the text.)

4. Escape key

5. OK key

6. Cable Wrap key

7. Text key

8. Character keys

9. Shift key

10. Caps key

11. Accent key

12. Tape Cutter lever

13. Clear key

14. Print key

15. Preview key

16.

Cursor key : Right (Use with

Shift key to go to end of the text.)

17. Cable Flag key

18. Faceplate key

19. Serialize key

20. Backspace key

21. Enter key

22. Symbols key

23. Space key

 of the label, and may differ from the actual label

when printed.















































Turn on your P-touch labeling system.

Supply power using six AAA batteries or the optional AC Adapter, and then press to turn on the

power.

Set the language.

The default setting is [English].

Set the unit of measurement.

The default setting is [inch].

NOTE

 ng system automatically turns off if it is inactive for five minutes.

  

 

Use this function to set LCD brightness. There are five levels from [-2] (darkest) to [+2] (brightest). The

default setting is [0].

NOTE

 

Initial Settings

[Language] [English/Español/Français/Hrvatski/

Italiano/Magyar/Melayu/Nederlands/Norsk/Polski/Português/Portug. (BR)/Românã/

Slovenski/Slovenský/Suomi/Svenska/Türkçe/eština/Dansk/Deutsch] .

[Unit] [inch/mm] .

Contrast

[LCD contrast]



[-2 / -1 / 0/ +1 / +2]

If the cutter blade becomes blunt after repetitive use

and the tape cannot be cut cleanly, turn the cutter

board as shown in the illustration

If you still have difficulties, replace with new cutter unit

(stock no. TC-4) from an authorized Brother reseller.

XReplacing the Cutter Unit

Remove the two sections of the Cutter Unit

(green) in the direction of the arrows as

illustrated below

Install a new Cutter Unit. Push it in gently until

it snaps into place.

*1 Visit support.brother.com for the latest

information about the recommended batteries.

Supplies and Accessories

Cassettes: See the included Supplies and

Accessories Guide.

AC Adapter: AD-24ES/AD-24ESA/AD-

24ESAW/AD-24ESA-01/AD-

24-ESAW-01

Cutter Unit: TC-4 (replacement)

WARNING

Do not touch the cutter blade directly with your fingers.

Specifications

Dimensions:

(W x D x H)

4.3" X 8.0" X 2.2"

(Approx. 109(W) X 202(D) X 55(H)mm)

Weight: Approx. 0.9 lb. (Approx. 400 g)

(without batteries and tape cassette)

Power supply: Six AAA alkaline batteries (LR03)

Six AAA Ni-MH batteries (HR03)*1

Optional AC Adapter (AD-24ES/AD-

24ESA/AD-24ESAW/AD-24ESA-01/

AD-24-ESAW-01)

Tape cassette: Brother P-touch TZe tape widths:

0.13" (3.5mm), 0.23" (6mm),

0.35" (9mm), 0.47" (12mm)

Brother HGe tape widths:

0.23" (6mm), 0.35" (9mm), 0.47" (12mm)

Cutter Board

BASIC USAGE

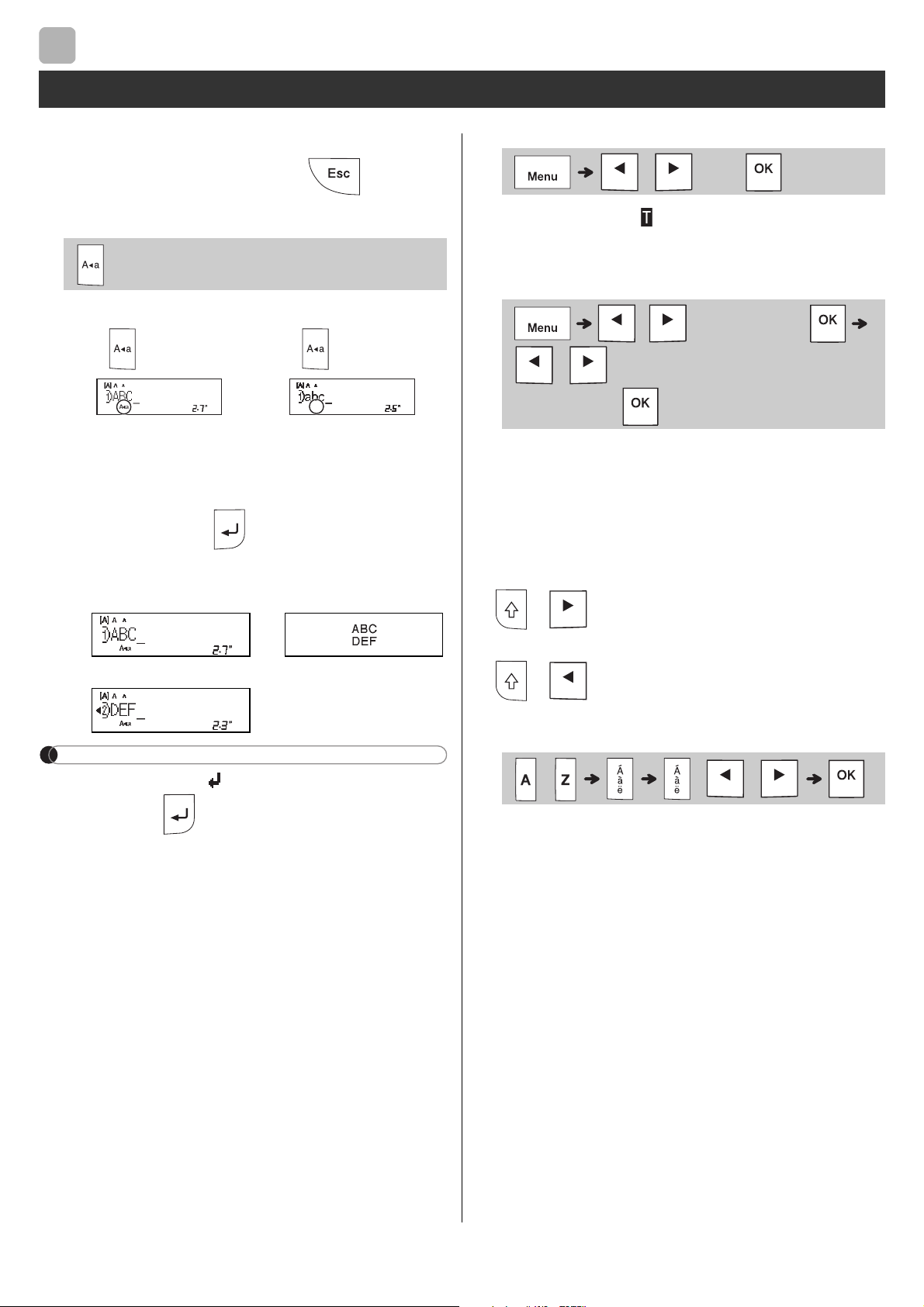

You can enter a maximum of 80 characters and

spaces for a text label.

To cancel any operation, press .

XSwitching Upper Case / Lower Case

XCreating Two-Line Tapes

Move the cursor to where you want to start the

next line and press . Use either 0.35" (9mm)

or 0.47" (12mm) tape for two-line printing.

NOTE

  

the Enter key .

XEntering Tabs

  

tab in the text.

XChanging Tab Length

 

key.

  length varies based on

your tape size.

XCursor Keys

To move to the end of your text:

To move to the beginning of your text:

XEntering Accented Characters

 Accented Characters table in this

guide.

 

on the language you selected.

Entering Text

Upper case

( ON)

Lower case

( OFF)

Line 1 The image

Line 2

Caps Caps

/ [Tab]

/ [Tab Length]

/ [Auto / 0.0"-4.0"

(0-100mm)]

-/ /

XChanging Label Length

NOTE

  

specific tape length.

 

based on text length), press the Space key.

XClearing Text and Settings

To delete individual letters and spaces, press .

To delete all text :

To delete all text and settings:

You can save and reuse the text and settings for

up to nine different labels. Each tape holds up to

80 characters (including spaces). Assign a

number (1-9) to each saved file so you can reuse

it, and edit or overwrite stored files as needed.

XSaving a new file

NOTE

 

already assigned to another file, [Overwrite

OK?] appears on the LCD. To overwrite the

previously-saved file, press . To cancel

without saving, press .

XPrinting a saved file

XOpening a saved file

/ [Label Length]

/ [Auto / 1.2"-12.0"

(30-300mm)]

/ [Text Only]

/ [Text&Format]

Saving Tapes Files

(Enter text) / [File

]

/ [Save

] /

/ [File]

/ [Print] /

/ [File]

/ [Open] /

Press to select the settings to enter

the text.

Press / to select the settings.

Emphasize text using underlines or a frame.

XEntering Symbols

 Symbols table in this guide.

  

 



 



Text Key

(Select an item)

 Large

Medium



 Normal

Bold

Outline





I+Bold

I+Outline





V+Bold

Width Normal

× 2

× 1/2

Underline and Frame

/ [Undl/Frame]

/ (Select a frame type)

Symbols Key

(Select category)



(Select a symbol)

 

 

 

 

 



 

 


