BiPAC 7800DXL

Dual-Band Wireless-N

3G/4G LTE ADSL2 Router

Quick Start Guide

Billion BiPAC 7800DXL Dual-Band Wireless-N 3G/4G LTE ADSL2 Router

Package Contents

BiPAC 7800DXL Dual-Band Wireless-N 3G/4G LTE ADSL2 Router

CD containing the on-line manual

RJ-11 ADSL/ telephone cable

Cat. 5e STP Ethernet (RJ-45) cable

Power adapter

Quick Start Guide

Splitter/ Micro-filter (Optional)

Warning

PLEASE READ THE QUICK START GUIDE AND FOLLOW THE

STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU

INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE.

IF YOU NEED MORE INFORMATION ON THIS SOFTWARE

CONFIGURATION, PLEASE REFER TO THE USER MANUAL ON

CD-ROM.



Do not use the

router

in high humidity or high temperatures.

 Do not use the same power source for the router as other

equipment.

 Do not open or repair the case yourself. If the router is too hot,

turn off the power immediately and have it repaired at a qualified

service center.



Avoid using this

product

and all

accessories

outdoors.



Place the router on a stable surface.

 Only use the power adapter that comes with the package. Using a

different voltage rating power adaptor may damage the router.

Attention

Quick Start Guide

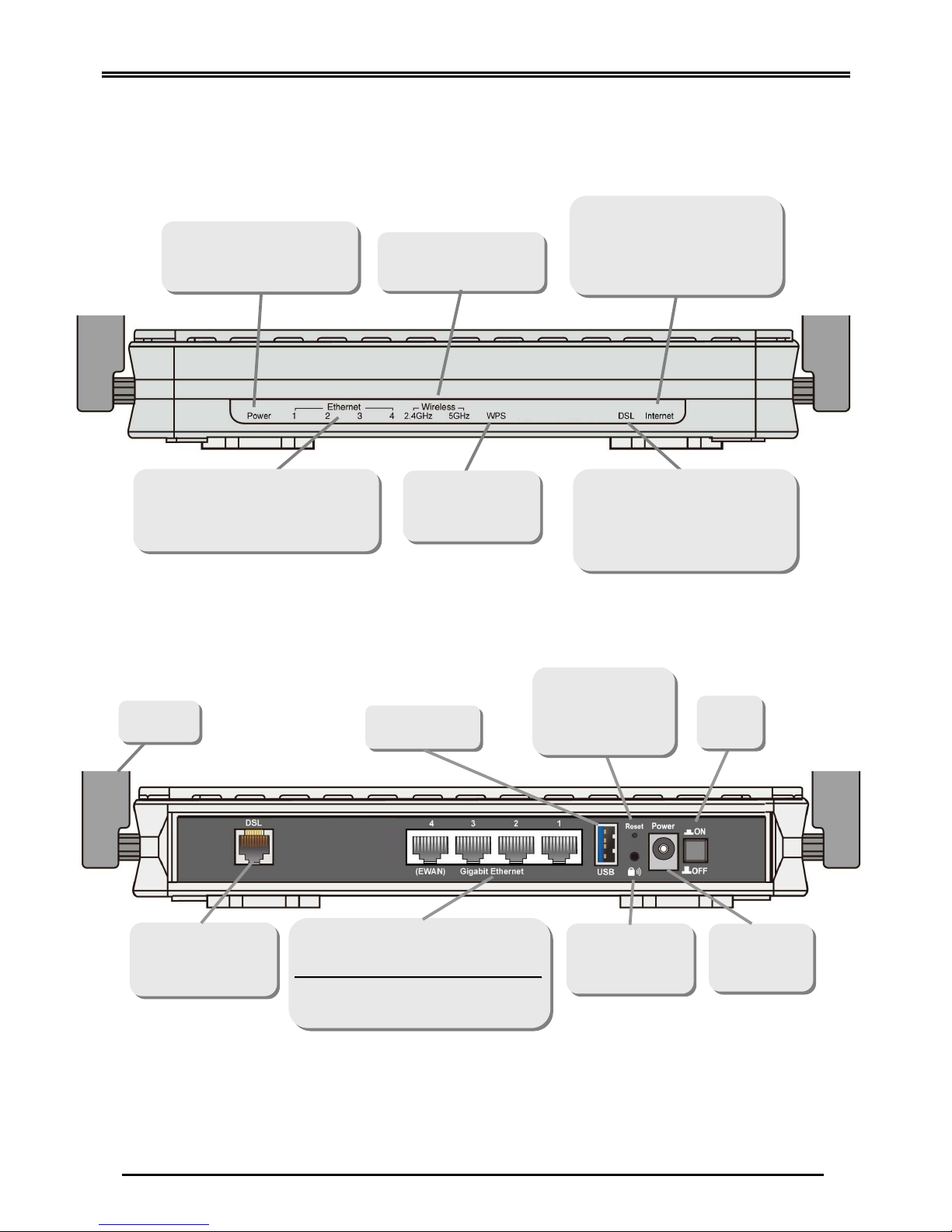

The Front LEDs

The Rear Ports

*Note: For WPS configuration, please refer to the WPS section of User Manual.

Connect the

supplied power

adapter to this

jack

When the system is ready,

the LED will be lit green; lit

red when the device fails to

boot or in emergency mode.

Flash green when

the device

establishing the active DSL link

;

lit green when successfully

connected to an ADSL DSLAM,

(“line sync”). Unlit when the DSL

link has not been established

Lit green when wireless

is enabled; unlit when

wireless is disabled.

Power

ON/OFF

switch

Flash green when

WPS configuration

is in progress; unlit

when WPS fails.

ual band

antennas

Lit

red

when WAN port fails to

get IP address; lit green when

WAN port gets IP address

successfully. Unlit when the

device is in bridge mode or

WAN connection is absent.

Press the

“

Reset

”

button for 5 seconds

and above to restore

the factory default

settings.

Push WPS button

to trigger Wi-Fi

Protected Setup

function.

Connect the USB

cable on this port.

Connect

to the

ADSL

/ telephone network

with RJ-11 cable

(telephone).

Connect your computer t

o a LAN port

with the Ethernet cable included.

for connecting to Cable Modem, VDSL,

fibre modem or PON optic lines with

RJ-45 cable.

Lit when successfully connected

to an Ethernet device, lit green for

1000Mbps, Orange for 100Mbps,

and blinking when data is being

transmitted/ received.

Billion BiPAC 7800DXL Dual-Band Wireless-N 3G/4G LTE ADSL2 Router

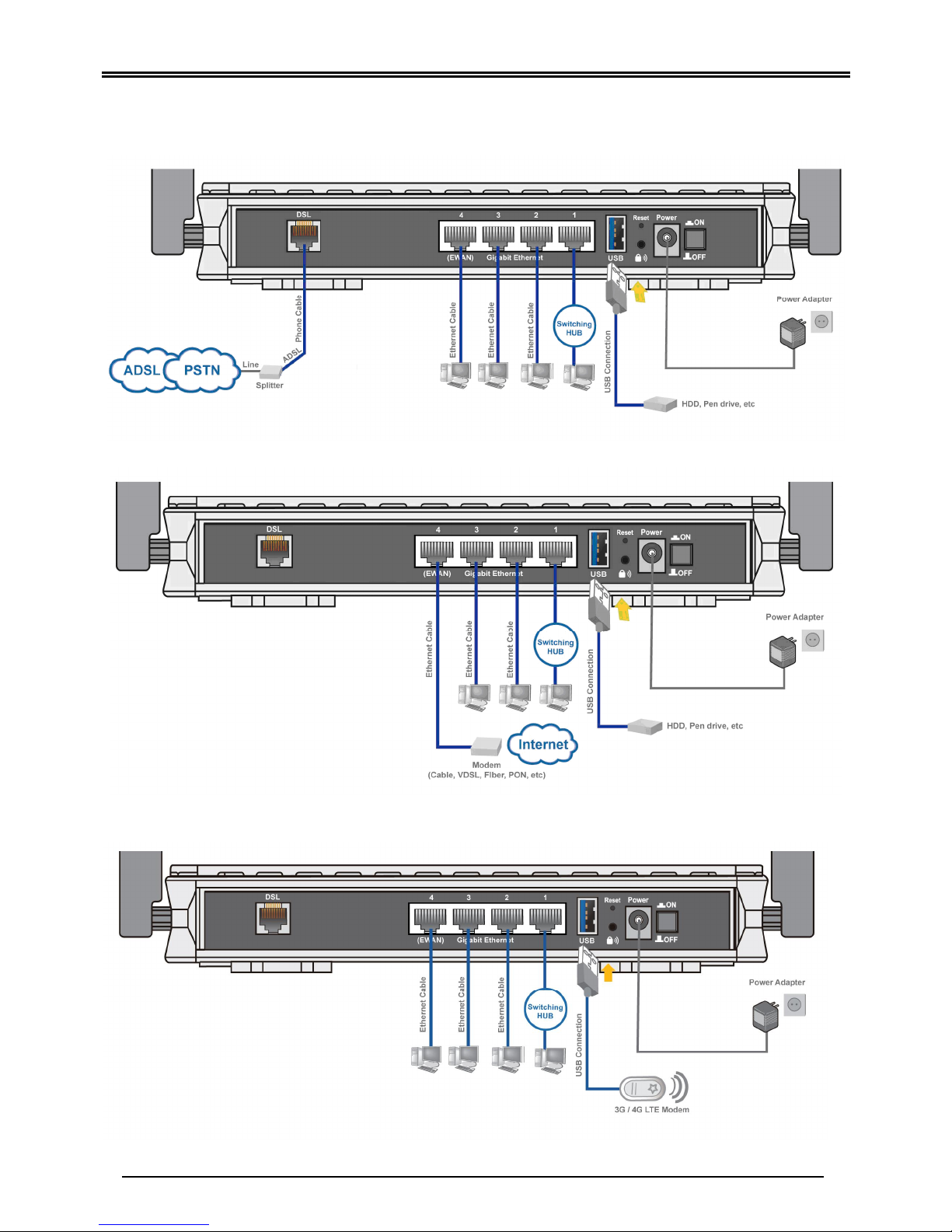

ADSL Router Mode

Broadband Router Mode

3G/4G LTE Router Mode

Quick Start Guide

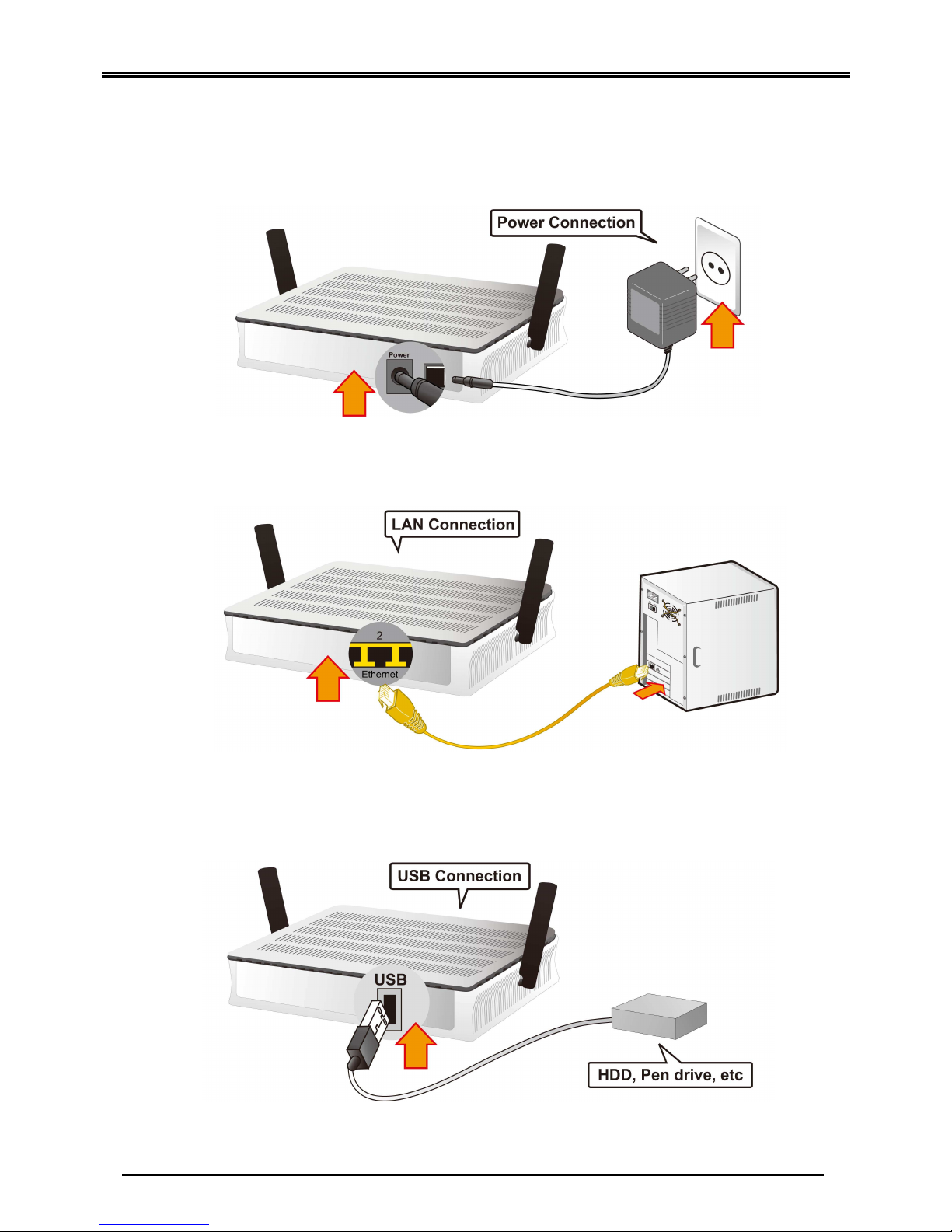

1. Power Connection

Plu

g the supplied power adapter to the wall jack and the other side to the router.

Please note that the plug type may differ according to different country.

2. LAN Connection

Connect the supplied Cat. 5e STP RJ- 5 Ethernet cable to one of the Gigabit

Ethernet ports, and the other side to the PC’s Ethernet interface.

3. USB Connection

1) Print server and storage service through USB 2.0 port：FTP server, samba

server and DLAN media server supported.

Billion BiPAC 7800DXL Dual-Band Wireless-N 3G/4G LTE ADSL2 Router

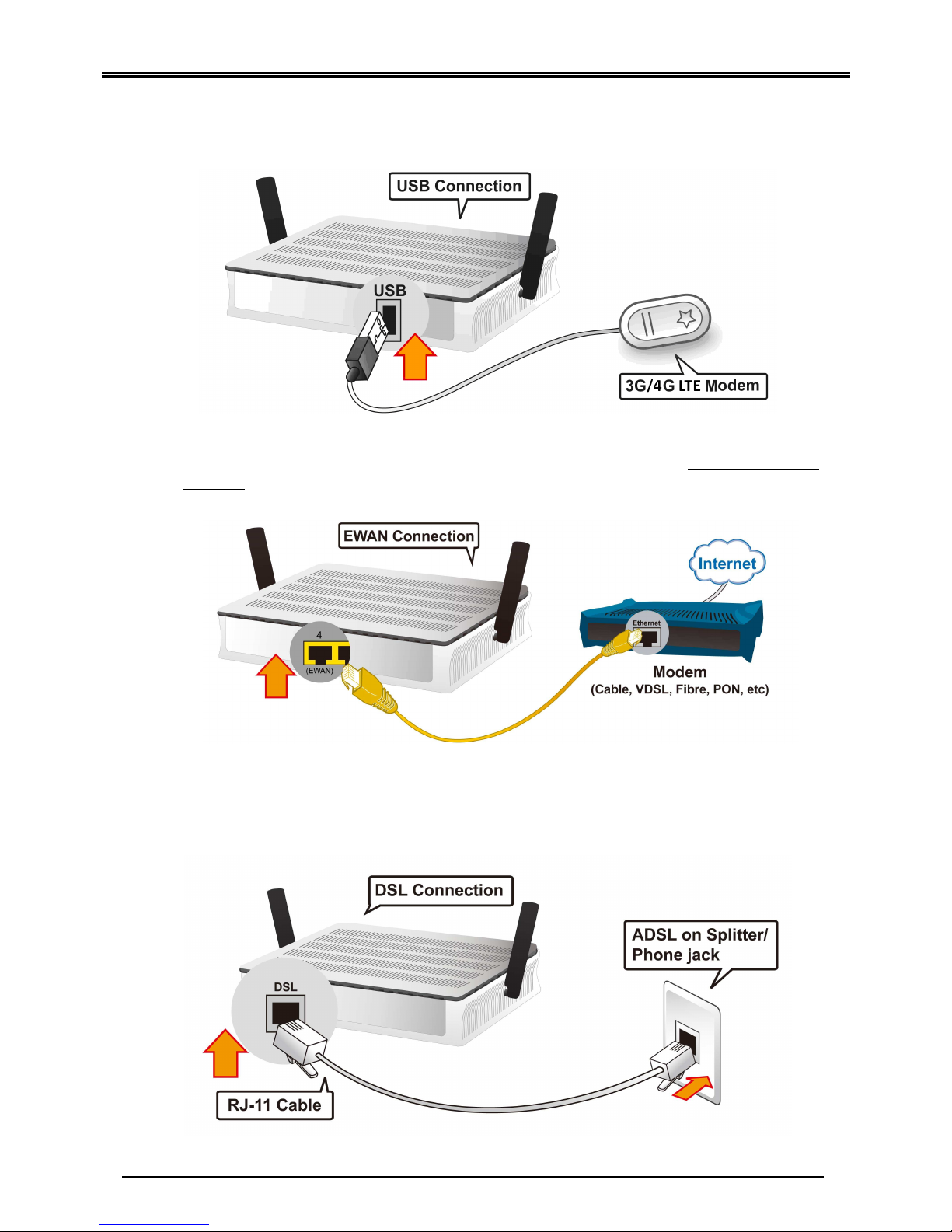

2) The USB 2.0 port supports 3G/ G LTE modem connectivity：Users can

conveniently access Internet via 3G/ G LTE, eliminating the limitations of the

wired network. This solution also employs an auto fail-over feature to ensure

always-on connectivity for SOHO users.

4. EWAN Connection

Connect the supplied Cat. 5e STP RJ- 5 Ethernet cable to the

Ethernet port #4

(EWAN)

, and connect the other side to another alternative broadband device, such

as Cable Modem, VDSL, Fibre Modem or PON optic lines.

5. ADSL Connection

Connect the supplied RJ-11 phone cable to the router’s ADSL port, and the other side

to the phone jack on the wall.

Quick Start Guide

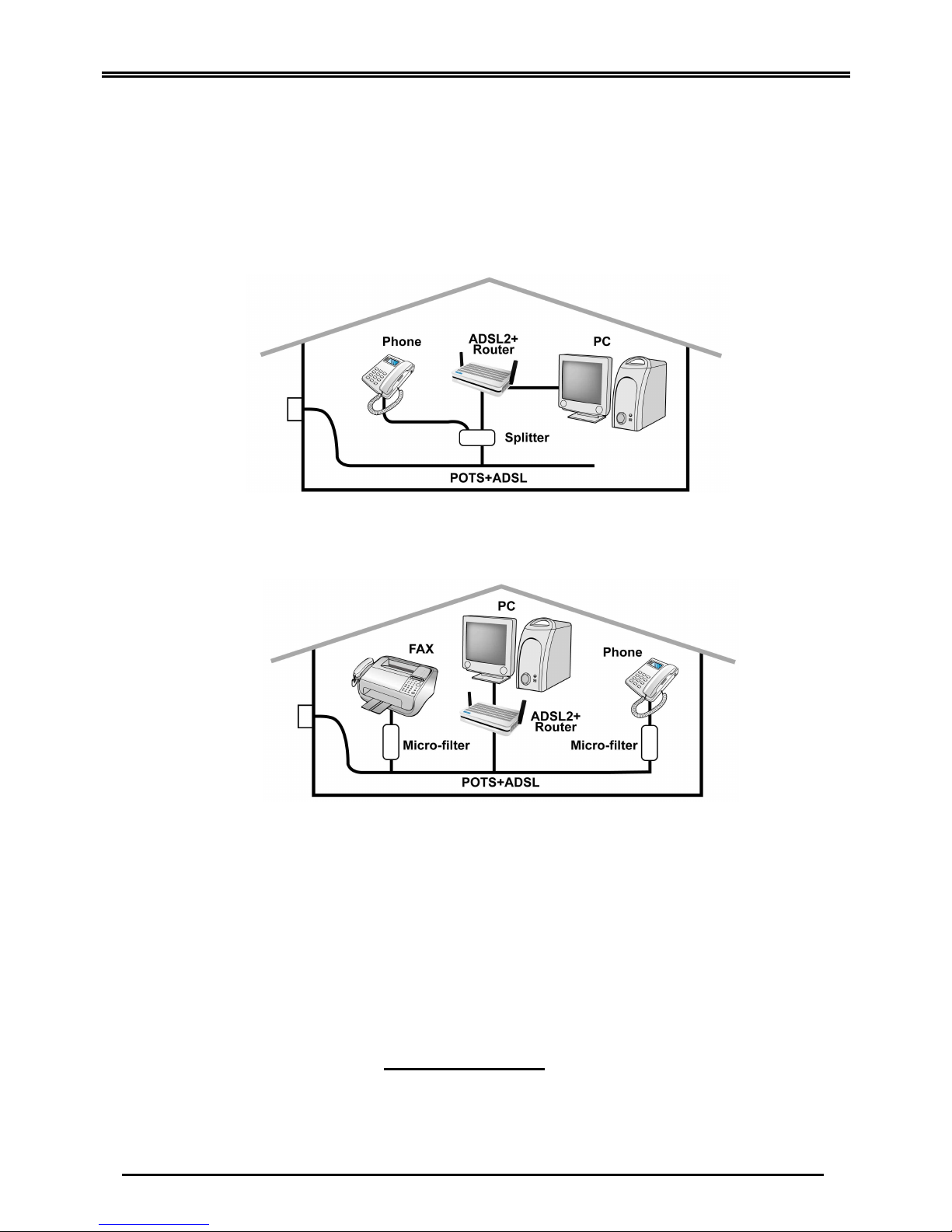

6. Splitter/ Micro-filter Connection

The Splitter / Micro-filter are important for ADSL installation, they help direct

high-frequency signals to the ADSL modem & low frequency signals to the

telephone or other analogue device to prevent inter-modulation distortion & get

good speed/stable ADSL sync rate.

a) Splitter connection

If the installation has only a single telephone and a single ADSL modem, then a

splitter can be employed.

b) Micro-filter connection

If the installation has several telephones or other analog devices, then an internal

micro-filter can be employed at each analog device.

-O

Make sure that device is powered on, Ethernet cable is connected to your PC and ADSL line is

in sync. Then open up a web browser and you will automatically be directed to the step-by-step

easy sign on configuration wizard which will guide you to complete the basic network

configuration to connect to the internet.

1. Open the web browser and type http://192.168.1.254 in the browser's address box. This

number is the default IP address for this router. Press Enter.

2. A username and password window will appear. The default username is “admin”, and

password is “admin”. Press OK to proceed.

3. You will get a status report web page and main menu screen.

Billion BiPAC 7800DXL Dual-Band Wireless-N 3G/4G LTE ADSL2 Router

Please see the relevant sections of user manual for detailed instructions on how to

configure your router.

1. None of the LEDs are on when you turn on the router.

Check the connection between the adapter and the router. If the error persists, you may have

a hardware problem. In this case you should contact technical support.

2. Can’t ping any PCs on the LAN.

Check the Ethernet LEDs on the front panel. The LED should be on for a port that has a PC

connected. If it is off, check the cables between your router and the PC. Make sure you have

uninstalled any software firewall for troubleshooting. Verify that the IP address and the subnet

mask are consistent between the router and the workstations.

3. Frequent loss of ADSL line sync (disconnections).

Ensure that all other devices connected to the same telephone line as your router (e.g.

telephones, fax machines, analogue modems) have a line filter connected between them and

the wall socket (unless you are using a Central Splitter or Central Filter installed by a qualified

and licensed electrician), and ensure that all line filters are correctly installed and the right

way around. Missing line filters or line filters installed the wrong way around can cause

problems with your ADSL connection, including causing frequent disconnections. If you have

a back-to-base alarm system you should contact your security provider for a technician to

make any necessary changes.

Most problems can be solved by referring to the Troubleshooting section in the user manual. If

you cannot resolve the problem with the Troubleshooting chapter, please contact the dealer

where you purchased this product.

WORLDWIDE

http://www.billion.com

BiPAC 7800DXL: V1.00EN

)
