Billion BiPAC 8800AXL Manual de usuario

BiPAC 8800AXL

Dual-band Wireless-AC 1300Mbps

ADSL2+ 3G/ G LTE Router

Quick Start Guide

Billion BiPAC 8800AXL Dual-band Wireless-AC 1300Mbps ADSL2+ 3G/ G LTE Router

BiPAC 8800AXL

Dual-band Wireless-AC 1300Mbps ADSL2+ 3G/ G LTE Router

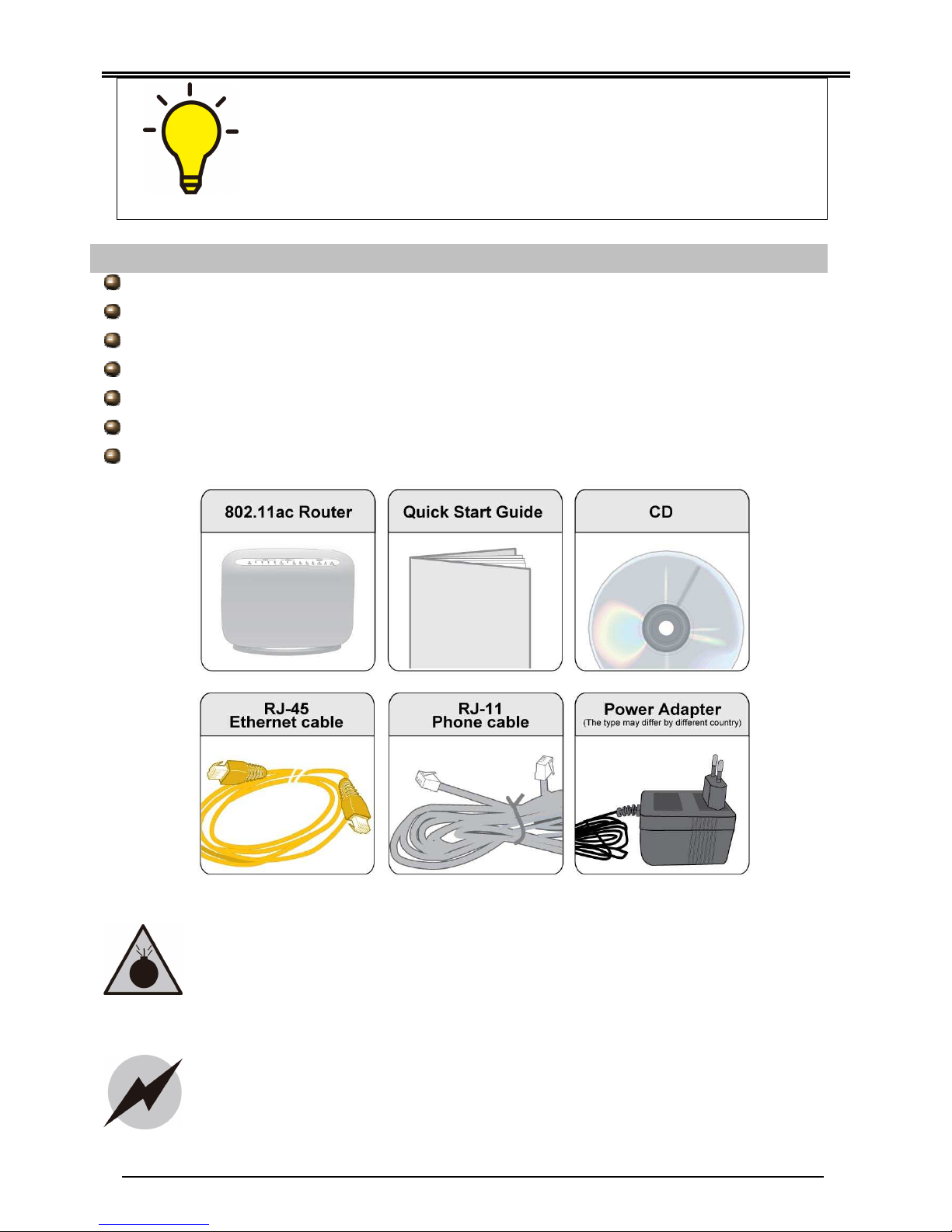

CD containing the on-line manual

RJ-11 ADSL/ telephone cable

Ethernet (RJ- 5) cable

Power adapter

Quick Start Guide

Splitter/ Micro-filter (Optional)

Warning

PLEASE READ THE QUICK START GUIDE AND FOLLOW THE

STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU

INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE.

IF YOU NEED MORE INFORMATION ON THIS SOFTWARE

CONFIGURATION, PLEASE REFER TO THE USER MANUAL ON

CD-ROM.



Do not use the

router

in high humidity or high temperatures.

 Do not use the same power source for the router as other

equipment.

 Do not open or repair the case yourself. If the router is too hot,

turn off the power immediately and have it repaired at a qualified

service center.



Avoid using this

product

and all

accessories

outdoors.



Place the router on a stable surface.

 Only use the power adapter that comes with the package. Using a

different voltage rating power adaptor may damage the router.

Attention

Quick Start Guide

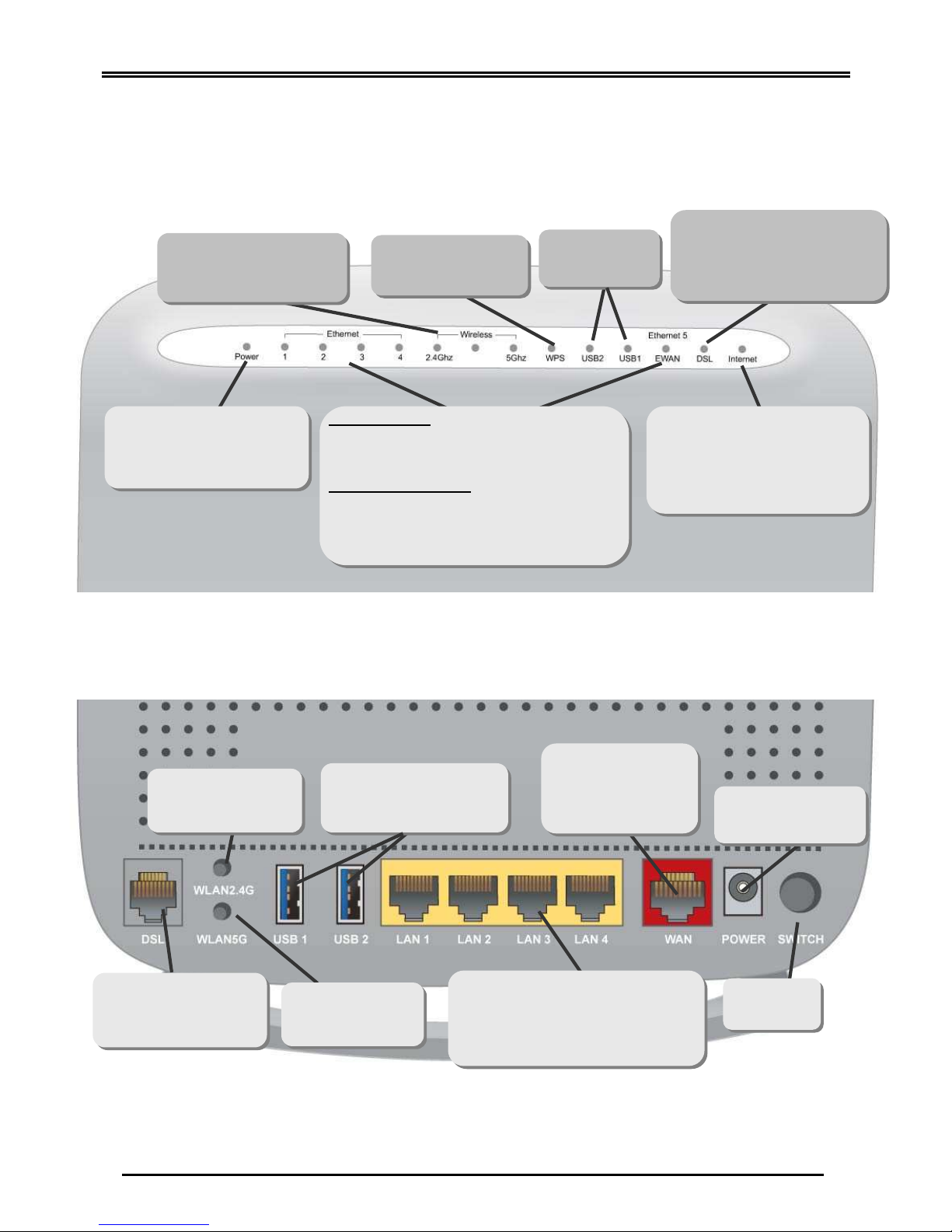

*Note 1: Port #5 can be configured as an Ethernet Interface for normal LAN use.

*Note 2: For WPS configuration, please refer to the WPS section of User Manual.

Connect the

supplied power

adapter to this jack

Connect this port to the

DSL network with the

RJ-11 cable (telephone)

provided.

Connect the USB device

(Printer, USB 2.0 storage,

3G / G LTE USB modem)

to this port.

Lit green when

Wireless

connection established.

Blinking when data being

transmitted

/received.

When the system is ready,

the LED will be lit green.

Lit red when boot failure or

in emergency mode.

Lit Green when successfully

connected to a DSLAM (Line

sync.) Blinking when DSL

synchronizing or waiting for

DSL

synchronizing

Power ON

OFF switch

Lit

red

when WAN port fails to

get IP address. Lit green when

WAN port gets IP address

successfully. Unlit when the

device is in bridge mode or

WAN connection is

absent.

Connect a UTP Ethernet cable

(Cat-5 or Cat-5e) to one of the four

LAN ports when connecting to a PC

or an office/home network of

10Mbps /

100Mbps /1000Mbps.

Blinkin

reen when

WPS configuration

being in progress.

Press more than 2

seconds to switch

on /off wireless 2. G

Lit

Green when

USB activate on

modem.

Ethernet

Lit green when

successfully connected to

a LAN device (PC, switch, etc). Blinking

when data being transmitted /received.

EWAN (Ethernet #5):

Lit green when successfully connected to

a WAN device (Fibre /Cable /xDSL modem,

etc). Blinking when data being transmitted

/received.

Connect this port to

the fibre /xDSL /Cable

modem with a UTP

Ethernet cable (Cat-5

or Cat

5e)

Press more than 2

seconds to switch

on/off wireless 5G.

Billion BiPAC 8800AXL Dual-band Wireless-AC 1300Mbps ADSL2+ 3G/ G LTE Router

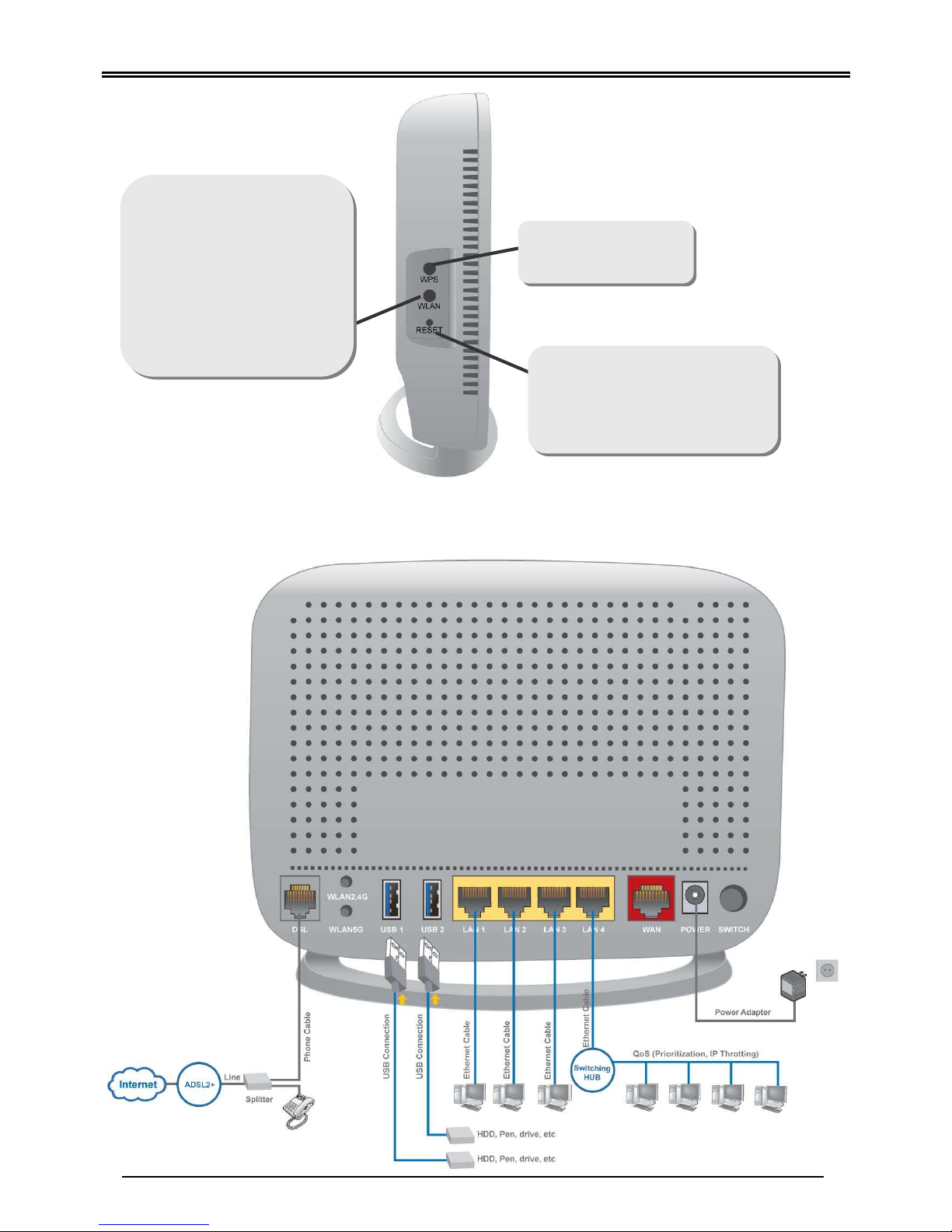

Push WPS button to

trigger Wi-Fi Protected

Setup function.

Press WLAN button more than

2 seconds to switch on /off the

whole wireless connectivity,

including wireless 2. G and

wireless 5G. Please Note that

the action is based on the

status of wireless 2. G, if now

the wireless 2. G is on, then

you press the WLAN button

more than 2 seconds to switch

off both wireless mode

After the device is powered on,

press it 5 seconds or above to

restore to factory default settings

(this is used when you can not

password)

Quick Start Guide

Billion BiPAC 8800AXL Dual-band Wireless-AC 1300Mbps ADSL2+ 3G/ G LTE Router

Hardware Installation

1. Power Connection

Plug the supplied power adapter in to the wall jack and the other side to the

router.

Please note that the plug type may differ according to country.

Quick Start Guide

2. LAN Connection

Connect the supplied RJ-45 Ethernet ca le to one of the Giga it Ethernet ports, and

the other side to the PC’s Ethernet interface.

3. ADSL Connection

Connect the supplied RJ-11 phone ca le to the router’s ADSL port, and the other

side to the phone jack on the wall.

. EWAN Connection

Connect RJ-45 Ethernet ca le to the EWAN port and connect the other side to

another alternative road and device, such as Ca le / FTTH device or PON optic

lines. Please refer to User Manual for detail instruction.

Billion BiPAC 8800AXL Dual-band Wireless-AC 1300Mbps ADSL2+ 3G/ G LTE Router

5. USB Connection

1) Print server and storage service through USB 2.0 port：FTP server and DLAN

media server supported.

2) The USB 2.0 ports support 3G/4G LTE modem connectivity ：Users can

conveniently access Internet via 3G/4G LTE, eliminating the limitations of the

wired network. This solution also employs an auto fail-over feature to ensure

always-on connectivity for SOHO users.

6. Splitter/ Micro-filter Connection

The Splitter / Micro-filter are important for ADSL installation, they help direct

high-frequency signals to the ADSL modem & low frequency signals to the

telephone or other analogue device to prevent inter-modulation distortion & get good

speed/sta le ADSL sync rate.

a) Splitter connection

If the installation has only a single telephone and a single ADSL modem, then a

splitter can e employed.

Quick Start Guide

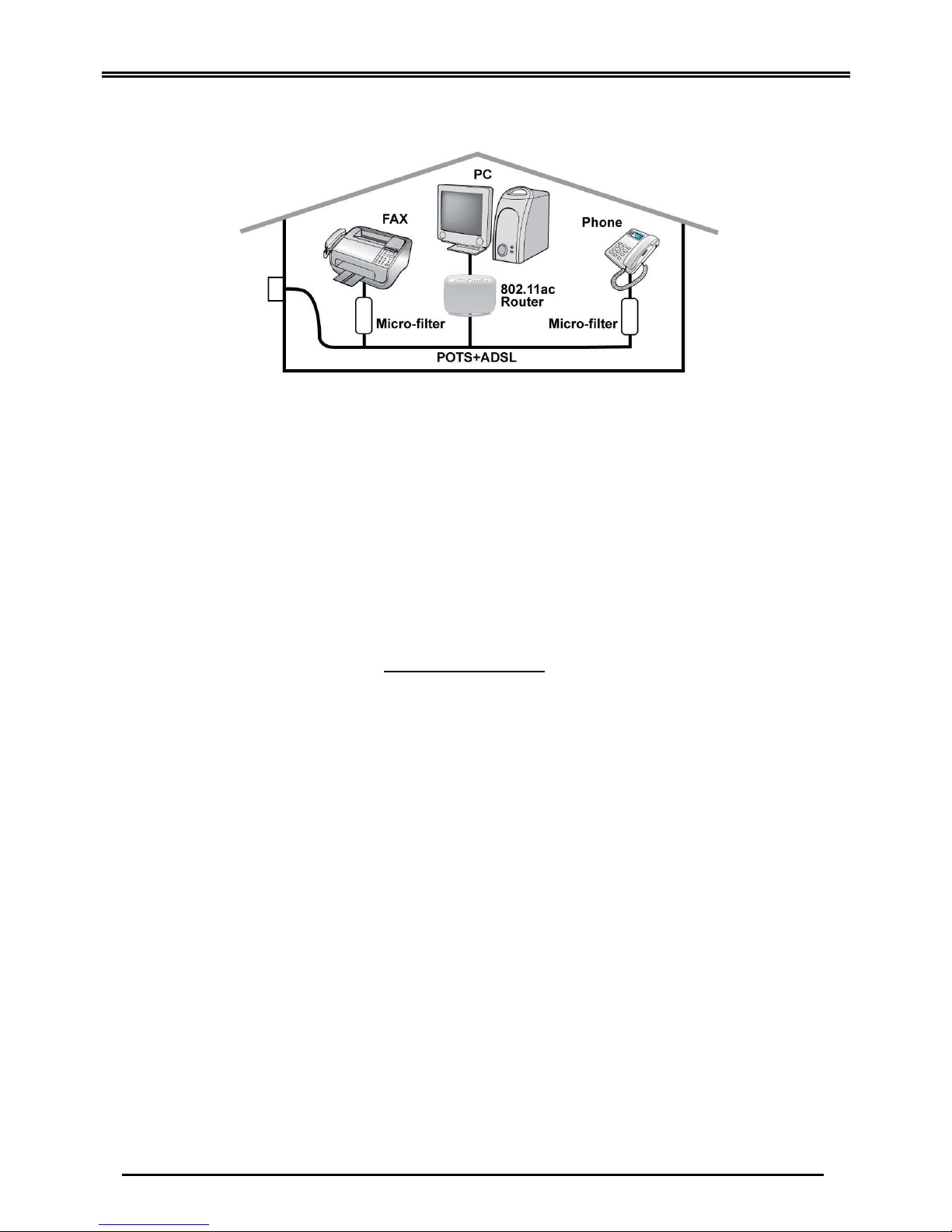

) Micro-filter connection

If the installation has several telephones or other analog devices, then an internal

micro-filter can e employed at each analog device.

-O

Make sure that device is powered on, Ethernet ca le is connected to your PC and ADSL line is

in sync. Then open up a we rowser and you will automatically e directed to the step- y-step

easy sign on configuration wizard which will guide you to complete the asic network

configuration to connect to the internet.

1. Open the we rowser and type http://192.168.1.25 in the rowser's address ox. This

num er is the default IP address for this router. Press Enter.

2. A username and password window will appear. The default username is “admin”, and

password is “admin”. Press OK to proceed.

3. You will get a status report we page and main menu screen.

Please see the relevant sections of user manual for detailed instructions on how to

configure your router.

1. None of the LEDs are on when you turn on the router.

Check the connection etween the adapter and the router. If the error persists, you may have

a hardware pro lem. In this case you should contact technical support.

2. Can’t ping any PCs on the LAN.

Check the Ethernet LEDs on the front panel. The LED should e on for a port that has a PC

connected. If it is off, check the ca les etween your router and the PC. Make sure you have

uninstalled any software firewall for trou leshooting. Verify that the IP address and the su net

mask are consistent etween the router and the workstations.

Billion BiPAC 8800AXL Dual-band Wireless-AC 1300Mbps ADSL2+ 3G/ G LTE Router

3. Frequent loss of ADSL line sync (disconnections).

Ensure that all other devices connected to the same telephone line as your router (e.g.

telephones, fax machines, analogue modems) have a line filter connected etween them and

the wall socket (unless you are using a Central Splitter or Central Filter installed y a qualified

and licensed electrician), and ensure that all line filters are correctly installed and the right

way around. Missing line filters or line filters installed the wrong way around can cause

pro lems with your ADSL connection, including causing frequent disconnections. If you have

a ack-to- ase alarm system you should contact your security provider for a technician to

make any necessary changes.

Most pro lems can e solved y referring to the Troubleshooting section in the user manual. If

you cannot resolve the pro lem with the Troubleshooting chapter, please contact the dealer

where you purchased this product.

Billion Australia – http://au.billion.com

Basic Support Hotline – 08 7071 3886 (Basic Support)

Helpdesk – http://au.billion.com/helpdesk/ (Lodge a support ticket)

Billion Support Forums – http://au.billion.com/forums (Get help & suggestions from

Billion & other users)

Download site – http://au.billion.com/product/fd.php (Download latest firmware, drivers &

User Guides)

BiPAC 8800AXL: V1.01AU
