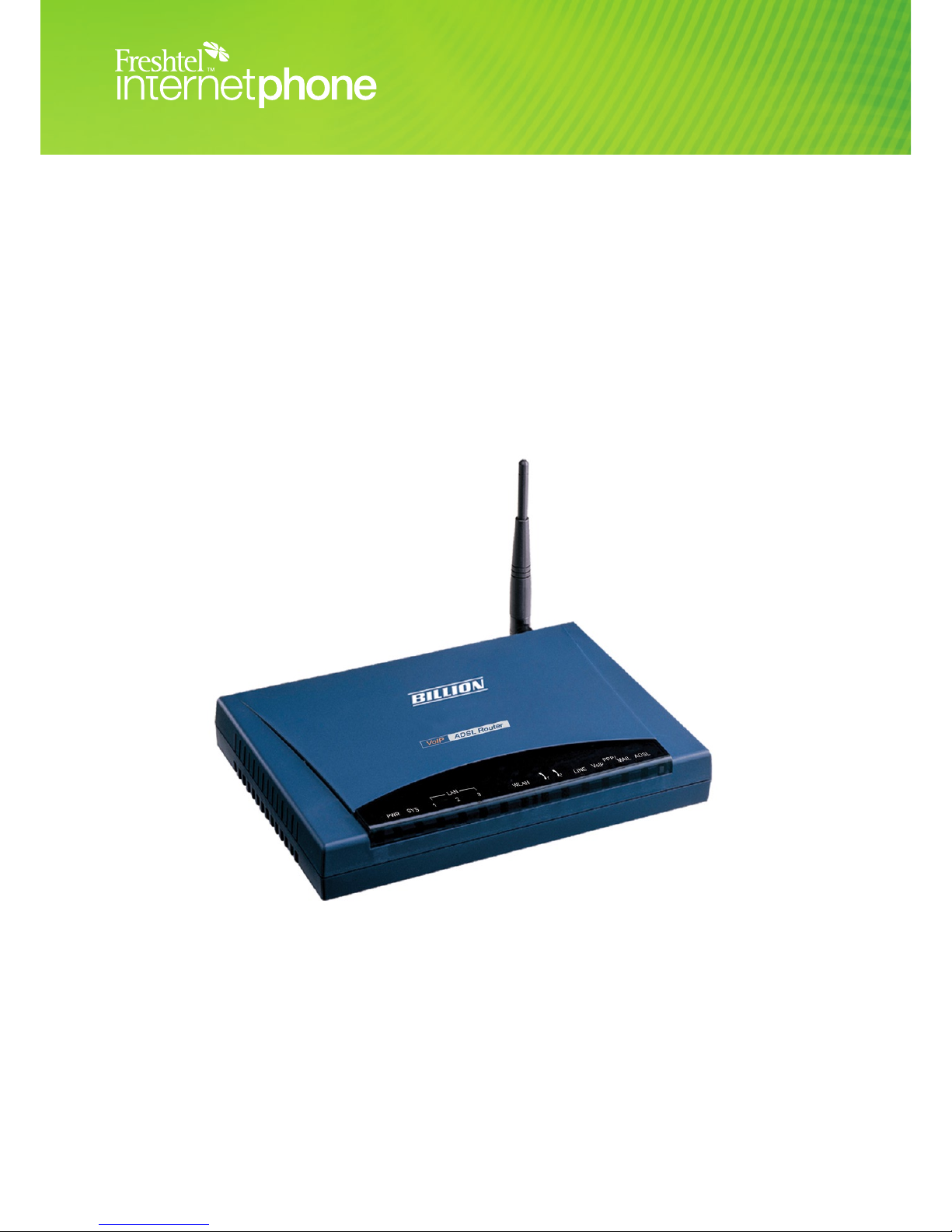

Billion 64 series Manual de usuario
Billion 64xx - 74xx
Configuration Guide
Minimum Requirements
Active Freshtel Internet Phone account (http://www.freshtel.net)•
Broadband internet connection (256/64 kbps minimum, ADSL required for 74xx series)•
Broadband modem (for Billion 64xx only)•
Analogue Telephone with RJ-11 line (desktop or cordless)•
Before You Begin
This guide will allow you to set up any Billion 74xx series VoIP modem/router or 64xx series VoIP
router for use with Freshtel. These include the Billion 7401, 7402, 7404 and 6404 models.
We strongly recommend you ensure that the latest rmware update for this device has been
downloaded and installed. For further information, visit the manufacturer’s website at
http://www.billion.com.au
If you are using the Firey softphone on your PC with the same Freshtel number that you wish to use
in your Billion, we advise you to uninstall or disable Firey. Your Freshtel account can only be active
at one point on our network at any one time, and having two identical active accounts will cause
conicts. Similarly, only register your Freshtel account on one line of the Billion, and not both lines.
If you do not yet have a Freshtel account, you should go to our website at http://www.freshtel.net
and register a new account before starting to congure the Billion.
Initial Setup
Before conguration, please refer to the Billion user guide for further information on how to connect
the device to your network.
If you require more advice, please contact your ISP for assistance with your ADSL connection or
contact Freshtel Customer Care via Firey on 81118111, or our landline number 1300 373 748 (1300
FRESHTEL).
Billion Configuration
Using your Internet Browser, type http://192.168.1.254, then press Enter to access the Billion’s
conguration webpage.
You should see a pop-up window requesting you to enter your Username and Password (making
sure you type them in lower case letters):
The default login is:
Username: admin
Password: admin
If you are experiencing difculty trying to connect to the device at this point, please refer to the
Billion user guide or contact Billion Technical Support for further assistance.
Figure 1.1
Figure 1.2
ATA/Router Setup
This section applies to Billion 64xx series VoIP routers only, such as the Billion 6404VGP. If you have
a Billion ADSL Modem/Router, such as the Billion 7401, 7402 or 7404VGP, move on to the
next page.
It is advisable to only have one router in your home network to avoid routing conicts. If you have a
Billion 6404 connected to another router or modem/router, you may wish to set the Billion 6404 to
operate in Analog Terminal Adapter (ATA) mode, rather than operating in VoIP router mode.
If you are unsure whether your Billion 6404 is connected to another router, please contact Freshtel
Customer Care via Firey on 81118111, or our landline number 1300 373 748 (1300 FRESHTEL).
Figure 1.3
VoIP Configuration
For more information regarding each property and option, please refer to the Billion user manual.
SIP Setup
1. Click on Configuration
2. Click on VoIP
3. Click on Wizard
4. Voice QoS
a. DSCP Marking Premium
5. Phone Port 1
a. SIP Service Provider Freshtel/Firefly
b. Phone Number Your Freshtel Number
c. Authentication Username Your Freshtel Number
d. Authentication Password Your Freshtel Password
6. Click Apply
Do not set up Phone Port 2 or select the ‘Same As Port 1’ checkbox unless you have two separate
Freshtel accounts. Each Freshtel account can only be active at one point on our network at any one
time, and setting up two identical accounts in your Billion will cause conicts.
Figure 1.4
General Setup
1. Click on General Settings
2. Under Sip Device Parameters
a. SIP Enable
b. Silence Suppression (VAD) Disable
c. Echo Cancellation Enable
d. RTP Port 5100
e. Region Australia
f. Voice QoS Premium
3. Setting for Phone Port 1
a. Registrar Address sip.freshtel.net
b. Registrar Port 5060
c. Expire 3600
d. User Domain/Realm (leave blank)
e. Outbound Proxy Address (leave blank)
f. Outbound Proxy Port 5060
Figure 1.5
General Setup - Advanced
1. Click Advanced (next to SIP Device Parameters)
2. Parameters
a. VoIP through IP Interface ipwan
b. Voice Frame Size 20ms
You may wish to increase Voice Frame Size to 30ms if you have a slower Broadband
connection.
Figure 1.6
Phone Port
1. Click on Phone Port
2. Click on Edit (for relevant account)
3. Under Login Account Configuration
a. Phone Number Your Freshtel Number
b. Authentication Username Your Freshtel Number
c. Authentication Password Your Freshtel Password
d. Confirm Password Your Freshtel Password
e. Display Name Your Freshtel Number
4. Codec Preference
a. Priority 1 G.729
b. Priority 2 PCMU (G.711 u-Law)
c. Priority 3 PCMU (G.711 a-Law)
d. DTMF Method RFC2833
Figure 1.7
Figure 1.8
VoIP Dial Plan
1. Select Port 1, and click Edit.
2. Click on VoIP Dial Plan
3. Click Edit for Port 1
4. Parameters
a. Enable Speed Dial
b. Enable Redial
c. Disable Return Call
d. Disable Don’t Disturb
e. Disable Blind Call Transfer
f. Disable Set The Number Of Speed Dial Code
g. Disable Phone Number +#
5. Click on Apply
Figure 1.9
Figure 1.10
6. Main Digit Sequence
a. *xxxxxxxx @ Current Profile
7. Click Apply
8. Click on Add
9. Main Digit Sequence
a. *xxx @ Current Profile
9. Click Apply
10. Click on Add
11. Main Digit Sequence
a. *xxxx @ Current Profile
12. Click Apply
13. Click on Add
14. Click Save Settings
Figure 1.11
