D-Link DIR-506L Manual de usuario

Quick Installation Guide

DIR-506L

Pocket Cloud Router

Version 1.20 | August 23, 2012

Краткое руководство по установке

Guía de Instalación Rápida

Guia de Instalação Rápida

Petunjuk Pemasangan Cepat

DIR-506L

ENGLISH

Package Contents

1. The battery must be installed for the device to operate. Slide o

the cover and insert the battery. Make sure the gold contacts

align with the gold terminals. Slide the cover back on.

2. Connect the USB cable to the DIR-506L and then connect to a

USB port on your computer.

Note: Charge the device using the USB cable for at least 4 hours or

until it is fully charged before usage.

LAN

OFF

LAN

OFF

Insert and Charge the Battery

USB Cable (for power and charging battery only)

Rechargeable Battery

Pocket Cloud Router

DIR-506L

ENGLISH

SharePort Mobile - Sharing Made Easy

Stream movies, music, photos, and documents from a USB drive

plugged into the DIR-506L right to your iPhone, iPad, or Android

device, or to a PC; you don’t even need to be connected to the

Internet!

SharePort Mobile transforms any USB drive into your own personal

shared le space that you can access with all your devices.

Supported File Formats for iOS and Android:

• Video: .mp4, .mov

• Music: .mp3, .wav

• Image: .bmp, .gif, .jpg, .png

•

Document: .doc, .xls, .ppt, .pdf, .pages, .numbers, .key, .txt, .html, .ref

Download the SharePort Mobile App

Use a barcode scanner app such as Bakodo or RedLaser on your iOS

or Android device to scan the corresponding code for your device

below. If you do not have a scanning app, just search for SharePort

Mobile in the App Store or Google Play. Please make sure you have a

working Internet connection before downloading the app.

DIR-506L

ENGLISH

Plug In a USB Flash Drive and Turn On

the DIR-506L

Insert your USB drive into the USB port on the DIR-506L. Slide the

power switch to the ON position and wait until the power, USB, and

wireless LEDs turn green. Please allow 3-4 minutes for the boot-up

process to complete.

Connect to the DIR-506L Wirelessly

Use the following information to connect to your DIR-506L wirelessly:

• Default WiFi SSID: dlink_DIR-506L

• Default Password: (leave this blank)

LAN

OFF

DIR-506L

ENGLISH

Using The SharePort Mobile App

1. Open the SharePort Mobile app.

2. Make sure the Wireless icon at the

bottom of the screen is blue, then

you’re ready to use SharePort Mobile!

If you set the device password for the DIR-506L, or if you want to use

a specic user account, tap on the gear icon in the top right corner of

the screen to open the settings page, then tap Edit to enter your User

Name and Password. By default, the User Name is admin, and the

Password should be left blank. When you’re nished, tap Done.

Using a PC with SharePort Mobile

You can use a PC to access les on a USB drive plugged into the DIR-506L

by opening a web browser and going to http://dlinkrouter.local:8181

By default, the User Name is admin, and the Password should be left

blank. When you’re nished, tap Done.

If you want to use a specic user account, enter your User Name and

Password for that account.

DIR-506L

ENGLISH

Getting Connected to the Internet

Whether you’re at home or at a hotel, the Pocket Cloud Router makes

it easy to share your Internet connection with all your devices. Just

plug your modem or Internet connection cable into the Ethernet port

on the Pocket Cloud Router to share your connection wirelessly.

Wireless Router Mode

Share a wired Internet connection

At a café or at the airport, you can share access to a wireless hotspot

with all your friends and devices with the Pocket Cloud Router’s WiFi

Hotspot Mode. The Pocket Cloud Router connects to the hotspot, then

shares access through a private wireless network you control.

WiFi Hotspot Mode

Share a hotspot connection with friends

Hote lHote l

Coffee shopCoffee shop Coffee shopCoffee shop

WIFLY

Hinet

WIFLY

Hinet

TPE-Free TPE-Free

DIR-506L

ENGLISH

Connection Setup with QRS Mobile

If you wish to use Wireless Router Mode, you can congure your

DIR-506L with the handy QRS Mobile app for iOS and Android mobile

devices.

Use a barcode scanner app such as Bakodo or RedLaser on your iOS

or Android device to scan the corresponding code for your device

below. If you do not have a scanning app, just search for QRS Mobile

in the App Store or Google Play. Please make sure you have a working

Internet connection before downloading the app.

After downloading the app, connect to the DIR-506L wirelessly

using the following information:

• Default WiFi SSID: dlink_DIR-506L

• Default Password: (leave this blank)

You can now open the QRS Mobile app and follow the on-screen

instructions to congure your DIR-506L.

DIR-506L

ENGLISH

Connection Setup Through a Browser

You can use a web browser on your PC or mobile device to

congure your DIR-506L for Wireless Router and WiFi Hotspot mode,

as well as all of the other modes and settings.

1. Connect to the DIR-506L wirelessly using the following

information:

• Default WiFi SSID: dlink_DIR-506L

• Default Password: (leave this blank)

2. Open a web browser, and go to http://dlinkrouter.local. By

default, the User Name is admin, and the Password should be

left blank.

3. After logging in, click on Setup at the top, then click on Internet

Connection Setup Wizard and follow the on-screen instructions.

Further Information

For further information on how to use, congure, and enjoy your

DIR-506L, you can refer to the User Manual, which is available on the

D-Link website.

For the D-Link website for your region, refer to the following

Technical Support pages.

DIR-506L

ENGLISH

Technical Support

Australia:

Tel: 1300-766-868

24/7 Technical Support

Web: http://www.dlink.com.au

E-mail: suppor[email protected]

India:

Tel: +91-22-27626600

Toll Free: 1800-22-8998

Web: www.dlink.co.in

E-Mail: [email protected]

Singapore, Thailand, Indonesia,

Malaysia, Philippines, Vietnam:

Singapore: www.dlink.com.sg

Thailand: www.dlink.co.th

Indonesia: www.dlink.co.id

Malaysia: www.dlink.com.my

Philippines: www.dlink.com.ph

Vietnam: www.dlink.com.vn

Korea:

Tel: +82-2-2028-1810

Monday to Friday 9:00am to 6:00pm

Web: http://d-link.co.kr

E-mail: [email protected]

New Zealand:

Tel: 0800-900-900

24/7 Technical Support

Web: http://www.dlink.co.nz

E-mail: suppor[email protected].nz

South Africa and Sub Sahara

Region:

Tel: +27 12 661 2025

08600 DLINK (for South Africa only)

Monday to Friday

8:30am to 9:00pm South Africa Time

Web: http://www.d-link.co.za

E-mail: suppor[email protected].za

Saudi Arabia (KSA):

Tel: +966 01 217 0008

Fax: +966 01 217 0009

Saturday to Wednesday 9.30AM to 6.30PM

Thursdays 9.30AM to 2.00 PM

E-mail: Support.sa@dlink-me.com

D-Link Middle East - Dubai, U.A.E.

Plot No. S31102,

Jebel Ali Free Zone South,

P.O.Box 18224, Dubai, U.A.E.

Tel: +971-4-8809022

Fax: +971-4-8809066 / 8809069

Technical Support: +971-4-8809033

General Inquiries: info[email protected]om

Tech Support: suppor[email protected]om

Egypt

1, Makram Ebeid Street - City Lights Building

Nasrcity - Cairo, Egypt

Floor 6, oce C2

Tel: +2 02 26718375 - +2 02 26717280

Technical Support: +2 02 26738470

General Inquiries: info[email protected]om

Tech Support: suppor[email protected]om

Kingdom of Saudi Arabia

Oce # 84,

Al Khaleej Building ( Mujamathu Al-Khaleej)

Opp. King Fahd Road, Olaya

Riyadh - Saudi Arabia

Tel: +966 1 217 0008

Technical Support:

+966 1 2170009 / +966 2 6522951

General Inquiries: info[email protected]om

Tech Support: suppor[email protected]om

DIR-506L

ENGLISH

Lebanon RMA center

Dbayeh/Lebanon

PO Box:901589

Tel: +961 4 54 49 71 Ext:14

Fax: +961 4 54 49 71 Ext:12

Email: taoun@dlink-me.com

Bahrain

Technical Support: +973 1 3332904

Kuwait:

Technical Support: +965 22453939

+965 22453949

Türkiye Merkez İrtibat Osi

Ayazağa Maslak yolu

Erdebil Cevahir İş Merkezi No: 5/A Ayazağa /

Maslak İstanbul

Tel: +90 212 2895659

Ücretsiz Müşteri Destek Hattı: 0 800 211 00 65

Web:www.dlink.com.tr

Teknik Destek: suppor[email protected]

Israel

רטנס ןולטמ

20 םימישגמה ׳חר

49348 ת״פ ,ןולטמ תירק

7060 .ד.ת

073-796-2797 :ןופלט

[email protected].il :יללכ לייאמ-יא

suppor[email protected].il :הכימת לייאמ-יא

Pakistan

Islamabad Oce:

61-A, Jinnah Avenue, Blue Area,

Suite # 11, EBC, Saudi Pak Tower,

Islamabad - Pakistan

Tel: +92-51-2800397, 2800398

Fax: +92-51-2800399

Karachi Oce:

D-147/1, KDA Scheme # 1,

Opposite Mudassir Park, Karsaz Road,

Karachi – Pakistan

Tel: +92-21-34548158, 34326649

Fax: +92-21-4375727

Technical Support: +92-21-34548310, 34305069

General Inquiries: info[email protected]om

Tech Support: suppor[email protected]om

Iran

Unit 5, 5th Floor, No. 20, 17th Alley, Bokharest St.,

Argentine Sq.,

Tehran IRAN

Postal Code : 1513833817

Tel: +98-21-88880918,19

+98-21-88706653,54

General Inquiries: info[email protected]om

Tech Support: suppor[email protected]om

Morocco

M.I.T.C

Route de Nouaceur angle RS et CT 1029 Bureau

N° 312 ET 337

Casablanca, Maroc

Tel: +212 663 72 73 24

Email: support.na@dlink-me.com

Technical Support

Otros manuales para DIR-506L

Tabla de contenidos

Idiomas:

Otros manuales de Enrutador inalámbrico de D-Link

D-Link

D-Link DWR-932 Manual de usuario

D-Link

D-Link DIR-905L Manual de usuario

D-Link

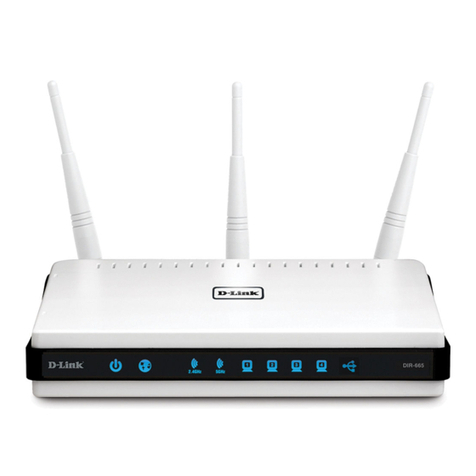

D-Link DIR-665 Manual de usuario

D-Link

D-Link DWR-932 Manual de usuario

D-Link

D-Link DI-724P Manual de usuario

D-Link

D-Link DIR-878 Manual de usuario

D-Link

D-Link DSL-2740R Manual de usuario

D-Link

D-Link DI-713 Manual de usuario

D-Link

D-Link DWR-112 Manual de usuario

D-Link

D-Link DIR-815 Manual de usuario

D-Link

D-Link DIR-850L Manual de usuario

D-Link

D-Link DI-804HV - Express ENwork Router Manual de usuario

D-Link

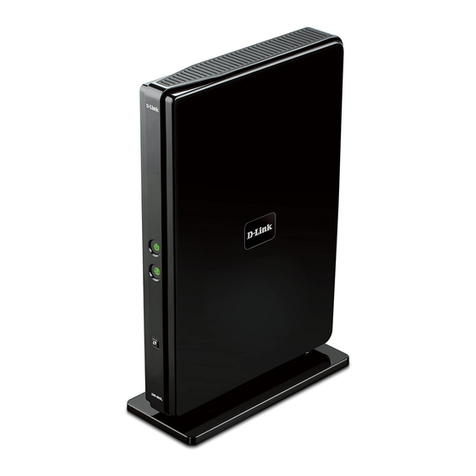

D-Link DIR-865L Manual de usuario

D-Link

D-Link DIR-600 Manual de usuario

D-Link

D-Link DI-524 - AirPlus G Wireless Router Manual de usuario

D-Link

D-Link DHP-1320 Manual de usuario

D-Link

D-Link VWR-VR - Broadband Telephone Adapter/Wireless... Manual de usuario

D-Link

D-Link DSL-2640U Manual de usuario

D-Link

D-Link DIR-862L Manual de usuario

D-Link

D-Link COVR-C1210 Manual de usuario

D-Link

D-Link DI-604UP - Broadband Router Plus USB Print... Manual de usuario

D-Link

D-Link DIR-620S Manual de usuario

D-Link

D-Link DIR-885L Manual de usuario

D-Link

D-Link DSL-2888A Manual de usuario

Manuales populares de Enrutador inalámbrico de otras marcas

Milesight

Milesight UG67 Manual de usuario

Airlogic

Airlogic AirSync Class 1 Manual del propietario

Samsung

Samsung WCH730B Manual de usuario

TELEFONICA

TELEFONICA USB Adapter Manual de usuario

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Manual de usuario

Askey

Askey RAC2V1K Manual de usuario

Alloy

Alloy WLF2454AP-S Manual de usuario

TP-Link

TP-Link TL-WR542G Manual de usuario

NETGEAR

NETGEAR WNR2000v4 Manual de usuario

Hama

Hama 53120 Manual de usuario

Intellinet

Intellinet 524582 Manual de usuario

Asus

Asus RT-N10P Manual de usuario

Sapido

Sapido GR297n Manual de usuario

Asus

Asus DSL-N55U Manual de usuario

AMTC

AMTC WR7502 Manual de usuario

Compaq

Compaq CP-2W - iPAQ Connection Point Manual de usuario

SMC Networks

SMC Networks WBR14-N2 FICHE Manual de usuario

Draytek

Draytek Vigor2120 Series Manual de usuario
