Billion BiPAC 7300N Manual de usuario

BiPAC 5200N/7300N

802.11n draft ADSL2+

Firewall Router

Quick Start Guide

Billion BiPAC 5200/7300N Series ADSL2+ Firewall Router

Package Contents

BiPAC 5200N/7300N Series ADSL2+ Router

CD containing the on-line manual

RJ-11 ADSL/telephone cable

Ethernet (CAT-5 LAN) cable

AC-DC power adapter (12V DC, 1A)

This Quick Start Guide

Splitter/ Micro-filter (Optional)

Attention

Warning

PLEASE READ THE QUICK START GUIDE AND FOLLOW THE

STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU

INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE.

IF YOU NEED MORE INFORMATION ON THIS SOFTWARE

CONFIGURATION, PLEASE REFER TO THE USER’S MANUAL ON

THE CD-ROM.

zDo not use the router in high humidity or high temperatures.

zDo not use the same power source for the router as other

equipment.

zDo not open or repair the case yourself. If the router is too hot,

turn off the power immediately and have it repaired at a qualified

service center.

zAvoid usin

this

roduct and all accessories outdoors.

zPlace the router on a stable surface.

zOnly use the power adapter that comes with the package. Using a

different voltage rating power adaptor may damage the router.

Quick Start Guide

Hardware Overview

BiPAC 5200N/7300N

The Front LEDs

The Rear Ports

Connect the supplied

power adapter to this

jack.

Connect the supplied

RJ-11 cable to this

port when connecting

to the ADSL/telephone

network.

Push the WPS button to

trigger the Wi-Fi

Protected Setup function.

(5200N: Future release)

When the power is

plugged in, it will lit Red

and when the system is

ready, it will lit Green.

Lit when

connected to an

Ethernet device

Lit when WPS is in

progress.

(5200N:Future release)

Lit green when the

wireless connection

is established.

Lit steady when

there is a PPPoA /

PPPoE connection.

Lit when successfully

connected to an ADSL

DSLAM connection.

Connect your computer to a

LAN port, using the included

Ethernet cable. BiPAC

7300N offers its Ethernet

port 1 as a WAN port to be

used to connect to Cable

Modems, VDSL, fiber and

PON optic lines.(EWAN)

Press it to reset the

device or restore to

factory default

settings.

Connect the fixed

antenna-5200N;

detachable

antenna-7300N.

Billion BiPAC 5200/7300N Series ADSL2+ Firewall Router

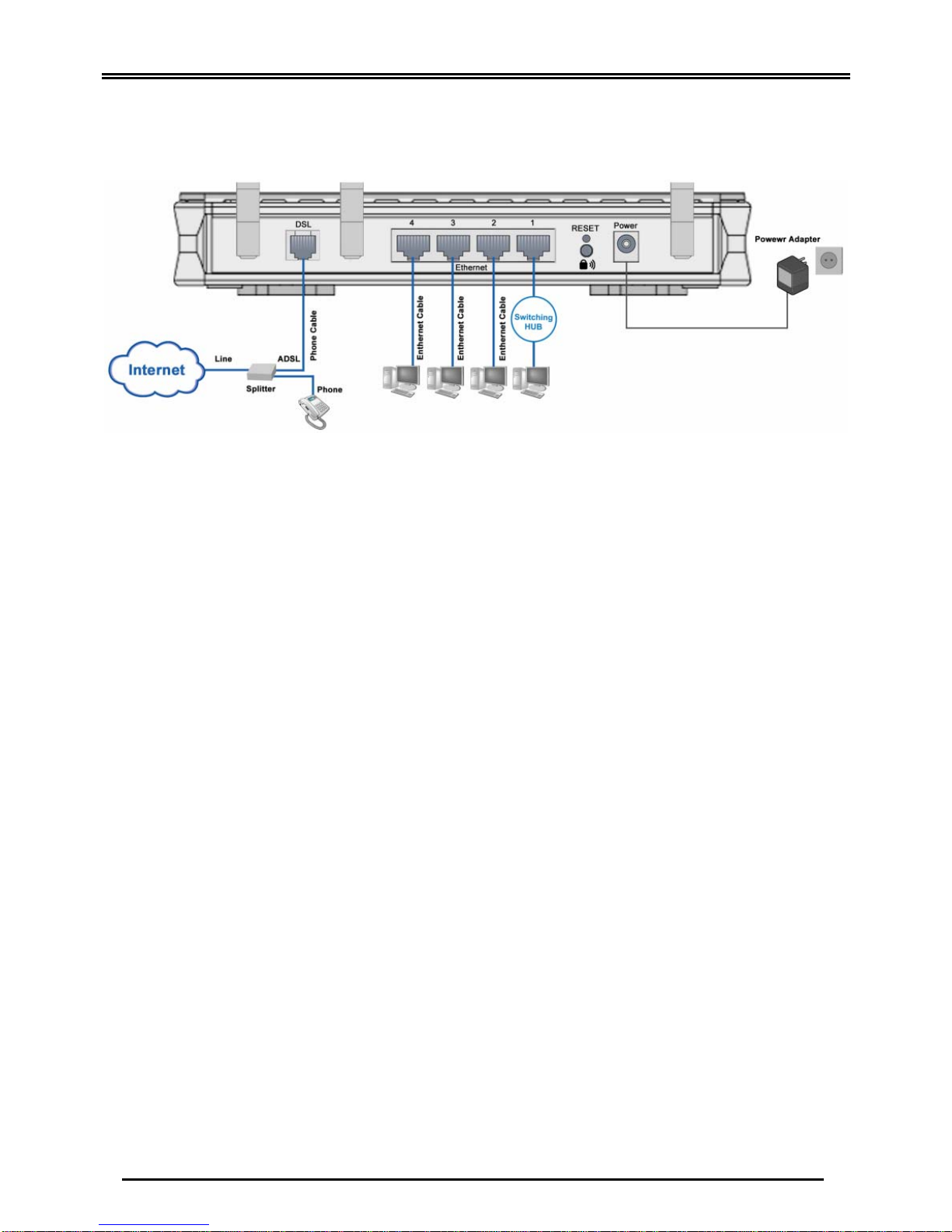

Hardware Connection

BiPAC 5200N/7300N

Quick Start Guide

Hardware Installation

1. Power Connection

Plug the supplied power adapter to the wall jack and the other side to the router.

Please note that the plug type may differ according to different countries.

2. LAN Connection

Connect the supplied RJ-45 Ethernet cable to one of the Ethernet ports, and the

other side to the PC’s Ethernet interface.

3. ADSL Connection

Connect the supplied RJ-11 phone cable to the router’s ADSL port, and the other

side to the phone jack on the wall.

Billion BiPAC 5200/7300N Series ADSL2+ Firewall Router

4. Splitter/ Micro-filter Connection

Splitter / Micro-filter are important for ADSL installation. High-frequency signals are

directed to the ADSL modem, and low-frequency signals are directed to the

telephone or other analog voice-channel device to prevent inter-modulation

distortion and also to get good speed and stable ADSL sync rate.

a) Splitter connection

If the installation has only a single telephone and a single ADSL modem, then a

splitter can be employed.

b) Micro-filter connection

If the installation has several telephones or other analog devices, then an internal

micro-filter can be employed at each analog device.

Quick Start Guide

Setup Utility (5200N Only)

5200N: After you complete the hardware installation, insert the CD-ROM to the CD-ROM drive to

perform the Setup Utility for network configuration. The Setup Utility will auto-run. Follow the

step-by-step configuration wizard, the utility will guide you to complete the basic network

configuration to connect to the internet.

Easy Sign On (7300N Only)

7300N: Make sure that your 7300N’s power is turned on, Ethernet cable is connected to your PC

and ADSL line is in sync. Then open up a web browser and you will automatically be directed to

the step-by-step easy sign on configuration wizard which will guide you to complete the basic

network configuration to connect to the internet.

EWAN (7300N Only)

Besides using ADSL to get connected to the Internet, BiPAC 7300N offers its Ethernet port 1 as

a WAN port to be used to connect to Cable Modems, VDSL, fiber and PON optic lines. This

alternative, yet faster method to connect to the internet will provide users more flexibility to get

online.

Troubleshooting

1. None of the LEDs are on when you turn on the router.

Check the connection between the adapter and the router. If the error persists, you may have

a hardware problem. In this case you should contact technical support.

2. You have forgotten your router login and/or password.

Try the default login and password, please refer to Chapter 3. If this fails, you can restore

your router to its factory settings by holding the Reset button on the back of your router for 6

seconds or more.

3. Can’t ping any PCs on the LAN.

Check the Ethernet LEDs on the front panel. The LED should be on for a port that has a PC

connected. If it is off, check the cables between your router and the PC. Make sure you have

uninstalled any software firewall for troubleshooting. Verify that the IP address and the subnet

mask are consistent between the router and the workstations.

4. Frequent loss of ADSL linesync (disconnections).

Ensure that all other devices connected to the same telephone line as your router (e.g.

telephones, fax machines, analogue modems) have a line filter connected between them and

the wall socket (unless you are using a Central Splitter or Central Filter installed by a qualified

and licensed electrician), and ensure that all line filters are correctly installed and the right

way around. Missing line filters or line filters installed the wrong way around can cause

problems with your ADSL connection, including causing frequent disconnections. If you have

a back-to-base alarm system you should contact your security provider for a technician to

make any necessary changes.

Product Support and Contact Information

Most problems can be solved by referring to the Troubleshooting section in the User’s Manual.

If you cannot resolve the problem with the Troubleshooting chapter, please contact the dealer

where you purchased this product.

Contact Billion

WORLDWIDE: http://www.billion.com

5200N/7300N v1.01EN
