Billion BiPAC 5210G RC Manual de usuario

BiPAC 5200G RC Series

802.11g ADSL2+ Firewall Router

User Manual

Version released 2.12.13.0(RE2.C31)3.12.17.0

Last revised date 9-14-2010

Table of Contents

Chapter 1: Introduction ........................................................................................1

Introduction to your Router ........................................................................1

Features .............................................................................................3

Application Illustrations .......................................................................6

Chapter 2: Installing the Router ...........................................................................7

Package Contents......................................................................................7

Hardware Overview ...................................................................................8

Front LEDs..........................................................................................8

Rear Panel ..........................................................................................9

Cabling.....................................................................................................10

Chapter 3: Basic Installation ............................................................................. 11

Network Conguration .............................................................................12

Conguring PC in Windows 7 ...........................................................12

Conguring PC in Windows Vista......................................................14

Conguring PC in Windows XP.........................................................16

Conguring PC in Windows 2000 .....................................................17

Conguring PC in Windows 95/98/Me...............................................18

Conguring PC in Windows NT4.0....................................................19

Step by Step Installation ..........................................................................20

Factory Default Settings...........................................................................25

Information from your ISP ......................................................................26

Conguring with your Web Browser.........................................................27

Chapter 4: Conguration ...................................................................................28

Quickstart.................................................................................................28

Interface Setup ........................................................................................33

Internet..............................................................................................34

LAN...................................................................................................38

Wireless ............................................................................................40

Advanced Setup ......................................................................................44

Firewall..............................................................................................44

Routing..............................................................................................45

NAT ...................................................................................................47

ADSL.................................................................................................52

Access Management ...............................................................................53

ACL...................................................................................................53

Filter..................................................................................................54

SNMP................................................................................................58

UPnP.................................................................................................59

DDNS................................................................................................60

Maintenance ............................................................................................61

Administration ...................................................................................61

Time Zone.........................................................................................62

Firmware ...........................................................................................63

SysRestart ........................................................................................64

Diagnostics .......................................................................................65

Status.......................................................................................................66

Device Info ........................................................................................66

System Log .......................................................................................68

Statistics............................................................................................69

Help .........................................................................................................72

Appendix: Product Support & Contact ...............................................................75

Chapter 1: Introduction

Introduction to your Router

Welcome to Billion BiPAC 5200G RC Series ADSL2+ Firewall Router. Your Billion router is an “all-

in-one” unit, combining an ADSL modem, ADSL router and Ethernet network switch, providing

everything you need to get the machines on your network connected to the Internet over your ADSL

broadband connection.

This rewall router complies with ADSL2+ standards for worldwide deployment and supports

downstream rates of up to 24 Mbps and upstream rates of up to 1 Mbps. It is designed for small

ofce, home ofce and residential users, enabling even faster speed Internet connections. User

can enjoy ADSL services and broadband multimedia applications such as interactive gaming, video

streaming and real-time audio much easier and faster than ever before.

The product supports PPPoA (RFC 2364 – PPP (Point-to-Point Protocol) over ATM Adaptation

Layer 5), RFC 1483 encapsulation over ATM (bridged or routed), PPP over Ethernet (RFC 2516),

and IPoA (RFC1577) to establish a connection with ISP. The product also supports VC-based and

LLC-based multiplexing.

It is the perfect solution to connect a small group of PCs to a high-speed broadband Internet

connection. Multi-users can have high-speed Internet access simultaneously.

This product also serves as an Internet rewall, protecting your network from being accessed by

outside users. Not only provide the natural rewall function (Network Address Translation, NAT),

it also provides rich rewall features to secure user’s network. All incoming data packets are

monitored and ltered. Besides, it can also be congured to block internal users from accessing to

the Internet.

The product provides two levels of security support. First, it masks LAN users’ IP addresses which

are invisible to outside users on the Internet, making it much more difcult for a hacker to target

a machine on your network. Secondly, it can block and redirect certain ports to limit the services

that outside users can access. For example, to ensure that games and other Internet applications

will run properly, user can open some specic ports for outside users to access internal services in

network.

Integrated DHCP (Dynamic Host Control Protocol) services, client and server, allow multiple users

to get their IP addresses automatically on boot up from the product. Simply set local machines as

a DHCP client to accept a dynamically assigned IP address from DHCP server . Each time local

machine is powered up; the router will recognize it and assign an IP address to instantly connect it

to the LAN.

For advanced users, Virtual Service function allows the product to provide limited visibility to local

machines with specic services for outside users. An ISP (Internet Service Providers) provided IP

address can be set to the product and then specic services can be rerouted to specic computers

on the local network. For instance, a dedicated web server can be connected to the Internet via

the product and then incoming requests for HTML that are received by the product can be rerouted

to the dedicated local web server, even though the server now has a different IP address. In this

example, the product is on the Internet and vulnerable to attacks, but the server is protected.

Virtual Server can also be used to re-task services to multiple servers. For instance, the product

can be set to allow separated FTP, Web, and Multiplayer game servers to share the same Internet-

visible IP address while still protecting the servers and LAN users from hackers.

Features

ADSL Multi-Mode Standard

Supports downstream rates of up to 24 Mbps and upstream rates of up to 1 Mbps. It also supports

rate management that allows ADSL subscribers to select an Internet access speed suiting their

needs and budgets. It is compliant with Multi-Mode standard (ANSI T1.413, Issue 2; G.dmt(G.992.1);

G.lite(G992.2)), G.hs (G994.1), G.dmt.bis (G.992.3), G.dmt.bisplus (G.992.5)). The Annex A and B

are supported in different H/W platforms.

802.11g Wi-Fi

With built-in 802.11g access point for extending the communication media to WLAN while providing

the WEP, WPA and WPA2 for securing your wireless networks.

Fast Ethernet Switch

A 4-port 10/100Mbps fast Ethernet switch is built in with automatic switching between MDI and

MDI-X for 10Base-T and 100Base-TX ports. An Ethernet straight or crossover cable can be used

directly for auto detection.

Multi-Protocol to Establish a Connection

It supports PPPoA (RFC 2364 - PPP over ATM Adaptation Layer 5), RFC 1483 encapsulation

overATM (bridged or routed), PPP over Ethernet (RFC 2516), and IPoA (RFC1577) to establish a

connection with the ISP. The product also supports VC-based and LLC-based multiplexing.

Quick Installation Wizard

It supports a WEB GUI page to install this device quickly. With this wizard, end users can enter the

information easily which they get from their ISP, then surf the Internet immediately.

Universal Plug and Play (UPnP) and UPnP NAT Traversal

This protocol is used to enable simple and robust connectivity among stand-alone devices and PCs

from many different vendors. It makes network simple and affordable for users. UPnP architecture

leverages TCP/IP and the Web to enable seamless proximity networking in addition to control and

data transfer among networked devices. With this feature enabled, users can now connect to Net

meeting or MSN Messenger seamlessly.

Network Address Translation (NAT)

Allows multi-users to access outside resources such as the Internet simultaneously with one IP

address/one Internet access account. Many application layer gateway (ALG) are supported such as

web browser, ICQ, FTP, Telnet, E-mail, News, Net2phone, Ping, NetMeeting, IP phone and others.

Domain Name System (DNS) Relay

It provides an easy way to map the domain name (a friendly name for users such as www.yahoo.

com) and IP address. When a local machine sets its DNS server with this router’s IP address, every

DNS conversion request packet from the PC to this router will be forwarded to the real DNS in the

outside network.

Dynamic Domain Name System (DDNS)

The Dynamic DNS service allows you to alias a dynamic IP address to a static hostname. This

dynamic IP address is the WAN IP address. For example, to use the service, you must rst apply

for an account from a DDNS service like http://www.dyndns.org/. More than 5 DDNS servers are

supported.

Virtual Server

Users can specify some services to be visible from outside users. The router can detect incoming

service requests and forward either a single port or a range of ports to the specic local computer

to handle it. For example, a user can assign a PC in the LAN acting as a WEB server inside and

expose it to the outside network. Outside users can browse inside web servers directly while it is

protected by NAT. A DMZ host setting is also provided to a local computer exposed to the outside

network, Internet.

Dynamic Host Conguration Protocol (DHCP) Client and Server

In the WAN site, the DHCP client can get an IP address from the Internet Service Provider (ISP)

automatically. In the LAN site, the DHCP server can allocate a range of client IP addresses and

distribute them including IP address, subnet mask as well as DNS IP address to local computers. It

provides an easy way to manage the local IP network.

RIP1/2 Routing

It has the routing capability that supports RIP1/2 routing protocol.

Simple Network Management Protocol (SNMP)

It is an easy way to remotely manage the router via SNMP.

Web based GUI

It supports web based GUI for conguration and management. It is user-friendly and comes with on-

line help. It also supports remote management capability for remote users to congure and manage

this product.

Firmware Upgradeable

Device can be upgraded to the latest rmware through the WEB based GUI.

Firewall

Supports simple rewall with NAT technology and provides option for blocking access from Internet,

like Telnet, FTP, WEB, SNMP and IGMP.

PPP over Ethernet (PPPoE)

Provides embedded PPPoE client function to establish a connection. Users can get greater access

speed without changing the operation concept, sharing the same ISP account and paying for one

access account. No PPPoE client software is required for local computer. The Automatic Reconnect

and Disconnect Timeout (Idle Timer) functions are provided, too.

Application Illustrations

5210G RC

5200G RC / 5200G RD

Chapter 2: Installing the Router

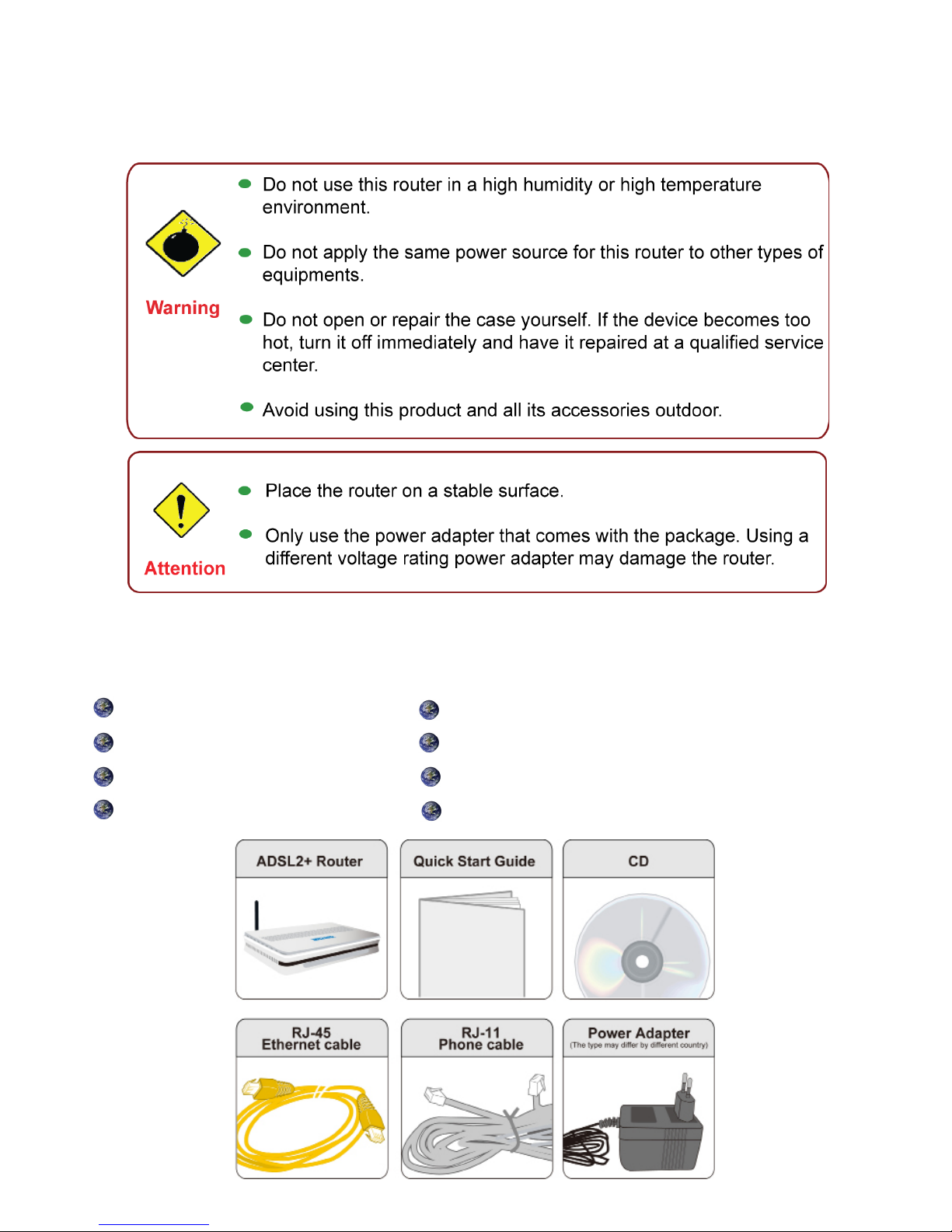

Important Note for Using this Router

Package Contents

BiPAC ADSL2+ Firewall Router

CD containing the online manual

RJ-11 ADSL/telephone Cable

Ethernet (RJ-45) Cable

Power adapter

USB cable (only for BiPAC 5210G RC)

Quick Start Guide

Micro-lter / Splitter (optional)

Otros manuales para BiPAC 5210G RC

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Enrutador de red de Billion

Billion

Billion BiPAC 4700ZU Manual de usuario

Billion

Billion BiPAC 7402X Series Manual de usuario

Billion

Billion BiPAC 8501 Manual de usuario

Billion

Billion BiPAC 5100S Manual de usuario

Billion

Billion BiPAC 5200W RC Manual de usuario

Billion

Billion BiPAC 7100 Manual de usuario

Billion

Billion BiPAC 8500 Manual de usuario

Billion

Billion BiPAC 7300 Manual de usuario

Billion

Billion BiPAC 5200N Manual de usuario

Billion

Billion BiPAC 4700ZUL Manual de usuario

Billion

Billion BiPAC 7202GR2 Manual de usuario

Billion

Billion BiPAC 7401VGP R3 Manual de usuario

Billion

Billion BiPAC 5200N Manual de usuario

Billion

Billion BiPAC 7401VP Manual de usuario

Billion

Billion BiPAC 5400SW Manual de instalación y operación

Billion

Billion BiPAC 7401VP Manual de usuario

Billion

Billion MWEB W40 Manual de usuario

Billion

Billion BiPAC 2070 (P) Manual de usuario

Billion

Billion BiPAC 8200N Manual de usuario

Billion

Billion BiPAC 5200 Manual de usuario

Billion

Billion BiPAC 5200G Series Manual de usuario

Billion

Billion BiPAC 8700AX-1600 Manual de usuario

Billion

Billion BIPAC 7100G Manual de usuario

Billion

Billion BiPAC 711C2 Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad

LevelOne

LevelOne FBR-1416 Manual de usuario
