Billion BiPAC 645 Manual de usuario

BIPAC-645

DSL/Cable Router Plus ISDN Router

With 4-Port 10/100M LAN Switch

Quick Start Guide

Package Contents

1. BIPAC-645

2. AC Power Adapter (9V 1Amp)

3. RS-232 cable (Null modem type)

4. RJ-45 ISDN cable

5. RJ-45 LAN cable

6. CD containing the online manual

7. This Quick Start Guide

The Front Panel LEDs

LED Meaning

1 Power Lit when AC power is connected.

2 LAN 1-4 /

ACT/COL

Lit Green when connected to a LAN device.

Flashes Green when sending/receiving data.

Flashes Yellow when collisions happen.

3 WAN /

ACT/COL

Lit Green when connected to a WAN device.

Flashes Green when sending/receiving data.

Flashes Yellow when collisions happen.

4 PPP Lit when PPPoE connection is activated.

5 ISDN / SYNC Lit when ISDN Layer 1 is activated.

6 ISDN / B1/B2

Lit Green when B1 channel is activated.

Lit Yellow when B2 channel is activated.

Lit Green +Yellow when B1 and B2 channels

are activated.

BIPAC-645 DSL/Cable Router plus ISDN Router

The Rear Ports

Power

(jack) Connect the supplied power adapter to this jack.

Console

(port) Connect the supplied RS-232 cable to this port when

connecting to a PC’s RS-232 port (9-pin serial port).

ISDN So

(RJ-45

connector)

Connect an RJ-45 cable to this port when connecting

to the ISDN.

LAN 1-4

(RJ-45

connector)

Connect an UTP Ethernet cable to this port when

connecting to a LAN such as an office or home

network.

WAN

(RJ-45

connector)

Connect an UTP Ethernet cable to this port when

connecting to the Internet or making other WAN

connections.

Connecting the BIPAC-645

1. Connect the BIPAC-645 to a LAN (Local Area Network)

and the WAN or ISDN.

2. Power on the device.

3. Ensure the Power and LAN LEDs are lit.

Quick Start Guide

For more detailed instructions on configuring

and using the device, please refer to the on-line

manual.

BIPAC-645 DSL/Cable Router plus ISDN Router

Configuring PC in Windows 95/98/ME

1. Go to Start / Settings /

Control Panel. In the

Control Panel

double-click on Network

and choose the

Configuration tab.

2. Select TCP/IP ->

NE2000 Compatible, or

any Network Interface

Card (NIC) in your PC.

Then click Properties.

3. Select the Obtain an IP

address automatically

radio button.

Quick Start Guide

4. Then select the DNS

Configuration tab.

5. Select the Disable DNS

radio button and click

OK to finish the

configuration.

Configuring PC in Windows NT4.0

1. Go to Start / Settings /

Control Panel. In the

Control Panel double

click on Network and

choose the Protocols tab.

2. Select TCP/IP Protocol

and click Properties.

BIPAC-645 DSL/Cable Router plus ISDN Router

3. Select the Obtain an IP

address from a DHCP

server radio button and

click OK.

Configuring PC in Windows 2000

1. Go to Start / Settings /

Control Panel. In the

Control Panel

double-click on Network

and Dial-up

Connections.

2. Double-click Local Area

Connection.

Quick Start Guide

3. In the Local Area

Connection Status

window click

Properties.

4. Select Internet Protocol

(TCP/IP) and click

Properties.

BIPAC-645 DSL/Cable Router plus ISDN Router

5. Select the Obtain an IP

address automatically

and the Obtain DNS

server address

automatically radio

buttons.

6. Click OK to finish the

configuration.

Configuring PC in Windows XP

1. Go to Start / Control

Panel (in Classic

View). In the Control

Panel, double-click on

Network Connections.

2. Double-click Local

Area Connection.

Quick Start Guide

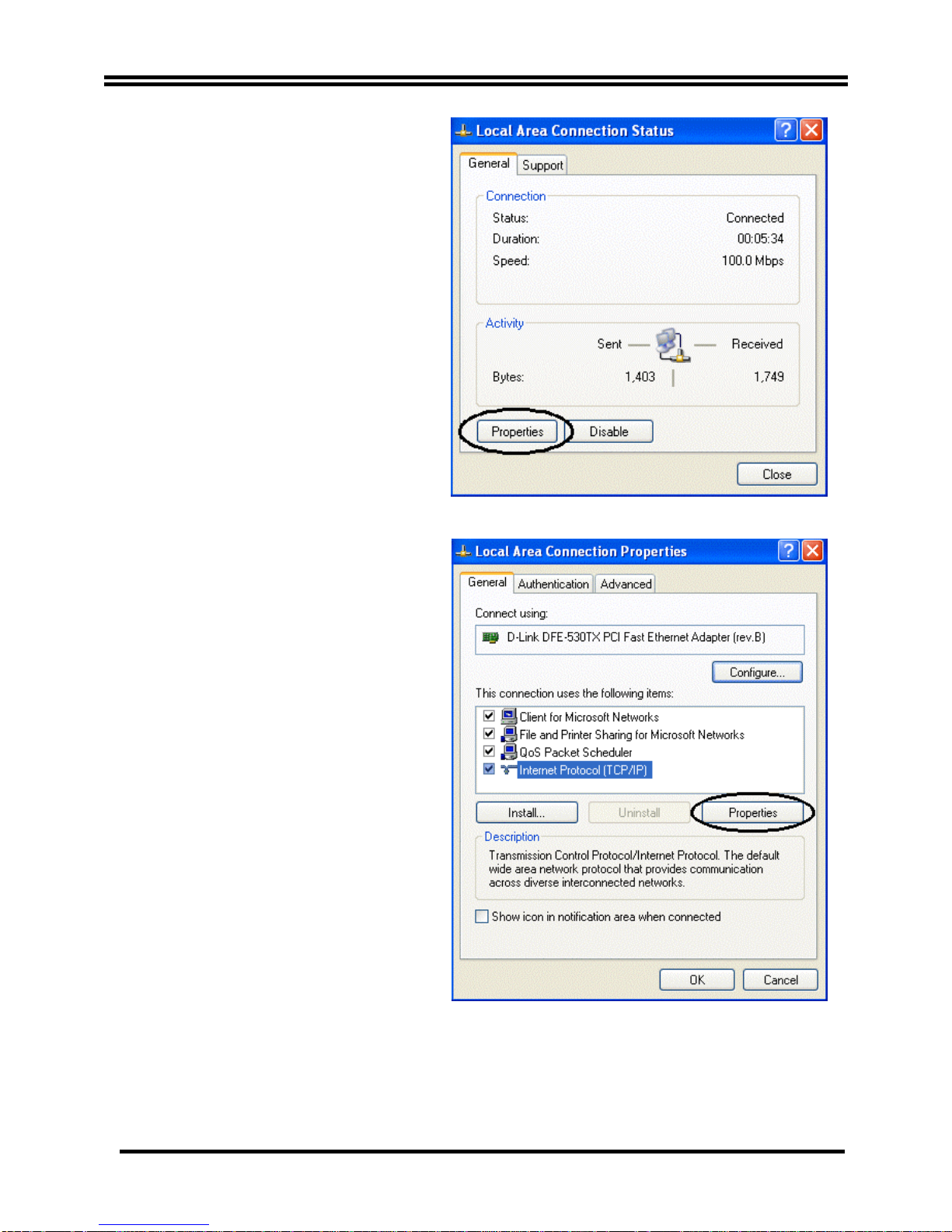

3. In the Local Area

Connection Status

window, click

Properties.

4. Select Internet

Protocol (TCP/IP) and

click Properties.
