Avenview HDM-C5SP-4 Manual de usuario

www.avenview.com

2X4 HDMI 1.3 Extender / Splitter over

Single CAT5

Model #: HDM-C5SP-4

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or warranties with

respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any

time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in

Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products

including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly prohibited.

www.avenview.com

Table of Contents

Section 1: Getting Started ...................................................................................................................... 3

1.1 Important Safeguards ............................................................................................................ 3

1.2 Safety Instructions ................................................................................................................. 3

1.3 Regulatory Notices Federal Communications Commission (FCC) ......................................... 4

1.4 Introduction ........................................................................................................................... 4

1.5 Package Contents................................................................................................................... 7

1.6 Before Installation.................................................................................................................. 7

1.7 Panel Description................................................................................................................... 8

1.7.1 Rear Panel ............................................................................................................................. 8

1.8 IR Control ............................................................................................................................... 8

1.7.3 Dip Switch for EDID & Audio Settings ................................................................................... 9

1.9 Installation ........................................................................................................................... 10

Section 2: Specifications....................................................................................................................... 11

www.avenview.com

Section 1: Getting Started

1.1 Important Safeguards

Please read all of these instructions carefully before you use the device. Save this manual for future

reference.

What the warranty does not cover

Any product, on which the serial number has been defaced, modified or removed.

Damage, deterioration or malfunction resulting from:

Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized

product modification, or failure to follow instructions supplied with the product.

Repair or attempted repair by anyone not authorized by us.

Any damage of the product due to shipment.

Removal or installation of the product.

Causes external to the product, such as electric power fluctuation or failure.

Use of supplies or parts not meeting our specifications.

Normal wear and tear.

Any other causes which does not relate to a product defect.

Removal, installation, and set-up service charges.

1.2 Safety Instructions

The Avenview HDM-C5SP-4 HDMI 1.3 Extender / Splitter over CAT5 has been tested for conformance to safety

regulations and requirements, and has been certified for international use. However, like all electronic

equipment’s, the HDM-C5SP-4 should be used with care. Read the following safety instructions to protect

yourself from possible injury and to minimize the risk of damage to the unit.

Do not dismantle the housing or modify the module.

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to

dangerous voltage or other hazards

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid

falls or spills on to the housing, unplug the module immediately.

Have the module checked by a qualified service engineer before using it again.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

www.avenview.com

1.3 Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this

equipment.

1.4 Introduction

The Avenview HDM-C5SP-4 HDMI 1.3 over Single CAT5 Distribution Amplifier provides the most flexible

solution by which the high definition video and high quality audio can be transmitted to different locations

over a long distance. The devices are cascadable, allowing you to extend HDMI compliant displays almost

anywhere. The 2 input HDMI source (only 1 input can be used at a time) can be duplicated and distributed to

up to 4 HDMI enable displays through cost effective Cat-5/5e cables and RJ-45 to HDMI mini-extenders

HDM-C5-R-M. With the built in equalization, the input HDMI cable can be extended up to 20 meters (66 feet)

long under Full HD, and make the overall transmission distance superior than regular HDMI splitters or matrix

switches in the market.

-Silicon Image chipset embedded for best quality, compatibility and reliability

-HDMI 1.3c compliant

-HDCP compliant

-Regenerates the HDMI signal

-Acts as 2X1 HDMI Switch and 1X4 HDMI over CAT5 Splitter

-Supports default HDMI EDID and has the ability to learn the EDID of the displays

-Supports default HDMI EDID and has the ability to learn the EDID of displays

-Extends up to 20m (66ft) of input HDMI cable

-Extends up to 60m (200ft) (720p / 1080i) of output CAT5/6 cable

-Extends up to 40m (130ft) (1080p) of output CAT5/6 cable

-Pure unaltered uncompressed 7.1ch digital HDMI over LAN cable transmission

-Allows cascading

-1U rack mountable with interlocking power adapter for fixedness

-Perfectly integrated with other HDM-C5XD Series products

www.avenview.com

1.5 Package Contents

Before you start the installation of the converter, please check the package contents.

-HDM-C5SP-4 x 1

-Power Adapter (+5VDC, 4A) x 1

-User’s Manual x 1

1.6 Before Installation

Put the product in an even and stable location. If the product falls down or drops, it may cause an

injury or malfunction.

Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high

humidity.

Use the DC power adapter with correct specifications. If inappropriate power supply is used then it

may cause a fire.

Do not twist or pull by force ends of the optical cable. It can cause malfunction.

www.avenview.com

1.7 Panel Description

1.7.1 Rear Panel

1 2 3 4 5 6

1. DIP Switches (details below)

2. HDMI Input 1

3. HDMI Input 2

4. HDMI Output over RJ45 (1 –4)

5. USB: For Internal Use Only

6. Power Jack

1.8 IR Control

Function Key

Function Description

ON/OFF

Turn Output Port On/Off

Select Source 1

Select Source 2

Mute the Sound

www.avenview.com

1.7.3 Dip Switch for EDID & Audio Settings

DIP Switch Position

Video

Audio

Description

PIN # 1

PIN # 2

OFF 

1080p

Stereo1

Default Mode2:Up to 1080p & Stereo output.

OFF 

ON 

720p/1080i

Stereo

Safe Mode3:Forces system to output at 720p/1080i

with Stereo Audio.

ON 

OFF 

Bypass4

Bypass

EDID Learning Mode5:for learning EDID from the

display while playing any received HDMI Audio format.

ON 

Bypass

Stereo

EDID Learning & Stereo Mode: For learning EDID from

the display while enforcing stereo output.

1 If the HDTV shows video but without audio, please try to set audio mode to stereo

2 Factory default: Pin#1-OFF[



], Pin#2- OFF[



] for 1080p with stereo.

3 If you encounter any unsolved audio/video output problem during system installation, please turn to

Safe Mode (Pin#1- -

check.

4 Bypass means the matrix will maintain playing the original format of HDMI signals in video and perhaps

audio. By setting at this mode, the users may encounter compatibility issue among different kinds of HDMI

sources and displays. If you cannot get the audio and/or video output normally at the system installation,

please change the DIP switch setting to default mode or even safe mode to verify the functionality of the

device.

seconds. The EDID learning procedure will be finished. If you want to learn the EDID from another HDTV, you

must set Pin#1 at OFF first and repeat this procedure.

www.avenview.com

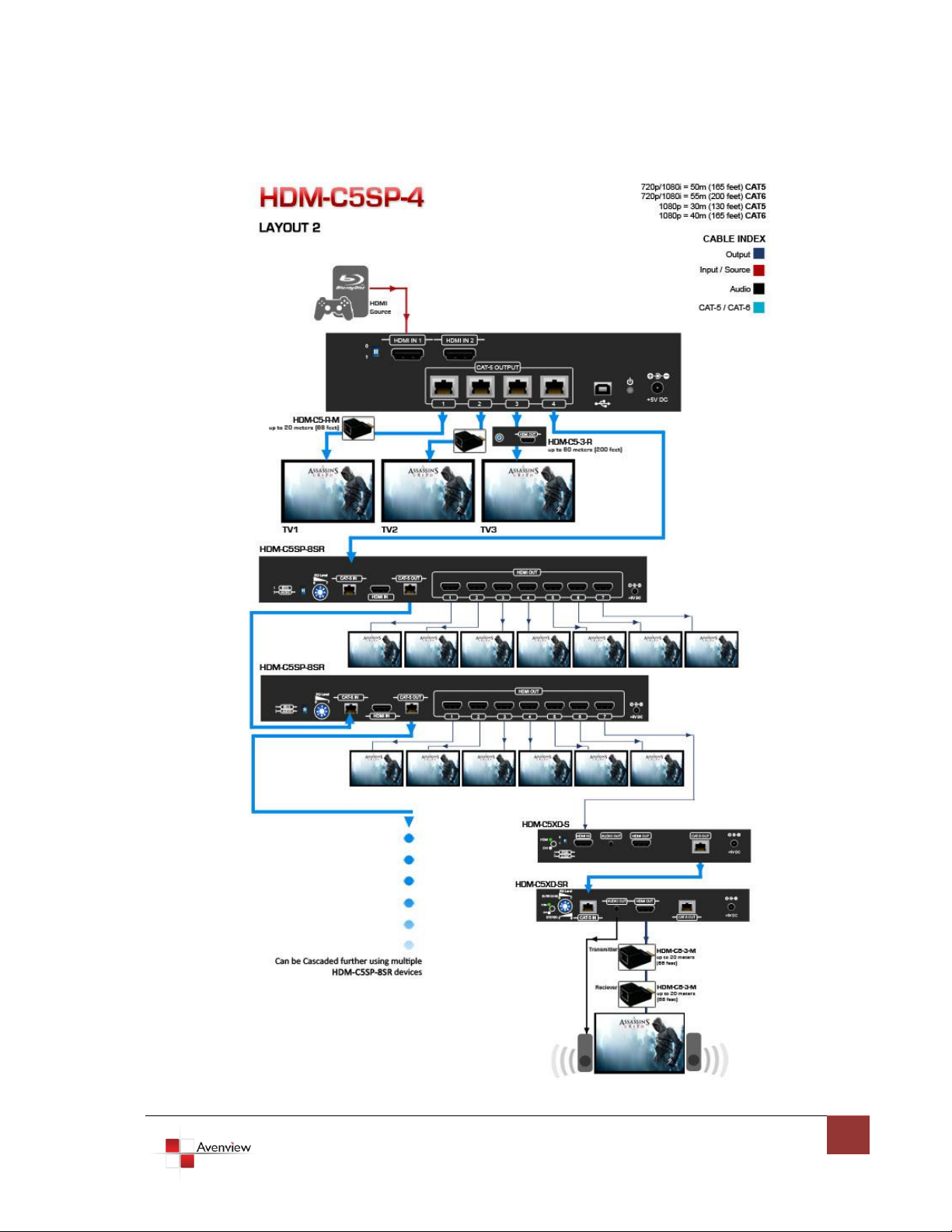

1.9 Installation

To setup Avenview HDM-C5SP-4 follow these steps for connecting to a device:

1. Turn off all devices including monitors / TV

2. Connect to a HDMI source (such as a Blu-Ray Disc player) to HDMI Input of HDM-C5SP-4

3. Connect the receiver HDM-C5-3-R or HDM-C5-R-M to HDM-C5SP-4 from RJ45 Out with CAT5 / CAT6

cable

4. Plug in 5V 4A DC Power (supplied).

5. Power on the HDMI display

6. Power on HDMI Sources.
