AV Access HDW200 Manual de usuario

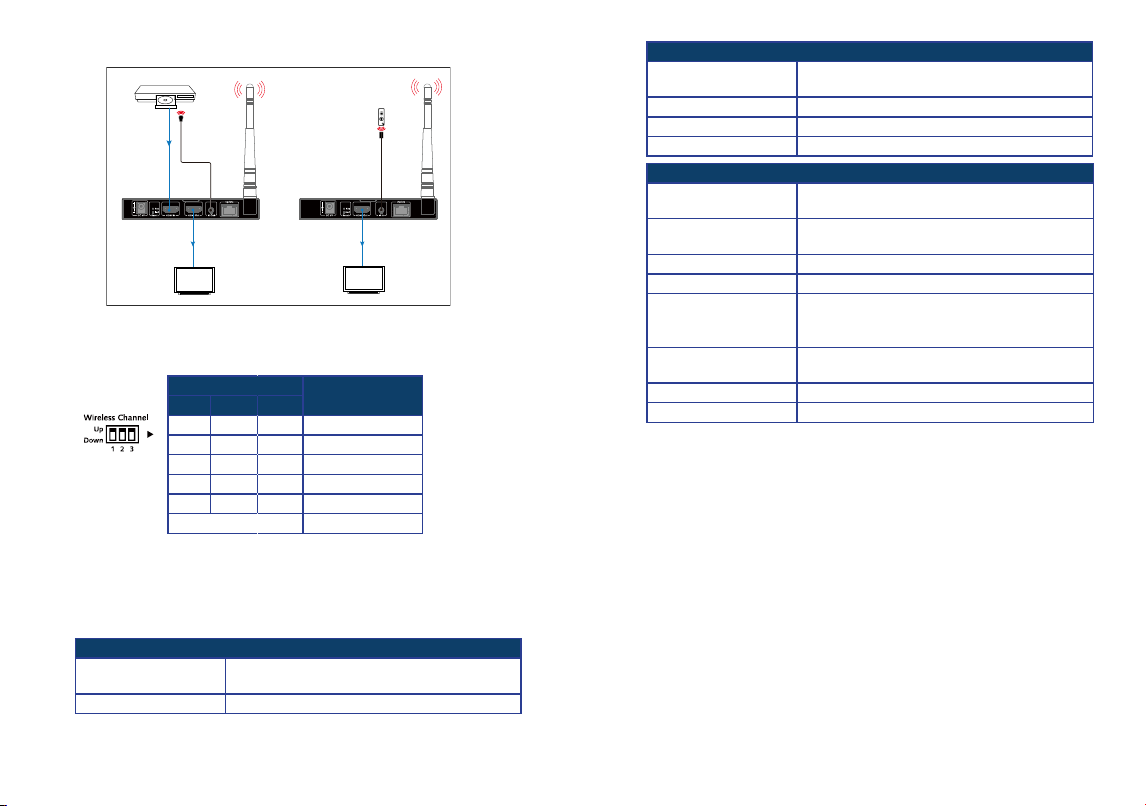

1. Application

Note:

(1) Ensure the Wireless Channel -- DIP switches of transmitter and

receiver are set to the same positions.

DIP Position Channel Number

1 2 3

Up Up Up 1

Up Up Down 2

Up Down Up 3

Up Down Down 4

Down Up Up 5

Others Reserved

(2) Up to five sets of HDW200 transmitter and receiver can be

deployed in the same zone.

2. Specications

Technical

Input A/V Port Transmitter: 1 x HDMI

Receiver: 1 x WLAN

Input Resolutions Up to 1080P@60Hz

Technical

Output A/V Port Transmitter: 1 x HDMI, 1 x WLAN

Receiver: 1 x HDMI

Output Resolutions Up to 1080P@60Hz

Compliance HDMI 1.3, HDCP 1.4

Transmission Distance 200m/656ft (line of sight)

General

Operating Temperature +32°F ~ +113°F (0°C ~ +45°C)

10% ~ 90%, non-condensing

Storage Temperature -4°F ~ 140°F (-20°C ~ +70°C)

10% ~ 90%, non-condensing

Power Supply DC 5V 1A

Power Consumption TX: 3.5W (Max) RX: 1.6W (Max)

ESD Protection Human body model:

• ±8kV (air-gap discharge)

• ±4kV (contact discharge)

Product Dimension

(W x H x D)

140mm x 21mm x 80mm/5.5'' x 0.83'' x 3.15"

each for TX and RX (Antennas not included)

Net Weight TX: 0.31kg; RX: 0.30kg

Gross Weight 1.10kg

3. Package Contents

1 x Transmitter; 1 x Receiver; Others: 2 x Antennas; 2 x Power

Adapters (DC 5V 1A); 2 x Exchangeable US Plugs; 1 x IR Emitter;

1 x Broadband IR Receiver (30-50KHz); 4 x Mounting Ears (with

Screws); 1 x Quick Start Guide

4. FAQs

(1) What should I do when Link LED is on, but there's no video output

on the remote display?

• Check and ensure the DIP switches on both transmitter and

receiver(s) are set to the same positions.

• Check and ensure the HDMI source is powered on, and the

transmitter's HDMI In LED is on.

• Connect the HDMI source device directly to the display to see if

there's signal output.

www.avaccess.com

www.avaccess.com [email protected] [email protected]

DVD Player

IR Emitter IR Receiver

DVD Player Remote

Transmitter Receiver

(2) How to deal with poor video quality?

• Check if the HDMI cables are connected properly. Use different

HDMI cables if necessary.

• Change the angles of the antennas on transmitter and receiver

to make the antennas parallel to each other (refer to Fig a).

Operation in Fig b&c is not recommended.

Transmitter Receiver

Fig (a)

Transmitter Receiver

Fig (b)

Transmitter Receiver

Fig (c)

• Decrease the distance between the transmitter and receiver to

ensure it is within the available transmission range.

• Remove other wireless signals and any obstacles that are

blocking the signal line-of-sight.

(3) Why the IR remote controller seems not sensitive enough?

Avoid to press and hold the IR remote controller's buttons.Try to

short press them intermittently instead.

5. Panel Layout

Transmitter

www.avaccess.com [email protected] V1.0.0

5554321

Features and Ports

1. Power input port | 2. Reset Key and Led | 3. HDMI In port |

4. HDMI Out port | 5. IR Out port | 6. Update port | 7. Antenna |

8. Power Led | 9. Link Led | 10. HDMI In Led | 11. Wireless Channel

Receiver

Features and Ports

a. Power input port | b. Reset Key and Led | c. HDMI Out port |

i. Wireless Channel

55edcba
