AV Access 4KIP100-KVM Manual de usuario

4K IP based KVM Extender

User Manual

4KIP100-KVM

www.avaccess.com

info@avaccess.com

Table of Contents

Introduction..........................................................................................................2

Overview................................................................................................................................... 2

Features..................................................................................................................................... 2

Package Contents .................................................................................................................. 2

Panel........................................................................................................................................... 2

Using DIP Switch to Perform Routing..................................................................5

Installation and Application.................................................................................5

Brackets Installation .............................................................................................................. 5

Application............................................................................................................................... 6

Specification .........................................................................................................7

Warranty ...............................................................................................................9

Introduction

www.avaccess.com

info@avaccess.com

Introduction

Overview

This product is a 4K IP based KVM Extender. It could extend 4K video (with

zero latency) and USB 2.0 signals over long distances, and it is a plug & play

product.

Features

IP based, 1 Gigabit network support 4K video.

Supports video resolution up to 4K@30Hz.

Supports HDCP 1.4.

Supports 7.1-channels audio.

Supports EDID limited copy.

Supports the distance up to 120m (395ft) with Cat 5e/6/6a/7 cable,

with network switch, the distance will be extended unlimitedly.

Supports 3 USB 2.0 for full feature USB 2.0 applications.

Supports 4-Pin DIP switch for more sets works in a same network, up to

16 sets.

Package Contents

Before you start the installation of the product, please check the package

contents:

Extender x 1

Power Supply (DC 12 V 1A) x 2

USB 2.0 Type-B to Type-A Cable (L=1.5m) x 1

Mounting Brackets (with Mounting Screws) x 4

User Manual x 1

Panel

Transmitter

Front Panel

1 2 3

Introduction

www.avaccess.com

info@avaccess.com

No.

Name

Description

1 LAN

Connect to a receiver or an Ethernet Switch for

streaming media output.

2 Link LED

On:The transmitter is paired with the receiver

successfully.

3 Power LED

On: The device is powered on.

Off: The device is powered off.

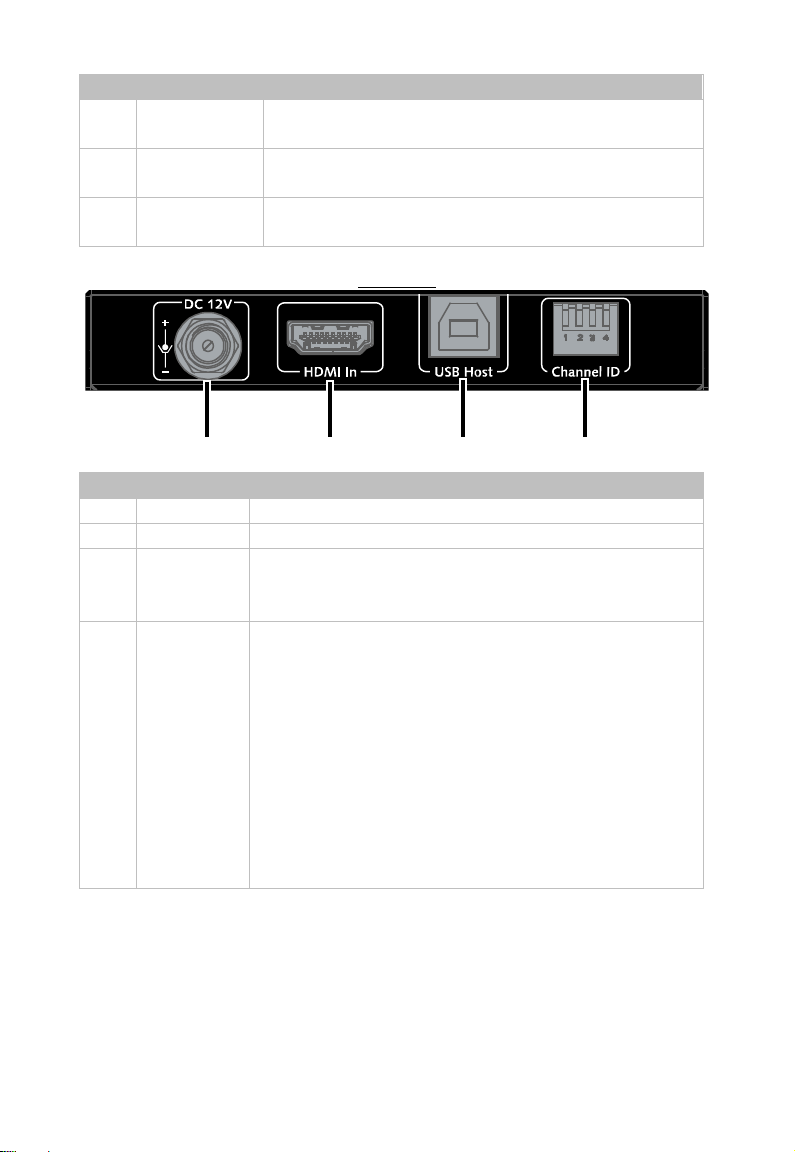

Rear Panel

1 2 3 4

No.

Name

Description

DC 12V

Connect to the DC 12V 1A power adapter provided.

HDMI In

Connect to HDMI source such as a Blu-ray.

3 USB Host

Connect a type A male to type B male USB cable

between this port and the USB port of a desktop or

a laptop. The transmitter is USB 2.0 compliant.

4 Channel ID

This DIP switch consists of four manual switches,

which are used to route the transmitter to receiver

based on their positions. For more information, see

“Using DIP Switch to Perform Routing”.

Note:

• By default, each individual switch is in the up

position.

• If you change the positions of the DIP switches

on transmitter/receiver, you must restart the

transmitter/receiver for the

changes to take

effect.

Introduction

www.avaccess.com

info@avaccess.com

Receiver

Front Panel

1 2 3

No.

Name

Description

USB

Device

Connect to USB devices, e.g., keyboard, mouse and Udisk.

2 Link LED

On:The receiver is paired with the transmitter

successfully.

Power

LED

On: The device is powered on.

Off: The device is powered off.

Rear Panel

No.

Name

Description

DC 12V

Connect to the DC 12V 1A power adapter provided.

2 LAN

Connect to a transmitter or an Ethernet Switch for

streaming media input.

HDMI Out

Connect to display such as TV.

4 Channel ID

This DIP switch consists of four manual switches,

which are used to route the transmitter to receiver

based on their positions. For more information, see

“Using DIP Switch to Perform Routing”.

Note:

By default, each individual switch is in the up

position.

If you change the positions of the DIP switches on

Using DIP Switch to Perform Routing

www.avaccess.com

info@avaccess.com

No.

Name

Description

transmitter/receiver, you must restart the

transmitter/receiver for th

e changes to take

effect.

Using DIP Switch to Perform

Routing

To route the signal from a transmitter to a receiver, toggle each individual

switches of the DIP Switch in receiver to the same positions as these in

transmitter. If you want to link the receiver to a different transmitter, change

the receiver switch settings in the same way as how the transmitter’s switch

is positioned.

Note:

You must repower the transmitter and receiver for the switch setting

changes to take effect.

One transmitter can be only paired with one receiver individually in the

same network, i.e., only one set DIP switch of transmitter and receiver

can be set to the same position.

Installation and Application

Brackets Installation

Note: Before installation, please ensure 4KIP100-KVM is disconnected from

the power source.

1. Attach the installation bracket to the enclosure using the screws that

were provided in the package separately. The bracket height can be

adjusted up/down or bracket face up or down.

2. Attach the brackets to the surface you want to hold the unit against

using the screws (provided by others).

Installation and Application

www.avaccess.com

info@avaccess.com

Application

Application 1 - Connect directly

4KIP100-KVM could be connected directly with a Cat 5e or above cable. As a

normal extender set, it extends the HDMI and USB signals over a long

distance up to 120m/395ft.

Transmitter

Udisk

Receiver

Mouse

Display

Keyboard

Cat X

USB

HDMI

Application 2 - Connect through Ethernet Switch

4KIP100-KVM could be connected through one or more network switches.

With the 4-Pin DIP switch, it could connect to 16 extender sets in a same

network without the VLAN settings, extend the HDMI and USB signals to an

unlimited distance.

Note：

HDMI cables’ length must be within 15m/49ft.

One transmitter can be only paired with one receiver individually in the

same network, i.e., only one set DIP switch of transmitter and receiver

can be set to the same position.

Specification

www.avaccess.com

info@avaccess.com

Transmitter 16

USB

HDMI

Transmitter 2

HDMI

Transmitter 1

USB

HDMI

Ethernet Switch

...

Udisk

KVM

Udisk

Receiver 16

KVM

Receiver 2

KVM

USB Camera

KVM

Udisk

Receiver 1

KVM

Udisk

KVM

USB

Specification

Transmitter

Technical

Input/Output

1 x HDMI IN (19-pin female HDMI Type-A), 1 x USB

HOST (female USB Type-B), 1 x 4-Pin DIP Switch, 1 x

DC 12V connector with locking, 1 x LAN (RJ45)

Input Signal Type

HDMI 1.4b

Input Resolution

Supported

640x4808, 800x6008,10, 1024x7688,10,

1280x7206,7,8,9,10, 1280x7688,10, 1280x8008,10,

1280x9608,10, 1280x10248,10, 1360x7688,

1366x7688, 1440x9008,10, 1600x9008,

1600x12008, 1680x10508,10,

1920x10801,2,3,4,5,6,7,8,9,10, 1920x12008,

3840x2160P2,3,5, 4096x2160P2,3,5

1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97

Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at

60 Hz, 9 = at 100 Hz, 10 = at 120 Hz

Input Audio Format

Supported

PCM 2.0 / 2.1 / 5.1 / 7.1, Dolby Digital 5.1 ch, Dolby

Digital Plus, Dolby TrueHD, DTS 5.1 ch, DTS-HD High

Resolution Audio, DTS-HD Master Audio

Maximum Data Rate

9 Gbps

Maximum Pixel

Clock

300 MHz

Output Signal Type

Compressed IP streams

Specification

www.avaccess.com

info@avaccess.com

Technical

Transmission

Distance

Cat 5e or above: 120m/395ft

HDMI: 15m/49ft

General

Operating Temperature

0 to + 45°C (32 to + 113 °F)

Storage Temperature

-20 to +70°C (-4 to +158 °F),

Humidity

10% to 90%, non-condensing

ESD Protection

Human Body Model:

±8kV (air-gap discharge)/

±4kV (contact discharge)

Power Supply

DC 12V 1A

Power Consumption

<2.5 W

Unit Dimensions

(W x H x D)

112mm × 17.8mm × 65.2mm / 4.41’’ × 0.70’’ ×

2.57’’

Unit Weight

(without accessories)

0.18kg/0.40lb

Receiver

Technical

Input/Output

1 x LAN (RJ45), 1 x HDMI OUT (19-pin female HDMI

Type-A), 3 x USB DEVICE (female USB Type-A), 1 x

4-Pin DIP Switch,

1 x DC 12V connector with

locking

Input/Output Signal

Type

Compressed IP streams

Output Resolution

Supported

640x480

, 800x600

8,10

, 1024x768

8,10

1280x7206,7,8,9,10, 1280x7688,10, 1280x8008,10,

1280x9608,10, 1280x10248,10, 1360x7688,

1366x7688, 1440x9008,10, 1600x9008,

1600x12008, 1680x10508,10,

1920x10801,2,3,4,5,6,7,8,9,10, 1920x12008,

3840x2160P2,3,5, 4096x2160P2,3,5

1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at

29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz,

8 = at 60 Hz, 9 = at 100 Hz, 10 = at 120 Hz

Output Audio Format

Supported

PCM 2.0 / 2.1 / 5.1 / 7.1, Dolby Digital 5.1 ch, Dolby

Digital Plus, Dolby TrueHD, DTS 5.1 ch, DTS-HD

High Resolution Audio, DTS-HD Master Audio

Maximum Data Rate

9 Gbps

Warranty

www.avaccess.com

info@avaccess.com

Technical

Maximum Pixel Clock

300 MHz

Transmission Distance

Cat 5e or above

：

120m/395ft

HDMI: 15m/49ft

USB Consumption

Recommended no more than 0.5A per USB port

General

Operating Temperature

0 to + 45°C (32 to + 113 °F)

Storage Temperature

-20 to +70°C (-4 to +158 °F)

Humidity

10% to 90%, non-condensing

ESD Protection

Human Body Model:

±8kV (air-gap discharge)/

±4kV (contact discharge)

Power Supply

DC 12V 1A

Power Consumption

< 4W (without USB Consumption)

Unit Dimensions

(W x H x D)

112mm × 17.8mm × 65.2mm / 4.41’’ × 0.70’’ ×

2.57’’

Unit Weight

(without accessories)

0.18kg/0.40lb

Warranty

Products are backed by a limited 1-year parts and labor warranty. For the following

cases AV Access Technology Limited shall charge for the service(s) claimed for the

product if the product is still remediable and the warranty card becomes

unenforceable or inapplicable.

1. The original serial number (specified by AV Access Technology Limited) labeled

on the product has been removed, erased, replaced, defaced or is illegible.

2. The warranty has expired.

3. The defects are caused by the fact that the product is repaired, dismantled or

altered by anyone that is not from an AV Access Technology Limited

authorized service partner. The defects are caused by the fact that the product

is used or handled improperly, roughly or not as instructed in the applicable

User Guide.

4. The defects are caused by any force majeure including but not limited to

accidents, fire, earthquake, lightning, tsunami and war.

5. The service, configuration and gifts promised by salesman only but not

covered by normal contract.

6. AV Access Technology Limited preserves the right for interpretation of these

cases above and to make changes to them at any time without notice.

Thank you for choosing products from AV Access.

If you have any question, please contact us via the following emails:

General Enquiry: info@avaccess.com

Customer/Technical Support: support@avaccess.com

Otros manuales para 4KIP100-KVM

Tabla de contenidos

Otros manuales de Extensor de AV Access

AV Access

AV Access 4KEX70-L Manual de usuario

AV Access

AV Access 4KEX100-H2 Manual de usuario

AV Access

AV Access 4KEX70-ARC-H2 Manual de usuario

AV Access

AV Access 4KEX70-ARC-H2 Manual de usuario

AV Access

AV Access 4KEX100-KVM-H2 Manual de usuario

AV Access

AV Access 4KEX40-eARC Manual de usuario

AV Access

AV Access 4KEX70-ARC Manual de usuario

AV Access

AV Access HDEX80-KVM Manual de usuario

AV Access

AV Access HDIP120 Manual de usuario

AV Access

AV Access HDW100 Manual de usuario

AV Access

AV Access 4KEX100-KVM Manual de usuario

AV Access

AV Access HDEX40-L Manual de usuario

AV Access

AV Access HDEX40-L Manual de usuario

AV Access

AV Access 4KEX100-KVM Manual de usuario

AV Access

AV Access 4KEX300-F Manual de usuario

AV Access

AV Access eARC100 Manual de usuario

AV Access

AV Access HDW100 Manual de usuario

AV Access

AV Access HDW100 Manual de usuario

AV Access

AV Access 4KIP100-KVM Manual de usuario

AV Access

AV Access AVA-EX11-40TX Manual de usuario

AV Access

AV Access 4KEX100-DP-KVM Manual de usuario

AV Access

AV Access 4KEX70-H2 Manual de usuario

AV Access

AV Access HDEX80-KVM Manual de usuario

AV Access

AV Access 4KEX70-R Manual de usuario

Manuales populares de Extensor de otras marcas

SY HDBT-60T Manual de usuario

Appsys ProAudio

Appsys ProAudio ADX-16 Manual de usuario

Atlona

Atlona RS232 Manual de usuario

IDK

IDK OPF-TH1000-A Manual de usuario

Enable-IT

Enable-IT 824WP Manual de usuario

Worx

Worx Landroid RadioLink WA0864 Hoja de especificaciones

TP-Link

TP-Link TL-WA730RE Manual de usuario

Camplex

Camplex CMX-HDMI-SFPL Manual de usuario

SC&T

SC&T HE03-4K Manual de usuario

Marmitek

Marmitek MegaView70 Manual de usuario

Samsung

Samsung SCS-26UC4 Manual de usuario

Foxun

Foxun SX-GES24 Manual de usuario

MuxLab

MuxLab 500771 Manual de usuario

foxunhd

foxunhd SX-AEX01 Manual de usuario

TERK Technologies

TERK Technologies LFIRX2 Manual de usuario

Devolo

Devolo Audio Extender Manual

Edimax

Edimax EW-7438RPn V2 Manual de usuario

Shinybow USA

Shinybow USA SB-6335T5 Manual de usuario
