4KEX100-KVM is a 4K HDBaseT 2.0 extender set, which offers extension

of uncompressed 4K@60Hz UHD video, analog Stereo, power, RS232

and USB 2.0 up to 100m/330ft over a single Cat 6 or above cable.

With USB 2.0 pass-through and USB Host connector in TX, and USB

Device connectors in RX, it provides remote source PC control with

keyboard and mouse, interactive display operation, data transmission

and USB streaming over distances up to 100m. Additional features

include bi-directional 3.5mm stereo pass through and one-way PoH.

Features

Via Cat 6/6a/7 cables, 4Kx2K@60Hz output up to 100m/330ft,

1080P@60Hz up to 100m/330ft.

Via Cat 5e cable, 4Kx2K@60Hz output up to 90m/300ft, 1080P@60Hz

up to 100m/330ft.

HDMI 1.4 with 4K@60Hz (chroma sub-sampling 4:2:0 8-bit only) and

HDBT 2.0 compliance.

One-way POH, TX (PSE) with PSU to power both TX and RX (PD).

USB 2.0 pass through, USB-Host connector built in TX and 4 x

USB-Device connector built in RX.

High-speed USB 2.0, up to 480Mbps, pass through over HDBaseT up

to 100m/330ft.

Bi-directional analog stereo and RS232 pass-through over HDBaseT.

Independent DIP switch for EDID management.

Package Contents

Before you start the installation of the product, please check the

package contents:

Transmitter 4KEX100-KVM x 1

Receiver 4KEX100-KVM x 1

DC12V 2A Power Adapter x 1

Phoenix Male Connector (3.5 mm, 3 Pins) x 2

USB 2.0 Type-B to Type-A Cable (L=1.5m) x 1

Mounting Brackets (with Screws) x 4

User Manual x 1

Introduction

www.avaccess.com

[email protected]

Panel

Front Panel

Transmitter/Receiver

Power Status Link

1 2 3

No.

Name

Description

1 Power LED

On: The device is powered on.

Off: The device is powered off.

2 Status LED

Blinking slowly: The device is working properly.

Off: The device is not working properly.

3 Link LED

On: HDBT Link is normal.

Off: No HDBT Link.

Rear Panel

Transmitter

Tx Rx G

USB HostEDID

Audio Out

Audio InHDMI InDC 12V HDBT Out RS232

1 2 3 4 5 6 7

No.

Name

Description

1 DC 12V

12V DC power input, threaded port for standard or

locking connection.

HDBT OUT

Connect to HDBT IN port of receiver.

RS232

RS232 pass through.

HDMI IN

Connect to an HDMI source.

5 AUDIO 

Audio In: Connect to an audio source.

Audio Out: Connect to an audio receiver.

EDID

DIP Switch for EDID Management.

USB HOST

Connect to USB-HOST device, such as PC.

Installation and Application

www.avaccess.com

[email protected]

Receiver

Tx Rx G

USB Device

1 2

3 4

Audio InHDMI OutRS232HDBT InDC 12V

Audio Out

1 2 3 4 5 6

No.

Name

Description

1 DC 12V

12V DC power input, threaded port for standard or

locking connection.

HDBT IN

Connect to HDBT OUT port of transmitter.

RS232

RS232 pass through.

HDMI OUT

Connect to an HDMI display.

5 AUDIO 

Audio In: Connect to an audio source.

Audio Out: Connect to an audio receiver.

6 USB DEVICE

Connect to USB devices (e.g. keyboard, mouse, USB

camera).

Installation and Application

Bracket Installation

Note: Before installation, please ensure the device is disconnected from

the power source.

Steps to install the device in a suitable location:

1. Attach the bracket to the enclosure using

the screws provided. The bracket is attached

to the enclosure as shown.

2. Repeat step 1 for the other side of the

device.

3. Mount the device on a flat and solid surface

with screws (screws are not included in the

package).

Installation and Application

www.avaccess.com

[email protected]

Application

Note:

Disconnect all power supplies of all devices before installation.

During the installation, connect or disconnect the cables gently.

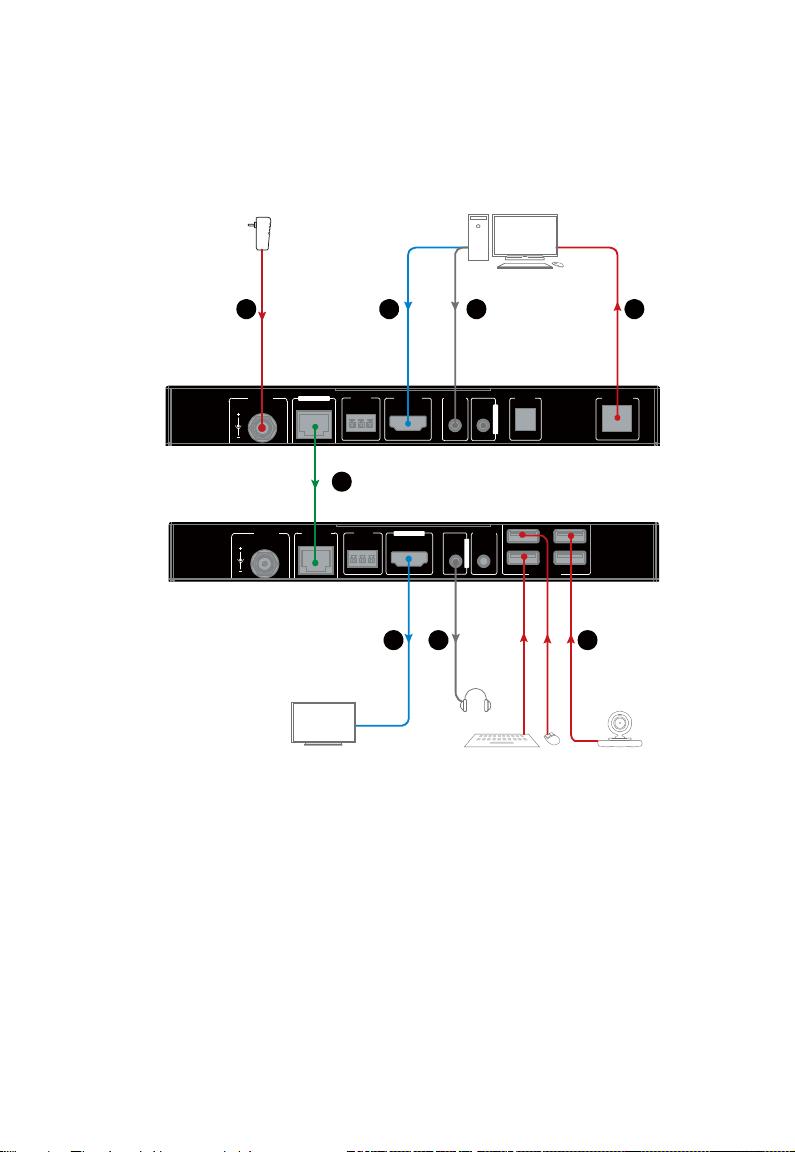

Tx Rx G

USB Host

EDID

Audio Out

Audio InHDMI InDC 12V HDBT Out RS232

Tx Rx G

USB Device

1 2

3 4

Audio InHDMI OutRS232

HDBT InDC 12V

Audio Out

Headset

USB Camera

Connect

HDMI source 2Connect audio

source 3Connect

USB Host

4Connect transmitter to receiver via a

Cat 5e/6/7 cable

Connect

HDMI display

7 6 Connect

USB Devices

Connect

headset

Power supply

Connect the power

Note: When transmitter

is powered on, receiver

is adapter free.

Display Keyboard & Mouse

EDID Management

www.avaccess.com

[email protected]

EDID Management

Please use the DIP Switch for EDID management:

DIP Switch

Position 1

Position 2

Position 3

EDID Copy (Default)

DOWN

Reserved

3840 x 2160P@30Hz 2CH

DOWN

1920 x 1080P@60Hz 2CH

DOWN

1920 x 1200@60Hz 2CH

Note: If EDID copy fails, the device will use 1080p/2ch as input EDID.

Specification

Transmitter

Video

Input Signal Type

HDMI 1.4 with 4K

Output Signal Type

HDBT 2.0

Input/Output Resolution

Support

4096x2160@24/25/30/50/60Hz,

3840x2160@24/25/30/50/60Hz, 1920x1080/120Hz,

1080P, 1080I, 720P, 576p, 576i, 480p

Maximum Pixel Clock

297MHz

Audio

Audio Input/Output

3.5mm Mini jack, stereo

Control

Control method

1x RS232, 1x USB-Host

General

Operating Temperature

0°C to 45°C (32°F to 113°F)

Storage Temperature

-20°C to 70°C (-4°F to 158°F)

Humidity

10% to 90%, non-condensing

ESD Protection

Human-body Model:

±8kV (Air-gap discharge)/±4kV (Contact discharge)

Power Supply

DC 12V 2A

Power Consumption

(Max)

≤12 W (pair)

Dimensions (W x H x D)

210mm x 25mm x 90.2mm / 8.27’’ x 0.98’’ x 3.55’’

Product Weight

0.44kg/0.97lb

Receiver

Video

Input Signal Type

HDBT 2.0

Output Signal Type

HDMI 1.4 with 4K

Specification

www.avaccess.com

[email protected]

Video

Input/Output

Resolutions Support

4096x2160@24/25/30/50/60Hz,

3840x2160@24/25/30/50/60Hz, 1920x1080/120Hz,

1080P, 1080I, 720P, 576p, 576i, 480p

Maximum Pixel Clock

297MHz

Audio

Audio Input/Output

3.5mm Mini jack, stereo

Control

Control method

1x RS232, 4 x USB Device

General

Operating Temperature

0°C to 45°C (32°F to 113°F)

Storage Temperature

-20°C to 70°C (-4°F to 158°F)

Humidity

10% to 90%, non-condensing

ESD Protection

Human-body Model:

±8kV (Air-gap discharge)/±4kV (Contact discharge)

Power Supply

DC 12V 2A

Power Consumption

(Max)

≤12 W (pair)

Dimensions (W x H x D)

210mm x 25mm x 90.2mm / 8.27’’ x 0.98’’ x 3.55’’

Product Weight

0.46kg/1.01lbs

Transmission Distance

Note: AV Access recommends use of straight-through Category cables wired

to T568B standard.

Cable Type

Range

Supported Video

Cat 5e

100m/330ft

1080p@60Hz

90m/300ft

1080p@60Hz, 1080p@60Hz 3D,

4K@30Hz 4:4:4 8bit,

4K@60Hz 4:2:0 8bit

Cat 6/6a/7

100m/330ft

HDMI

Input/Output: 15m/50ft

1080P@60Hz

Input: 10m/33ft

Output: 15m/50ft

4K@30Hz 4:4:4 8bit,

4K@60Hz 4:2:0 8bit

Warranty

www.avaccess.com

info@avaccess.com

Warranty

Products are backed by a limited 1-year parts and labor warranty. For the

following cases AV Access Technology Limited shall charge for the service(s)

claimed for the product if the product is still remediable and the warranty card

becomes unenforceable or inapplicable.

1. The original serial number (specified by AV Access Technology Limited)

labeled on the product has been removed, erased, replaced, defaced or is

illegible.

2. The warranty has expired.

3. The defects are caused by the fact that the product is repaired, dismantled

or altered by anyone that is not from an AV Access Technology Limited

authorized service partner. The defects are caused by the fact that the

product is used or handled improperly, roughly or not as instructed in the

applicable User Guide.

4. The defects are caused by any force majeure including but not limited to

accidents, fire, earthquake, lightning, tsunami and war.

5. The service, configuration and gifts promised by salesman only but not

covered by normal contract.

6. AV Access Technology Limited preserves the right for interpretation of

these cases above and to make changes to them at any time without

notice.

Thank you for choosing products from AV Access.

If you have any question, please contact us via the following emails:

General Enquiry: info@avaccess.com

Customer/Technical Support: support@avaccess.com

Otros manuales para 4KEX100-KVM

Tabla de contenidos

Otros manuales de Extensor de AV Access

AV Access

AV Access 4KEX100-DP-KVM Manual de usuario

AV Access

AV Access HDEX80-KVM Manual de usuario

AV Access

AV Access 4KIP100-KVM Manual de usuario

AV Access

AV Access 4KEX100-KVM Manual de usuario

AV Access

AV Access U2EX60 Manual de usuario

AV Access

AV Access 4KEX70-ARC Manual de usuario

AV Access

AV Access 4KEX40-eARC Manual de usuario

AV Access

AV Access 4KEX70-ARC-H2 Manual de usuario

AV Access

AV Access 4KEX70-L Manual de usuario

AV Access

AV Access 4KEX70-L Manual de usuario

AV Access

AV Access HDW100 Manual de usuario

AV Access

AV Access HDEX60-DM Manual de usuario

AV Access

AV Access 4KIP100-KVM Manual de usuario

AV Access

AV Access HDEX40-L Manual de usuario

AV Access

AV Access 4KEX100-KVM Manual de usuario

AV Access

AV Access HDEX40 Manual de usuario

AV Access

AV Access HDW200 Manual de usuario

AV Access

AV Access AVA-EX11-40TX Manual de usuario

AV Access

AV Access 4KEX100-DP-KVM Manual de usuario

AV Access

AV Access 4KEX100-L Manual de usuario

AV Access

AV Access AVA-EX11-70TX Manual de usuario

AV Access

AV Access 4KEX300-F Manual de usuario

AV Access

AV Access 4KEX70-L Manual de usuario

AV Access

AV Access HDEX80-KVM Manual de usuario

Manuales populares de Extensor de otras marcas

SY HDBT-60T Manual de usuario

Appsys ProAudio

Appsys ProAudio ADX-16 Manual de usuario

Atlona

Atlona RS232 Manual de usuario

IDK

IDK OPF-TH1000-A Manual de usuario

Enable-IT

Enable-IT 824WP Manual de usuario

Worx

Worx Landroid RadioLink WA0864 Hoja de especificaciones

TP-Link

TP-Link TL-WA730RE Manual de usuario

Camplex

Camplex CMX-HDMI-SFPL Manual de usuario

SC&T

SC&T HE03-4K Manual de usuario

Marmitek

Marmitek MegaView70 Manual de usuario

Samsung

Samsung SCS-26UC4 Manual de usuario

Foxun

Foxun SX-GES24 Manual de usuario

MuxLab

MuxLab 500771 Manual de usuario

foxunhd

foxunhd SX-AEX01 Manual de usuario

TERK Technologies

TERK Technologies LFIRX2 Manual de usuario

Devolo

Devolo Audio Extender Manual

Edimax

Edimax EW-7438RPn V2 Manual de usuario

Shinybow USA

Shinybow USA SB-6335T5 Manual de usuario
