4KEX100-KVM

4K HDBaseT Extender 100m with USB2.0

User Manual

Disclaimers

The information in this manual has been carefully checked and is believed to be

accurate. AV Access Technology Limited assumes no responsibility for any

infringements of patents or other rights of third parties which may result from its

use.

AV Access Technology Limited assumes no responsibility for any inaccuracies that

may be contained in this document. AV Access Technology Limited also makes no

commitment to update or to keep current the information contained in this

document.

AV Access Technology Limited reserves the right to make improvements to this

document and/or product at any time and without notice.

Copy, Reproduce, Distribute and/or Edit of this document or part of it as well as

utilization of its contents and communication thereof to others without express

authorization are prohibited. Offenders will be held liable for payment of damages.

All rights created by patent grant or registration of a utility model or design patent

Trademarks Notice

All products or service names mentioned in this document may be trademarks of

the companies with which they are associated.

Business inquiry: service[email protected]

Technical problems: support@avaccess.com

Important Safety Instructions

Do not expose this apparatus to rain, moisture, dripping or splashing. No

objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not install or place this unit in a bookcase, built-in cabinet, or in another

confined space. Ensure the unit is well ventilated.

To prevent risk of electric shock or fire hazard due to overheating, do not

obstruct the unit’s ventilation openings with newspapers, tablecloths,

curtains, or similar items.

Do not install near any heat sources such as radiators, heat registers, stoves,

or other apparatus (including amplifiers) that produce heat.

Do not place sources of naked flames, such as lighted candles, on the unit.

Clean this apparatus only with dry cloth.

Unplug this apparatus during lightning storms or when unused for long

periods of time.

Protect the power cord from being walked on or pinched, particularly at

plugs.

Only use attachments/accessories specified by the manufacturer.

Refer all servicing to qualified service personnel.

www.avaccess.com 1 services@avaccess.com

Table of Contents

Introduction..........................................................................................................2

Overview .................................................................................................................................. 2

Features .................................................................................................................................... 2

Package Contents.................................................................................................................. 3

Panel .......................................................................................................................................... 4

Transmitter ..................................................................................................................... 4

Receiver........................................................................................................................... 6

Installation and Application.................................................................................8

Installation ............................................................................................................................... 8

Application .............................................................................................................................. 8

EDID Management .............................................................................................10

Specification .......................................................................................................11

Transmitter ................................................................................................................... 11

Receiver......................................................................................................................... 12

Warranty .............................................................................................................14

Introduction

www.avaccess.com 2 services@avaccess.com

Introduction

Overview

4KEX100-KVM is a 100m 4K HDBaseT 2.0 Extender which offers the distribution of

uncompressed 4K@60Hz UHD video, Analog Stereo, power, RS232 and USB 2.0 up

to 100m/330ft over a single Cat6 or above cable.

With USB 2.0 pass-through and USB Host connector in TX, and USB Device

connectors in RX, it provides remote source PC control with keyboard and mouse,

interactive display operation, data transmission and USB streaming over distances

up to 100m. Additional features include Bi-directional 3.5mm stereo pass through.

With 48V PoH integrated inside, the extender needs only one power supply

connected to TX to power both units. Its 12V power supply is secured with a

screw-on connector to prevent the power from being accidentally disconnected.

It has LED indicators for visual power supply to units and signal status to show

established connection between connected devices.

Features

Via Cat 6/6a/7 cables, 4Kx2K@60Hz output up to 100m/330ft, 1080P@60Hz up

to 100m/330ft

Via Cat 5e cable, 4Kx2K@60Hz output up to 90m/300ft, 1080P@60Hz up to

100m/330ft

HDMI 1.4 with 4k@60Hz (chroma sub-sampling 4:2:0 8-bit only) and HDBT 2.0

compliance

One-way POH, TX (PSE) with PSU to power both TX and RX (PD)

Introduction

www.avaccess.com 3 services@avaccess.com

USB 2.0 pass through, USB-Host connector built in TX and 4 x USB-Device

connector built in RX

High-speed USB 2.0, up to 480Mbps, pass through over HDBaseT up to

100m/330ft

Bi-directional Analog Stereo, and RS232 pass-through over HDBaseT

Independent DIP switch for EDID management

Does not support HDCP

Package Contents

Before you start the installation of the product, please check the package

contents:

Transmitter 4KEX100-KVM x 1

Receiver 4KEX100-KVM x 1

12 VDC 2A Power Supply x 1

Phoenix Male Connector (3.5 mm, 3 pins) x 2

Mounting Brackets (Pair, with Screws) x 2

User Manual x 1

Introduction

www.avaccess.com 4 services@avaccess.com

Panel

Transmitter

Front Panel

No. Name Description

1 Power LED ON: The transmitter is powered on.

OFF: The transmitter is powered off.

2 Status LED

Flashing Slowly:

The transmitter is working properly.

OFF: The transmitter is not working properly.

3 Link LED ON: HDBT Link is normal

OFF: No HDBT Link

Introduction

www.avaccess.com 5 services@avaccess.com

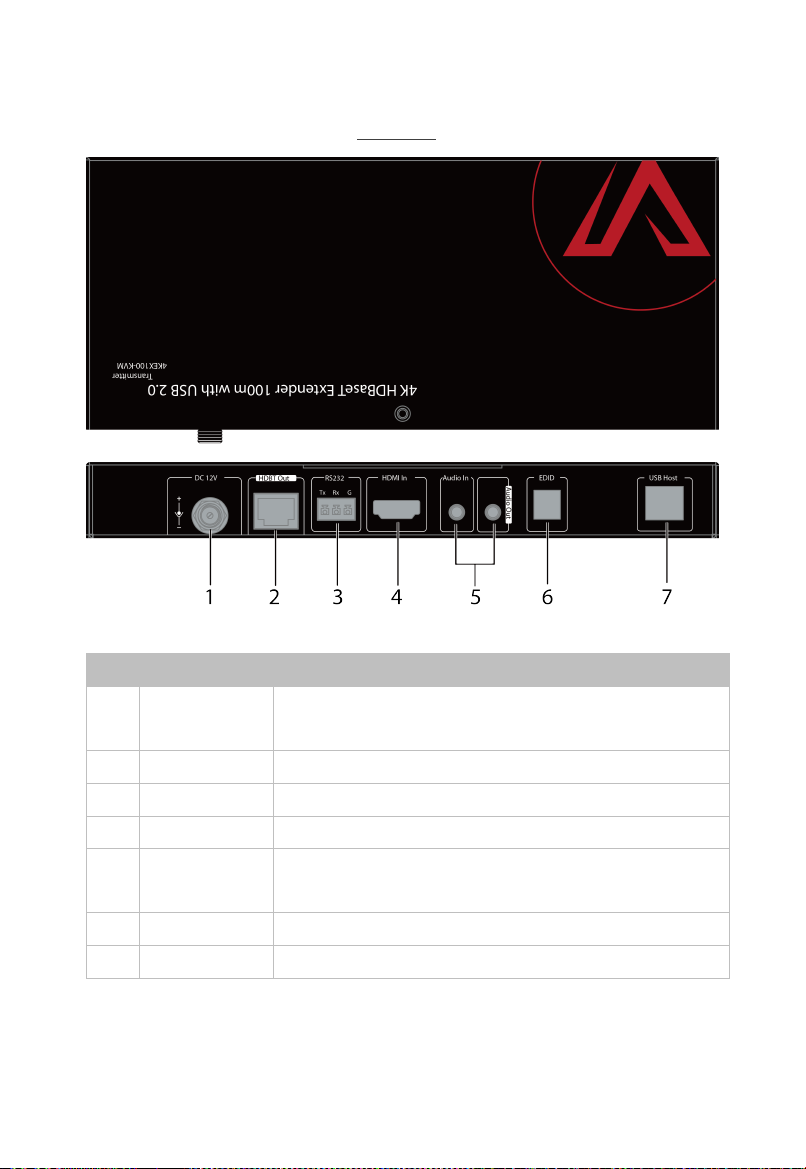

Rear Panel

No. Name Description

1 DC 12V 12V DC power input, threaded port for standard or

locking connection

2 HDBT OUT Connects to HDBT IN port of receiver

3 RS232 RS232 pass through

4 HDMI IN Connects to an HDMI source

5 AUDIO Input:connects to audio devices

Output:connects to audio devices

6 EDID DIP Switch for EDID Management

7 USB HOST Connects to USB-HOST device, such as PC

Introduction

www.avaccess.com 6 services@avaccess.com

Receiver

Front Panel

No. Name Description

1 Power LED ON:The receiver is powered on.

OFF: The receiver is powered off.

2 Status LED

Flashing Slowly:

The receiver is working properly.

OFF: The receiver is not working properly.

3 Link LED ON: HDBT Link is normal

OFF: No HDBT Link
