Ameriwood 1870012COM Manual de usuario

1870012COM

TV Stand

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B341870012COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

Board Identification

Not actual size

Tube

You

Left Panel

31870012010 Right Panel

31870012020

Top

31870012030

Bottom

31870012040

Left Partition

31870012050 Right Partition

31870012060

Apron

31870012070

2 Adjustable shelves

31222012080

2 Door Assembly

31222012140

Fixed Shelf

31870012090

Kick

31870012100

Left Side Kick

31870012110 Right Side Kick

31870012120

Rear Support

31870000130

Divider

31870012150

Support

31870012160

Solid Back Panel

31870012170

Back Panel

K187001200

This piece is paperboard

construction.

It is not made from wood,

but is required for the

assembly of your unit.

ameriwoodhome.com

Board Identification

Not actual size

Tube

You

This piece is paperboard construction.

It is not made from wood, but is required

for the assembly of your unit.

ameriwoodhome.com

Part List

Actual Size

Tube

You

Not Actual Size

(x18)

#A22620

cam lock

(x18)

#A22610

cam bolt

(x16)

#A53510

angle bracket

(x56)

#A12210

1/2" screw

(x12)

#A23030

confirmat

(x8)

#A80250

shelf support

(x2)

#A17400

7/8" bolt

(x36)

#A21110

nail

(x14)

#A21660

wood dowel

(x3)

#A22920

connector

(x3)

#A22910

connector bolt

(x2)

#A30030

catch / strike

(x4)

#A60010

hinge

(x2)

#A52440

knob

(x1)

#B64396

warning label

123456

78910 11

14 15

12a

12b

ameriwoodhome.com

STEP1

Proper orientation of CAM LOCK

Tip

Assembly

Quick

Tube

You

(x4)

#A22620

(x2)

#A21660

ameriwoodhome.com

STEP2

Tube

You

(x6)

#A22610

Finished

Edge

ameriwoodhome.com

STEP3

Proper orientation of CAM LOCK

Tip

Assembly

Quick

Tube

You

(x1)

#A22620

(x2)

#A21660

(x2)

#A12210

(x1)

#A30030

(x2)

#A22610

12b

Finished

Edge

SIDE A

SIDE B

ameriwoodhome.com

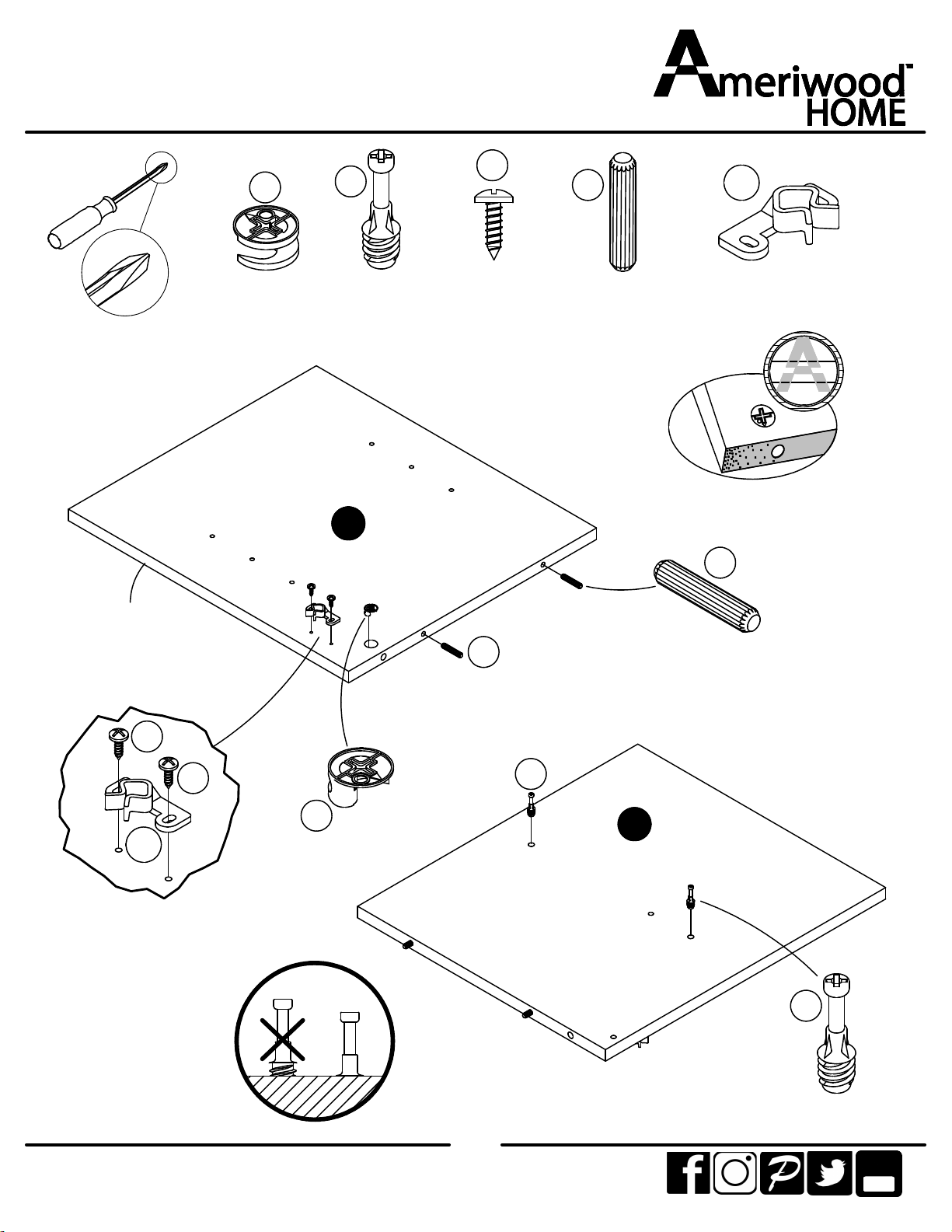

STEP4

Proper orientation of CAM LOCK

Tip

Assembly

Quick

Tube

You

1248

12b

(x1)

#A22620

(x2)

#A22610

(x2)

#A12210

(x2)

#A21660

(x1)

#A30030

12b

SIDE B

SIDE A

Finished

Edge
