JWA CARY 68429 Manual de usuario

1

Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia.

For any assistance with assembly or for missing parts please refer to your receipt

ASSEMBLY INSTRUCTION

CARY

ITEM CODE 68429

CORNER DESK

PRE-ASSEMBLY PREPARATION

Before you start:

1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the

product

2.Take care when lifting. Product should be assembled as near as possible to the point of

use

3.Ensure that you have all required contents for complete assembly

4.Always read the assembly instructions carefully before beginning assembly.

5.Keep all hardware parts and packaging out of reach of small children.

6.Do not over tighten the screws and bolts as this may damage the threads

2

Allow 30 min For 1 person Additional tools required

3

PARTS LIST

1Desktop panel

2Layer panel

P1 Right metal frame

P2 Left back metal frame

P3 Left front metal frame

P4 Support pipe

P5 Layer panel support pipe

P6 Main metal frame

connection pipe

P7 Back support pipe

P8 Left back support pipe

Load the fitting F into the metal frame P1, P2 and P3.

4

STEP 1:

1) Use fittingA to fix the metal pipes P5 and P6 on the metal frames P2 and P3;

2) Fix the panel 2 on the metal pipe P5 with fittingA.

STEP 2:

Fix one end of the metal pipe P4 to the metal pipe P6 and the other end to the metal

frame P1 with fittingA.

STEP 3:

Fix panel 1 on the assembled metal frame with fitting A.

STEP4:

5

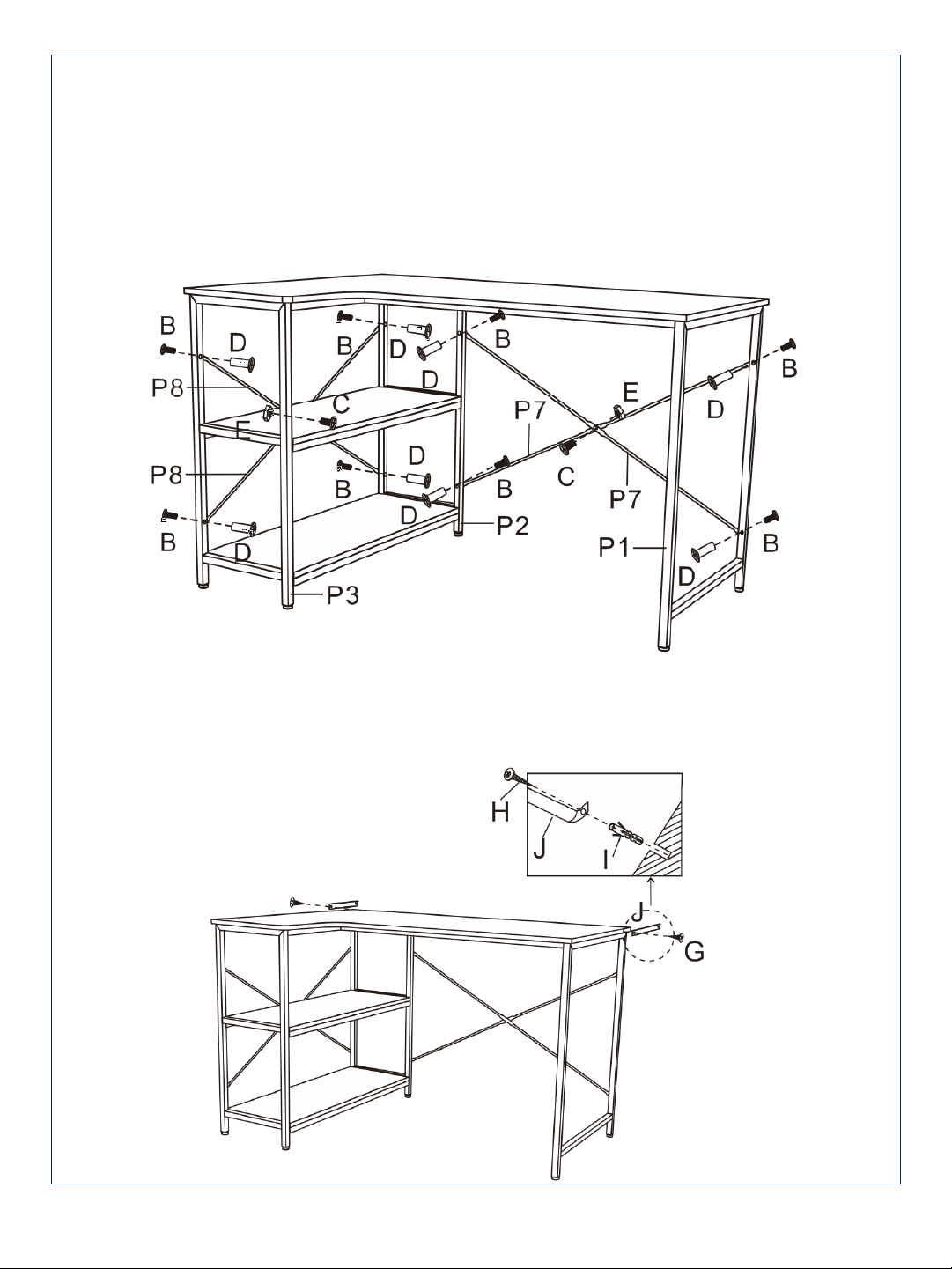

1) Fix the metal pipes P7 and P8 with fitting C and E;

2) Fix the assembled metal pipe P7 assembly on the metal frame P1 and P2 with

fitting B and D;

3) Fix the assembled metal pipe P8 assembly on the metal frame P2 and P3 with

fitting B and D.

STEP 5:

6

Install a fall preventer.

STEP 6:

7

ASSEMBLY IS COMPLETE

8

SAFETY BRACKETS

INSTRUCTIONS

1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to

attach the Mounting Plate into a stud. If mounting into brick or masonry you

will need to acquire wall anchors.

2. Attach the second Mounting Plate to the furniture frame with the Short

Screws.

3. Move the furniture to its final position. Thread a Wall Strap through the both

Mounting Plates and tighten until snug. Do not over tighten.

4. Make sure that the Mounting Plates are firmly attached to the wall and

furniture and that the Wall Strap is snug.

9

To protect your furniture, we suggest the following:

•Avoid placing your furniture in direct sunlight.

•Do not place furniture directly under windows.

•Do not place sharp materials (knife, fork, etc.) directly onto

your furniture as sharp material may scrape and damage the

ﬁnish.

•Do not place material with high temperature directly onto the

surface of your furniture.

•Clean up spills quickly. Water left over a prolonged period of

time may cause damage. Alcohol, perfume, nail polishes,

aftershave and some medication may cause severe ﬁnish

damage if not cleaned immediately.

•Use a clean, soft, dry, lint free absorbent cloth to clean your

furniture. Do not use any detergent as they may contain

ingredients that may react and damage the ﬁnish.

NOTE: If the above care advise is not adhered to your product

warranty may become void
