>> assembly instructions

Modern

night stand

style # 5947220T (Espresso)

style # 5947306T (White)

DPCI # 249-05-0482 (Espresso)

DPCI # 249-05-0491 (White)

Congratulations on your latest Target purchase.

Now what? Don't start sweating over the box of parts. This will be easy. We did the hard work for you.

All you need to do is follow our simple instructions and you'll be on your way to transforming your

room in no time. Good luck--- though we're confident you won't need it.

before you begin

1. Check for damaged or missing parts. Call 1-855-MYTGTHOME (855-698-4846) to order

missing supplies.

2. Use the carton as a working surface to prevent product damage during assembly.

3. Gather all tools prior to assembly. Please do not use power tools.

tools needed

table of contents

introduction

hardware

parts list

how to use the cam lock system

assembly

QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and DPCI number

ready when calling.

5-6

8-25

hardware

(1) x6

cam lock

#A22570

(2) x6

cam bolt

#A22510

(3) x2

wood dowel

#A21660

(4) x6

connector housing

#A22900 (white)

#A22920 (black)

(5) x6

connector bolt

#A22910

(10) x2

drawer bracket

#A54223

(7) x4

#6x1-14" flat head screw

#A11600

(8) x10

#8x716" pan head screw

#A12120

(6) x20

nail

#A21110

(9) x4

#8x1-34" pan head screw

#A13410

(13) x1

slide set

#A56750 (black)

#A56760 (white)

(11) x10

#6x 716" flat head screw

#A11080

(12) x3

angle bracket

#A53600

13a

13b

13c

13d

Parts List DESCRIPTION

PART NUMBER

QTY

ITEM LEFT PANEL

35947220010

1A RIGHT PANEL35947220020

1B TOP35947220030

CBOTTOM35947220040

1D DRAWER FRONT35947220050

1E APRON35947220060

1F SIDE BASE RAIL359472200702G CENTER BASE RAIL35947220080

1H LEFT DRAWER SIDE

C1500370331010L

1 RIGHT DRAWER SIDEC1500370331010R

1 DRAWER BACK

C1500362331500B

1 DRAWER BOTTOM35947331120

1 BACK PANEL

K594722000

Parts shown are the base cabinet of your model. Please note,

most parts are labeled with a sticker or have a letter stamped

on a raw edge.

Parts F, G, H may not be labeled.

This piece is paperboard construction. It is not made from

wood but is required for assembly of your unit.

Parts List for 5947220T (Espresso)

back

panel

left

drawer side

drawerback

drawerbottom

right

drawer side

Parts List DESCRIPTION

PART NUMBER

QTY

ITEM LEFT PANEL

35947306010

1A RIGHT PANEL35947306020

1B TOP35947306030

CBOTTOM35947306040

1D DRAWER FRONT35947306050

1E APRON35947306060

1F SIDE BASE RAIL359473060702G CENTER BASE RAIL35947306080

1H LEFT DRAWER SIDEC1500370331010L

1 RIGHT DRAWER SIDEC1500370331010R

1 DRAWER BACKC1500362331500B

1 DRAWER BOTTOM35947331120

1 BACK PANEL

K594730600

Parts List for 5947306T (White)

Parts shown are the base cabinet of your model. Please note,

most parts are labeled with a sticker or have a letter stamped

on a raw edge.

Parts F, G, H may not be labeled.

This piece is paperboard construction. It is not made from

wood but is required for assembly of your unit.

back

panel

left

drawer side

drawerback

drawerbottom

right

drawer side

how to use the cam lock system

½ turn to fully

lock.

Tighten to fully seat. Do not over

tighten. Proper orientation of cam.

Lock

Titus

step

Proper orientation of CAM LOCK

(1) x2

cam lock (3) x1

wood dowel (11) x3

#6x716" screw (13) x1

left cabinet slide

13a

marked with an "L"

finished edge

1. Refer to page 7 for instructions on how to use the cam lock system.

step

Proper orientation of CAM LOCK

(1) x2

cam lock (3) x1

wood dowel (11) x3

#6x716" screw (13) x1

right cabinet slide

13b

marked with an "R"

finished edge

1. Refer to page 7 for instructions on how to use the cam lock system.

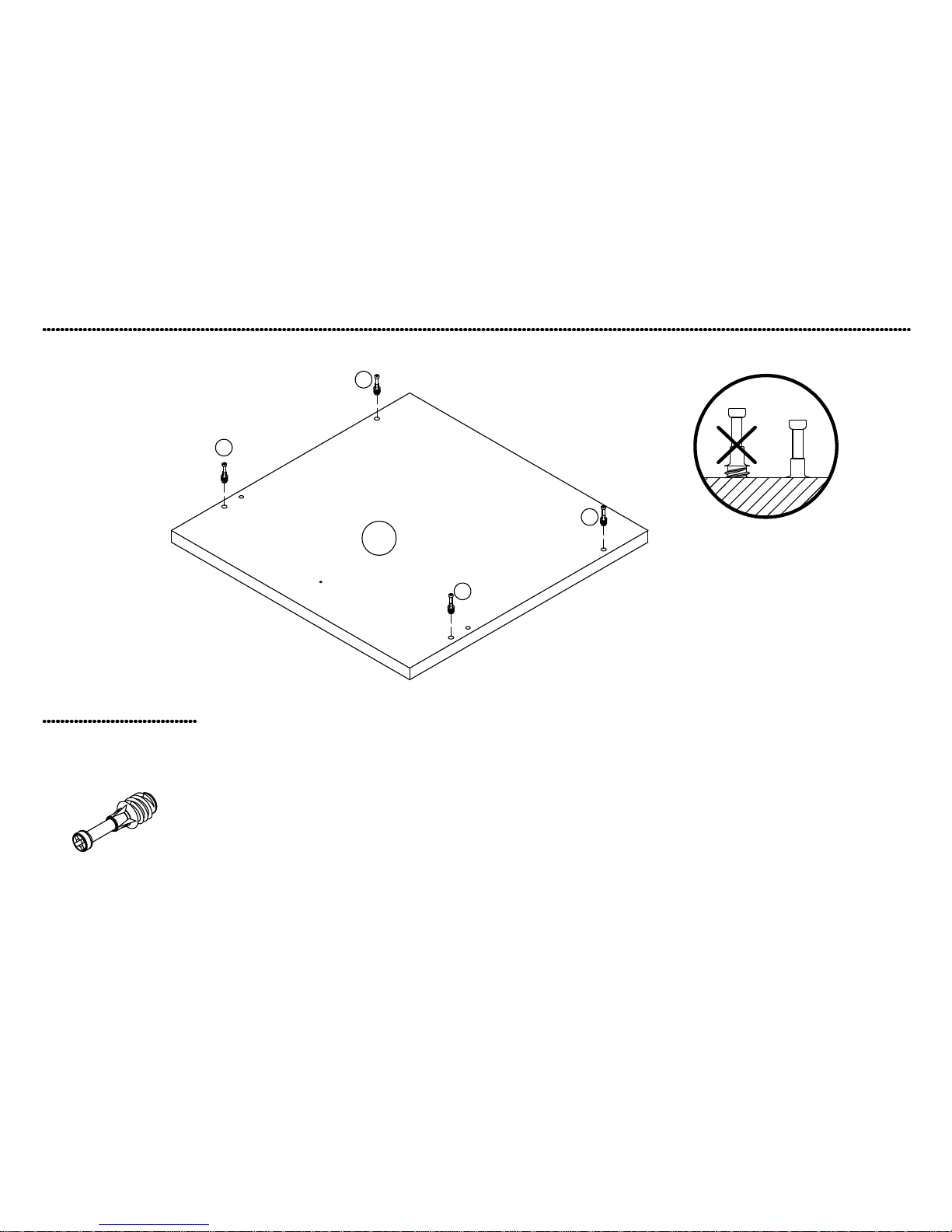

step

(2) x4

cam bolt

1. Screw-in cam bolts must be screwed down flush.

2. Refer to page 7 for instructions on how to use the cam lock system.
