Akuvox R26B Manual de usuario
Allen Wrench x 1
Rubber Plug x 3(S,M,L)
M3x5 screw x 4
Back cover x 1
Rope x 1
ST1.7x4 screw x 2 Silicon rubber sealing ring x 1
Status LED
R26B
Mainframe Accessories :
ST4x20 screw x 4 Screw fixing seat x 4
Wall-mounng Accessories：
M4x30 screw x 2 Wall-mounting screw x 6
R26B
Cable Locking Plate x 1
R26B x1
Name pad x5Ejection Pin x1
M3x10.5 screw x1
Wall-mounting bracket x1
Speaker
Pin hole
Call buon
RF card reader
Name pad
Name pad cover
Mic
Photosensive sensor
Infrared LED
Camera
Infrared sensor
Before you begin using the device, please check the version you got and ensure that the
following items are included in the shipped box:
Installa
With 86 embedded box in the wall
Without 86 embedded box in the wall

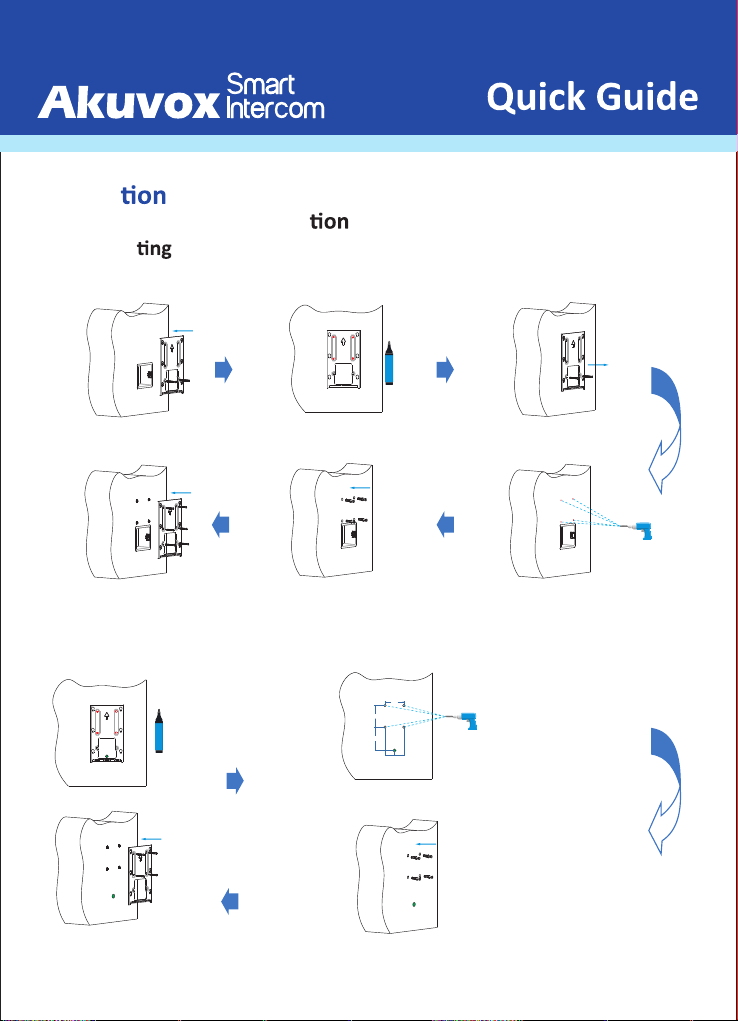

Step 1: Bracket/Box Installa
Wall Moun
2
R26B
Fix the wall-mounting bracket on
embedded box with two M4x30
screws.
Mark the four holes of the
wall-mounting bracket on the wall.
Take down the M4x30 screws and
remove the wall-mounting bracket.
Fix the wall-mounting bracket with
four ST4x20 screws and two
M4x30 screws.
Insert four screw fixing seats into
the hole.
Use a hand drill with 5mm diameter bit
to make holes in the marked positions.
Mark the four holes of the
wall-mounting bracket on
the wall for the screws
and all cables will go
through the green holes.
Use a hand drill with 5mm
diameter bit to make the hole
in marked positions.
*Please note the relative
position in the left figure.
Insert four screw fixing seats
into the holes.
Fix the wall-mounting bracket
with four ST4x20 screws.
60.3mm
69mm
75mm
30mm 30mm
Step 2: Back cover Installa
Step 3: Device Moun
3
R26B
Fix six wall-mounting six
screws in the back of R26B.
For convenient wiring, hang R26B
on the wall-mounting bracket with
rope. Then insert the silicon rubber
sealing ring into the groove.
Make cables go through the back
cover, connecting to the
corresponding interfaces of the
main board. Choose a suitable size
rubber plug to compress cables ,
then fasten the locking cable plate
with two ST1.7x4 screws.
Fix the back cover with four
M3x5 screws.
1.Place the device into the wall-mounting
bracket, pull the device downward and ensure
the groove of it hooks to the lock catches of
the back box.
2.Use the Allen wrench to tighten the device
with the screws.
One M3x10.5 screw
4
R26B
Applicaon Network Topology
Network Video Recorder
(third party)
SIP Video Phone
LAN
PoE PoE
R26B R26B
PoE PoE
PC
(third party)
R26B R26B
Change the Buon Label
Insert the ejection pin into the pin hole to
eject the name pad cover.
Take out the name pad and fill in the information
you want.
Put the name back into the slot and lay it flat.Press the name pad cover back in place to lock it.
5
Congura
1. While R26B starts up normally, hold the top call button for several seconds after the LED
light turns blue, voice system will enter IP announcement mode.
2. In announcement mode, the IP address will be announced periodically.
3. Press Call Button again to the announcement mode.
4. In announcement mode, phone announces "IP 0.0.0.0" if no IP address is gained.
R26B
IP Announcement
1. Access the Web UI: Input the IP address into browser to configure the phone.
2. Account Registration: On web UI, go to the path: Account -> Basic page Register Account
and fill in the account information. ( Please refer to user manual for more information)
3. Configure the Push Button: On web UI, go to the path: Intercom -> Basic -> Push Button
to configure the call number.
4. Configure the code to open the relay: On web UI, go to the path: Intercom -> Relay&Input
-> Relay ID/DTMF and choose the DTMF code number in corresponding area.
Make a call:
1. Press the call button to call indoor SIP Phone.
2. During the talk, called party can press pre-configured code number to unlock the door.
Receive a call:
Opera
R26B supports Auto Answer by default. Incoming call from indoor device will be answered
automatically.
6
AKUVOX (XIAMEN) NETWORKS CO., LTD.
ADD: 10/F, NO.56 GUANRI ROAD, SOFTWARE PARK II, XIAMEN 361009, CHINA
www.akuvox.com
R26B
Notice Information
Akuvox R26B firmware contains third-party open source software under the terms of the GNU General Public
License(GPL). Akuvox is committed to meeting the requirements of the GNU General Public License (GPL) and will
make all required source code available.
The source code of software under the terms of GNU GPL can be downloaded online,
http://www.akuvox.com/gpl
Information contained in this document is believed to be accurate and reliable at the time of printing. This document is
subject to change without notice, any update to this document can be viewed on Akuvox’ s website:
http://www.akuvox.com © Copyright 2019 Akuvox Ltd. All rights reserved.
