Akuvox X912 Manual de usuario

X912

Quick Guide

Torx wrench x1

Unpacking

Flush-mounting plate x1

Plastic wall anchor x4

M3X8 crosshead screw x4

ST4X20 crosshead screw x4

M4x16 torx head screw x2

Before you begin using the device, please check the version you got and ensure that the following items are included in the

shipped box:

Flush-mounting bracket x1

Flush-mounting box x1

X912

Infrared LED

MIC (Right)

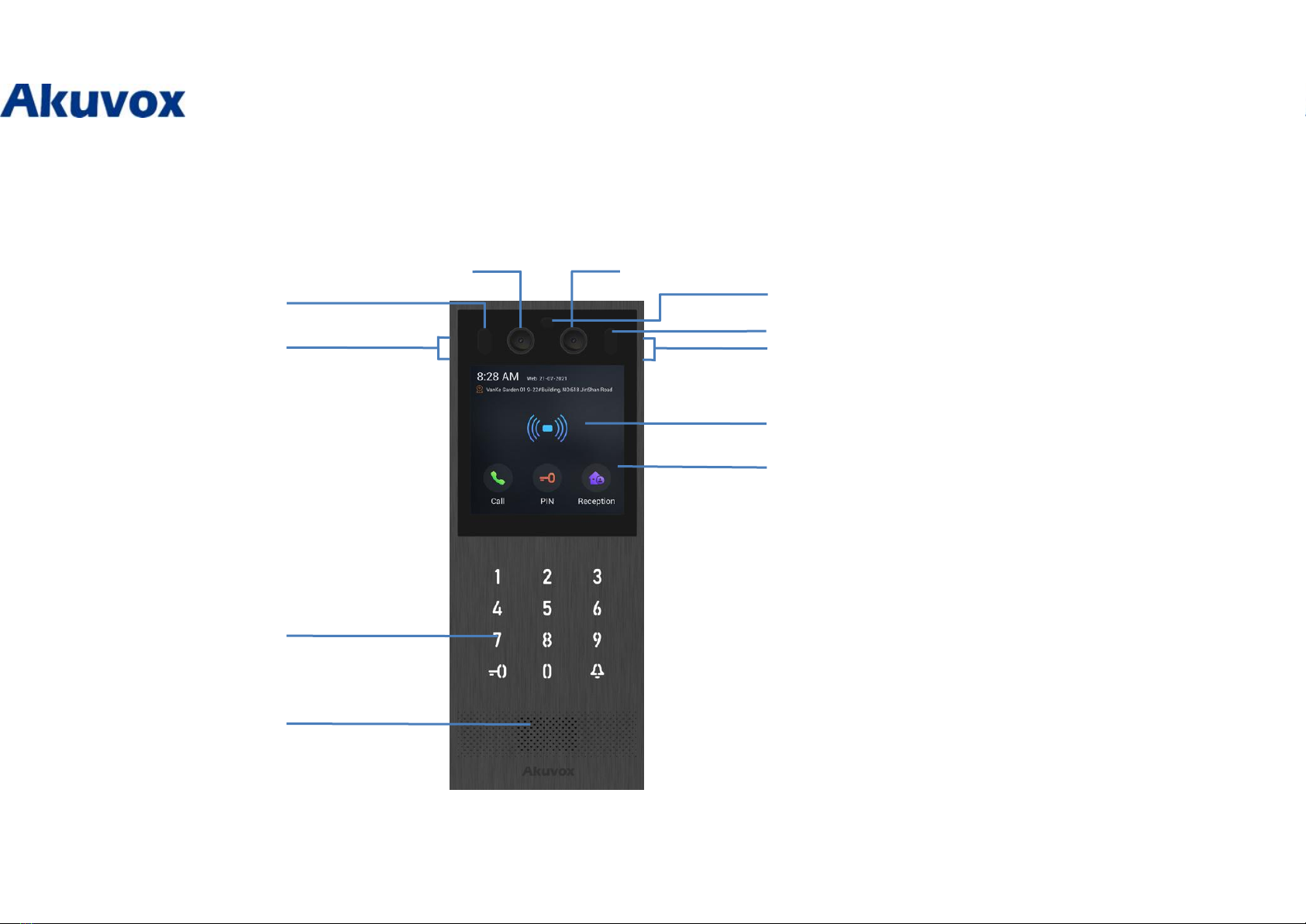

Product Overview

Speaker

Touch Screen

Card Reader

MIC (Left)

TOF Sensor

Infrared LED

Keypad

Main Camera

Face-liveness Detection Camera

X912

Attention:

Biometric recognition product may not be considered 100% accurate in any identification application.

For higher security purpose or scenario, please set up access authentication along with biometric recognition.

Installation Environment

Please do not place device under direct sunlight.

If installing the device indoors, please keep device at least 2 meters away from light, and at least 3 meters away from window and door.

X912

Place flush-mounting box in

the square hole, then mark

the four holes of

flush-mounting box on the

wall, and make sure the mark

should be in the center of

hole.

According to the position

of the cable, cut a square

hole in the wall.

(height*width*depth=26

5*116*45mm)

Installation

Step1: Flush-mounting Box Installation

Take down the flush-mounting

box then use a hand drill to

make four holes with diameter

of 6mm and depth of 25mm at

the marked positions.

Knock off the cable holes, and

through all cables out of the

holes. Then push flush-mounting

box into the square hole, and use

four ST4x20 crosshead screws to

fix flush-mounting box on the

wall.

As the figure shows, please

make sure that the top

surface of flush-mounting box

should be lined up with the

wall. And please reserve a

gap between the bottom of

flush-mounting box and wall

Insert the four plastic

wall anchors into the

holes.

Reserve a gap

The top surface line up with wall

X912

Take out the device, wiring cover,

and rubber plug.

Choose a suitable size rubber plug (small,

large and medium) to hold down the wires,

while tearing off the adhesive sticker on the

selected rubber plugs and plug them into the

back cover in the position as indicated in the

drawing. Connect the network cables to the

corresponding interface of the mainboard,

then connect the signal wire to the

corresponding connection holes.

Note: All the cables and wires must go through

the opening at the rubber plug position.

Use four M3x4 crosshead screws to

fix wiring cover on the back cover.

Step2: Wiring Cover Installation

X912

Combine the device with the flush-mounting

bracket according to the direction indicated

in the figure.

Note: The sound hole of flush-mounting bracket

should be upper, and sound hole and arrow of

wiring cover should be in the same direction.

Align the fixing hole of flush-mounting

plate with the bolts of flush-mounting

bracket, then insert flush-mounting plate

onto the flush-mounting bracket. Use

four M3x8 crosshead screws to fix

flush-mounting plate.

Note: The direction of plate’s arrow should

be upward and the same as wiring cover’s

arrow.

Align the fixing holes of flush-mounting

bracket with the fixing holes of

flush-mounting box, and use torx wrench

to tighten flush-mounting plate with two

M4x16 torx head screws.

Check if the gap surrounding the device

is even and securely installed. Make

sure to reserve a gap and power on the

device to check the device is normal.

Installation is completed.

Step3: Device Installation

Sound hole

Arrow should be

upward

X912

Device Wiring

X912

A05

E16

A05

X912

LAN

PoE

SIP Video Phone

PoE+

PoE

Network Video Recorder

(third party)

PoE

PoE+

Application Network Topology

Indoor Monitor

PoE

X912

Configuration

1. IP Address Checking: Press Key Icon on the home interface or on the dial pad, then press 2396 and Bell Icon to enter the

system interface, and press System Information to check the device IP address. X912 uses DHCP by default.

2. Account Registration: On the web interface, go to the path Account > Basic page to register and fill in the account information. (Please

refer to user manual for more information)

Operation

Make a call:

Enter the IP or SIP number and press Bell Icon to make a call.

Receive a call:

X912 supports Auto Answer by default. Incoming call from indoor device will be answered automatically.

Unlock by PIN:

Press Key Icon on the home interface or on the dial pad, then enter the PIN code, and press the Key Icon on the dial pad for the confirmation.

Unlock by RF Card:

Place the configured RF card on the card reader area for door access.

X912

Information contained in this document is believed to be accurate and reliable at the time of printing. This document is subject to change

rights reserved.

Note Information
