Akuvox R26 Manual de usuario

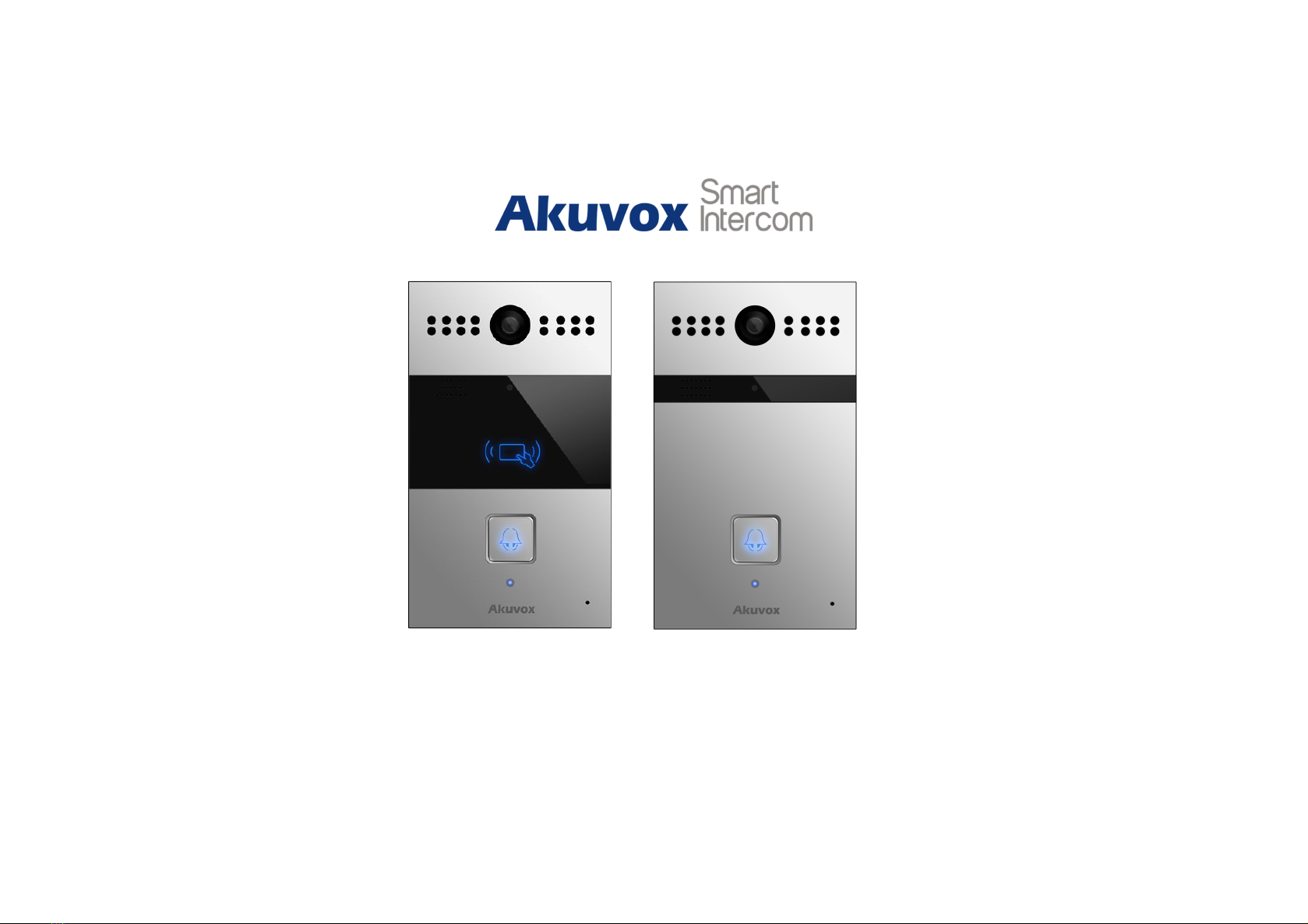

R26 Series Door Phone User Manual
R26C
R26P
About This Manual
Thank you for choosing Akuvox’s R26 series door phone. This manual is intended for end users, who need to properly configure the
door phone. This manual is applicable to 26.0.3.xx version, and it provides all functions’ configurations of R26C/P. Please visit
Akuvox forum or consult technical support for any new information or latest firmware.
Note: Please refer to universal abbreviation form in the end of manual when meet any abbreviation letter.
Content
1. Product Overview...............................................................................................................................................................................................1
1.1. Product Description................................................................................................................................................................................... 1
1.2. Connector Introduction..............................................................................................................................................................................2
1.3. LED Status Information............................................................................................................................................................................. 3
2. Daily Use...............................................................................................................................................................................................................4
2.1. Make a Call................................................................................................................................................................................................. 4
2.2. Receive a Call............................................................................................................................................................................................ 4
2.3. Unlock by RFID Card (Optional)..............................................................................................................................................................4
1
1. Product Overview
1.1. Product Description
Akuvox R26X is a SIP-compliant, hands-free one button video
outdoor phone. It can be connected with users Akuvox indoor
monitors for remote access controlling and monitoring. Users can
operate the indoor phone to communicate with visitors via voice
and video, and use RFID cards to unlock the door (R26C only). It’s
applicable in villas, offices and so on.
Figure 1.1 Product description
2
1.2. Connector Introduction
Ethernet (POE): Ethernet (POE) connector, which can provide
both power and network connection.
12V/GND: External power supply terminal if POE is not available.
RS485A/B: RS485 terminal.
DOORA/B: Trigger signal input terminal.
RelayA/B (NO/NC/COM): Relay control terminal.
Note: The general door phone interface diagram is only for
reference.
Figure 1.2-2 General interface
Figure 1.2-1 R26’s interface
3
1.3. LED Status Information
LED Status Description
Blue Always on Normal status
Flashing Calling
Red Flashing Network is unavailable
Green Always on Talking on a call
Flashing Receiving a call
Pink Flashing Upgrading
4
2. Daily Use
2.1. Make a Call
Press the call button to dial out the predefined number or IP
address. If LED turns green, it means the call has been answered.
2.2. Receive a Call
Users can use phone or indoor monitor to call R26X and R26X will
answer it automatically by default. If auto answer function is
disabled, pressing call button to answer incoming call.
2.3. Unlock by RFID Card (Optional)
Place the predefined RFID card on the card reader. The door
phone will announce “the door is now opened” and unlock the door.
13.56MHz RF card is supported on R26C.
Abbreviations
ACS: Auto Configuration Server
Auto: Automatically
AEC: Configurable Acoustic and Line Echo Cancelers
ACD: Automatic Call Distribution
Autop: Automatical Provisioning
AES: Advanced Encryption Standard
BLF: Busy Lamp Field
COM: Common
CPE: Customer Premise Equipment
CWMP: CPE WAN Management Protocol
DTMF: Dual Tone Multi-Frequency
DHCP: Dynamic Host Configuration Protocol
DNS: Domain Name System
DND: Do Not Disturb
DNS-SRV: Service record in the Domain Name System
FTP: File Transfer Protocol
GND: Ground
HTTP: Hypertext Transfer Protocol
HTTPS: Hypertext Transfer Protocol Secure
IP: Internet Protocol
ID: Identification
IR: Infrared
LCD: Liquid Crystal Display
LED: Light Emitting Diode
MAX: Maximum
POE: Power Over Ethernet
PCMA: Pulse Code Modulation A-Law
PCMU: Pulse Code Modulation µ-Law
PCAP: Packet Capture
PNP: Plug and Play
RFID: Radio Frequency Identification
RTP: Real-time Transport Protocol
RTSP: Real Time Streaming Protocol
MPEG: Moving Picture Experts Group
MWI: Message Waiting Indicator
NO: Normal Opened
NC: Normal Connected
NTP: Network Time Protocol
NAT: Network Address Translation
NVR: Network Video Recorder
ONVIF: Open Network Video Interface Forum
SIP: Session Initiation Protocol
SNMP: Simple Network Management Protocol
STUN: Session Traversal Utilities for NAT
SNMP: Simple Mail Transfer Protocol
SDMC: SIP Devices Management Center
TR069: Technical Report069
TCP: Transmission Control Protocol
TLS: Transport Layer Security
TFTP: Trivial File Transfer Protocol
UDP: User Datagram Protocol
URL: Uniform Resource Locator
VLAN: Virtual Local Area Network
WG: Wiegand
