Akuvox E18 Manual de usuario

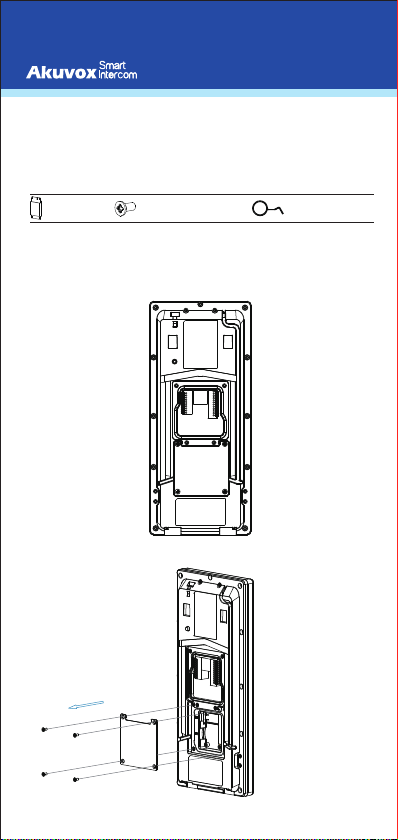

1、Take out E18/A07 Door phone.

2、Remove the the back cover of the device.

Main Accessories :

LTE module x 1 M2 x 4 machine screw x 2

Step 1: Remove Back Cover

LTE Module Installation

E18/A07

1

SIM card extractor x 1

Unpacking

Before the installation, please check and ensure that the

following items are included in the shipped box:

LTE Module Installation

1、Take out SIM card extractor, and insert it into the card tray

hole properly to take out the card tray.

2、Put the SIM card on the card tray and push it back to the

card slot.

Step 2: Install SIM Card

2

LTE Module Installation

E18/A07

1、Take out TF card and insert it into its corresponding slot on

the device in the direction as indicated by the arrow.

Step 3: Install TF Card (Note: Skip this step, if you do not

need the TF card.)

1、Take out LTE module and the two M2 x 4 Machine screws.

Step 4: Install LTE Module

3

LTE Module Installation

E18/A07

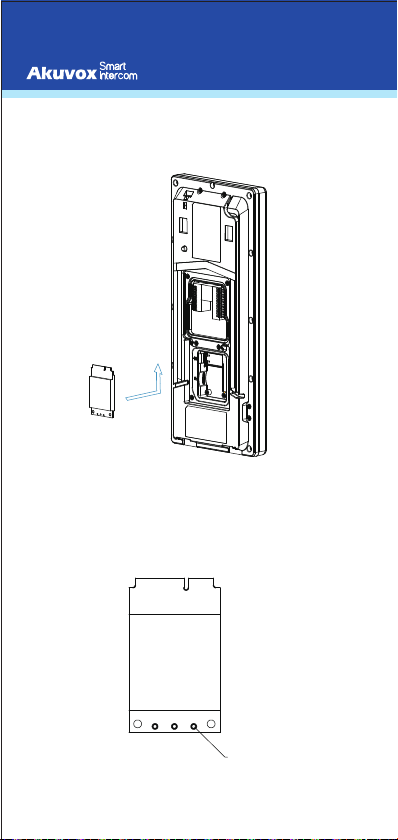

2、Fit LTE module into the corresponding socket base with its

“U” slot end facing towards the base and the other end with

main terminal facing in opposite direction.

3、Lock the LTE module onto the back cover using two M2 x 4

Machine screws, and press the Coaxial cable terminal into the

socket marked with “MAIN” on the module.

MAIN

2. R29 LTE SIM Card Installation and Removal

4

LTE Module Installation

E18/A07

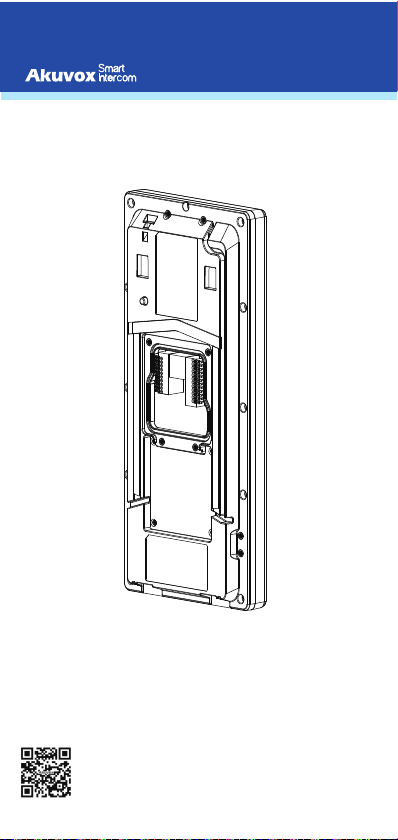

1、Lock the back cover back onto its corresponding position.

Step 5: Lock the Back cover

2.2 R29 LTE SIM Card Removal

5

LTE Module Installation

E18/A07

Coaxial cable terminal

2、Installation completed.

Notice Information

Information contained in this document is believed to be accurate and

reliable at the time of printing. This document is subject to change without

notice, any update to this document can be viewed on Akuvox’ s website:

http://www.akuvox.com © Copyright 2021 Akuvox Ltd. All rights reserved.

AKUVOX (XIAMEN) NETWORKS CO., LTD.

ADD: 10/F, NO.56 GUANRI ROAD, SOFTWARE PARK II, XIAMEN 361009, CHINA

www.akuvox.com

6

LTE Module Installation

E18/A07
