Akuvox C313X Manual de usuario

（Except C313N）

Before you begin using the device, please check the version you got and ensure that the following

items are included in the shipped box:

Plastic wall anchor x 4

ST4x20 crosshead screw x 2

M4x30 crosshead screw x 2

Wall-mounting bracket x 1

Front View

Rear View

Speaker

Product Overview

Unpacking

11 Pin cable x 1

10 Pin cable x 1

C313X x 1

Mark two ﬁxation holes

through wall-mounting

bracket on the wall,the

distance between which

is 60mm. Make sure the

all cables can be passed

from the middle of

wall-mounting bracket.

Take down the

bracket, then using a

6mm hand drill to

make the two ﬁxation

holes on the wall you

marked before.

Once the ﬁxation

holes are made,

insert the two plastic

wall anchors

provided.

Use two ST4x20

crosshead screws to ﬁx

the wall-mounting

bracket on the wall.

Fix the wall-mounting bracket on the 86 embedded

box with two M4x30 crosshead screws.

Make sure all cables in the 86

embedded box.

After connecting the wires according to the wiring

diagram, align the device with the wall-mounting

bracket. And push down to ﬁx the device securely.

Device Mounting

With 86 embedded box in the wall

Without 86 embedded box in the wall

Installation

Application Network Topology

LAN

Door Phone

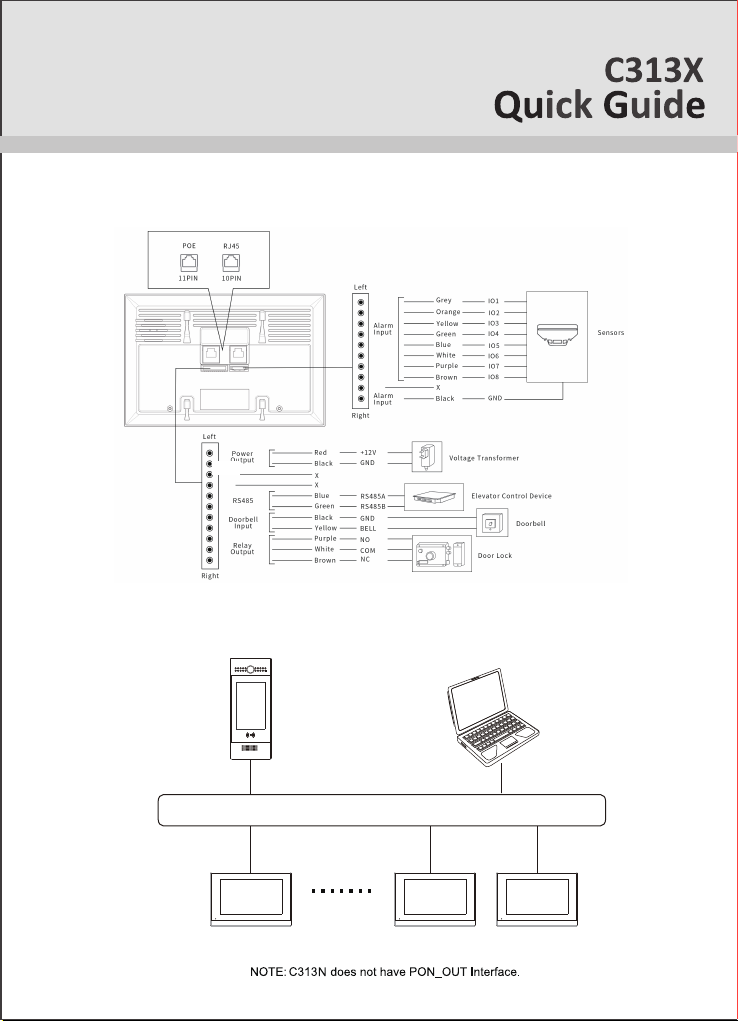

Device Wiring

Power

Input

C313X C313X C313X

PoE PoE PoE

PoE

PC (third party)

Press Intercom key , enter the callee’s number or room address , then choose Audio

or Video mode to call out.

AKUVOX (XIAMEN) NETWORKS CO., LTD.

ADD: 10/F, NO.56 GUANRI ROAD, SOFTWARE PARK II, XIAMEN 361009, CHINA

www.akuvox.com

Notice Information

Akuvox C313X ﬁrmware contains third-party open source software under the terms of the GNU General Public

License(GPL). Akuvox is committed to meeting the requirements of the GNU General Public License (GPL) and will

make all required source code available.

The source code of software under the terms of GNU GPL can be downloaded online: http://www.akuvox.com/gpl.

Information contained in this document is believed to be accurate and reliable at the time of printing. This

document is subject to change without notice, any update to this document can be viewed on Akuvox’ s website:

1.After setting up network and power, press Status icon to check IP address (DHCP by default).

2.Launch web browser and type in the IP address to access web interface, login with username and

password.(admin by default).

3.Register the device with your SIP account.(please refer to user manual for more information).

When receiving a video call, users can choose Audio or Video mode to answer.

However, if there is an audio call, users can only press Audio mode to pick up.

During the talk, press the Open Door key in talking interface to unlock the door.

Press Monitor key to receive the video from indoor IPC or community IPC any time.

Press SOS key in case of an emergency.

Operation

Conﬁguration
