AEMC CA7027 Manual de usuario

CA7027



FAULT MAPPER PRO®

GRAPHICAL TDR

ENGLISH User Manual

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Statement of Compliance

Chauvin Arnoux®, Inc. d.b.a. AEMC®Instruments

certiﬁes that this instrument has been calibrated

using standards and instruments traceable to

international standards.

We guarantee that at the time of shipping your

instrument has met its published speciﬁcations.

The recommended calibration interval for this

instrument is 12 months and begins on the date of

receipt by the customer.

Serial #: ________________________________

Catalog #: 2127.84

Model #: CA7027

Please ﬁll in the appropriate date as indicated:

Date Received: _________________________________

Date Calibration Due: _______________________

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Table of Contents

1. INTRODUCTION............................................................................... 2

1.1 International Electrical Symbols................................................2

1.2 Receiving Your Shipment..........................................................3

1.3 Ordering Information.................................................................3

1.3.1 Accessories and Replacement Parts............................3

2. PRODUCT FEATURES ...................................................................... 4

2.1 Description................................................................................4

2.2 Key Features: ...........................................................................4

2.3 Fault Mapper Pro®Features .....................................................5

3. SPECIFICATIONS............................................................................. 6

3.1 Accuracy ...................................................................................7

4. OPERATION .................................................................................... 8

4.1 Principles of Operation .............................................................8

4.2 Accuracy and Velocity of Propagation (Vp) ..............................8

4.3 Getting Started..........................................................................9

4.4 Set-up Mode .............................................................................9

4.5 Backlight .................................................................................10

4.6 Tone Generator.......................................................................10

4.7 Selecting Full Scale Sensitivity ...............................................11

4.8 Adjusting the Vp Value............................................................11

4.9 Determining and Measuring Vp Values ..................................11

4.10 Attaching a Cable to the Fault Mapper Pro®...........................12

4.11 Testing a Cable .......................................................................13

4.12 Single Shot and Continuous Scanning Modes .......................14

4.13 Typical Fault Displays .............................................................14

5. MAINTENANCE ............................................................................. 15

5.1 Changing the Battery ..............................................................15

5.2 Cleaning..................................................................................15

5.3 Storage ...................................................................................15

Limited Warranty ...................................................................................17

Warranty Repairs...................................................................................17

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Fault Mapper Pro

Model CA7027

CHAPTER 1

INTRODUCTION

Warning

● This instrument meets the safety requirements of IEC61010-

1:1995.

● TheModelCA7027isdesignedforuseonde-energizedcircuits

only.

● Connection to line voltages will damage the instrument and

couldbehazardoustotheoperator.

● This instrument is protected against connection to telecom

networkvoltagesaccordingtoEN61326-1.

● Safetyistheresponsibilityoftheoperator.

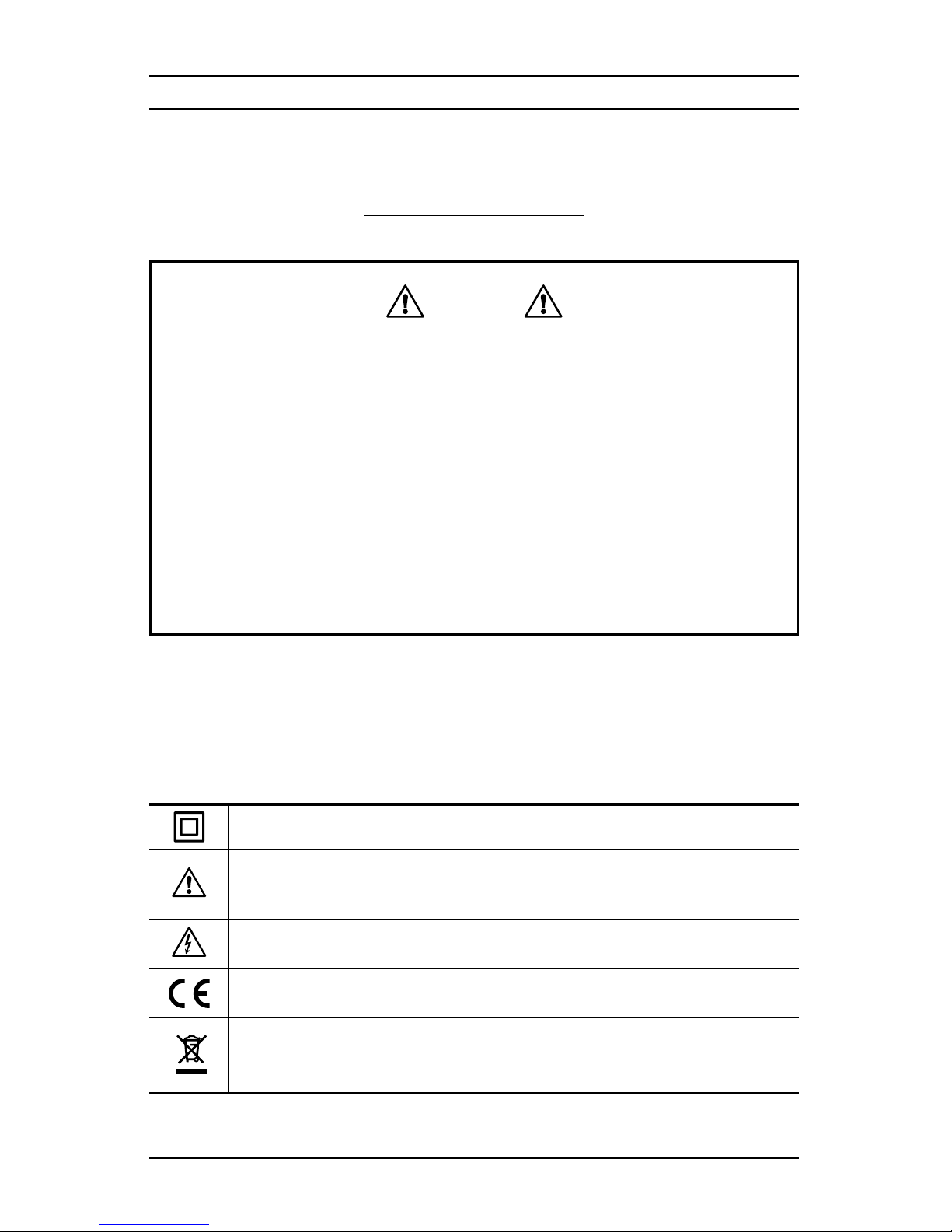

1.1 International Electrical Symbols

Signiﬁes that the instrument is protected by double or reinforced insulation.

CAUTION - Risk of Danger! Indicates a WARNING and that the operator must

refer to the user manual for instructions before operating the instrument in all

cases where this symbol is marked.

Risk of electric shock. The voltage at the parts marked with this symbol may

be dangerous.

Compliance with the Low Voltage & Electromagnetic Compatibility European

directives (73/23/CEE & 89/336/CEE)

In the European Union, this product is subject to a separate collection system

for recycling electrical and electronic components In accordance with directive

WEEE 2002/96/EC

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Fault Mapper Pro

Model CA7027

1.2 Receiving Your Shipment

Upon receiving your shipment, make sure that the contents are consis-

tentwith the packing list. Notifyyour distributorof anymissing items. If

theequipmentappearstobedamaged,leaclaimimmediatelywiththe

carrier and notify your distributor at once, giving a detailed description of

any damage. Save the damaged packing container to substantiate your

claim.

1.3 Ordering Information

Fault Mapper Pro®Model CA7027 .................................... Cat. #2127.84

Includes carrying case, 4mm color-coded banana plugs with alligator clips,

4x1.5V AA batteries, user manual and product warranty card.

1.3.1 Accessories and Replacement Parts

Tone Receiver / Cable Tracer Model TR03 ......................... Cat. #2127.76

Lead - Replacement set of 2, Color-coded 4 ft (Red/Black),

Test Probes & Alligator Clips ...............................................Cat. #2152.01

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Fault Mapper Pro

Model CA7027

CHAPTER 2

PRODUCT FEATURES

2.1 Description

The Fault Mapper Pro®is a hand-held graphical TDR (Time Domain

Reectometer)designedforidentifyingandlocatingfaultsonpowerand

communication cables, given access to one end only.

The Fault Mapper Pro®measures cable length and indicates the length

and distance to cable faults to a range of 9 ft (3 m) to 19,000 ft (6000m) on

virtually any type of cable. It injects a series of pulses into the cable under

test.Thevelocityatwhichthepulsestravelisdeterminedbythetypeof

cable,whichisknownasthevelocityofpropagation(Vp)ofthecable.The

VelocityofPropagation(Vp)isadjustablebetween1%and99%enabling

accurate calibration to the cable under test.

The Vp value is expressed as a percentage of the speed of light (e.g.

67% or ft/mtrs/micro-second), this value will vary according to the type

of cable under test. The Fault Mapper Pro®can accept user selectable

valuesbetween1and99%(ortheequivalentvalueinfeetormetersper

micro-second).

Based on the selected Vp and the time taken for the pulses to travel

throughthecable,areectionproleofthecableundertestisdisplayed.

An adjustable cursor assists in locating faults and termination.

The Fault Mapper Pro® incorporates an oscillating tone tracer, which is

detectablewithastandardtonetracer,foruseinthetracingandidentica-

tion of cable pairs.

2.2 Key Features:

 Hand-heldgraphicalTDR(TimeDomainReectometer)

Measures cable length and indicates distance to faults to a range of

19,000 ft (6000m)

Graphical LCD

 Easyidenticationofshortrangefaults



Emits an audible tone, used to trace and identify the type of fault

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Fault Mapper Pro

Model CA7027

2.3 Fault Mapper Pro®Features

FAULT MAPPER

PRO

MODEL CA7027

TEST / TDR /

Graphical TDR

AEMC Instruments

Fault Mapper Pro

VX.X

1. Banana plug input (Red/Black)

2. Graphical LCD

3. Cable select and Vp (Velocity of Propagation) decrement button

4. Test/function select button

5. Backlight button

6. Cable select and Vp (Velocity of Propagation) increment button

7. Mode select button (TDR/Tone tracer)

8. PowerON/OFFbutton

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Fault Mapper Pro

Model CA7027

CHAPTER 3

SPECIFICATIONS

MODEL CA7027

ELECTRICAL

Ranges @ Vp=70% 23, 49, 98, 197, 394, 820, 1640, 3280, 6560, 9850, 19000 ft

Range Selection Manual range control

Accuracy* ±1% of range

Resolution Approximately 1% of selected range

Minimum Cable Length 1.5 ft (0.5m)

Sensitivity Minimum 3 pixel return on a fault at 4km on 0.6mm 0, PE, TP

Vp (Velocity of Propagation) Adjustable from 1% to 99%

Output Pulse +5V peak to peak into an open circuit

Output Impedance Selectable between 25, 50, 75 & 100Ω

Output Pulse Width 3 ns to 3 ms, Automatic with range

Scan Rate: 2 scans / second or scan held

Tone Generator Oscillating tone 810Hz to 1110Hz

Voltage Protection 250VAC

Power Supply 4 x 1.5V AA alkaline batteries

Battery Life 60 hours continuous scanning

Auto-off Selectable 1, 2, 3, 5 minutes or disabled

MECHANICAL

Dimensions 6.5 x 3.5 x 1.5" (165 x 90 x 37mm)

Weight (with battery) 12oz (350g)

Display Resolution 128 x 64 pixel Graphical LCD

Display Backlight Electroluminescent

ENVIRONMENTAL

Operating Temperature 14 to 122°F (-10° to 50°C)

Storage Temperature -4 to 158°F (-20 to 70°C)

Relative Humidity 5 to 95% RH non-condensing

Altitude 6000 ft (2000m)

SAFETY

Safety Rating IEC61010-1; EN60950

Protection Degree IP54

Electro-Magnetic Compatibility EN61326-1

CE Approved Compliant with current EU directives

*Measurement accuracy of ±1% assumes the instrument setting for velocity of propagation (Vp) of the cable

under test to be accurately set, and homogeneity of the velocity of propagation (Vp) along the cable length.

Accurate positioning of the cursor is also required.

**Speciﬁcations are subject to change without notice.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Fault Mapper Pro

Model CA7027

3.1 Accuracy

The CA7027 is able to measure distances to faults and cable lengths to

anaccuracyof±1%.

This measurement accuracy is based on the correct value of Vp being

used for the cable under test, and homogeneity of the Vp along the cable

length.

If the Vp is set incorrectly by the operator, or the Vp varies along the length

ofthecable,thenadditionalerrorswillbeincurredandthemeasurement

accuracywillbeaffected.

NOTE:TheVpislesswelldenedwithunshieldedmulticorecable,includ-

ingpowercable,andislowerwhenacableistightlywoundonadrumthan

wheninstalled.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Fault Mapper Pro

Model CA7027

CHAPTER 4

OPERATION

4.1 Principles of Operation

The Fault Mapper Pro®worksbymeasuringthetimetakenforasignalto

travel to the far end of the cable under test, or to an intermediate fault and

return.ThevelocityatwhichthesignaltravelsVp(VelocityofPropagation)

willdependonthecharacteristicsofthecable.

Based on the selected Vp and the measured travel time of the test pulse,

the Fault Mapper Pro®calculates and displays impedance anomalies and

their distances along the cable.

4.2 Accuracy and Velocity of Propagation (Vp)

The Fault Mapper Pro®measures distances to faults and cable lengths to

anaccuracyof±1%.Thismeasurementaccuracyisbaseduponthecor-

rect value of Vp being used for the cable under test, and homogeneity of

the Vp along the cable length.

If the Vp is set incorrectly by the operator, or the Vp varies along the length

ofthecable,thenadditionalerrorswillbeincurredandthemeasurement

accuracywillbeaffected.

See § 4.8 for setting the Vp.

NOTE: The Vp is less well deﬁned with unshielded multi-conductor cable,

including power cable, and is lower when a cable is tightly wound on a drum

than when it is installed in a linear fashion.

Correct measurement of fault distances is also dependent on the cursor being

positioned accurately by the operator.

When locating faults with the Fault

Mapper Pro

the cursor should be positioned at the beginning of the feature on

thecablewaveformasshownbelow.

Vp=72% Z=100Ω

621ft

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Otros manuales para CA7027

Tabla de contenidos

Otros manuales de Instrumento de medición de AEMC

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
