AEMC 1510 Manual de usuario

Air Quality Logger

Model 1510

Quick Start Guide

ENGLISH

www.aemc.com

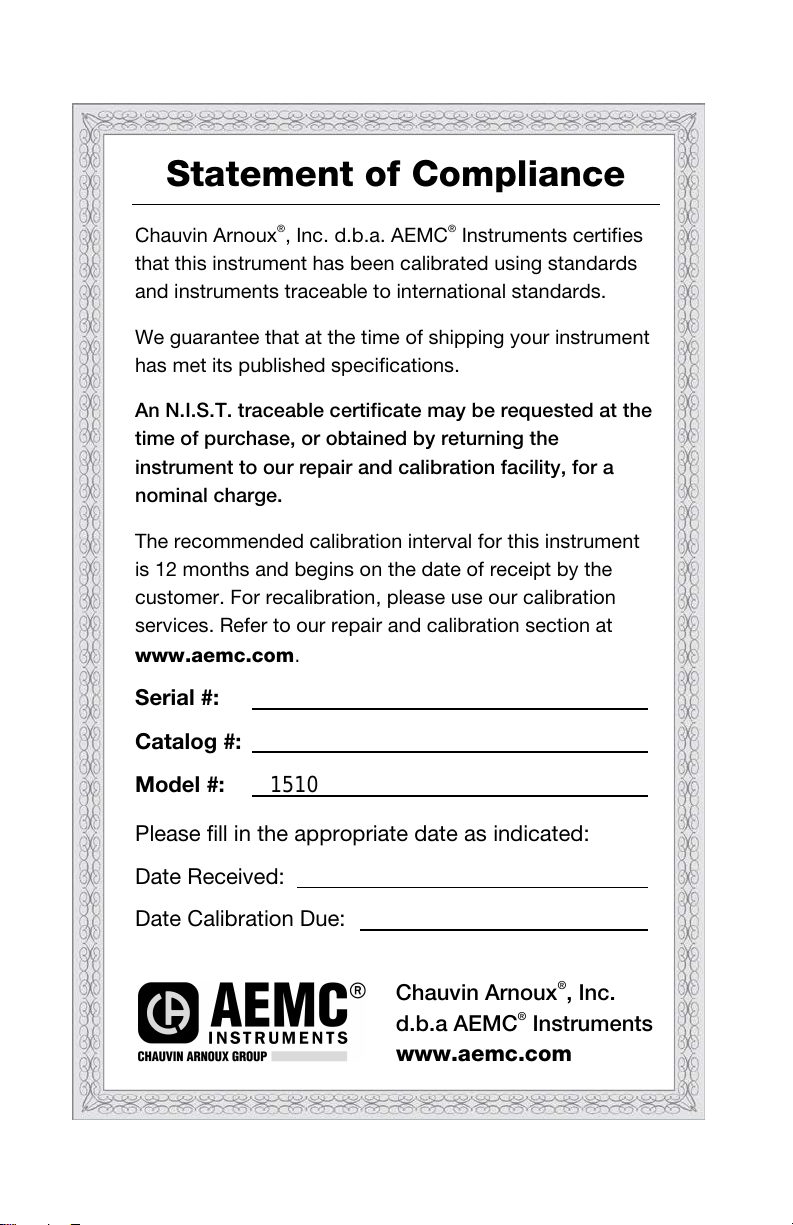

Statement of Compliance

Chauvin Arnoux®, Inc. d.b.a. AEMC®Instruments certifies

that this instrument has been calibrated using standards

and instruments traceable to international standards.

We guarantee that at the time of shipping your instrument

has met its published specifications.

An N.I.S.T. traceable certificate may be requested at the

time of purchase, or obtained by returning the

instrument to our repair and calibration facility, for a

nominal charge.

The recommended calibration interval for this instrument

is 12 months and begins on the date of receipt by the

customer. For recalibration, please use our calibration

services. Refer to our repair and calibration section at

www.aemc.com.

Serial #:

Catalog #:

Model #: 1510

Please fill in the appropriate date as indicated:

Date Received:

Date Calibration Due:

Chauvin Arnoux®, Inc.

d.b.a AEMC®Instruments

www.aemc.com

Thank you for purchasing the Air Quality Logger Model 1510. For best results from

your instrument:



read these operating instructions carefully



comply with the precautions for use

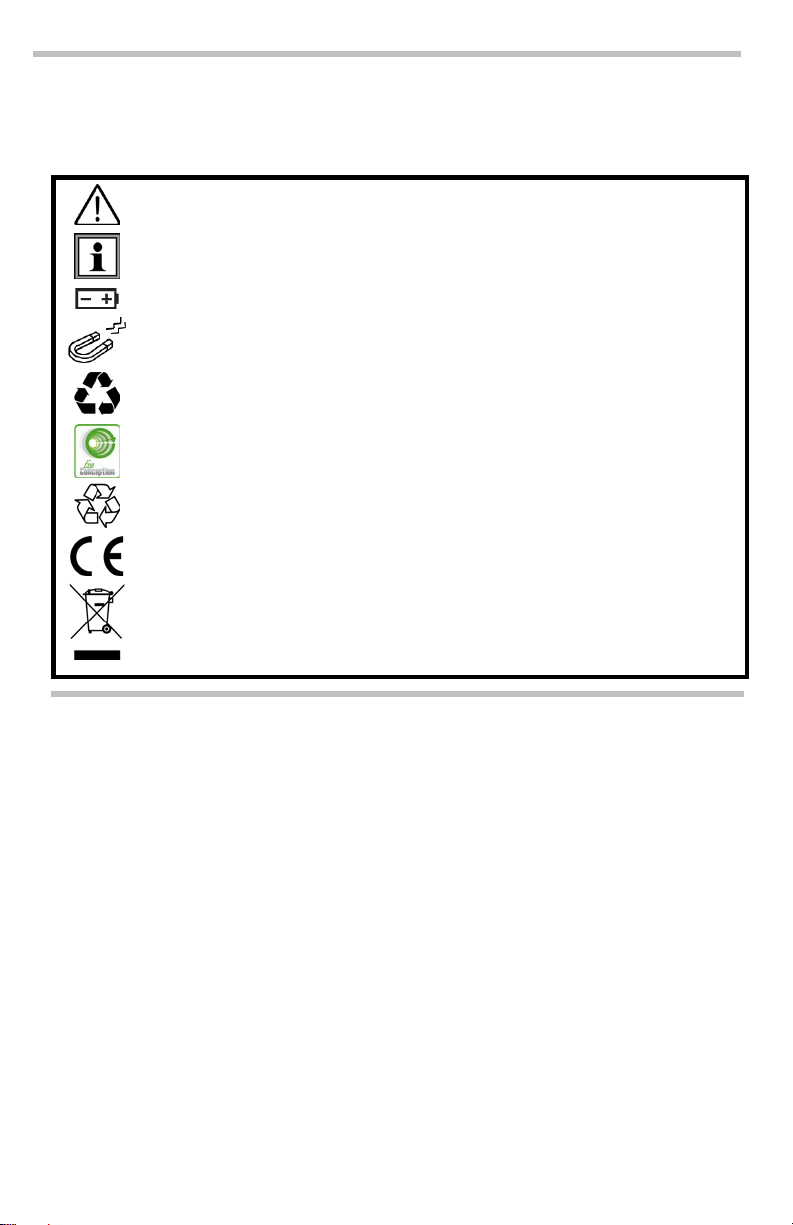

WARNING, risk of DANGER! The operator must refer to these

instructions whenever this danger symbol appears.

Information or useful tip.

Battery.

Magnet.

The product has been declared recyclable after analysis of its life cycle

in accordance with the ISO14040 standard.

AEMC has adopted an Eco-Design approach in order to design this

appliance. Analysis of the complete lifecycle has enabled us to control

and optimize the effects of the product on the environment. In particular

this appliance exceeds regulation requirements with respect to recycling

and reuse.

Indicates conformity with European directives and with regulations

covering EMC.

Indicates that, in the European Union, the instrument must undergo

selective disposal in compliance with Directive WEEE 2002/96/EC. This

instrument must not be treated as household waste.

Precautions

This instrument is compliant with safetystandard IEC 61010-2-030, for voltages up to5V

with respect toground. Failure to observe the following safety instructions may result in

electric shock, fire, explosion, and damage to the instrument and/or the installation in

which it is located.



The operator and/or the responsible authority must carefully read and clearly

understand all precautions to be taken prior to using the instrument. Thorough

knowledge and awareness of electrical hazards are essential when using this

instrument.



Observe the conditions of use, including temperature, relative humidity, altitude,

pollution degree, and location of use.



Do not use instrument if it appears damaged, incomplete, or improperly closed.



Before each use, check the condition of the housing and accessories. Any item on

which the insulation is deteriorated must be set aside for repair or disposal.



Never make measurements in atmospheres contaminated by solvents, which

could damage the sensor.



All troubleshooting and metrological checks must be done by accredited

personnel.

INITIAL SETUP

Installing Batteries

1. Press the tab of the battery compartment cover and lift it clear.

2. Remove the battery compartment cover.

3. Insert the new batteries, ensuring correct polarity.

4. Close the battery compartment cover; ensuring it is completely and correctly

closed.

Connecting to a Computer

Some Model 1510 features (such as measurement units and min/max settings) can be

configured through the instrument keypad. Others require the instrument to be connected

to DataView®for configuration. (For detailed setup instructions, see the User Manual in

the USB drive that comes with the instrument.)

To connect the Model 1510 to your computer:

1. Install the DataView®software, making sure to select the Data Logger Control

Panel as an option (it is selected by default). De-select any Control Panels you

do not need.

2. If prompted, restart the computer after installation is complete.

3. Connect the instrument to the computer using a USB cable or pair with

Bluetooth.

4. Wait for the drivers to install. The drivers are installed the first time the

instrument is connected to the computer. The Windows operating system will

display messages indicating when the installation is complete.

5. Start the Data Logger Control Panel by double-clicking the Data Logger

shortcut icon in the DataView folder placed on the desktop during the

installation.

6. Click Instrument in the menu bar, and select Add an Instrument.

7. The Add an Instrument Wizard dialog box opens. This is the first of a series of

screens that lead you through the instrument connection process. The first

screen prompts you to select the connection type (USB or Bluetooth). Choose

the connection type and click Next.

8. If the instrument is identified, click Finish. The instrument is now

communicating with the Control Panel.

9. When you are finished, the instrument will appear in the Data Logger Network

branch in the Navigation frame, with a green check mark indicating a

successful connection.

Setting the Instrument’s Clock

To ensure an accurate time stamp of measurements recorded in the instrument, set the

instrument’s clock as follows:

1. Select the instrument in the Data Logger Network.

2. In the menu bar, select Instrument. In the drop-down menu that appears, click

Set Clock.

3. The Date/Time dialog box appears. Complete the fields in this dialog box. If you

need assistance, press F1.

4. When you are finished setting the date and time, click OK to save your changes

to the instrument.

INSTRUMENT CONFIGURATION

In addition to setting the instrument’s clock, other basic setup tasks include:



Enabling Bluetooth



Setting measurement units



Activate/deactivate alarm buzzer

Each of these tasks can be performed on the instrument or in DataView. Detailed

information for configuring the instrument via the DataView Data Logger Control Panel is

available by pressing the Help button.

For performing these tasks through the instrument interface, proceed as follows.

Bluetooth Enable

Long press (>2 seconds) the button to enable/disable Bluetooth.

Temperature Units

Long press to toggle between °F and °C.

Alarm Buzzer Activation

Press the button; and while holding it down press . The icon appears on

the screen.

OPERATION

Making Measurements

1. Place the meter in the location to be measured.

2. If the instrument is OFF, press and hold down the button until it turns ON. After

a few moments the instrument displays the CO2measurement.

3. To display temperature and humidity along with CO2, press the button twice.

The symbol 3D appears on the screen.

4. To change the temperature units of measure, long-press . The instrument will

continue to use this unit when next turned ON.

ECO (Energy Saving) Mode

ECO mode saves energy when the Model 1510 measures airquality over a long

period. The backlighting and the buzzer are deactivated, and CO2is measured only

once every 10 minutes. This saves the batteries. In addition, the instrument

automatically activates “sleep” mode between 4:30 p.m. to 8:30 a.m. These times can

be changed using DataView software (see § 3).

1. Long-press (>2 seconds) to activate ECO mode. The symbol ECO

appears on the display.

2. Long-press a second time to return to normal operation.

Recording Measurements

You can start and stop a recording session on the instrument. Recorded data is

stored in the instrument’s memory, and can be downloaded and viewed on a

computer running the DataView Data Logger Control Panel.

You can start a manual recording session in any mode except P_REC (Programmed

Recording). After recording is in progress, you cannot change modes.

1. Long-press REC (>2 seconds) to start a manual recording. The symbol

M_REC appears on the display.

2. Long-press REC a second time to stop recording.

To schedule recording sessions, and download and view recorded data, see the

DataView Data Logger Control Panel Help.

Repair and Calibration

To ensure that your instrument meets factory specifications, we recommend that it be

sent back to our factory Service Center at one-year intervals for recalibration, or as

required by other standards or internal procedures.

For instrument repair and calibration:

You must contact our Service Center for a Customer Service Authorization Number

(CSA#). This will ensure that when your instrument arrives, it will be tracked and

processed promptly. Please write the CSA# on the outside of the shipping container. If

the instrument is returned for calibration, we need to know if you want a standard

calibration; or a calibration traceable to N.I.S.T. (includes calibration certificate plus

recorded calibration data).

Ship To: Chauvin Arnoux®, Inc. d.b.a. AEMC®Instruments

15 Faraday Drive

Dover, NH 03820 USA

Phone: (800) 945-2362 (Ext. 360)

(603) 749-6434 (Ext. 360)

Fax: (603) 742-2346 or (603) 749-6309

E-mail: repair@aemc.com

(Or contact your authorized distributor.)

Cost for repair, standard calibration, and calibration traceable to N.I.S.T. are available.

NOTE: You must obtain a CSA# before returning any instrument.

Technical and Sales Assistance

If you are experiencing any technical problems, or require any assistance with the

proper operation or application of your instrument, please call, fax, or e-mail our

technical support team:

Contact: Chauvin Arnoux®, Inc. d.b.a. AEMC®Instruments

Phone: (800) 945-2362 (Ext. 351) • (603) 749-6434 (Ext. 351)

Fax: (603) 742-2346

E-mail: techsupport@aemc.com

03/18

99-MAN 100461v2

Chauvin Arnoux®, Inc. d.b.a. AEMC® Instruments

15 Faraday Drive • Dover, NH 03820 USA

Phone: (603) 749-6434 • Fax: (603) 742-2346

www.aemc.com
