AEMC PowerPad IV Manual de usuario

PowerPad®IV

Model 8345

Quick Start Guide

ENGLISH

POWER QUALITY ANALYZER

WITH AEMC

INSTRUMENTS

Class

POWERP

D IV

POWERP

D IV

2 Power Quality Analyzer PowerPad®IV Model 8345 Quick Start Guide

Statement of Compliance

Chauvin Arnoux®, Inc. d.b.a. AEMC® Instruments

certies that this instrument has been calibrated

using standards and instruments traceable to

international standards.

We guarantee that at the time of shipping your

instrument has met its published specications.

A NIST traceable certicate may be requested at

the time of purchase, or obtained by returning

the instrument to our repair and calibration

facility, for a nominal charge.

The recommended calibration interval for this

instrument is 12 months and begins on the date of

receipt by the customer. For recalibration, please

use our calibration services. Refer to our repair and

calibration section at www.aemc.com.

Serial #:

Catalog #: 2136.35 / 2136.36

Model #: 8345

Please ll in the appropriate date as indicated:

Date Received:

Date Calibration Due:

Chauvin Arnoux®, Inc.

d.b.a AEMC®Instruments

www.aemc.com

Power Quality Analyzer PowerPad®IV Model 8345 Quick Start Guide 3

PRODUCT PACKAGING (2136.35)

(5) 10 ft (3 m) Black Leads with

Alligator Clips

Cat. #2140.43

(1) 5 ft USB Cable

Cat. #2140.46

(1) 5.8 A·h 64 W·h Li-ion Battery Pack

Cat. #2960.47

(1) 1000 V PA32ER Power Supply

(Includes Power Plug Adapter)

Cat. #5100.15

PowerPad® IV Model 8345

(12) Color-coded ID Markers

Cat. #2140.45

Also included:

(1) Quick Start Guide

(1) SD Card

(1) USB Drive with user manual and application software

(1) Carrying Bag

Cat. #2133.76

4 Power Quality Analyzer PowerPad®IV Model 8345 Quick Start Guide

PRODUCT PACKAGING (2136.36)

(4) MiniFlex® Sensor Model MA194-24-BK

Cat. #2140.80

PowerPad® IV Model 8345

(12) Color-coded ID Markers

Cat. #2140.45

Also included:

(1) Quick Start Guide

(1) SD Card

(1) USB Drive with user manual and application software

(1) Carrying Bag

Cat. #2133.76

(5) 10 ft (3 m) Black Leads with

Alligator Clips

Cat. #2140.43

(1) 5.8 A·h 64 W·h Li-ion Battery Pack

Cat. #2960.47

(1) 5 ft USB Cable

Cat. #2140.46

(1) 1000 V PA32ER Power Supply

(Includes Power Plug Adapter)

Cat. #5100.15

Power Quality Analyzer PowerPad®IV Model 8345 Quick Start Guide 5

Thank you for purchasing an AEMC® Instruments PowerPad®IV Model 8345.

For best results from your instrument and for your safety, read the enclosed

operating instructions carefully and comply with the precautions for use.

Only qualied and trained operators should use this product.

Symbols

CAUTION - Risk of Danger! Indicates a WARNING. Whenever this symbol

is present, the operator must refer to the user manual before operating the

instrument in all cases where this symbol is present

Indicates a risk of electric shock. The voltage at the parts marked with this

symbol may be dangerous

USB socket

Kensington anti-theft lock

Ethernet connector (RJ45)

Ground/Earth

Indicates important information to acknowledge

SD card

This product has been declared recyclable following an analysis of the life

cycle in accordance with standard ISO 14040

This product complies with the Low Voltage & Electromagnetic Compatibility

European directives (73/23/CEE & 89/336/CEE)

In the European Union, this product is subject to a separate collection system

for recycling electrical and electronic components in accordance with directive

WEEE 2002/96/EC

Denition of Measurement Categories (CAT)

CAT IV corresponds to measurements at the source of low-voltage installations.

Example: power feeders, counters, and protection devices

CAT III corresponds to measurements on building installations.

Example: distribution panel, circuit-breakers, machines, and xed industrial devices

CAT II corresponds to measurements on circuits directly connected to

low-voltage installations.

Example: power supply to domestic electrical devices and portable tools

6 Power Quality Analyzer PowerPad®IV Model 8345 Quick Start Guide

Precautions Before Use

This instrument complies with safety standard IEC/EN 61010-2-030 or BS EN

61010-2-030. The leads comply with IEC/EN 61010-031 or BS EN 61010-031.

The current sensors comply with IEC/EN 61010-2-032 or BS EN 61010-2-032

for up to 600 V in CAT IV.

Failure to observe the precautions for use may create a risk of electric shock,

re, explosion, or destruction of the instrument and installations.

■Only competent and accredited personnel may perform troubleshooting

or metrological checks

■The operator and responsible authority must read and understand the

various precautions to take before and during use

■The operator must have knowledge and awareness of electrical hazards

when using this instrument

Do not use the instrument in an unspecied manner; otherwise, the

protection that the instrument provides may become compromised and

endanger you

Do not use the instrument on networks that exceed the instrument’s

specications for voltage or category

Do not use the instrument if it seems to be damaged, incomplete, or

improperly closed

Do not use the instrument without its battery

Before each use, check the condition of the insulation on the leads,

housing, and accessories. Any item with deteriorated insulation (even

partially) must be set aside for repair or scrapping

Ensure that your instrument is completely dry before use. If it is wet, you

must dry it completely before connecting or using it

Use only the supplied leads and accessories. If you use any leads or

accessories with lower voltage or category ratings, you are limited to

lowest voltage or category rating

Use personal protection equipment when appropriate

Keep your hands away from the instrument’s terminals

Keep your ngers behind the physical guards when handling the leads,

test probes, and alligator clips

Use only the manufacturer-provided power supply unit and battery pack

because these items have specic safety components

At hazardous voltages, certain current sensors must not be placed on or

removed from bare conductors. Please refer to each sensor’s data sheet

and comply with their handling instructions

Power Quality Analyzer PowerPad®IV Model 8345 Quick Start Guide 7

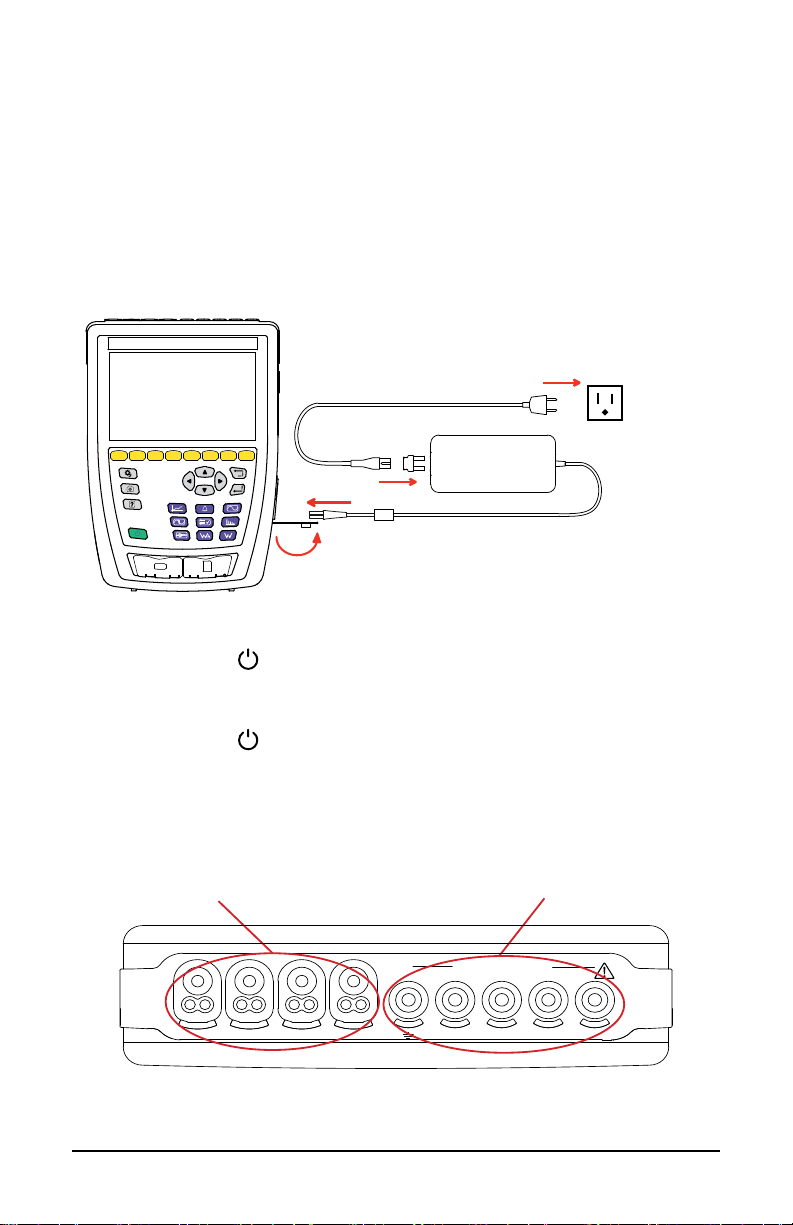

Charging the Battery

Following shipping safety protocols this unit's battery is charged to only 30%.

Before using the instrument, you must fully charge the battery.

1. Remove the plastic lm between the battery and instrument.

2. Connect the power cord to the power supply unit using the supplied adapter.

3. Plug the power cord into an outlet.

4. Open the elastomer cover that protects the power socket.

5. Connect the power supply’s 4-point connector to the instrument.

The ON/OFF button will blink while charging, and the display will indicate the

charging status.

When the battery is fully depleted, the charging time is approximately 6 hours.

The ON/OFF button will glow steady green when the battery is fully charged.

Description

Measurement Terminals

120 V ± 15 %, 60 Hz

230 V ± 15 %, 50 Hz

1000V CAT IV

L2L1N L3

GND

4 current input terminals

(for current sensors) 5 voltage input terminals

8 Power Quality Analyzer PowerPad®IV Model 8345 Quick Start Guide

Overall View

Button Function

Real-Time Modes

Waveform mode

Harmonic mode

Power mode

Energy mode

Recording Modes

Trend mode

Transient mode

Inrush Current mode

Alarm mode

Monitoring mode

NL1 L2 L3 NL1 L2 L3

Measurement terminals

Touch screen

Function buttons

(Yellow buttons)

Conguration button

Help button

USB port SD card slot

Mode buttons

(Violet buttons)

Conrm button

Navigation buttons

Return button

Screenshot button

ON/OFF button

Power Quality Analyzer PowerPad®IV Model 8345 Quick Start Guide 9

Side Connectors

Installing the Color Codes

Large sectors for current terminals Small sectors for voltage terminals

The same color as

the terminal

Strap attachment point

Theft-proong device for securing the instrument with a

Kensington lock.

RJ45 connector for Ethernet connection

USB type B connector for connection to a PC

Special 4-point connector for the power supply. Used to charge

the battery or operate the instrument on external power

10 Power Quality Analyzer PowerPad®IV Model 8345 Quick Start Guide

Distribution Systems and Types of Connections

Connections on a single-phase network

Connections on a split-phase network

Connections on a three-phase network

For three-phase, 3-wire networks, you must indicate the connected current

sensors: all 3 sensors (3A) or only 2 (A1 and A2, or A2 and A3, or A3 and A1).

For three-phase, 4- and 5-wire networks, you must indicate the connected

voltages: all 3 voltages (3V) or only 2 (V1 and V2, or V2 and V3, or V3 and V1).

Single-phase

2 wires

(L1 and N)

Single-phase

3 wires

(L1, N, and earth)

Split-phase

2 wires

(L1 and L2)

Split-phase

3 wires

(L1, L2, and N)

Split-phase

4 wires

(L1, L2, N, and earth)

Three-phase

3 wires

(L1, L2, and L3)

Three-phase

5 wires

(L1, L2, L3, N, and earth)

Three-phase

4 wires

(L1, L2, L3, and N)
