Phase & Motor Rotation Meter

Model 6611

Medidor de Secuencia de Fases y

Rotación de Motor

Modelo 6611

ESPAÑOL

Manual de Usuario

ENGLISH

User Manual

reserved.

No part of this documentation may be reproduced in any form or by

any means (including electronic storage and retrieval or translation into

any other language) without prior agreement and written consent from

Chauvin Arnoux®, Inc., as governed by United States and International

Chauvin Arnoux®, Inc. d.b.a. AEMC®Instruments

15 Faraday Drive • Dover, NH 03820 USA

Tel: (603) 749-6434 or (800) 343-1391 • Fax: (603) 742-2346

This documentation is provided as is, without warranty of any kind,

express, implied, or otherwise. Chauvin Arnoux®, Inc. has made every

reasonable e󰀨ort to ensure that this documentation is accurate; but

does not warrant the accuracy or completeness of the text, graphics,

or other information contained in this documentation. Chauvin Arnoux®,

Inc. shall not be liable for any damages, special, indirect, incidental,

or inconsequential; including (but not limited to) physical, emotional or

monetary damages due to lost revenues or lost prots that may result

from the use of this documentation, whether or not the user of the

documentation has been advised of the possibility of such damages.

Statement of Compliance

Chauvin Arnoux®, Inc. d.b.a. AEMC®Instruments

certies that this instrument has been calibrated

using standards and instruments traceable to

international standards.

We guarantee that at the time of shipping your

instrument has met the instrument’s published

specications.

The recommended calibration interval for this

instrument is 12 months and begins on the date

of receipt by the customer. For recalibration,

please use our calibration services.

Refer to our repair and calibration section at

www.aemc.com/calibration.

Serial #: _________________________

Catalog #: 2121.90

Model #: 6611

Please ll in the appropriate date as indicated:

Date Received: _____________________

Date Verication Due: _________________

Chauvin Arnoux®, Inc.

d.b.a AEMC®Instruments

www.aemc.com

TABLE OF CONTENTS

1. INTRODUCTION............................................................6

1.1 International Electrical Symbols................................. 6

1.2 Denition of Measurement Categories (CAT) ............ 7

1.3 Precautions for Use ................................................7

1.4 Receiving Your Shipment........................................... 8

1.5 Ordering Information.................................................. 8

1.5.1 Accessories and Replacement Parts ..................8

2. PRODUCT FEATURES..................................................9

2.1 Description................................................................. 9

2.2 Control Features ...................................................... 10

3. OPERATION ................................................................ 11

3.1 Determine Rotary Field Direction..............................11

3.2 Instrument Front........................................................11

3.2.1 Faceplate .......................................................... 11

3.3 Instrument Back....................................................... 12

3.3.1 Instruction Label/Safety Information .................12

3.4 Non-Contact Rotary Field Indication........................ 12

3.5 Determine The Motor Connection............................ 14

3.6 Magnetic Field Detection ......................................... 14

4. SPECIFICATIONS........................................................15

4.1 Determine Rotary Field Direction............................. 15

4.2 Non-Contact Rotary Field Indication........................ 15

4.3 Determine The Motor Connection............................ 15

4.4 Electrical .................................................................. 15

4.5 Mechanical............................................................... 15

4.6 Environmental.......................................................... 15

4.7 Safety....................................................................... 16

5. MAINTENANCE...........................................................17

5.1 Battery Replacement ............................................... 17

5.2 Cleaning................................................................... 17

5.3 Repair and Calibration ............................................. 18

5.4 Technical Assistance................................................ 18

5.5 Limited Warranty...................................................... 19

5.5.1 Warranty Repairs ..............................................20

Phase & Motor Rotation Meter Model 6611

1. INTRODUCTION

Thank you for purchasing an AEMC®Instruments Phase & Motor

Rotation Meter Model 6611.

For the best results from your instrument and for your safety,

you must read the enclosed operating instructions carefully and

comply with the precautions for use. Only qualied and trained

operators should use this product.

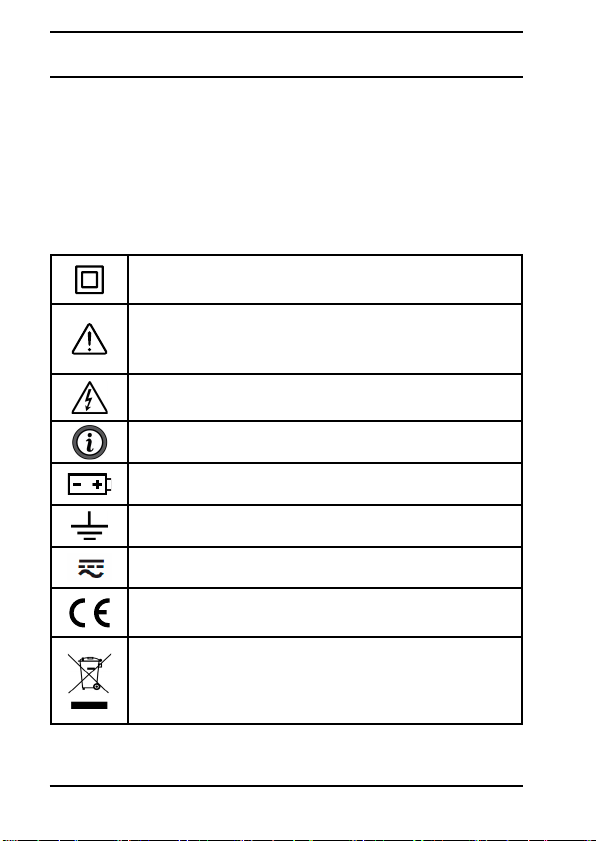

1.1 International Electrical Symbols

Signies that the instrument is protected by double or

reinforced insulation.

CAUTION - Risk of Danger! Indicates a WARNING.

Whenever this symbol is present, the operator must

refer to the user manual before operation.

Indicates a risk of electric shock. The voltage at the

parts marked with this symbol may be dangerous.

Indicates Important information to acknowledge

Battery

Ground/Earth

AC or DC

This product complies with the Low Voltage &

Electromagnetic Compatibility European directives.

In the European Union, this product is subject to a

separate collection system for recycling electrical and

electronic components in accordance with directive

WEEE 2012/19/EU.

Phase & Motor Rotation Meter Model 6611

1.2 Denition of Measurement Categories (CAT)

CAT IV: Corresponds to measurements performed at the primary

electrical supply (< 1000 V).

Example: primary overcurrent protection devices, ripple

control units, and meters.

CAT III: Corresponds to measurements performed in the building

installation at the distribution level.

Example: hardwired equipment in xed installation and

circuit breakers.

CAT II: Corresponds to measurements performed on circuits

directly connected to the electrical distribution system.

Example: measurements on household appliances and

portable tools.

1.3 Precautions for Use

This instrument complies with safety standard IEC 61010-1.

For your own safety, and to prevent any damage to your

instrument, you must follow the instructions given in this

manual.

This instrument can be used on CAT IV electrical circuits not

exceeding 600 V with respect to earth. It must be used indoors,

in an environment not exceeding pollution level 2, at an

altitude of not more than 6562 ft (2000 m). The instrument can

therefore be used in complete safety on (40 to 850) V three-

phase networks in an industrial environment.

For safety reasons, you must use only measurement leads

having a voltage rating and category at least equal to those of

the instrument and compliant with standard IEC 61010-031.

Do not use if the housing is damaged or not correctly closed.

Do not place your ngers near unused terminals.

If the instrument is used other than as specied in this manual,

the protection provided by the instrument may be impaired.

Phase & Motor Rotation Meter Model 6611

Do not use this instrument if it seems to be damaged.

Check the integrity of the insulation of the leads and of the

housing. Replace damaged leads.

Be prudent when working in the presence of voltages

exceeding 60 VDC or 30 VRMS and 42 Vpp; such voltages can

cause a risk of electrocution. The use of individual protections

is recommended in some cases.

Always keep your hands behind the physical guards of the

probe tips or alligator clips.

Always disconnect all leads from the measurement and from

the instrument before opening the housing.

1.4 Receiving Your Shipment

Upon receiving your shipment, make sure that the contents are

consistent with the packing list. Notify your distributor of any

missing items. If the equipment appears to be damaged, le a

claim immediately with the carrier and notify your distributor at

once, giving a detailed description of any damage. Save the

damaged packing container to substantiate your claim.

1.5 Ordering Information

Phase and Motor Rotation Meter Model 6611 ...... Cat. #2121.90

Includes meter, (3) color-coded test leads (red, black, blue),

(3) alligator clips (black), soft carrying case and a user manual.

1.5.1 Accessories and Replacement Parts

Soft carrying case......................................................Cat. #2117.73

Set of (3) color-coded leads with

(3) black alligator clips CAT III 1000 V 10 A.............. Cat. #2121.55

Phase & Motor Rotation Meter Model 6611

2. PRODUCT FEATURES

2.1 Description

This three-in-one test tool is a must for any plant maintenance

sta󰀨 and will identify proper sequencing for three phase power

very quickly and easily.

This is also an ideal tool for measuring the proper rotation

of motors, conveyors, pumps and other electrical devices

interconnected on the power line system before installation.

NOTE: The Model 6611 does not require fusing because

the inputs are protected by a high impedance circuit

which limits the current to a safe value.

This meter provides the following functions:

determination of the direction of phase rotation

presence or absence of phase

determination of the direction of rotation of a motor

with or without connection

determination of the activation of a solenoid valve

without connection

Phase & Motor Rotation Meter Model 6611

2.2 Control Features

1Test Lead Input Terminals

2L1 Phase Indicator

3L2 Phase Indicator

4L3 Phase Indicator

5Clockwise Rotation Indicator

6Counterclockwise Rotation Indicator

7ON/OFF Indicator

8ON/OFF Button

9Back Label

10 Battery Compartment & Cover Screw
