WISE-4610 Startup Manual 1

Thank you for purchasing the WISE-4610 module. This

quick start guide is intended to help you with deploying the

module. It includes information on the power requirements

and application wiring. Should you require more instruc-

tions, please refer to the user manual.

The WISE-4610 has two pairs of external power inputs:

1. +Vs and -Vs (for line power or battery recharge)

2. Solar panel+ and solar panel- (for battery recharge)

Both power inputs support a standard industrial unregulated

24 VDC power supply. This series of modules also accept

+10 to +50 VDC power input and 200-mV peak-to-peak

power ripple. The immediate ripple voltage should be

between +10 and +50 VDC.

For modules with a lithium-ion battery, please note that the

operating temperature is 0~60°C (32~140°F). For safety

reasons, when the temperature is in the range of 45~60°C

(113~140°F), the battery can only be recharged to 20%.

• 1 x WISE-4610 wireless I/O module

• 1 x Waterproof antenna

• 1 x Mounting bracket

Note:

I/O board should be purchased respectively.

WISE-4610

Advanced Industrial LoRa/LoRaWAN IoT Wireless I/O

Module

Startup Manual

1. Download and install the USB driver from https://www.

silabs.com/products/development-tools/software/usb-to-

uart-bridge-vcp-drivers

2. Download and install WISE Studio from http://support.

advantech.com/

3. To power the module, connect a DC power source to

the +Vs and -Vs pins.

4. Connect the module to your computer via the micro-

USB port

5. Open WISE Utility and click Go To Serial Page.

6. Press Connect to link the WISE-4610 and you will then

seethewebcongurationpage.

7. UsewebcongurationinWISEUtilityorpressOpen in

Browsertoopenthewebcongurationinanybrowser

(Google Chrome is recommended).

8. Click Information to check whether your module has

successfully connected to a LoRa network. Once con-

nected,yourI/Omoduleisreadytobecongured.

Overview

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service:

http://support.advantech.com/

This startup manual is for WISE-4610 Series.

Part No. 2003461002

Printed in Taiwan

Edition 3

October 2020

Input Power Requirements

Packaging List

Battery Power

Quick Start for WISE-4610 Series

2 WISE-4610 Startup Manual

Pin Assignment of WISE-S600 I/O Module with M12 Connectors

M12

Connector

Model Name

M12 Cable WISE-S672 WISE-S614 WISE-S615 WISE-S617

Pin Number

PCB P/N 4-pin : 1700028162-01

8-pin : 1700028163-01 19A3DC7200-01 19A3DB1402-01 19A3DC1500-01 19A3DC1702-01

1 White DI 0 DI 0 RTD0+ AI 0+

2 Brown DI 1 DI 1 RTD0- AI 0-

3 Green DI 2 DI 2 RTD0 COM +12V Out0

4 Yellow DI 3 DI 3 NC +12V Out GND

5 Gray DI 4 NC RTD1+ AI 1+

6 Pink DI 5 NC RTD1- AI 1-

7 Blue NC NC RTD1 COM +12V Out1

8 Red DI COM DI COM NC +12V Out GND

1 White DATA0- AI 0+ RTD2+ DI 0

2 Brown DATA0+ AI 0- RTD2- DI 1

3 Green RS-232 TX AI 1+ RTD2 COM DI COM

4 Yellow RS-232 RX AI 1- NC DO 0

5 Gray DATA1- AI 2+ RTD3+ DO GND

6 Pink DATA1+ AI 2- RTD3- RS-485 D+

7 Blue NC AI 3+ RTD3 COM RS-485 D-

8 Red RS-232 GND AI 3- NC RS-485 GND

PWR

1 Brown +VS +VS +VS +VS

2 White -VS -VS -VS -VS

3 Blue SP+ SP+ SP+ SP+

4 Black NC SP- SP- SP-

Application Wiring

WISE-4610 Startup Manual 3

Application Wiring of WISE-S600 Series I/O Module with M12 Connectors

WISE-S614 (4AI/4DI)

WISE-S615 I/O Application Wiring

Solar Panel V-

Solar Panel V+

RTD

PT100 (385) : -200~+600°C

PT100 (392) : -200~+600°C

PT1000 : -40 ~+160°C

Pin Name Color of Cable

Wiring Pin Number Connector

RTD 0+ White 1

RTD 0- Brown 2

COM 0 Green 3

NC Yellow 4

RTD 1+ Gray 5

RTD 1- Pink 6

COM 1 Blue 7

NC Red 8

RTD 2+ White 1

RTD 2- Brown 2

COM 2 Green 3

NC Yellow 4

RTD 3+ Gray 5

RTD 3- Pink 6

COM 3 Blue 7

NC Red 8

+Vs Brown 1

PWR

-Vs White 2

Solar Panel V+ Blue 3

Solar Panel V- Black 4

Application Wiring (Cont.)

4 WISE-4610 Startup Manual

WISE-S617 (2AI/2DI/1DO/1RS-485)

WISE-S672 (6DI/1RS-485/1RS-485 or 1RS-232)

Application Wiring (Cont.)

WISE-4610 Startup Manual 5

Application Wiring of WISE-S600T Series I/O Module with Terminal Block

WISE-S614T (4AI/4DI)

WISE-S617T (2AI/2DI/1DO/1RS-485)

Application Wiring (Cont.)

6 WISE-4610 Startup Manual

• Please install the CP210x USB to UART Controller driver.

• USB is not able to power up the module, and please ensure to remove the USB cable before RF transmitting.

There are three ways to power up the WISE module, battery power, solar panel power and line power.

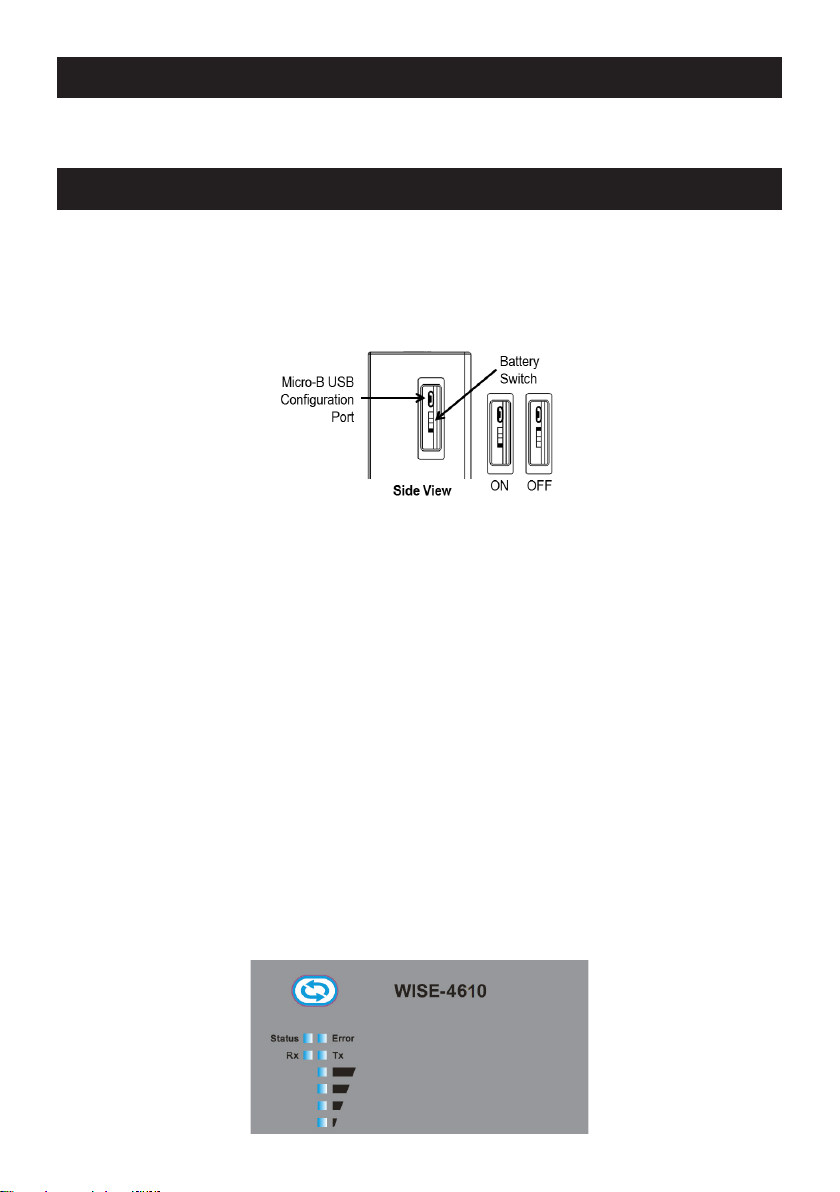

OpentherubbercoveronthesideoftheWISEmoduleandyoucanseeabatteryswitchforturningon/o󰀨thebatterypower.

For the solar power, it is not only to recharge the battery but also to power up the device.

Please refer to the application wiring section for solar panel power and line power pin assignment.

Also,thereisaUSBportforthedevicecongurationviaWISEStudiobutpleasenotethattheWISEdevicecannotbepow-

ered via USB.

Notes

Module Conguration

WISE-4610 Startup Manual 7

Led Indicators

The LED indicators are described as follows:

LED Color Indication Behavior

Status Green

Fast Blink

(0.2 sec ON,

0.3 sec OFF)

Wait for connecting or connecting

Slow Blink

(0.2 sec ON,

1.8 sec OFF)

Connecting and normal at work

Error Red

Fast Blink

(0.2 sec ON,

0.8 sec OFF)

Application errors

• Network registration timeout

• I/O error

Slow Blink

(0.2 sec ON,

2.8 sec OFF)

• Low battery voltage (V <= 20%)

• Low RTC battery voltage

O󰀨 No error

RF RX Green

On Receiving data from Gateway

O󰀨 NA

RF TX Yellow

On Sending data to Gateway

O󰀨 NA

Signal Strength*4 Green On

(after pressing membrane button)

Main battery capacity

• All OFF – V <= 20 %

• 1 ON – 20% < V < 40%

• 2 ON – 40% <= V < 60%

• 3 ON – 60% <= V < 80%

• 4 ON – V >= 80%
