Advantech EWM-W179M201E Manual de usuario

EWM-W179M201E

User manual

Applicability Type

AIW PN

MPN

Description

EWM-W179M201E

WNFT-

238AX(BT)

802.11ax/ac/b/g/n M.2 2230 Key A/E solution based

on RTL8852BE chipset

Revision History

Version

Owner

Date

Description

V1.0

Joejohn.Chen

2023-04-20

First issue

V1.1

Joejohn.Chen

2023-06-12

Add Linux /Android Support

Product Introduction

Item

Description

Standard

IEEE 802.11ax/ac/a/b/g/n (2T2R)

Bluetooth V5.0, 4.2, V4.1, V4.0LE, V3.0, V2.1+EDR

Chipset solution

Realtek RTL8852BE

Data Rate

802.11b: 11Mbps

802.11a/g: 54Mbps

802.11n: MCS0~15

802.11ac: MCS0~9

802.11ax: HE0~11

Bluetooth: 1 Mbps, 2Mbps and Up to 3Mbps

Operating Frequency

IEEE 802.11ax/ac/a/b/g/n

ISM Band, 2.412GHz~2.484GHz, 5.150GHz~5.850GHz

*Subject to local regulations

Interface

WLAN: PCIe

Bluetooth: USB

Form Factor

M.2 2230-S3-A-E Key

Antenna

2 x IPEX MHF4 connectors, Support WLAN/BT co-existence

Main: WLAN

Aux: WLAN / BT

Modulation

Wi-Fi:

802.11b: DSSS (DBPSK, DQPSK, CCK)

802.11g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)

802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)

Item

Description

Modulation

802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)

802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-

QAM)

802.11ax: OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-

QAM, 1024-QAM)

BT:

Header: GFSK

Payload 2M: π/4-DQPSK

Payload 3M: 8-DPSK

Power Consumption

TX mode: 860 mA (Max)

RX mode: 450 mA

Operating Voltage

DC 3.3V

Operating

Temperature Range

0°C~70°C

Storage Temperature

Range

-40°C~85°C

Humidity

5%~90% (Operating)

(Non-Condensing)

5%~90% (Storing)

Dimension L x W x H

(in mm)

30mm(±0.15mm) x 22mm(±0.15mm) x 2.24mm(±0.3mm)

Weight (g)

2.5g

OS Support

Windows/Linux/Android

Security

64/128-bits WEP, WPA, WPA2, WPA3, 802.1x

Table 1-1 Product Introduction

Note: For details of OS support, please contact AIW team for further assistance.

Output Power & Sensitivity

2.1 Wi-Fi

802.11b

Data Rate

Tx ± 2dBm

Rx Sensitivity

11Mbps

19dBm

≦-76dBm

802.11g

Data Rate

Tx ± 2dBm

Rx Sensitivity

54Mbps

18dBm

≦-65dBm

802.11n / 2.4GHz

HT20

Data Rate

Tx ± 2dBm

(1TX)

Tx ± 2dBm

(2TX)

Rx Sensitivity

MCS7

17dBm

20dBm

≦-61dBm

HT40

MCS7

17dBm

20dBm

≦-61dBm

802.11a

Data Rate

Tx ± 2dBm

Rx Sensitivity

54Mbps

18dBm

≦-65dBm

802.11n / 5GHz

HT20

Data Rate

Tx ± 2dBm

(1TX)

Tx ± 2dBm

(2TX)

Rx Sensitivity

MCS7

17dBm

20dBm

≦-61dBm

HT40

MCS7

17dBm

20dBm

≦-61dBm

802.11ac

VHT80

Data Rate

Tx ± 2dBm

(1TX)

Tx ± 2dBm

(2TX)

Rx Sensitivity

MCS9

15dBm

18dBm

≦-51dBm

802.11ax / 2.4 GHz

HE40

Data Rate

Tx ± 2dBm

(1TX)

Tx ± 2dBm

(2TX)

Rx Sensitivity

MCS11

13dBm

16dBm

≦-49dBm

802.11ax / 5 GHz

HE20

Data Rate

Tx ± 2dBm

(1TX)

Tx ± 2dBm

(2TX)

Rx Sensitivity

HE11

13dBm

16dBm

≦-52dBm

HE40

HE11

13dBm

16dBm

≦-49dBm

HE80

HE11

13dBm

16dBm

≦-46dBm

2.2 Bluetooth

Bluetooth

Data Rate

Tx ± 2dBm (Class 1 Device)

Rx Sensitivity

3Mbps

0≦ Output Power ≦+6dBm

<0.1% BR, BER at -70dBm

Hardware Specification

3.1 Mechanical Dimension

Dimension (L x W x H): 30 mm (Tolerance:±0.15mm) x 22 mm (Tolerance:±0.15mm) x 2.24

mm (Tolerance:±0.3mm)

Figure 3-1: Hardware Dimension

3.2 MHF4 connector spec

Figure 3-2: MHF4 connector spec

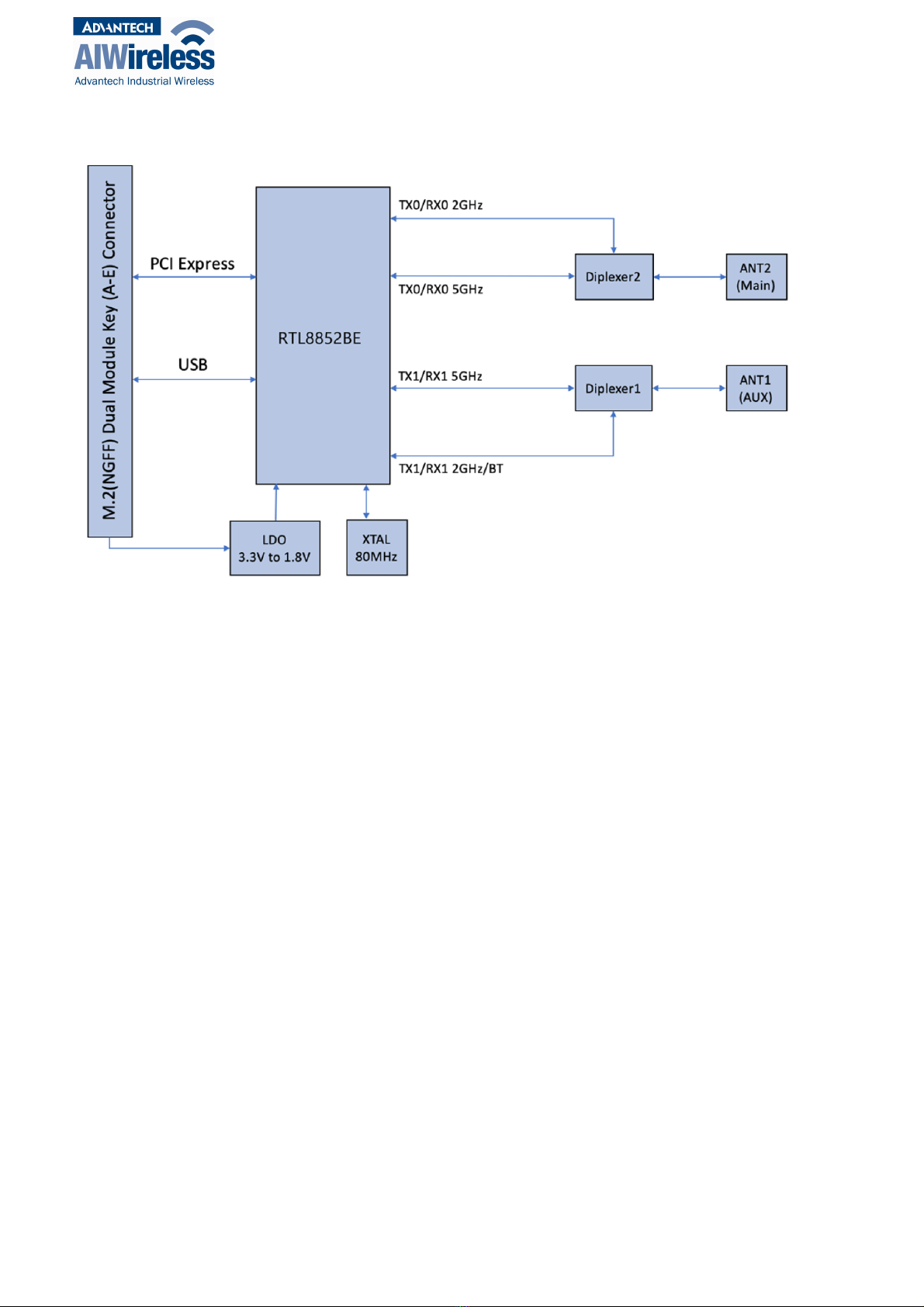

3.3 Block Diagram

Figure 3-3: Block Diagram
