Advantech PCM-3664 Manual de instalación y operación

PCM-3664 Startup Manual 1

PCM-3664 PC/104 Jumperless 10Base-T

Ethernet Module

PCM-3664 PC/104 Jumperless 10Base-T Ethernet Module

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/epc

For technical support and service, please visit our support

website at:

http://www.advantech.com/support

This manual is for the PCM-3664 series Rev.A1

Part No.2006366410 1st Edition

Printed in Taiwan Dec. 2000

Startup Manual

The PCM-3664 is a high performance 16-bit jumperless

Ethernet interface module that attaches to the PC/104

connector on your CPU card or PC/104 CPU module.The

module automatically senses whether it is connected to an

8-bit or 16-bit PC/104 system.The PCM-3664 fully complies

with IEEE 802.3 10 Mbps CSMA/CD standards and is 100%

Novell NE2000 compatible.

The modlule includes a built-in 10Base-T transceiver and

RJ-45 connector.An onboard BNC connector supports

10Base-2.Two diagnostic LEDs indicate the operating

status of the module and the network.

The 5 V 10Base-2 transceiver supports IEEE 802.3,

allowing connections of up to 185 m with this coaxial cable.

The PCM-3664 comes with drivers for a wide variety of

networks and operating systems.An optional boot ROM lets

you remotely boot a PC/104 station automatically from a

server, making hard or floppy disks unnecessary.

PCM-3664 PC/104 Ethernet module

• Conforms to IEEE 802.3 Ethernet standards, CSMA/

CD protocol for 10 Mbps data transfer

• Hardware and software compatible with Novell

NE2000 adaptor

• Automatically detects 8-bit and 16-bit data bus

• Remote boot ROM socket for diskless operation

• Built-in 10Base-T transceiver for unshielded twisted

pair cabling up to 100 m

• Two diagnostic LEDs indicate network status

• Onboard 32 K memory for high-performance

multipackage buffer

• Software drivers for most popular network

environments

Onboard BNC LAN Connector

• Conforms to IEEE 802.3 10Base-2 standard

• Supports up to 185 m connections on RG-58 thin

coaxial cable

Hardware

•PC/104 form-factor: 90 x 96 mm (3.6" x 3.8")

•I/O address: 200, 220, 240, 260, 280, 2A0, 2C0,

300,320, 340, 380 or 3A0

•Interrupt levels: IRQ3, 4, 5, 9, 10, 11, 12 or 15

•Boot ROM address: C0000, C8000, D0000 or

D8000H

•Data bus: 8-bit or 16-bit, auto-sensing

•Connectors: 16-bit PC/104 stackthrough connector

RJ45 connector for 10Base-T, BNC connector for

10Base-2

Software drivers support

• Lantasti 4.x/5.x driver

• NDIS 2.x driver

• Packet driver

• SCO UNIX driver

Introduction

Packing List

Before you begin installing your card, please make sure that

the following materials have been shipped:

• 1 PCM-3664 PC/104 Ethernet module

• 1 Start-up manual

• CD-ROM or Disks for utility, drivers, and manual (in PDF

format)

If any of these items are missing or damaged, contact your

distributor or sales representative immediately.

Note 1: For detailed contents of the PCM-3664, please

refer to the enclosed CD-ROM or disk (in PDF

format).

Note 2: Acrobat Reader is required to view any PDF file.

Acrobat Reader can be downloaded at:

www.adobe.com/Prodindex/acrobat/

readstep.html

(Acrobat is a trademark of Adobe.)

Features

Specifications

2PCM-3664 Startup Manual

Locating components

Initial Network test

This test verifies that the network cable is connected and

the adaptor can transmit and receive data.

The test requires two computers.One computer,

configured as the Master, generates and sends test

messages.The other computer, configured as the Slave,

received messages and transmits them back to the master.

Results can be viewed on both the Master and Slave

computers.A screen menu provides you with the

instructions needed to conduct the test.

Note: Run the card initialization and Test before running

the Advanced Network Test to ensure the adaptor's basic

functions are working properly.

Software configuration for PCM-3664

The PCM-3664 module is supplied with a software utility

disk.This disk contains files necessary for setting up the

ethernet controller.Directories and files on the disk are as

follows:

README.txt

NET(DIR) 1.RSET8019.EXE

2.PG8019.EXE

3.8019AS.CFG

ETHERNET DRIVERS

1. RSET8019.EXE

This program enables you to view the current Ethernet

configuration, reconfigure the ethernet interface (medium

type, etc.) and execute useful diagnostic functions.

2. PG8019.EXE

The PCM-3664 is initially set up at the factory using this

program.When you receive your card, use RSET8019.EXE

to configure it for the working environment.If by chance the

EPROM becomes corrupted, the PG8019.EXE program

allows you to configure the card.

3. 8019AS.CFG

When you run PG8019.EXE, it will read the configuration

parameters stored in this file.

Ethernet Interface configuration

The PCM-3664 onboard ethernet interface supports all

major network operating systems.I/O address and

interrupts are easily configured via the RSET8019.EXE

program included on the utility disk.

The RSET8019.EXE program provides two ways to

configure the Ethernet interface. Configuration can be done

automatically when you choose PNP (Plug and Play).When

you choose jumperless configuration, the following IRQ and

I/O address setttings are available.

Table 1-1 PCM-3664 Ethernet settings

IRQ option I/O address range

Jumperless3,4,5,9,10,11,12,15 200-3FFH

Configuration

*Default Settings: IRQ=5, Address=300H

• Netware ODI driver

• NDIS 3.0 miniport driver for Windows NT 3.1, Windows

NT 3.5 and Windows 95, NDIS 4.0 miniport driver for

Windows 98

• OS2 driver

• Netware server driver

Standards

• PC/104 8-bit and 16-bit compatible

• Built-in IEEE 802.3 10 Mbps CSMA/CD 10Base-T,

10Base-2

General

•Power: +5V 400 mA max.

•Temperature: 0 to 70° C (operating)

-15 to 80° C (storage)

•Humidity: 10 to 90 % (operating)

-15 to 90 % (storage)

Onboard BNC LAN connector

•Standard: IEEE 802.3 10Base-2 medium

• BNC connector for T-connection to 10Base-2 thin cable

Installation

•

JP2

RJ45 LAN

connector

BNC LAN

connector

•

Side Diag

LED

Boot ROM

(optional)

•

JP1

•

PCM-3664 Startup Manual 3

Note:

1.You can select an IRQ from the

options shown in table 1.1, but be certain that

your selection does not conflict with other I/O

devices.

2. When Boot ROM is installed, the

RSET8019.EXE program does not support

PNP mode configuration.

To execute the configuration, to view the current

configuration, or to run diagnostics, do the following:

1. Power the PCM-3664 on.Ensure that the

RSET8019.EXE file is located in the working directory.

2. At the prompt, type RSET8019.EXE and press

<ENTER>.The ethernet configuration program will then be

displayed.

3. A simple screen displays the available options for the

ethernet interface.Highlight the option you wish to change

using the up and down keys.To change a selected item,

press <ENTER>, and a window will appear with the

available options.Highlight your selection and press

<ENTER>. Each highlighted option has a helpful message

guide displayed at the bottom of the screen for additional

information.

4. After you have made your selections and you are sure

that this is the confiruration you want, press <ESC>.A

prompt will appear asking if you want to save the

configuration.PressY if you want to save.

The Ethernet Setup Menu also offers three very useful

diagnostic functions, which include:

1. Run EEPROM test.

2. Run diagnostics on board.

3. Run diagnostics on Network.

Each option has its own display screen which shows the

format and result of any diagnostic tests undertaken.

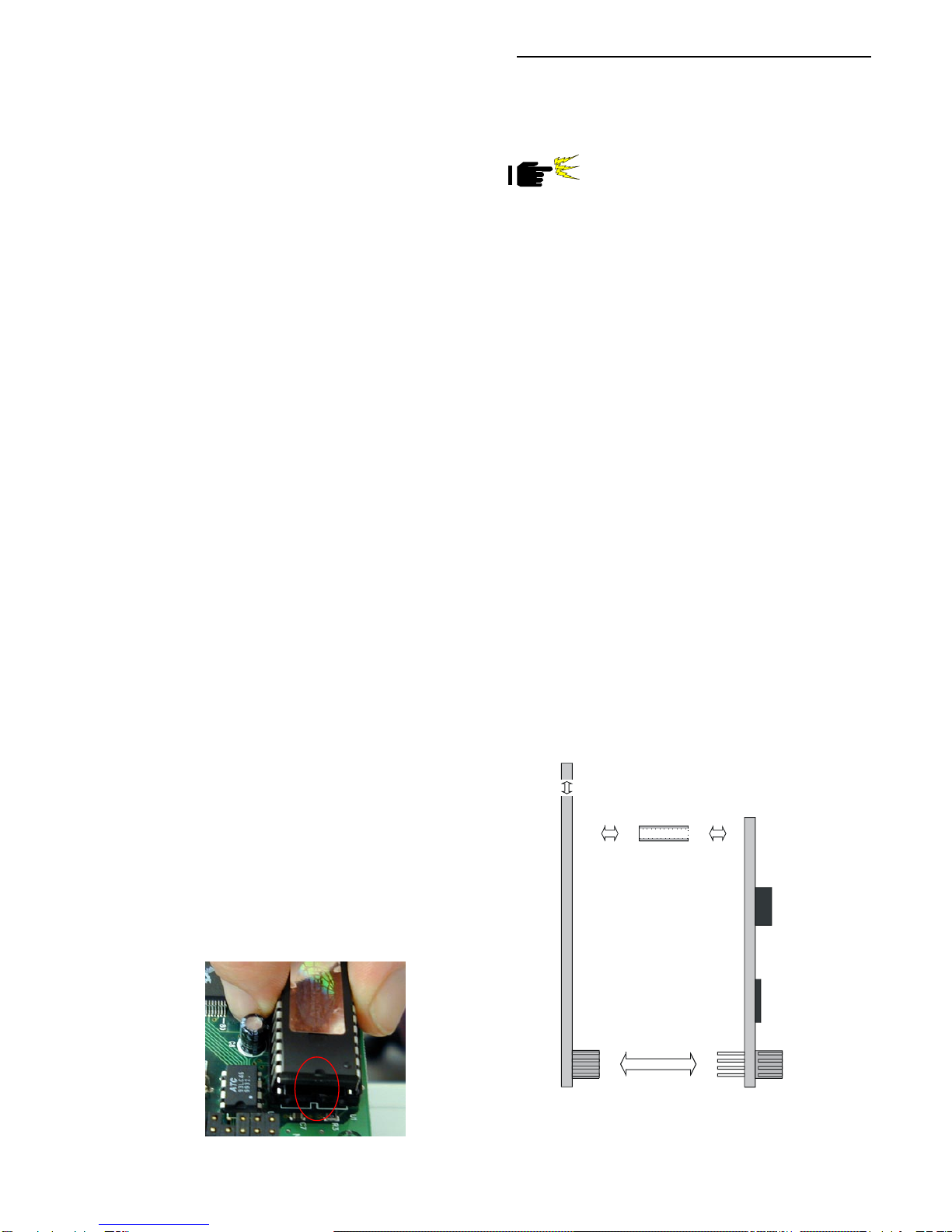

Remote boot ROM

A boot ROM allows you to boot the workstation directly

from the server, avoiding the need for local hard or floppy

disks.Install the boot ROM as shown below. Make sure that

you align the notch on the ROM chip with the notch on the

socket.

Hardware Installation

The following instructions tell how to install the PCM-3664

module on a CPU card.The process is similar with PC/104

CPU modules.Make sure you have properly configured the

module's jumpers and attached a boot ROM if necessary.

Warning! Turn Off your PC power supply

whenever you install or remove the PCM-3664

or connect or disconnect cables.

1. Turn the PC's power off.Turn the power off to any

peripheral devices such as printers and monitors.

2. Disconnect the power cord and any other cables from the

back of the computer.

3. Remove the system unit cover (see users' guide for your

chassis if necessary).

4. Remove the CPU card from the chassis (if necessary) to

gain access to the card's PC/104 connector.

5. Screw the brass spacer (included with the module) into

the threaded hole on the CPU card. Do not tighten too

much, or threads could be damaged.

6. Carefully align the connector pins of the PCM-3664 with

the PC/104 connecotr.Slide the module into the connector.

The module pins may not slide all the way into the

connector;do not push to hard or the module could be

damaged.If the CPU card has only an 8-bit bus, make sure

the pins on the 16-bit bus connector do not touch anything.

7. Secure the module to the CPU card to the threaded hole

in the CPU card using the included screw.

8. Reinstall the CPU card and replace the system unit

cover. Reconnect the cables you removed in step 2.Turn

the power on.

This completes the hardware installation.Install the

software drivers according to the instructions for your

operating system.

M-

Female

PC/104

Mounting Support

Male

PC/104 module

Be sure to align marks correctly

4PCM-3664 Startup Manual

Ethernet connection specifications

The following table shows the network specifications for

each ethernet

tenrehtE

epyt

ataD

refsnarT

etar

ygolopoTepytelbaC tnemgeS

htgnel

2-esaB01spbM01suB tenrehtemho05

)85-GR(niht

706(m581

xam).tf

T-esaB01spbM01suB

mho001

dedleihsnu

riapdetsiwt

823(m001

xam).tf

Pin Assignments

Setting for PNP mode

Setting for Jumperless mode

RJ-45 connector

Pin Signal Description

1 TD+ Output transmit data (+)

2 TD- Output transmit data (-)

3 RD+ Input receive data (+)

4 Not connected

5 Not connected

6 RD- Input receive data (-)

7 Not connected

8 Not connected

LED indicators

LED on Flashing off

LED(upper)- traffic No traffic

LED(lower) Link OK - Link failure

123456

03PNP JP

ROM

JP2 1

123456

03PNP JP

ROM

JP2 1

123456

JP1 1

I/O

IRQ

sgnitteSQRI:1PJ

#niP1PJ 1234567

9/2QRI 000

3QRI 001

4QRI O/IdragersiD011

5QRI 011

*01QRI 100

11QRI 10 1

21QRI 110

51QRI 111

sgnitteSsserddAO/I:1PJ

#niP1PJ 1234567

*H003 0000

H023 0001

H0430010

H0630011

H083 1000

H0A31001

H0C31010

H0E31011QRI

H0020100

H0220101

H0420110

H062 0111

H0821100

H0A21101

H0C2 1110

H0E2 1111

*Default settings

JP1 I/O and IRQ Address Select

RJ-45 Jack

Otros manuales de Unidad de control de Advantech

Advantech

Advantech ADAM-6217 Manual de usuario

Advantech

Advantech AMAX-3285IO Manual de instalación y operación

Advantech

Advantech WISE-4671 Manual de instalación y operación

Advantech

Advantech Network Device USB-4761 Manual de instalación y operación

Advantech

Advantech PCM-3910 Manual de instalación y operación

Advantech

Advantech WISE-4610 Series Manual de instalación y operación

Advantech

Advantech PCM-3380 Manual de instalación y operación

Advantech

Advantech Network Device USB-4761 Manual de instalación y operación

Advantech

Advantech WISE-1540 Manual de usuario

Advantech

Advantech ADAM-3017 Manual de instalación y operación

Advantech

Advantech SOM-6898 Manual de usuario

Advantech

Advantech Adam 4000 Series Manual de usuario

Advantech

Advantech PCM-3117 Manual de instalación y operación

Advantech

Advantech PCL-832 Manual de usuario

Advantech

Advantech iDAQ-817 Manual de usuario

Advantech

Advantech PCL-812PG Manual de usuario

Advantech

Advantech ADAM-5000 Series Manual de usuario

Advantech

Advantech ADAM-3016 Manual de usuario

Advantech

Advantech IPMI-2000 Manual de instalación y operación

Advantech

Advantech PCM-261 Manual de instalación y operación

Advantech

Advantech PCM-2610B Manual de instalación y operación

Advantech

Advantech B+B SmartWorx iMcV-Giga-MediaLinX TX/SFP Manual de usuario

Advantech

Advantech MIC-75G30 Manual de instalación y operación

Advantech

Advantech WISE-1510 Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
