Advantech AMAX-175 Series Manual de usuario

User Manual

AMAX-175x Series

Open Frame Type 32-ch AMONet

RS-485 Isolated Digital I/O Slave

Modules

AMAX-175x Series User Manual ii

The documentation and the software included with this product are copyrighted 2013

by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right

to make improvements in the products described in this manual at any time without

notice. No part of this manual may be reproduced, copied, translated or transmitted

in any form or by any means without the prior written permission of Advantech Co.,

Ltd. Information provided in this manual is intended to be accurate and reliable. How-

ever, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringe-

ments of the rights of third parties, which may result from its use.

Acknowledgements

AMONet, AMAX-1752, AMAX-1754 and AMAX-1756 are trademarks of Advantech

Inc.

Intel and Pentium are trademarks of Intel Corporation.

Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.

All other product names or trademarks are properties of their respective owners.

Product Warranty (2 years)

Advantech warrants to you, the original purchaser, that each of its products will be

free from defects in materials and workmanship for two years from the date of pur-

chase.

This warranty does not apply to any products which have been repaired or altered by

persons other than repair personnel authorized by Advantech, or which have been

subject to misuse, abuse, accident or improper installation. Advantech assumes no

liability under the terms of this warranty as a consequence of such events.

Because of Advantech’s high quality-control standards and rigorous testing, most of

our customers never need to use our repair service. If an Advantech product is defec-

tive, it will be repaired or replaced at no charge during the warranty period. For out-

of-warranty repairs, you will be billed according to the cost of replacement materials,

service time and freight. Please consult your dealer for more details.

If you think you have a defective product, follow these steps:

1. Collect all the information about the problem encountered. (For example, CPU

speed, Advantech products used, other hardware and software used, etc.) Note

anything abnormal and list any onscreen messages you get when the problem

occurs.

2. Call your dealer and describe the problem. Please have your manual, product,

and any helpful information readily available.

3. If your product is diagnosed as defective, obtain an RMA (return merchandize

authorization) number from your dealer. This allows us to process your return

more quickly.

4. Carefully pack the defective product, a fully-completed Repair and Replacement

Order Card and a photocopy proof of purchase date (such as your sales receipt)

in a shippable container. A product returned without proof of the purchase date

is not eligible for warranty service.

5. Write the RMA number visibly on the outside of the package and ship it prepaid

to your dealer.

Part No. 2003A17501 Edition 2

Printed in Taiwan November 2013

iii AMAX-175x Series User Manual

Declaration of Conformity

This product has passed the CE test for environmental specifications when shielded

cables are used for external wiring. We recommend the use of shielded cables. This

kind of cable is available from Advantech. Please contact your local supplier for

ordering information.

Technical Support and Assistance

1. Visit the Advantech web site at www.advantech.com/support where you can find

the latest information about the product.

2. Contact your distributor, sales representative, or Advantech's customer service

center for technical support if you need additional assistance. Please have the

following information ready before you call:

–Product name and serial number

–Description of your peripheral attachments

–Description of your software (operating system, version, application software,

etc.)

–A complete description of the problem

–The exact wording of any error messages

Packing List

Before setting up the system, check that the items listed below are included and in

good condition. If any item does not accord with the table, please contact your dealer

immediately.

The package should also include the following items:

AMAX-175x Series Slave Module

Quick Start User Manual

AMAX-175x Series User Manual iv

v AMAX-175x Series User Manual

Contents

Chapter 1 Introduction..........................................1

1.1 Features .................................................................................................... 2

1.2 Specifications ............................................................................................ 2

1.2.1 General ......................................................................................... 2

1.2.2 Isolated Digital Input ..................................................................... 3

1.2.3 Isolated Digital Output................................................................... 3

1.2.4 Environment.................................................................................. 3

1.3 Distributed Motion Product Selection Guide ............................................. 4

Chapter 2 Hardware Functionality.......................5

Figure 2.1 AMAX-1752 Top View ................................................ 6

Figure 2.2 AMAX-1754 Top View ................................................ 7

Figure 2.3 AMAX-1756 Top View ................................................ 8

Figure 2.4 AMAX-175x Middle View ............................................ 8

2.1 Module Power Connector(CN1) ................................................................ 9

2.2 External Power Input Connector(CN2)...................................................... 9

2.3 External Power Output Connector(CN3)................................................... 9

2.4 Board ID Switch (SW1) ........................................................................... 10

2.5 Configuration Setting (SW2) ................................................................... 10

2.5.1 Baud-Rate Setting....................................................................... 10

2.5.2 TUD............................................................................................. 10

2.5.3 TMD ............................................................................................ 11

2.6 Terminal Resistor .................................................................................... 11

2.7 LED Definition ......................................................................................... 11

2.7.1 AMAX-1752................................................................................. 12

2.7.2 AMAX-1754................................................................................. 12

2.7.3 AMAX-1756................................................................................. 12

2.8 Pin Definitions ......................................................................................... 13

2.8.1 AMAX-1752 (32 DI)..................................................................... 13

2.8.2 AMAX-1754 (32 DO)................................................................... 13

2.8.3 AMAX-1756 (16 DI 16DO) .......................................................... 14

2.9 Signal Connection ................................................................................... 15

2.9.1 Isolated Digital Output................................................................. 15

2.9.2 Isolated Digital Input ................................................................... 15

AMAX-175x Series User Manual vi

Chapter 1

1Introduction

This chapter gives an overview of

the product features, and specifi-

cations for AMAX-175x Series.

Sections include:

Features

Specifications

Distributed Motion Product

Selection Guide

AMAX-175x Series User Manual 2

Products in the AMAX-175x Series are used to increase the number of digital input/

output channels for an AMONet RS-485 distributed motion control network. These

extension slave modules connect serially by a simple and affordable Cat.5 LAN

cable, reducing the wiring between driver and controller. This is very suitable for

highly integrated machine automation applications.

1.1 Features

Communication baud rate, 2.5Mbps, 5Mbps, 10Mbps and 20Mbps are sup-

ported and switchable

Onboard screw terminal for direct wiring

2,500 VRMS Isolation voltage

Suitable for DIN-rail mounting

Board ID is switchable

Easily visible LED indicators on board to do diagnosis

1.2 Specifications

1.2.1 General

BUS TYPE AMONet RS-485

Certifications CE, FCC Class A

Connectors (1) RJ-45 x 2 are for communication port

(2) I/O points use screw terminal type connector

LED Indicators Power, Run, Status, Isolated Digital I/O

Power Consumption 600mW typical, 2 W Max.

Power Supply for

Module VS: 24 Vdc ±10%

Power Supply for

Digital Input/Output VEX: 10-30 Vdc

3 AMAX-175x Series User Manual

Chapter 1 Introduction

1.2.2 Isolated Digital Input

*NOTE: △V=| IDICOMx - IDIx |. For pin assignment definition, please refer to 2.8.1 to

2.8.3 for details. For signal connection, please refer to 2.9.

1.2.3 Isolated Digital Output

1.2.4 Environment

Channels AMAX-1752: 32 DI

AMAX-1756: 16 DI

Input type Dry contact

Input voltage △V *= 0~3V(Low Level) / 10~30V(High Level) (30VDC Max.)

Input resistance 3.2K

Input current 2mA Min.

Input delay 100us Max. (Isolation delay)

Input Isolation 2500Vdc

Channels AMAX-1754: 32 DO

AMAX-1756: 16 DO

Output type Sink(NPN) (open collector Darlington)

Output control voltage 35Vdc Max.

Output sink current 400mA Max. (for each channel)

Output delay 250us Max. (photo coupler delay)

Output Isolation 2500Vdc

Operating Humidity 5 ~ 95% RH, non-condensing (refer to IEC 60068-2-3)

Operating Temperature 0 ~ 65° C (refer to IEC 60068-2-1,2) (32 ~ 149° F)

Storage Temperature -25 ~ 85° C (-13 ~ 185° F))

AMAX-175x Series User Manual 4

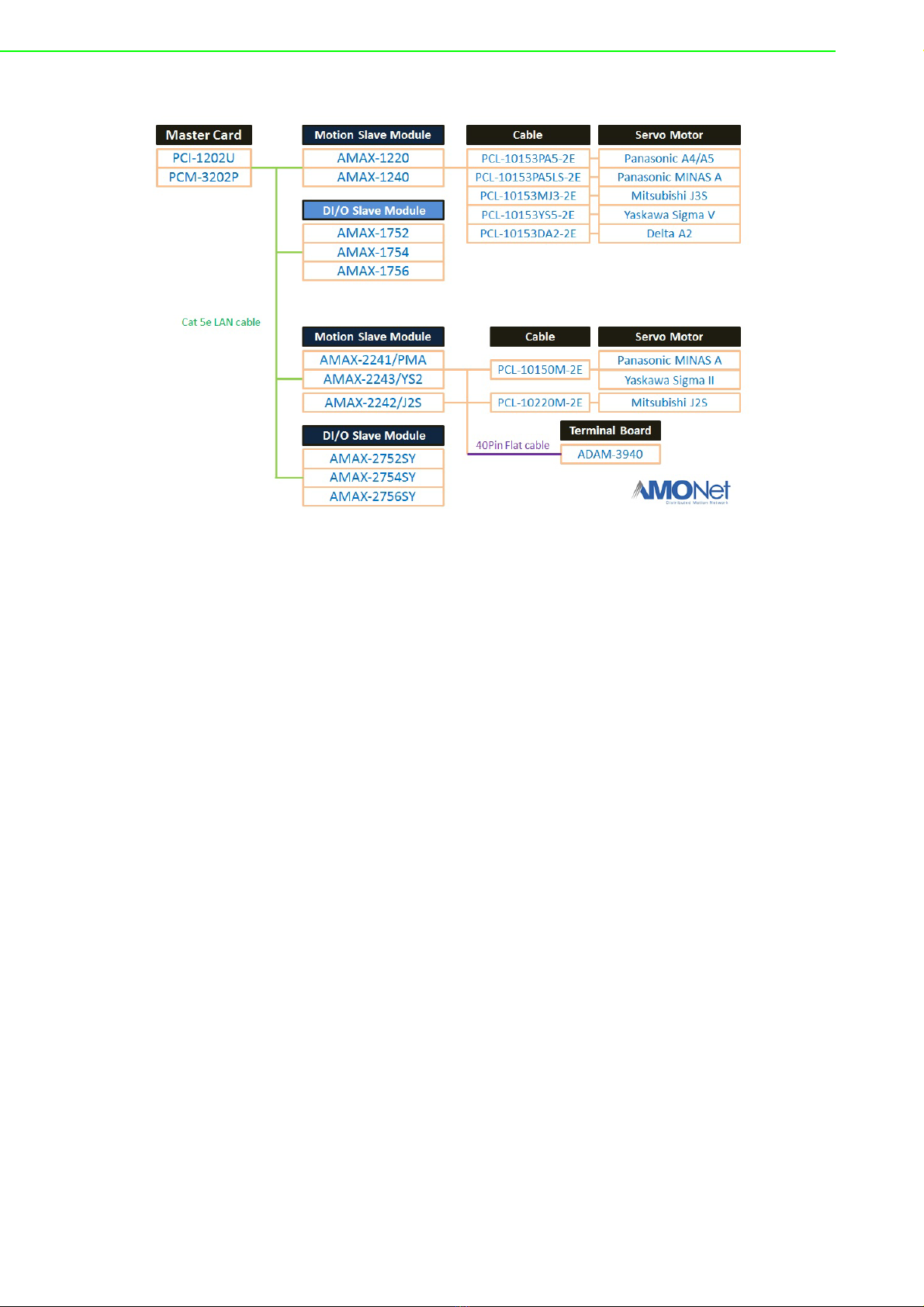

1.3 Distributed Motion Product Selection Guide
